ATE Original-2-teilige Bremstrommel (24021850021) für Fiat
98,01 €
(inkl. MwSt.)
81,00 € Steuerexzl.
Teilenummer:
ATE 24.0218-5002.1
(240218-50021)

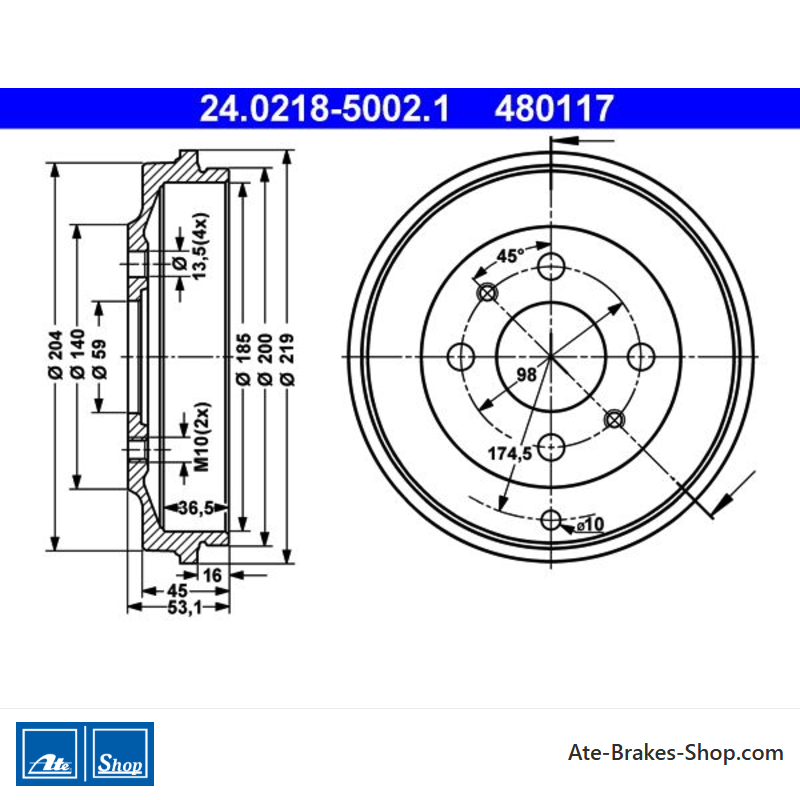

- Außendurchmesser [mm]: 219,0
- Innendurchmesser [mm]: 185,0
- Trägerplattendurchmesser [mm]: 59,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile der Bremstrommel
- Handelsnummer: 480117
- Ean-Code: 4006633038461
- Gewicht: 7.38kg
Specification of ATE 24.0218-5002.1 / 240218-50021 / 24021850021:
| OE Number | Reference info |
| FIAT 98601861 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 46448407 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 5923606 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FIAT CINQUECENTO (170_) Construction Year from 199411 Fitting Position Rear Axle | 1994-10 - 1998-01 | 40 | 54 | 1108 | Hatchback |
| FIAT SEICENTO / 600 (187_) Construction Year from 199804 Construction Year to 200803 Fitting Position Rear Axle | 1997-11 - 2008-12 | 29 | 39 | 899 | Hatchback |
| FIAT SEICENTO / 600 (187_) Construction Year from 199804 Construction Year to 200803 Fitting Position Rear Axle | 1998-01 - 2010-01 | 40 | 54 | 1108 | Hatchback |
24.0218-5002.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Fiat
- Handelsnummer
- 480117
- Herkunftsland
- China
- Höhe
- 53,1
- Außendurchmesser [mm]
- 219,0
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 98,0
- Trägerplattendurchmesser [mm]
- 59,0
- Innendurchmesser [mm]
- 185,0
- Bohrdurchmesser [mm]
- 13,5
- Max. Bohrende Dimension [mm]
- 186,8
- Innenhöhe der Bremstrommel [mm]
- 36,5
Spezifische Referenzen
- ean13
- 4006633038461
- Hersteller-Teilenummer (MPN)
- 2402185002102
ATE 24.0218-5002.1
(240218-50021)
- Außendurchmesser [mm]: 219,0
- Innendurchmesser [mm]: 185,0
- Trägerplattendurchmesser [mm]: 59,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile der Bremstrommel
- Handelsnummer: 480117
