ATE Original-2-teilige Bremstrommel (24022000121) für Opel
105,27 €
(inkl. MwSt.)
87,00 € Steuerexzl.
Teilenummer:
ATE 24.0220-0012.1
(240220-00121)
- Außendurchmesser [mm]: 228,0
- Innendurchmesser [mm]: 200,0
- Trägerplattendurchmesser [mm]: 50,3
- Anzahl der Bolzenlöcher: 4
- 2 Teile der Bremstrommel
- Handelsnummer: 480017
- Ean-Code: 4006633106375
- Gewicht: 9.02kg
Specification of ATE 24.0220-0012.1 / 240220-00121 / 24022000121:
| OE Number | Reference info |
| OPEL 90007526 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 4 18 117 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 418117 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 4 18 117 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 418117 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 90007526 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| OPEL CORSA A TR (S83) Fitting Position Rear Axle | 1982-09 - 1992-09 | 33 | 45 | 993 | Saloon |
| OPEL CORSA A TR (S83) Fitting Position Rear Axle | 1985-01 - 1987-10 | 33 | 45 | 1196 | Saloon |
| OPEL CORSA A TR (S83) Construction Year to 199210 Fitting Position Rear Axle | 1989-09 - 1993-03 | 33 | 45 | 1195 | Saloon |
| OPEL CORSA A TR (S83) Construction Year to 199210 Fitting Position Rear Axle | 1982-09 - 1993-03 | 40 | 55 | 1196 | Saloon |
| OPEL CORSA A TR (S83) Fitting Position Rear Axle | 1982-09 - 1987-10 | 43 | 58 | 1196 | Saloon |
| OPEL CORSA A TR (S83) Fitting Position Rear Axle | 1985-09 - 1987-10 | 44 | 60 | 1297 | Saloon |
| OPEL CORSA A TR (S83) Fitting Position Rear Axle | 1982-09 - 1987-10 | 51 | 70 | 1297 | Saloon |
| OPEL CORSA A TR (S83) Construction Year to 199210 Fitting Position Rear Axle | 1989-10 - 1993-03 | 44 | 60 | 1389 | Saloon |
| OPEL CORSA A TR (S83) Construction Year to 199210 Fitting Position Rear Axle | 1987-10 - 1992-11 | 37 | 50 | 1488 | Saloon |
| OPEL CORSA A TR (S83) Construction Year from 198803 Construction Year to 199210 Fitting Position Rear Axle | 1987-10 - 1993-03 | 49 | 67 | 1488 | Saloon |
| OPEL CORSA A Hatchback (S83) Construction Year to 199210 Fitting Position Rear Axle | 1982-09 - 1993-03 | 33 | 45 | 993 | Hatchback |
| OPEL CORSA A Hatchback (S83) Fitting Position Rear Axle | 1982-09 - 1990-08 | 33 | 45 | 1196 | Hatchback |
| OPEL CORSA A Hatchback (S83) Construction Year to 199210 Fitting Position Rear Axle | 1989-09 - 1993-03 | 33 | 45 | 1195 | Hatchback |
| OPEL CORSA A Hatchback (S83) Construction Year to 199210 Fitting Position Rear Axle | 1990-01 - 1993-03 | 38 | 52 | 1196 | Hatchback |
| OPEL CORSA A Hatchback (S83) Fitting Position Rear Axle | 1982-09 - 1990-02 | 40 | 55 | 1196 | Hatchback |
| OPEL CORSA A Hatchback (S83) Fitting Position Rear Axle | 1982-09 - 1990-08 | 44 | 60 | 1196 | Hatchback |
| OPEL CORSA A Hatchback (S83) Fitting Position Rear Axle | 1985-09 - 1989-10 | 44 | 60 | 1297 | Hatchback |
| OPEL CORSA A Hatchback (S83) Fitting Position Rear Axle | 1986-09 - 1990-09 | 44 | 60 | 1297 | Hatchback |
| OPEL CORSA A Hatchback (S83) Fitting Position Rear Axle | 1982-09 - 1989-10 | 51 | 70 | 1297 | Hatchback |
| OPEL CORSA A Hatchback (S83) Construction Year to 199210 Fitting Position Rear Axle | 1990-01 - 1993-03 | 44 | 60 | 1389 | Hatchback |
| OPEL CORSA A Hatchback (S83) Construction Year to 199210 Fitting Position Rear Axle | 1989-09 - 1993-03 | 72 | 98 | 1598 | Hatchback |
| OPEL CORSA A Hatchback (S83) Fitting Position Rear Axle | 1988-05 - 1992-03 | 74 | 100 | 1598 | Hatchback |
| OPEL CORSA A Hatchback (S83) Construction Year to 199210 Fitting Position Rear Axle | 1992-02 - 1993-03 | 74 | 101 | 1598 | Hatchback |
| OPEL CORSA A Hatchback (S83) Construction Year to 199210 Fitting Position Rear Axle | 1987-09 - 1993-03 | 37 | 50 | 1488 | Hatchback |
| OPEL CORSA A Hatchback (S83) Construction Year to 199210 Fitting Position Rear Axle | 1988-03 - 1993-03 | 49 | 67 | 1488 | Hatchback |
| OPEL CORSA B (S93) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1996-11 - 2000-09 | 40 | 54 | 973 | Hatchback |
| OPEL CORSA B (S93) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1993-03 - 2000-09 | 33 | 45 | 1195 | Hatchback |
| OPEL CORSA B (S93) Construction Year from 199804 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1998-03 - 2000-09 | 48 | 65 | 1199 | Hatchback |
| OPEL CORSA B (S93) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1993-03 - 2000-09 | 40 | 54 | 1389 | Hatchback |
| OPEL CORSA B (S93) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1993-03 - 2000-09 | 44 | 60 | 1389 | Hatchback |
| OPEL CORSA B (S93) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1993-03 - 2000-09 | 60 | 82 | 1389 | Hatchback |
| OPEL CORSA B (S93) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1994-09 - 2000-09 | 66 | 90 | 1389 | Hatchback |
| OPEL CORSA B (S93) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-08 - 2000-09 | 74 | 100 | 1598 | Hatchback |
| OPEL CORSA B (S93) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1994-09 - 2000-09 | 78 | 106 | 1598 | Hatchback |
| OPEL CORSA B (S93) Construction Year from 199309 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1993-03 - 2000-09 | 80 | 109 | 1598 | Hatchback |
| OPEL CORSA B (S93) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1993-03 - 2000-09 | 37 | 50 | 1488 | Hatchback |
| OPEL CORSA B (S93) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1993-03 - 2000-09 | 49 | 67 | 1488 | Hatchback |
| OPEL CORSA B (S93) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1996-02 - 2000-09 | 44 | 60 | 1686 | Hatchback |
| OPEL CORSA B Caravan (S93) Construction Year to 200009 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1999-01 - 2002-12 | 66 | 90 | 1389 | Estate |
| OPEL CORSA B Caravan (S93) Construction Year to 200009 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1999-01 - 2002-12 | 44 | 60 | 1686 | Estate |
| OPEL TIGRA (S93) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1994-07 - 2000-12 | 66 | 90 | 1389 | Coupe |
| OPEL TIGRA (S93) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1994-07 - 1998-08 | 78 | 106 | 1598 | Coupe |
| OPEL CORSA A Hatchback Van (S83) Fitting Position Rear Axle | 1986-02 - 1989-04 | 33 | 45 | 993 | Hatchback Van |
| OPEL CORSA A Hatchback Van (S83) Fitting Position Rear Axle | 1986-02 - 1989-04 | 33 | 45 | 1196 | Hatchback Van |
| OPEL CORSA A Hatchback Van (S83) Fitting Position Rear Axle | 1986-02 - 1989-04 | 40 | 54 | 1196 | Hatchback Van |
| OPEL CORSA A Hatchback Van (S83) Fitting Position Rear Axle | 1986-02 - 1990-07 | 44 | 60 | 1196 | Hatchback Van |
| OPEL CORSA A Hatchback Van (S83) Fitting Position Rear Axle | 1986-02 - 1989-04 | 44 | 60 | 1297 | Hatchback Van |
| OPEL CORSA A Hatchback Van (S83) Fitting Position Rear Axle | 1986-02 - 1989-04 | 51 | 69 | 1297 | Hatchback Van |
| OPEL CORSA A Hatchback Van (S83) Construction Year from 198709 Fitting Position Rear Axle | 1987-06 - 1989-04 | 37 | 50 | 1488 | Hatchback Van |
| OPEL CORSA B Hatchback Van (S93) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1999-08 - 2000-09 | 44 | 60 | 1389 | Hatchback Van |
| OPEL CORSA B Hatchback Van (S93) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1999-08 - 2000-09 | 44 | 60 | 1686 | Hatchback Van |
24.0220-0012.1

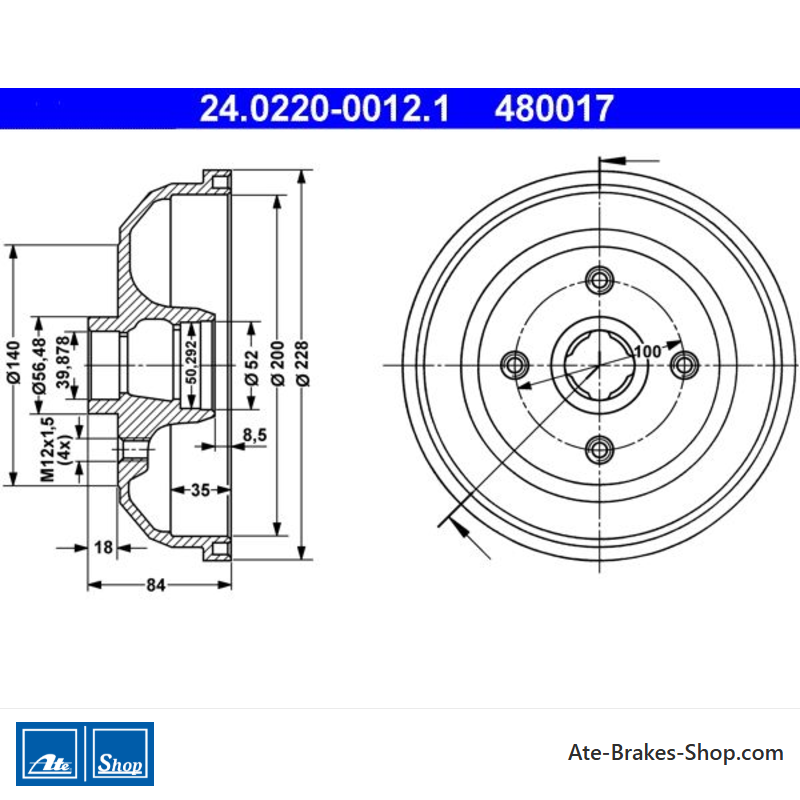

Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Opel
- Handelsnummer
- 480017
- Herkunftsland
- Italien
- Zusätzliche Informationen
- ohne Radlager
- Höhe
- 84,0
- Außendurchmesser [mm]
- 228,0
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 100,0
- Trägerplattendurchmesser [mm]
- 50,3
- Innendurchmesser [mm]
- 200,0
- Gewindegröße
- M12x1,5
- Max. Bohrende Dimension [mm]
- 201,0
- Innenhöhe der Bremstrommel [mm]
- 35,0
- Innendurchmesser der Bremstrommel [mm]
- 39,9
Spezifische Referenzen
- ean13
- 4006633106375
- Hersteller-Teilenummer (MPN)
- 2402200012102
ATE 24.0220-0012.1
(240220-00121)
- Außendurchmesser [mm]: 228,0
- Innendurchmesser [mm]: 200,0
- Trägerplattendurchmesser [mm]: 50,3
- Anzahl der Bolzenlöcher: 4
- 2 Teile der Bremstrommel
- Handelsnummer: 480017
