ATE Originale zweiteilige Bremstrommel (24022000371) für Audi, Seat, Skoda, Volkswagen (VW)
83,49 €
(inkl. MwSt.)
69,00 € Steuerexzl.
Teilenummer:
ATE 24.0220-0037.1
(240220-00371)

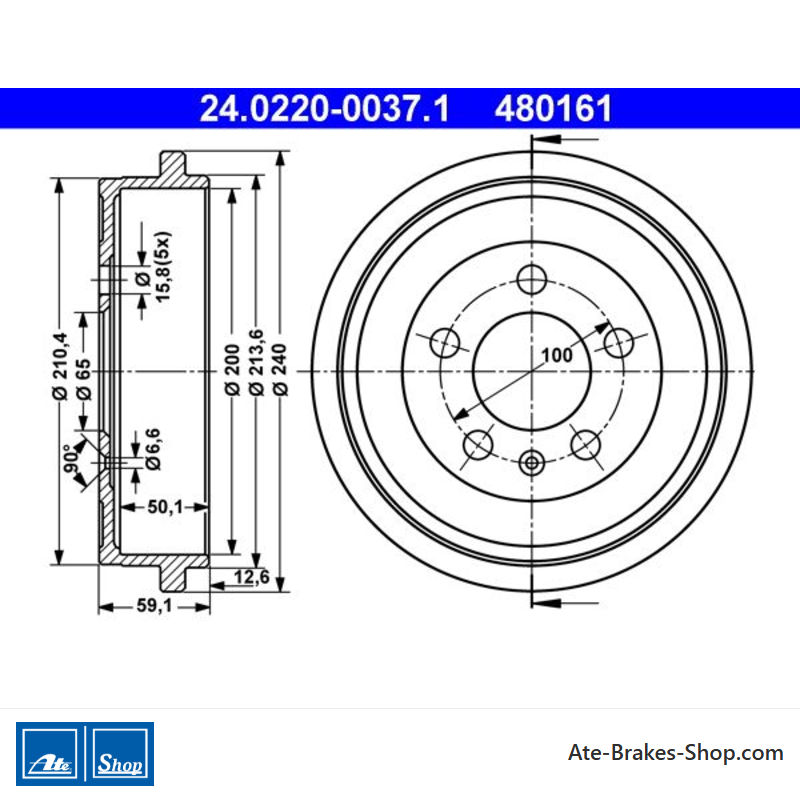

- Außendurchmesser [mm]: 240,0
- Innendurchmesser [mm]: 200,0
- Trägerplattendurchmesser [mm]: 65,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile der Bremstrommel
- Handelsnummer: 480161
- Ean-Code: 4006633106849
- Gewicht: 8.06kg
Specification of ATE 24.0220-0037.1 / 240220-00371 / 24022000371:
| OE Number | Reference info |
| SEAT 6Q0 609 617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 6Q0609617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 6QE 609 617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 6QE609617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 6R0 609 617 C | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 6R0609617C | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SKODA 6Q0 609 617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SKODA 6Q0609617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SKODA 6QE 609 617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SKODA 6QE609617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SKODA 6R0 609 617 C | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SKODA 6R0609617C | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VW 6Q0 609 617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VW 6Q0609617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VW 6R0 609 617 C | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VW 6R0609617C | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VW 6QE 609 617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VW 6QE609617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 6Q0 609 617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 6Q0609617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 6QE 609 617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 6QE609617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 6R0 609 617 C | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 6R0609617C | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| AUDI A2 (8Z0) Construction Year from 200006 Construction Year to 200507 for PR number 1KB Fitting Position Rear Axle | 2000-02 - 2005-08 | 55 | 75 | 1390 | Hatchback |
| AUDI A2 (8Z0) Construction Year from 200006 Construction Year to 200507 for PR number 1KB Fitting Position Rear Axle | 2000-02 - 2005-08 | 55 | 75 | 1422 | Hatchback |
| SEAT CORDOBA (6L2) Fitting Position Rear Axle | 2002-10 - 2006-06 | 47 | 64 | 1198 | Saloon |
| SEAT CORDOBA (6L2) Construction Year to 200906 Fitting Position Rear Axle | 2006-05 - 2009-11 | 51 | 70 | 1198 | Saloon |
| SEAT CORDOBA (6L2) Construction Year from 200210 Fitting Position Rear Axle | 2002-09 - 2007-12 | 55 | 75 | 1390 | Saloon |
| SEAT CORDOBA (6L2) Construction Year to 200906 Fitting Position Rear Axle | 2006-05 - 2009-11 | 63 | 86 | 1390 | Saloon |
| SEAT CORDOBA (6L2) Construction Year to 200906 Fitting Position Rear Axle | 2002-10 - 2009-11 | 74 | 100 | 1390 | Saloon |
| SEAT CORDOBA (6L2) Construction Year to 200906 Fitting Position Rear Axle | 2003-04 - 2009-11 | 74 | 101 | 1598 | Saloon |
| SEAT CORDOBA (6L2) Construction Year to 200906 Fitting Position Rear Axle | 2006-11 - 2009-11 | 77 | 105 | 1598 | Saloon |
| SEAT CORDOBA (6L2) Construction Year from 200210 Construction Year to 200906 Fitting Position Rear Axle | 2002-09 - 2009-11 | 85 | 115 | 1984 | Saloon |
| SEAT CORDOBA (6L2) Construction Year to 200906 Fitting Position Rear Axle | 2005-05 - 2009-11 | 51 | 70 | 1422 | Saloon |
| SEAT CORDOBA (6L2) Fitting Position Rear Axle | 2002-10 - 2005-12 | 55 | 75 | 1422 | Saloon |
| SEAT CORDOBA (6L2) Construction Year to 200906 Fitting Position Rear Axle | 2005-06 - 2009-11 | 59 | 80 | 1422 | Saloon |
| SEAT CORDOBA (6L2) Construction Year from 200210 Construction Year to 200906 Fitting Position Rear Axle | 2002-09 - 2009-11 | 47 | 64 | 1896 | Saloon |
| SEAT CORDOBA (6L2) Construction Year from 200210 Construction Year to 200906 Fitting Position Rear Axle | 2002-09 - 2009-11 | 74 | 100 | 1896 | Saloon |
| SEAT CORDOBA (6L2) Construction Year to 200906 Fitting Position Rear Axle | 2002-10 - 2009-11 | 96 | 131 | 1896 | Saloon |
| SEAT IBIZA III (6L1) Fitting Position Rear Axle | 2007-06 - 2008-05 | 44 | 60 | 1198 | Hatchback |
| SEAT IBIZA III (6L1) Fitting Position Rear Axle | 2002-02 - 2006-06 | 47 | 64 | 1198 | Hatchback |
| SEAT IBIZA III (6L1) Fitting Position Rear Axle | 2006-05 - 2009-11 | 51 | 70 | 1198 | Hatchback |
| SEAT IBIZA III (6L1) Fitting Position Rear Axle | 2002-02 - 2007-12 | 55 | 75 | 1390 | Hatchback |
| SEAT IBIZA III (6L1) Fitting Position Rear Axle | 2006-05 - 2009-11 | 63 | 86 | 1390 | Hatchback |
| SEAT IBIZA III (6L1) Fitting Position Rear Axle | 2002-02 - 2009-11 | 74 | 100 | 1390 | Hatchback |
| SEAT IBIZA III (6L1) Fitting Position Rear Axle | 2003-02 - 2009-11 | 74 | 101 | 1598 | Hatchback |
| SEAT IBIZA III (6L1) Fitting Position Rear Axle | 2006-11 - 2009-11 | 77 | 105 | 1598 | Hatchback |
| SEAT IBIZA III (6L1) Fitting Position Rear Axle | 2002-04 - 2009-11 | 85 | 116 | 1984 | Hatchback |
| SEAT IBIZA III (6L1) Fitting Position Rear Axle | 2005-05 - 2009-11 | 51 | 70 | 1422 | Hatchback |
| SEAT IBIZA III (6L1) Fitting Position Rear Axle | 2002-05 - 2005-12 | 55 | 75 | 1422 | Hatchback |
| SEAT IBIZA III (6L1) Fitting Position Rear Axle | 2005-06 - 2009-11 | 59 | 80 | 1422 | Hatchback |
| SEAT IBIZA III (6L1) Fitting Position Rear Axle | 2002-02 - 2005-12 | 47 | 64 | 1896 | Hatchback |
| SEAT IBIZA III (6L1) Fitting Position Rear Axle | 2002-02 - 2009-11 | 74 | 100 | 1896 | Hatchback |
| SEAT IBIZA III (6L1) Fitting Position Rear Axle | 2003-07 - 2004-06 | 112 | 152 | 1896 | Hatchback |
| SEAT IBIZA III (6L1) Fitting Position Rear Axle | 2002-02 - 2009-11 | 96 | 131 | 1896 | Hatchback |
| SEAT IBIZA III (6L1) Fitting Position Rear Axle | 2004-03 - 2008-02 | 118 | 160 | 1896 | Hatchback |
| SEAT IBIZA IV (6J5, 6P1) for PR number 1KM Fitting Position Rear Axle | 2015-05 - 2017-06 | 55 | 75 | 999 | Hatchback |
| SEAT IBIZA IV (6J5, 6P1) for PR number 1KM Fitting Position Rear Axle | 2015-05 - 2017-06 | 70 | 95 | 999 | Hatchback |
| SEAT IBIZA IV (6J5, 6P1) for PR number 1KM Fitting Position Rear Axle | 2015-05 - 2017-06 | 81 | 110 | 999 | Hatchback |
| SEAT IBIZA IV (6J5, 6P1) for PR number 1KM Fitting Position Rear Axle | 2012-08 - 2015-05 | 63 | 86 | 1197 | Hatchback |
| SEAT IBIZA IV (6J5, 6P1) for PR number 1KM Fitting Position Rear Axle | 2015-05 - 2017-06 | 66 | 90 | 1197 | Hatchback |
| SEAT IBIZA IV (6J5, 6P1) for PR number 1KM Fitting Position Rear Axle | 2010-09 - 2012-03 | 77 | 105 | 1197 | Hatchback |
| SEAT IBIZA IV (6J5, 6P1) for PR number 1KM Fitting Position Rear Axle | 2015-09 - 2017-06 | 81 | 110 | 1197 | Hatchback |
| SEAT IBIZA IV (6J5, 6P1) for PR number 1KM Fitting Position Rear Axle | 2009-07 - 2015-05 | 44 | 60 | 1198 | Hatchback |
| SEAT IBIZA IV (6J5, 6P1) Construction Year from 200807 for PR number 1KM Fitting Position Rear Axle | 2008-03 - 2015-05 | 51 | 70 | 1198 | Hatchback |
| SEAT IBIZA IV (6J5, 6P1) Construction Year from 200807 for PR number 1KM Fitting Position Rear Axle | 2008-03 - 2011-05 | 51 | 70 | 1198 | Hatchback |
| SEAT IBIZA IV (6J5, 6P1) Construction Year from 200807 for PR number 1KM Fitting Position Rear Axle | 2008-03 - 2015-05 | 63 | 85 | 1390 | Hatchback |
| SEAT IBIZA IV (6J5, 6P1) Construction Year from 200807 for PR number 1KM Fitting Position Rear Axle | 2008-03 - 2011-05 | 63 | 85 | 1390 | Hatchback |
| SEAT IBIZA IV (6J5, 6P1) Construction Year from 200807 for PR number 1KM Fitting Position Rear Axle | 2008-05 - 2012-03 | 77 | 105 | 1598 | Hatchback |
| SEAT IBIZA IV (6J5, 6P1) for PR number 1KM Fitting Position Rear Axle | 2011-05 - 2015-05 | 60 | 81 | 1598 | Hatchback |
| SEAT IBIZA IV (6J5, 6P1) for PR number 1KM Fitting Position Rear Axle | 2010-06 - 2015-05 | 55 | 75 | 1199 | Hatchback |
| SEAT IBIZA IV (6J5, 6P1) for PR number 1KM Fitting Position Rear Axle | 2015-05 - 2017-06 | 55 | 75 | 1422 | Hatchback |
| SEAT IBIZA IV (6J5, 6P1) for PR number 1KM Fitting Position Rear Axle | 2008-07 - 2010-06 | 59 | 80 | 1422 | Hatchback |
| SEAT IBIZA IV (6J5, 6P1) for PR number 1KM Fitting Position Rear Axle | 2015-05 - 2017-06 | 66 | 90 | 1422 | Hatchback |
| SEAT IBIZA IV (6J5, 6P1) for PR number 1KM Fitting Position Rear Axle | 2015-05 - 2017-06 | 77 | 105 | 1422 | Hatchback |
| SEAT IBIZA IV (6J5, 6P1) for PR number 1KM Fitting Position Rear Axle | 2008-07 - 2010-06 | 66 | 90 | 1896 | Hatchback |
| SEAT IBIZA IV (6J5, 6P1) Construction Year from 200807 for PR number 1KM Fitting Position Rear Axle | 2008-03 - 2010-06 | 77 | 105 | 1896 | Hatchback |
| SEAT IBIZA IV SC (6J1, 6P5) for PR number 1KM Fitting Position Rear Axle | 2015-05 - 2016-12 | 55 | 75 | 999 | Hatchback |
| SEAT IBIZA IV SC (6J1, 6P5) for PR number 1KM Fitting Position Rear Axle | 2015-05 - 2016-12 | 70 | 95 | 999 | Hatchback |
| SEAT IBIZA IV SC (6J1, 6P5) for PR number 1KM Fitting Position Rear Axle | 2015-05 - 2016-12 | 81 | 110 | 999 | Hatchback |
| SEAT IBIZA IV SC (6J1, 6P5) for PR number 1KM Fitting Position Rear Axle | 2012-08 - 2015-05 | 63 | 86 | 1197 | Hatchback |
| SEAT IBIZA IV SC (6J1, 6P5) for PR number 1KM Fitting Position Rear Axle | 2015-05 - 2016-12 | 66 | 90 | 1197 | Hatchback |
| SEAT IBIZA IV SC (6J1, 6P5) for PR number 1KM Fitting Position Rear Axle | 2010-09 - 2015-05 | 77 | 105 | 1197 | Hatchback |
| SEAT IBIZA IV SC (6J1, 6P5) for PR number 1KM Fitting Position Rear Axle | 2015-09 - 2016-12 | 81 | 110 | 1197 | Hatchback |
| SEAT IBIZA IV SC (6J1, 6P5) for PR number 1KM Fitting Position Rear Axle | 2009-07 - 2015-05 | 44 | 60 | 1198 | Hatchback |
| SEAT IBIZA IV SC (6J1, 6P5) for PR number 1KM Fitting Position Rear Axle | 2008-07 - 2015-05 | 51 | 70 | 1198 | Hatchback |
| SEAT IBIZA IV SC (6J1, 6P5) for PR number 1KM Fitting Position Rear Axle | 2008-07 - 2015-05 | 63 | 85 | 1390 | Hatchback |
| SEAT IBIZA IV SC (6J1, 6P5) for PR number 1KM Fitting Position Rear Axle | 2008-07 - 2011-05 | 63 | 85 | 1390 | Hatchback |
| SEAT IBIZA IV SC (6J1, 6P5) for PR number 1KM Fitting Position Rear Axle | 2008-07 - 2015-05 | 77 | 105 | 1598 | Hatchback |
| SEAT IBIZA IV SC (6J1, 6P5) for PR number 1KM Fitting Position Rear Axle | 2011-05 - 2015-05 | 60 | 81 | 1598 | Hatchback |
| SEAT IBIZA IV SC (6J1, 6P5) for PR number 1KM Fitting Position Rear Axle | 2010-05 - 2015-05 | 55 | 75 | 1199 | Hatchback |
| SEAT IBIZA IV SC (6J1, 6P5) for PR number 1KM Fitting Position Rear Axle | 2015-05 - 2016-12 | 55 | 75 | 1422 | Hatchback |
| SEAT IBIZA IV SC (6J1, 6P5) for PR number 1KM Fitting Position Rear Axle | 2008-07 - 2010-06 | 59 | 80 | 1422 | Hatchback |
| SEAT IBIZA IV SC (6J1, 6P5) for PR number 1KM Fitting Position Rear Axle | 2015-05 - 2016-12 | 66 | 90 | 1422 | Hatchback |
| SEAT IBIZA IV SC (6J1, 6P5) for PR number 1KM Fitting Position Rear Axle | 2015-05 - 2016-12 | 77 | 105 | 1422 | Hatchback |
| SEAT IBIZA IV SC (6J1, 6P5) for PR number 1KM Fitting Position Rear Axle | 2008-06 - 2010-06 | 66 | 90 | 1896 | Hatchback |
| SEAT IBIZA IV SC (6J1, 6P5) for PR number 1KM Fitting Position Rear Axle | 2008-07 - 2010-06 | 77 | 105 | 1896 | Hatchback |
| SEAT IBIZA IV ST (6J8, 6P8) for PR number 1KM Fitting Position Rear Axle | 2015-05 - 2016-07 | 55 | 75 | 999 | Estate |
| SEAT IBIZA IV ST (6J8, 6P8) for PR number 1KM Fitting Position Rear Axle | 2015-05 - 2016-07 | 70 | 95 | 999 | Estate |
| SEAT IBIZA IV ST (6J8, 6P8) for PR number 1KM Fitting Position Rear Axle | 2015-05 - 2016-07 | 81 | 110 | 999 | Estate |
| SEAT IBIZA IV ST (6J8, 6P8) for PR number 1KM Fitting Position Rear Axle | 2012-09 - 2015-05 | 63 | 86 | 1197 | Estate |
| SEAT IBIZA IV ST (6J8, 6P8) for PR number 1KM Fitting Position Rear Axle | 2015-05 - 2016-07 | 66 | 90 | 1197 | Estate |
| SEAT IBIZA IV ST (6J8, 6P8) for PR number 1KM Fitting Position Rear Axle | 2010-09 - 2015-05 | 77 | 105 | 1197 | Estate |
| SEAT IBIZA IV ST (6J8, 6P8) for PR number 1KM Fitting Position Rear Axle | 2015-09 - 2016-07 | 81 | 110 | 1197 | Estate |
| SEAT IBIZA IV ST (6J8, 6P8) for PR number 1KM Fitting Position Rear Axle | 2010-05 - 2015-05 | 44 | 60 | 1198 | Estate |
| SEAT IBIZA IV ST (6J8, 6P8) for PR number 1KM Fitting Position Rear Axle | 2010-05 - 2015-05 | 51 | 70 | 1198 | Estate |
| SEAT IBIZA IV ST (6J8, 6P8) for PR number 1KM Fitting Position Rear Axle | 2010-03 - 2015-05 | 63 | 85 | 1390 | Estate |
| SEAT IBIZA IV ST (6J8, 6P8) for PR number 1KM Fitting Position Rear Axle | 2012-02 - 2015-05 | 77 | 105 | 1598 | Estate |
| SEAT IBIZA IV ST (6J8, 6P8) for PR number 1KM Fitting Position Rear Axle | 2010-04 - 2015-05 | 55 | 75 | 1199 | Estate |
| SEAT IBIZA IV ST (6J8, 6P8) for PR number 1KM Fitting Position Rear Axle | 2015-05 - 2016-07 | 55 | 75 | 1422 | Estate |
| SEAT IBIZA IV ST (6J8, 6P8) for PR number 1KM Fitting Position Rear Axle | 2015-05 - 2016-07 | 66 | 90 | 1422 | Estate |
| SEAT IBIZA IV ST (6J8, 6P8) for PR number 1KM Fitting Position Rear Axle | 2015-05 - 2016-07 | 77 | 105 | 1422 | Estate |
| SEAT IBIZA IV Hatchback Van (6J1) for PR number 1KM Fitting Position Rear Axle | 2008-04 - 2015-05 | 51 | 69 | 1198 | Hatchback Van |
| SEAT IBIZA IV Hatchback Van (6J1) for PR number 1KM Fitting Position Rear Axle | 2010-05 - 2015-05 | 55 | 75 | 1199 | Hatchback Van |
| SKODA FABIA I (6Y2) Construction Year from 200002 Fitting Position Rear Axle | 1999-12 - 2002-08 | 37 | 50 | 996 | Hatchback |
| SKODA FABIA I (6Y2) Construction Year from 200208 Fitting Position Rear Axle | 2001-07 - 2007-04 | 40 | 54 | 1198 | Hatchback |
| SKODA FABIA I (6Y2) Construction Year to 200712 Fitting Position Rear Axle | 2003-01 - 2008-03 | 47 | 64 | 1198 | Hatchback |
| SKODA FABIA I (6Y2) Fitting Position Rear Axle | 2000-08 - 2002-08 | 44 | 60 | 1397 | Hatchback |
| SKODA FABIA I (6Y2) Construction Year from 200002 Fitting Position Rear Axle | 1999-08 - 2003-05 | 50 | 68 | 1397 | Hatchback |
| SKODA FABIA I (6Y2) Construction Year to 200712 Fitting Position Rear Axle | 1999-12 - 2008-03 | 55 | 75 | 1390 | Hatchback |
| SKODA FABIA I (6Y2) Construction Year to 200712 Fitting Position Rear Axle | 1999-12 - 2008-03 | 74 | 100 | 1390 | Hatchback |
| SKODA FABIA I (6Y2) Construction Year to 200712 Fitting Position Rear Axle | 2005-10 - 2008-03 | 51 | 70 | 1422 | Hatchback |
| SKODA FABIA I (6Y2) Construction Year to 200712 Fitting Position Rear Axle | 2003-04 - 2008-03 | 55 | 75 | 1422 | Hatchback |
| SKODA FABIA I (6Y2) Construction Year to 200712 Fitting Position Rear Axle | 2005-10 - 2008-03 | 59 | 80 | 1422 | Hatchback |
| SKODA FABIA I (6Y2) Construction Year to 200712 Fitting Position Rear Axle | 1999-12 - 2008-03 | 47 | 64 | 1896 | Hatchback |
| SKODA FABIA I Saloon (6Y3) Construction Year from 200208 Fitting Position Rear Axle | 2001-07 - 2007-12 | 40 | 54 | 1198 | Saloon |
| SKODA FABIA I Saloon (6Y3) Fitting Position Rear Axle | 2003-01 - 2007-12 | 47 | 64 | 1198 | Saloon |
| SKODA FABIA I Saloon (6Y3) Fitting Position Rear Axle | 2000-04 - 2002-08 | 44 | 60 | 1397 | Saloon |
| SKODA FABIA I Saloon (6Y3) Fitting Position Rear Axle | 2001-07 - 2003-05 | 50 | 68 | 1397 | Saloon |
| SKODA FABIA I Saloon (6Y3) Fitting Position Rear Axle | 1999-10 - 2007-12 | 55 | 75 | 1390 | Saloon |
| SKODA FABIA I Saloon (6Y3) Fitting Position Rear Axle | 2006-04 - 2007-12 | 59 | 80 | 1390 | Saloon |
| SKODA FABIA I Saloon (6Y3) Fitting Position Rear Axle | 1999-12 - 2007-12 | 74 | 100 | 1390 | Saloon |
| SKODA FABIA I Saloon (6Y3) Fitting Position Rear Axle | 2005-10 - 2007-12 | 51 | 70 | 1422 | Saloon |
| SKODA FABIA I Saloon (6Y3) Fitting Position Rear Axle | 2003-04 - 2007-12 | 55 | 75 | 1422 | Saloon |
| SKODA FABIA I Saloon (6Y3) Fitting Position Rear Axle | 2005-10 - 2007-12 | 59 | 80 | 1422 | Saloon |
| SKODA FABIA I Saloon (6Y3) Construction Year from 199912 Fitting Position Rear Axle | 1999-11 - 2007-12 | 47 | 64 | 1896 | Saloon |
| SKODA FABIA I Combi (6Y5) Construction Year from 200208 Fitting Position Rear Axle | 2001-07 - 2007-12 | 40 | 54 | 1198 | Estate |
| SKODA FABIA I Combi (6Y5) Fitting Position Rear Axle | 2003-01 - 2007-12 | 47 | 64 | 1198 | Estate |
| SKODA FABIA I Combi (6Y5) Fitting Position Rear Axle | 2000-04 - 2003-03 | 44 | 60 | 1397 | Estate |
| SKODA FABIA I Combi (6Y5) Fitting Position Rear Axle | 2000-04 - 2003-05 | 50 | 68 | 1397 | Estate |
| SKODA FABIA I Combi (6Y5) Fitting Position Rear Axle | 2000-05 - 2007-12 | 55 | 75 | 1390 | Estate |
| SKODA FABIA I Combi (6Y5) Fitting Position Rear Axle | 2006-04 - 2007-12 | 59 | 80 | 1390 | Estate |
| SKODA FABIA I Combi (6Y5) Fitting Position Rear Axle | 2000-04 - 2007-12 | 74 | 100 | 1390 | Estate |
| SKODA FABIA I Combi (6Y5) Fitting Position Rear Axle | 2005-10 - 2007-12 | 51 | 70 | 1422 | Estate |
| SKODA FABIA I Combi (6Y5) Fitting Position Rear Axle | 2003-04 - 2007-12 | 55 | 75 | 1422 | Estate |
| SKODA FABIA I Combi (6Y5) Fitting Position Rear Axle | 2005-10 - 2007-12 | 59 | 80 | 1422 | Estate |
| SKODA FABIA I Combi (6Y5) Fitting Position Rear Axle | 2000-04 - 2007-12 | 47 | 64 | 1896 | Estate |
| SKODA FABIA II (542) Construction Year from 200703 Construction Year to 201406 Fitting Position Rear Axle | 2006-12 - 2014-12 | 44 | 60 | 1198 | Hatchback |
| SKODA FABIA II (542) Fitting Position Rear Axle | 2009-03 - 2011-11 | 44 | 60 | 1198 | Hatchback |
| SKODA FABIA II (542) Construction Year to 201406 Fitting Position Rear Axle | 2011-11 - 2014-12 | 44 | 60 | 1198 | Hatchback |
| SKODA FABIA II (542) Construction Year from 200703 Construction Year to 201406 Fitting Position Rear Axle | 2007-01 - 2014-12 | 51 | 70 | 1198 | Hatchback |
| SKODA FABIA II (542) Construction Year to 201406 Fitting Position Rear Axle | 2007-07 - 2014-11 | 51 | 69 | 1198 | Hatchback |
| SKODA FABIA II (542) Construction Year to 201406 Fitting Position Rear Axle | 2010-03 - 2014-12 | 63 | 86 | 1197 | Hatchback |
| SKODA FABIA II (542) Construction Year to 201406 Fitting Position Rear Axle | 2010-03 - 2014-12 | 77 | 105 | 1197 | Hatchback |
| SKODA FABIA II (542) Construction Year from 200703 Construction Year to 201406 Fitting Position Rear Axle | 2007-01 - 2014-12 | 63 | 86 | 1390 | Hatchback |
| SKODA FABIA II (542) Construction Year from 200703 Construction Year to 201406 Fitting Position Rear Axle | 2007-01 - 2014-11 | 63 | 86 | 1390 | Hatchback |
| SKODA FABIA II (542) Construction Year to 201406 Fitting Position Rear Axle | 2007-04 - 2014-12 | 77 | 105 | 1598 | Hatchback |
| SKODA FABIA II (542) Construction Year to 201406 Fitting Position Rear Axle | 2010-05 - 2014-12 | 55 | 75 | 1199 | Hatchback |
| SKODA FABIA II (542) Construction Year from 200703 Fitting Position Rear Axle | 2007-02 - 2010-03 | 51 | 70 | 1422 | Hatchback |
| SKODA FABIA II (542) Construction Year from 200703 Fitting Position Rear Axle | 2007-01 - 2010-03 | 59 | 80 | 1422 | Hatchback |
| SKODA FABIA II (542) Construction Year to 201406 Fitting Position Rear Axle | 2010-04 - 2014-12 | 55 | 75 | 1598 | Hatchback |
| SKODA FABIA II (542) Construction Year to 201406 Fitting Position Rear Axle | 2010-03 - 2014-12 | 66 | 90 | 1598 | Hatchback |
| SKODA FABIA II (542) Construction Year to 201406 Fitting Position Rear Axle | 2010-03 - 2014-12 | 77 | 105 | 1598 | Hatchback |
| SKODA FABIA II (542) Fitting Position Rear Axle | 2007-04 - 2010-03 | 77 | 105 | 1896 | Hatchback |
| SKODA FABIA II Combi (545) Construction Year to 201406 Fitting Position Rear Axle | 2007-10 - 2014-11 | 44 | 60 | 1198 | Estate |
| SKODA FABIA II Combi (545) Fitting Position Rear Axle | 2009-03 - 2011-11 | 44 | 60 | 1198 | Estate |
| SKODA FABIA II Combi (545) Construction Year to 201406 Fitting Position Rear Axle | 2011-11 - 2014-12 | 44 | 60 | 1198 | Estate |
| SKODA FABIA II Combi (545) Construction Year to 201406 Fitting Position Rear Axle | 2007-10 - 2014-12 | 51 | 70 | 1198 | Estate |
| SKODA FABIA II Combi (545) Construction Year to 201406 Fitting Position Rear Axle | 2007-10 - 2014-11 | 51 | 69 | 1198 | Estate |
| SKODA FABIA II Combi (545) Construction Year to 201406 Fitting Position Rear Axle | 2010-03 - 2014-12 | 63 | 86 | 1197 | Estate |
| SKODA FABIA II Combi (545) Construction Year to 201406 Fitting Position Rear Axle | 2010-03 - 2014-12 | 77 | 105 | 1197 | Estate |
| SKODA FABIA II Combi (545) Construction Year to 201406 Fitting Position Rear Axle | 2007-10 - 2014-12 | 63 | 86 | 1390 | Estate |
| SKODA FABIA II Combi (545) Construction Year to 201406 Fitting Position Rear Axle | 2007-10 - 2014-11 | 63 | 86 | 1390 | Estate |
| SKODA FABIA II Combi (545) Construction Year to 201406 Fitting Position Rear Axle | 2007-10 - 2014-12 | 77 | 105 | 1598 | Estate |
| SKODA FABIA II Combi (545) Construction Year to 201406 Fitting Position Rear Axle | 2010-05 - 2014-12 | 55 | 75 | 1199 | Estate |
| SKODA FABIA II Combi (545) Fitting Position Rear Axle | 2007-10 - 2010-03 | 51 | 70 | 1422 | Estate |
| SKODA FABIA II Combi (545) Fitting Position Rear Axle | 2007-10 - 2010-03 | 59 | 80 | 1422 | Estate |
| SKODA FABIA II Combi (545) Construction Year to 201406 Fitting Position Rear Axle | 2010-04 - 2014-12 | 55 | 75 | 1598 | Estate |
| SKODA FABIA II Combi (545) Construction Year to 201406 Fitting Position Rear Axle | 2010-03 - 2014-12 | 66 | 90 | 1598 | Estate |
| SKODA FABIA II Combi (545) Construction Year to 201406 Fitting Position Rear Axle | 2010-03 - 2014-12 | 77 | 105 | 1598 | Estate |
| SKODA FABIA II Combi (545) Fitting Position Rear Axle | 2007-10 - 2010-03 | 77 | 105 | 1896 | Estate |
| SKODA FABIA III (NJ3) Fitting Position Rear Axle | 2014-08 - 2021-06 | 44 | 60 | 999 | Hatchback |
| SKODA FABIA III (NJ3) Fitting Position Rear Axle | 2014-08 - 2021-06 | 55 | 75 | 999 | Hatchback |
| SKODA FABIA III (NJ3) Fitting Position Rear Axle | 2014-08 - 2021-06 | 70 | 95 | 999 | Hatchback |
| SKODA FABIA III (NJ3) Fitting Position Rear Axle | 2014-08 - 2021-06 | 81 | 110 | 999 | Hatchback |
| SKODA FABIA III (NJ3) Fitting Position Rear Axle | 2014-08 - 2021-06 | 66 | 90 | 1197 | Hatchback |
| SKODA FABIA III (NJ3) Fitting Position Rear Axle | 2014-08 - 2021-06 | 81 | 110 | 1197 | Hatchback |
| SKODA FABIA III (NJ3) Fitting Position Rear Axle | 2018-02 - 2021-06 | 92 | 125 | 1395 | Hatchback |
| SKODA FABIA III (NJ3) Fitting Position Rear Axle | 2015-01 - 2021-06 | 81 | 110 | 1598 | Hatchback |
| SKODA FABIA III (NJ3) Fitting Position Rear Axle | 2015-05 - 2021-06 | 55 | 75 | 1422 | Hatchback |
| SKODA FABIA III (NJ3) Fitting Position Rear Axle | 2014-08 - 2021-06 | 66 | 90 | 1422 | Hatchback |
| SKODA FABIA III (NJ3) Fitting Position Rear Axle | 2014-08 - 2021-06 | 77 | 105 | 1422 | Hatchback |
| SKODA FABIA III Estate (NJ5) Fitting Position Rear Axle | 2014-10 - 2022-12 | 44 | 60 | 999 | Estate |
| SKODA FABIA III Estate (NJ5) Fitting Position Rear Axle | 2014-10 - 2022-12 | 55 | 75 | 999 | Estate |
| SKODA FABIA III Estate (NJ5) Fitting Position Rear Axle | 2014-08 - 2022-12 | 70 | 95 | 999 | Estate |
| SKODA FABIA III Estate (NJ5) Fitting Position Rear Axle | 2014-08 - 2022-12 | 81 | 110 | 999 | Estate |
| SKODA FABIA III Estate (NJ5) Fitting Position Rear Axle | 2014-10 - 2022-12 | 66 | 90 | 1197 | Estate |
| SKODA FABIA III Estate (NJ5) Fitting Position Rear Axle | 2014-10 - 2022-12 | 81 | 110 | 1197 | Estate |
| SKODA FABIA III Estate (NJ5) Fitting Position Rear Axle | 2015-01 - 2022-12 | 81 | 110 | 1598 | Estate |
| SKODA FABIA III Estate (NJ5) Fitting Position Rear Axle | 2015-05 - 2022-12 | 55 | 75 | 1422 | Estate |
| SKODA FABIA III Estate (NJ5) Fitting Position Rear Axle | 2014-10 - 2022-12 | 66 | 90 | 1422 | Estate |
| SKODA FABIA III Estate (NJ5) Fitting Position Rear Axle | 2014-10 - 2022-12 | 77 | 105 | 1422 | Estate |
| SKODA FABIA I Praktik (6Y5) Construction Year from 200208 Fitting Position Rear Axle | 2001-07 - 2007-12 | 40 | 54 | 1198 | Estate Van |
| SKODA FABIA I Praktik (6Y5) Fitting Position Rear Axle | 2003-01 - 2007-12 | 47 | 64 | 1198 | Estate Van |
| SKODA FABIA I Praktik (6Y5) Fitting Position Rear Axle | 2004-05 - 2007-12 | 55 | 75 | 1390 | Estate Van |
| SKODA FABIA I Praktik (6Y5) Fitting Position Rear Axle | 2001-07 - 2003-05 | 50 | 68 | 1397 | Estate Van |
| SKODA FABIA I Praktik (6Y5) Fitting Position Rear Axle | 2005-10 - 2007-12 | 51 | 70 | 1422 | Estate Van |
| SKODA FABIA I Praktik (6Y5) Fitting Position Rear Axle | 2004-08 - 2005-10 | 55 | 75 | 1422 | Estate Van |
| SKODA FABIA I Praktik (6Y5) Fitting Position Rear Axle | 2001-07 - 2007-12 | 47 | 64 | 1896 | Estate Van |
| SKODA FABIA II Praktik (545) Construction Year to 201406 Fitting Position Rear Axle | 2013-10 - 2014-11 | 55 | 75 | 1598 | Estate Van |
| SKODA FABIA III Praktik (NJ5) Fitting Position Rear Axle | 2014-10 - 2022-12 | 44 | 60 | 999 | Estate Van |
| SKODA FABIA III Praktik (NJ5) Fitting Position Rear Axle | 2014-10 - 2022-12 | 55 | 75 | 999 | Estate Van |
| SKODA FABIA III Praktik (NJ5) Fitting Position Rear Axle | 2014-10 - 2022-12 | 66 | 90 | 1197 | Estate Van |
| SKODA FABIA III Praktik (NJ5) Fitting Position Rear Axle | 2014-10 - 2022-12 | 81 | 110 | 1197 | Estate Van |
| SKODA FABIA III Praktik (NJ5) Fitting Position Rear Axle | 2015-05 - 2022-12 | 55 | 75 | 1422 | Estate Van |
| SKODA FABIA III Praktik (NJ5) Fitting Position Rear Axle | 2014-10 - 2022-12 | 66 | 90 | 1422 | Estate Van |
| SKODA FABIA III Praktik (NJ5) Fitting Position Rear Axle | 2014-10 - 2022-12 | 77 | 105 | 1422 | Estate Van |
| VW FOX Hatchback (5Z1, 5Z3, 5Z4, 5Z5) Fitting Position Rear Axle | 2005-04 - 2011-07 | 40 | 55 | 1198 | Hatchback |
| VW FOX Hatchback (5Z1, 5Z3, 5Z4, 5Z5) Construction Year to 201108 Fitting Position Rear Axle | 2010-09 - 2011-12 | 44 | 60 | 1198 | Hatchback |
| VW FOX Hatchback (5Z1, 5Z3, 5Z4, 5Z5) Fitting Position Rear Axle | 2005-04 - 2009-12 | 55 | 75 | 1390 | Hatchback |
| VW FOX Hatchback (5Z1, 5Z3, 5Z4, 5Z5) Fitting Position Rear Axle | 2005-04 - 2009-12 | 51 | 70 | 1422 | Hatchback |
| VW POLO IV (9N_, 9A_) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2002-01 - 2007-05 | 40 | 54 | 1198 | Hatchback |
| VW POLO IV (9N_, 9A_) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2007-05 - 2009-11 | 44 | 60 | 1198 | Hatchback |
| VW POLO IV (9N_, 9A_) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2001-10 - 2007-07 | 47 | 64 | 1198 | Hatchback |
| VW POLO IV (9N_, 9A_) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2007-05 - 2009-11 | 51 | 69 | 1198 | Hatchback |
| VW POLO IV (9N_, 9A_) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2001-10 - 2008-05 | 55 | 75 | 1390 | Hatchback |
| VW POLO IV (9N_, 9A_) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2006-05 - 2009-11 | 59 | 80 | 1390 | Hatchback |
| VW POLO IV (9N_, 9A_) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2006-05 - 2009-11 | 60 | 82 | 1390 | Hatchback |
| VW POLO IV (9N_, 9A_) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2002-02 - 2006-07 | 63 | 86 | 1390 | Hatchback |
| VW POLO IV (9N_, 9A_) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2005-04 - 2009-11 | 51 | 70 | 1422 | Hatchback |
| VW POLO IV (9N_, 9A_) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2001-10 - 2005-06 | 55 | 75 | 1422 | Hatchback |
| VW POLO IV (9N_, 9A_) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2005-04 - 2009-11 | 59 | 80 | 1422 | Hatchback |
| VW POLO IV (9N_, 9A_) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2001-10 - 2009-11 | 47 | 64 | 1896 | Hatchback |
| VW POLO IV Saloon (9A4, 9A2, 9N2, 9A6) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2002-11 - 2012-04 | 55 | 75 | 1390 | Saloon |
| VW POLO IV Saloon (9A4, 9A2, 9N2, 9A6) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2003-07 - 2005-06 | 55 | 75 | 1422 | Saloon |
| VW POLO IV Saloon (9A4, 9A2, 9N2, 9A6) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2002-09 - 2012-04 | 47 | 64 | 1896 | Saloon |
| VW POLO V Saloon (602, 604, 612, 614) for PR number 1KM Fitting Position Rear Axle | 2015-05 - 2020-03 | 66 | 90 | 1598 | Saloon |
| VW POLO V Saloon (602, 604, 612, 614) Construction Year from 201407 for PR number 1KM Fitting Position Rear Axle | 2010-05 - 2022-05 | 77 | 105 | 1598 | Saloon |
| VW POLO V Saloon (602, 604, 612, 614) for PR number 1KM Fitting Position Rear Axle | 2015-05 - 2020-03 | 81 | 110 | 1598 | Saloon |
| VW POLO V (6R1, 6C1) for PR number 1KM Fitting Position Rear Axle | 2014-01 - 2017-10 | 44 | 60 | 999 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KM Fitting Position Rear Axle | 2014-01 - 2017-10 | 55 | 75 | 999 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KM Fitting Position Rear Axle | 2014-11 - 2017-10 | 70 | 95 | 999 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KM Fitting Position Rear Axle | 2014-11 - 2017-10 | 81 | 110 | 999 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2009-06 - 2014-05 | 44 | 60 | 1198 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2009-06 - 2014-05 | 51 | 70 | 1198 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2011-05 - 2014-05 | 66 | 90 | 1197 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2014-02 - 2017-10 | 66 | 90 | 1197 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2009-11 - 2022-05 | 77 | 105 | 1197 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KM Fitting Position Rear Axle | 2014-01 - 2017-10 | 81 | 110 | 1197 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2010-03 - 2011-01 | 60 | 82 | 1390 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2009-03 - 2014-05 | 63 | 86 | 1390 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2012-10 - 2014-05 | 103 | 140 | 1395 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KM Fitting Position Rear Axle | 2014-05 - 2017-10 | 110 | 150 | 1395 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2011-01 - 2014-05 | 60 | 82 | 1598 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KM Fitting Position Rear Axle | 2014-07 - 2017-10 | 66 | 90 | 1598 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KM Fitting Position Rear Axle | 2014-07 - 2017-10 | 81 | 110 | 1598 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2009-10 - 2014-05 | 55 | 75 | 1199 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KM Fitting Position Rear Axle | 2014-03 - 2017-10 | 55 | 75 | 1422 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KM Fitting Position Rear Axle | 2014-02 - 2017-10 | 66 | 90 | 1422 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KM Fitting Position Rear Axle | 2014-05 - 2017-10 | 77 | 105 | 1422 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2009-06 - 2014-05 | 55 | 75 | 1598 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2009-06 - 2014-05 | 66 | 90 | 1598 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2009-06 - 2015-08 | 77 | 105 | 1598 | Hatchback |
| VW POLO Estate Van (6V5) for PR number 1KB Fitting Position Rear Axle | 1995-12 - 1999-08 | 47 | 64 | 1896 | Estate Van |
| VW POLO V Hatchback Van (6R1, 6C1) for PR number 1KM Fitting Position Rear Axle | 2014-01 - 2017-10 | 44 | 60 | 999 | Hatchback Van |
| VW POLO V Hatchback Van (6R1, 6C1) for PR number 1KM Fitting Position Rear Axle | 2014-01 - 2017-10 | 55 | 75 | 999 | Hatchback Van |
| VW POLO V Hatchback Van (6R1, 6C1) for PR number 1KM Fitting Position Rear Axle | 2014-11 - 2017-10 | 70 | 95 | 999 | Hatchback Van |
| VW POLO V Hatchback Van (6R1, 6C1) for PR number 1KM Fitting Position Rear Axle | 2014-11 - 2017-10 | 81 | 110 | 999 | Hatchback Van |
| VW POLO V Hatchback Van (6R1, 6C1) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2009-03 - 2014-05 | 44 | 60 | 1198 | Hatchback Van |
| VW POLO V Hatchback Van (6R1, 6C1) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2009-03 - 2014-05 | 51 | 69 | 1198 | Hatchback Van |
| VW POLO V Hatchback Van (6R1, 6C1) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2014-02 - 2017-10 | 66 | 90 | 1197 | Hatchback Van |
| VW POLO V Hatchback Van (6R1, 6C1) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2011-05 - 2014-05 | 66 | 90 | 1197 | Hatchback Van |
| VW POLO V Hatchback Van (6R1, 6C1) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2009-11 - 2014-05 | 77 | 105 | 1197 | Hatchback Van |
| VW POLO V Hatchback Van (6R1, 6C1) for PR number 1KM Fitting Position Rear Axle | 2014-01 - 2017-10 | 81 | 110 | 1197 | Hatchback Van |
| VW POLO V Hatchback Van (6R1, 6C1) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2009-03 - 2014-05 | 63 | 86 | 1390 | Hatchback Van |
| VW POLO V Hatchback Van (6R1, 6C1) for PR number 1KM Fitting Position Rear Axle | 2014-05 - 2017-10 | 110 | 150 | 1395 | Hatchback Van |
| VW POLO V Hatchback Van (6R1, 6C1) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2009-10 - 2014-05 | 55 | 75 | 1199 | Hatchback Van |
| VW POLO V Hatchback Van (6R1, 6C1) for PR number 1KM Fitting Position Rear Axle | 2014-03 - 2017-10 | 55 | 75 | 1422 | Hatchback Van |
| VW POLO V Hatchback Van (6R1, 6C1) for PR number 1KM Fitting Position Rear Axle | 2014-02 - 2017-10 | 66 | 90 | 1422 | Hatchback Van |
| VW POLO V Hatchback Van (6R1, 6C1) for PR number 1KM Fitting Position Rear Axle | 2014-03 - 2017-10 | 77 | 105 | 1422 | Hatchback Van |
| VW POLO V Hatchback Van (6R1, 6C1) for PR number 1KB for PR number 1KM Fitting Position Rear Axle | 2009-06 - 2014-05 | 66 | 90 | 1598 | Hatchback Van |
24.0220-0037.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Audi
Sitz
Skoda
Volkswagen (VW) - Handelsnummer
- 480161
- Herkunftsland
- China
- Höhe
- 59,1
- Außendurchmesser [mm]
- 240,0
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 100,0
- Trägerplattendurchmesser [mm]
- 65,0
- Innendurchmesser [mm]
- 200,0
- Bohrdurchmesser [mm]
- 15,8
- Max. Bohrende Dimension [mm]
- 201,5
- Innenhöhe der Bremstrommel [mm]
- 50,1
Spezifische Referenzen
- ean13
- 4006633106849
- Hersteller-Teilenummer (MPN)
- 2402200037102
ATE 24.0220-0037.1
(240220-00371)
- Außendurchmesser [mm]: 240,0
- Innendurchmesser [mm]: 200,0
- Trägerplattendurchmesser [mm]: 65,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile der Bremstrommel
- Handelsnummer: 480161
