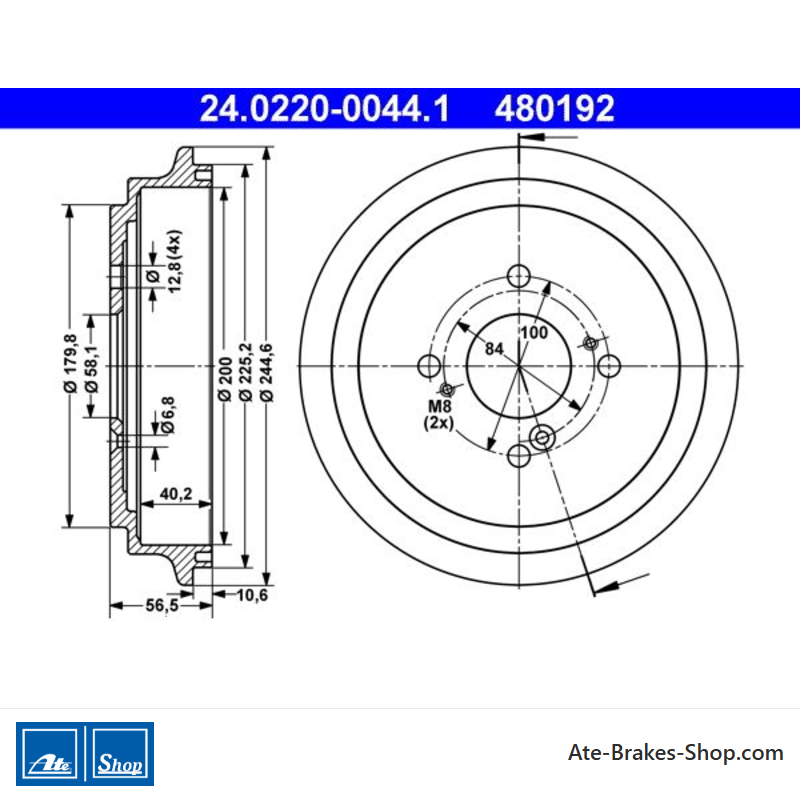

ATE Original-2-teilige Bremstrommel (24022000441) für Suzuki
90,75 €
(inkl. MwSt.)
75,00 € Steuerexzl.
Teilenummer:
ATE 24.0220-0044.1
(240220-00441)
- Außendurchmesser [mm]: 244,6
- Innendurchmesser [mm]: 200,0
- Trägerplattendurchmesser [mm]: 58,1
- Anzahl der Bolzenlöcher: 4
- 2 Teile der Bremstrommel
- Handelsnummer: 480192
- Ean-Code: 4006633293815
- Gewicht: 7.60kg
Specification of ATE 24.0220-0044.1 / 240220-00441 / 24022000441:
| OE Number | Reference info |
| SUZUKI 43511-60G00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 43511-60G10 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI BALENO (EG) Fitting Position Rear Axle | 1996-09 - 2002-05 | 52 | 71 | 1298 | Saloon |
| SUZUKI BALENO (EG) Fitting Position Rear Axle | 1995-07 - 2002-05 | 63 | 85 | 1298 | Saloon |
| SUZUKI BALENO (EG) Fitting Position Rear Axle | 1995-07 - 2002-05 | 72 | 98 | 1590 | Saloon |
| SUZUKI BALENO (EG) Fitting Position Rear Axle | 1995-07 - 2002-05 | 72 | 98 | 1590 | Saloon |
| SUZUKI BALENO Hatchback (EG) Fitting Position Rear Axle | 1996-09 - 2002-05 | 52 | 71 | 1298 | Hatchback |
| SUZUKI BALENO Hatchback (EG) Fitting Position Rear Axle | 1995-07 - 2002-05 | 63 | 85 | 1298 | Hatchback |
| SUZUKI BALENO Hatchback (EG) Fitting Position Rear Axle | 1995-07 - 2002-05 | 72 | 98 | 1590 | Hatchback |
| SUZUKI BALENO Hatchback (EG) Fitting Position Rear Axle | 1995-07 - 2002-05 | 72 | 98 | 1590 | Hatchback |
| SUZUKI BALENO Estate (EG) Fitting Position Rear Axle | 1997-03 - 2002-05 | 63 | 86 | 1298 | Estate |
| SUZUKI BALENO Estate (EG) Fitting Position Rear Axle | 1996-08 - 2002-05 | 72 | 98 | 1590 | Estate |
| SUZUKI BALENO Estate (EG) Fitting Position Rear Axle | 1996-08 - 2002-05 | 72 | 98 | 1590 | Estate |
| SUZUKI BALENO Estate (EG) Fitting Position Rear Axle | 1996-08 - 2002-05 | 73 | 99 | 1590 | Estate |
| SUZUKI BALENO Estate (EG) Fitting Position Rear Axle | 1996-08 - 2002-05 | 73 | 99 | 1590 | Estate |
| SUZUKI LIANA Hatchback Fitting Position Rear Axle | 2001-07 - 2007-12 | 66 | 90 | 1328 | Hatchback |
| SUZUKI LIANA Hatchback Fitting Position Rear Axle | 2001-07 - 2007-12 | 76 | 103 | 1586 | Hatchback |
| SUZUKI LIANA Hatchback Fitting Position Rear Axle | 2001-07 - 2007-12 | 76 | 103 | 1586 | Hatchback |
| SUZUKI LIANA Hatchback Fitting Position Rear Axle | 2002-04 - 2007-12 | 78 | 106 | 1586 | Hatchback |
| SUZUKI LIANA Hatchback Fitting Position Rear Axle | 2002-04 - 2007-12 | 78 | 106 | 1586 | Hatchback |
| SUZUKI LIANA Hatchback Fitting Position Rear Axle | 2005-01 - 2007-08 | 79 | 107 | 1586 | Hatchback |
| SUZUKI LIANA Hatchback Fitting Position Rear Axle | 2005-01 - 2007-12 | 79 | 107 | 1586 | Hatchback |
| SUZUKI LIANA Hatchback Fitting Position Rear Axle | 2004-04 - 2007-12 | 66 | 90 | 1398 | Hatchback |
| SUZUKI LIANA (ER, RH_) Construction Year to 200712 Fitting Position Rear Axle | 2002-03 - | 66 | 90 | 1328 | Saloon |
| SUZUKI LIANA (ER, RH_) Construction Year to 200712 Fitting Position Rear Axle | 2002-03 - | 76 | 103 | 1586 | Saloon |
| SUZUKI LIANA (ER, RH_) Construction Year to 200712 Fitting Position Rear Axle | 2002-03 - | 76 | 103 | 1586 | Saloon |
| SUZUKI LIANA (ER, RH_) Construction Year to 200712 Fitting Position Rear Axle | 2002-04 - | 78 | 106 | 1586 | Saloon |
| SUZUKI LIANA (ER, RH_) Construction Year to 200712 Fitting Position Rear Axle | 2002-04 - | 78 | 106 | 1586 | Saloon |
| SUZUKI LIANA (ER, RH_) Construction Year to 200712 Fitting Position Rear Axle | 2005-01 - | 79 | 107 | 1586 | Saloon |
| SUZUKI LIANA (ER, RH_) Fitting Position Rear Axle | 2005-01 - 2007-12 | 79 | 107 | 1586 | Saloon |
| SUZUKI LIANA (ER, RH_) Construction Year to 200712 Fitting Position Rear Axle | 2004-04 - | 66 | 90 | 1398 | Saloon |
| SUZUKI SWIFT III (MZ, EZ) Vehicle Production Country Japan Fitting Position Rear Axle | 2006-01 - 2012-06 | 66 | 90 | 1328 | Hatchback |
| SUZUKI SWIFT III (MZ, EZ) Fitting Position Rear Axle Vehicle Production Country Japan | 2005-02 - 2012-06 | 68 | 92 | 1328 | Hatchback |
24.0220-0044.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Suzuki
- Handelsnummer
- 480192
- Herkunftsland
- Italien
- Höhe
- 56,5
- Außendurchmesser [mm]
- 244,6
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 100,0
- Trägerplattendurchmesser [mm]
- 58,1
- Innendurchmesser [mm]
- 200,0
- Bohrdurchmesser [mm]
- 12,8
- Max. Bohrende Dimension [mm]
- 202,0
- Innenhöhe der Bremstrommel [mm]
- 40,2
Spezifische Referenzen
- ean13
- 4006633293815
- Hersteller-Teilenummer (MPN)
- 2402200044102
ATE 24.0220-0044.1
(240220-00441)
- Außendurchmesser [mm]: 244,6
- Innendurchmesser [mm]: 200,0
- Trägerplattendurchmesser [mm]: 58,1
- Anzahl der Bolzenlöcher: 4
- 2 Teile der Bremstrommel
- Handelsnummer: 480192
