ATE Original-2-teilige Bremstrommel (24022000491) für Opel, Suzuki
116,16 €
(inkl. MwSt.)
96,00 € Steuerexzl.
Teilenummer:
ATE 24.0220-0049.1
(240220-00491)
- Außendurchmesser [mm]: 238,0
- Innendurchmesser [mm]: 200,0
- Trägerplattendurchmesser [mm]: 57,9
- Anzahl der Bolzenlöcher: 4
- 2 Teile der Bremstrommel
- Handelsnummer: 480319
- Ean-Code: 4006633467322
- Gewicht: 11.83kg
Specification of ATE 24.0220-0049.1 / 240220-00491 / 24022000491:
| OE Number | Reference info |
| OPEL 47 08 277 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 4708277 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 93193100 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 47 00 448 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 4700448 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 95513699 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 43511-62J11 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 43511-62J10 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 47 00 448 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 4700448 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 95513699 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 93193100 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 47 08 277 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 4708277 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| OPEL AGILA B (H08) Fitting Position Rear Axle | 2008-04 - 2011-06 | 48 | 65 | 996 | Hatchback |
| OPEL AGILA B (H08) Fitting Position Rear Axle | 2010-01 - 2011-06 | 48 | 65 | 996 | Hatchback |
| OPEL AGILA B (H08) Fitting Position Rear Axle | 2011-07 - 2014-07 | 50 | 68 | 996 | Hatchback |
| OPEL AGILA B (H08) Fitting Position Rear Axle | 2008-04 - 2012-10 | 63 | 86 | 1242 | Hatchback |
| OPEL AGILA B (H08) Fitting Position Rear Axle | 2008-04 - 2010-10 | 63 | 86 | 1242 | Hatchback |
| OPEL AGILA B (H08) Construction Year from 201011 Fitting Position Rear Axle | 2010-04 - 2014-10 | 69 | 94 | 1242 | Hatchback |
| OPEL AGILA B (H08) Fitting Position Rear Axle | 2008-04 - 2010-04 | 55 | 75 | 1248 | Hatchback |
| SUZUKI SPLASH (EX) Fitting Position Rear Axle | 2008-01 - | 48 | 65 | 996 | Hatchback |
| SUZUKI SPLASH (EX) Fitting Position Rear Axle | 2011-06 - | 50 | 68 | 996 | Hatchback |
| SUZUKI SPLASH (EX) Fitting Position Rear Axle | 2008-01 - | 63 | 86 | 1242 | Hatchback |
| SUZUKI SPLASH (EX) Fitting Position Rear Axle | 2008-04 - 2014-12 | 63 | 86 | 1242 | Hatchback |
| SUZUKI SPLASH (EX) Fitting Position Rear Axle | 2011-06 - | 66 | 90 | 1242 | Hatchback |
| SUZUKI SPLASH (EX) Fitting Position Rear Axle | 2010-09 - | 69 | 94 | 1242 | Hatchback |
| SUZUKI SPLASH (EX) Fitting Position Rear Axle | 2008-01 - | 55 | 75 | 1248 | Hatchback |
| SUZUKI SWIFT III (MZ, EZ) Construction Year to 201009 Vehicle Production Country Hungary Fitting Position Rear Axle | 2006-01 - 2012-06 | 66 | 90 | 1328 | Hatchback |
| SUZUKI SWIFT III (MZ, EZ) Construction Year to 201009 Vehicle Production Country Hungary Fitting Position Rear Axle | 2005-02 - 2012-06 | 68 | 92 | 1328 | Hatchback |
| SUZUKI SWIFT III (MZ, EZ) Vehicle Production Country Hungary Fitting Position Rear Axle | 2005-02 - 2012-06 | 68 | 92 | 1328 | Hatchback |
| SUZUKI SWIFT III (MZ, EZ) Fitting Position Rear Axle Vehicle Production Country Hungary Vehicle Identification Number (VIN) to JSAEZD11S00400000 | 2008-09 - 2010-12 | 68 | 92 | 1328 | Hatchback |
| SUZUKI SWIFT III (MZ, EZ) Construction Year to 201009 Vehicle Production Country Hungary Fitting Position Rear Axle | 2005-02 - 2011-12 | 75 | 102 | 1490 | Hatchback |
| SUZUKI SWIFT III (MZ, EZ) Construction Year to 200709 Vehicle Production Country Hungary Fitting Position Rear Axle | 2005-08 - 2012-06 | 51 | 69 | 1248 | Hatchback |
| SUZUKI SWIFT III (MZ, EZ) Construction Year to 201009 Vehicle Production Country Hungary Fitting Position Rear Axle | 2005-08 - 2011-12 | 55 | 75 | 1248 | Hatchback |

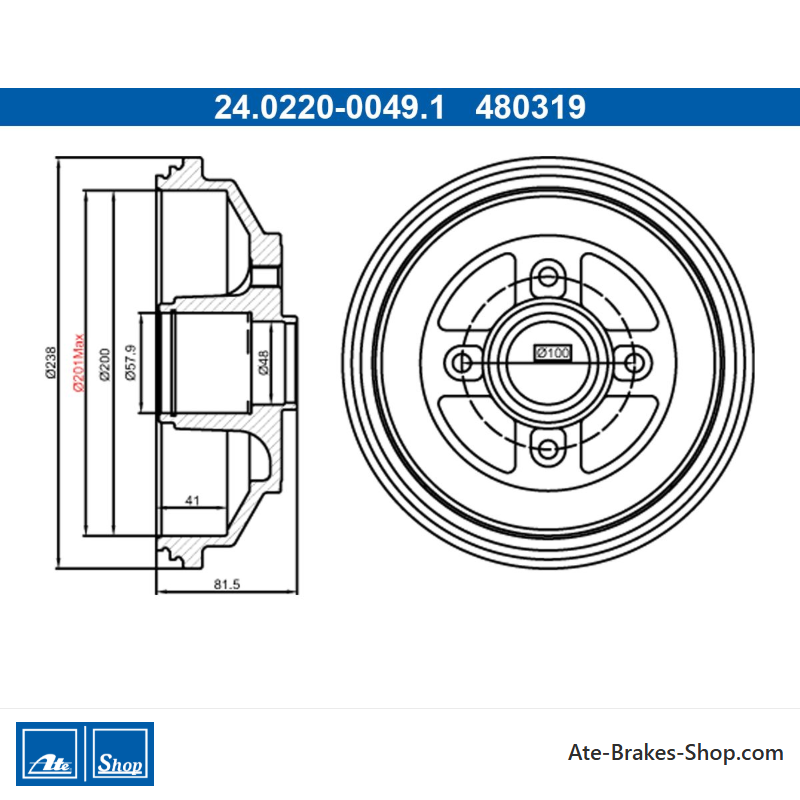

24.0220-0049.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Opel
Suzuki - Handelsnummer
- 480319
- Herkunftsland
- China
- Zusätzliche Informationen
- ohne ABS-Sensorring
ohne Radlager - Höhe
- 81,5
- Außendurchmesser [mm]
- 238,0
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 100,0
- Trägerplattendurchmesser [mm]
- 57,9
- Innendurchmesser [mm]
- 200,0
- Gewindegröße
- M12x1,5
- Max. Bohrende Dimension [mm]
- 201,0
- Innenhöhe der Bremstrommel [mm]
- 41,0
- Innendurchmesser der Bremstrommel [mm]
- 48,0
Spezifische Referenzen
- ean13
- 4006633467322
- Hersteller-Teilenummer (MPN)
- 2402200049102
ATE 24.0220-0049.1
(240220-00491)
- Außendurchmesser [mm]: 238,0
- Innendurchmesser [mm]: 200,0
- Trägerplattendurchmesser [mm]: 57,9
- Anzahl der Bolzenlöcher: 4
- 2 Teile der Bremstrommel
- Handelsnummer: 480319
