ATE Original 2 Teile Bremstrommel (24022037532) für Dacia, Renault
279,51 €
(inkl. MwSt.)
231,00 € Steuerexzl.
Teilenummer:
ATE 24.0220-3753.2
(240220-37532)

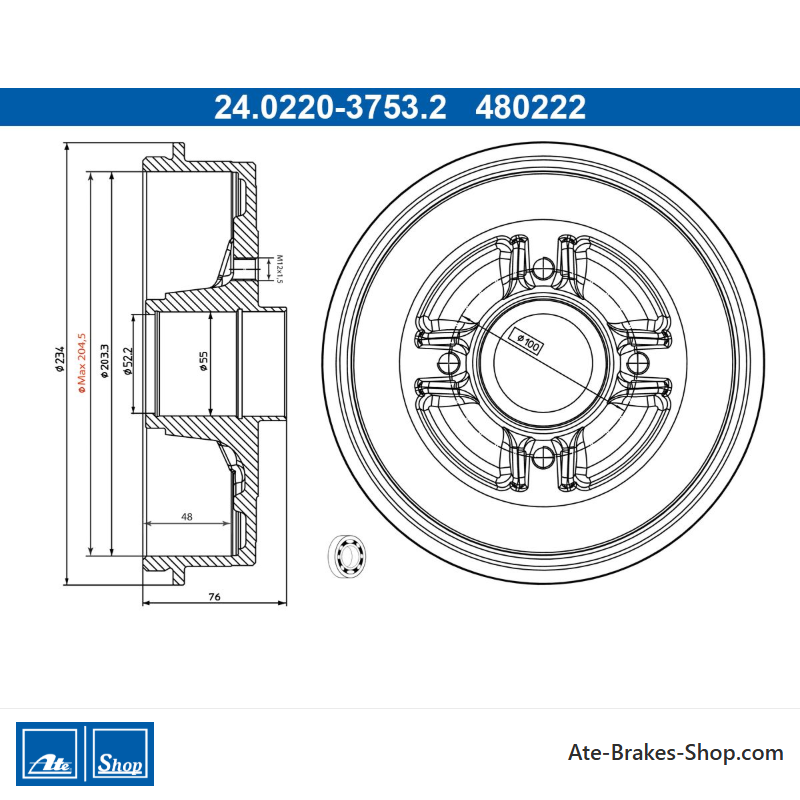

- Außendurchmesser [mm]: 234,0
- Innendurchmesser [mm]: 203,3
- Trägerplattendurchmesser [mm]: 55,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile der Bremstrommel
- Handelsnummer: 480222
- Ean-Code: 4006633504300
- Gewicht: 11.26kg
Specification of ATE 24.0220-3753.2 / 240220-37532 / 24022037532:
| OE Number | Reference info |
| RENAULT 43 20 024 67R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 432002467R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DACIA 43 20 065 28R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DACIA 432006528R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DACIA 43 20 075 86R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DACIA 432007586R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DACIA 43 20 024 67R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DACIA 432002467R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| DACIA LOGAN (LS_) Construction Year to 201304 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2006-02 - | 55 | 75 | 1149 | Saloon |
| DACIA LOGAN (LS_) Construction Year to 201304 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2006-02 - | 55 | 75 | 1149 | Saloon |
| DACIA LOGAN (LS_) Construction Year to 201304 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2004-09 - | 55 | 75 | 1390 | Saloon |
| DACIA LOGAN (LS_) Construction Year from 201205 Construction Year to 201304 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2010-05 - | 62 | 84 | 1598 | Saloon |
| DACIA LOGAN (LS_) Construction Year from 201101 Construction Year to 201304 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2010-07 - | 77 | 105 | 1598 | Saloon |
| DACIA LOGAN (LS_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2010-05 - 2012-12 | 55 | 75 | 1461 | Saloon |
| DACIA LOGAN (LS_) Construction Year to 201304 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2010-05 - | 65 | 88 | 1461 | Saloon |
| DACIA LOGAN II Fitting Position Rear Axle Braking/Driving Dynamics for vehicles without ABS Inner brake drum diameter [inch] 8 Inch | 2012-10 - | 66 | 90 | 898 | Saloon |
| DACIA LOGAN II Fitting Position Rear Axle Braking/Driving Dynamics for vehicles without ABS Inner brake drum diameter [inch] 8 Inch | 2015-09 - | 66 | 90 | 898 | Saloon |
| DACIA LOGAN II Fitting Position Rear Axle Braking/Driving Dynamics for vehicles without ABS Inner brake drum diameter [inch] 8 Inch | 2019-11 - | 74 | 101 | 999 | Saloon |
| DACIA LOGAN II Fitting Position Rear Axle Braking/Driving Dynamics for vehicles without ABS Inner brake drum diameter [inch] 8 Inch | 2019-11 - | 74 | 101 | 999 | Saloon |
| DACIA LOGAN II Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2015-05 - | 54 | 73 | 1149 | Saloon |
| DACIA LOGAN II Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2012-10 - | 55 | 75 | 1149 | Saloon |
| DACIA LOGAN II Fitting Position Rear Axle Braking/Driving Dynamics for vehicles without ABS | 2012-10 - | 55 | 75 | 1149 | Saloon |
| DACIA LOGAN II Fitting Position Rear Axle Braking/Driving Dynamics for vehicles without ABS Inner brake drum diameter [inch] 8 Inch | 2013-01 - | 77 | 105 | 1598 | Saloon |
| DACIA LOGAN II Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2012-10 - | 55 | 75 | 1461 | Saloon |
| DACIA LOGAN II Fitting Position Rear Axle Braking/Driving Dynamics for vehicles without ABS Inner brake drum diameter [inch] 8 Inch | 2013-01 - | 63 | 84 | 1461 | Saloon |
| DACIA LOGAN II Fitting Position Rear Axle Braking/Driving Dynamics for vehicles without ABS Inner brake drum diameter [inch] 8 Inch | 2012-10 - | 66 | 90 | 1461 | Saloon |
| DACIA LOGAN II Fitting Position Rear Axle Braking/Driving Dynamics for vehicles without ABS | 2018-05 - | 70 | 95 | 1461 | Saloon |
| DACIA LOGAN MCV II Fitting Position Rear Axle Braking/Driving Dynamics for vehicles without ABS Inner brake drum diameter [inch] 8 Inch | 2016-12 - | 54 | 73 | 998 | Estate |
| DACIA LOGAN MCV II Fitting Position Rear Axle Braking/Driving Dynamics for vehicles without ABS Inner brake drum diameter [inch] 8 Inch | 2019-11 - | 74 | 101 | 999 | Estate |
| DACIA LOGAN MCV II Fitting Position Rear Axle Braking/Driving Dynamics for vehicles without ABS Inner brake drum diameter [inch] 8 Inch | 2019-11 - | 74 | 101 | 999 | Estate |
| DACIA SANDERO (BS_) Braking/Driving Dynamics for vehicles without ABS Construction Year to 201302 Fitting Position Rear Axle | 2008-11 - 2013-06 | 55 | 75 | 1149 | Hatchback |
| DACIA SANDERO (BS_) Braking/Driving Dynamics for vehicles without ABS Construction Year to 201302 Fitting Position Rear Axle | 2008-11 - 2013-06 | 55 | 75 | 1149 | Hatchback |
| DACIA SANDERO (BS_) Fitting Position Rear Axle | 2009-01 - 2012-12 | 53 | 72 | 1390 | Hatchback |
| DACIA SANDERO (BS_) Fitting Position Rear Axle | 2008-06 - 2012-12 | 55 | 75 | 1390 | Hatchback |
| DACIA SANDERO (BS_) Construction Year to 201210 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2011-01 - 2012-12 | 60 | 82 | 1598 | Hatchback |
| DACIA SANDERO (BS_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2010-05 - 2012-10 | 62 | 84 | 1598 | Hatchback |
| DACIA SANDERO (BS_) Fitting Position Rear Axle | 2008-06 - 2012-12 | 64 | 87 | 1598 | Hatchback |
| DACIA SANDERO (BS_) Fitting Position Rear Axle | 2008-06 - 2012-12 | 64 | 87 | 1598 | Hatchback |
| DACIA SANDERO (BS_) Fitting Position Rear Axle | 2008-06 - 2012-12 | 64 | 87 | 1598 | Hatchback |
| DACIA SANDERO (BS_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2011-07 - 2012-12 | 77 | 105 | 1598 | Hatchback |
| DACIA SANDERO (BS_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2011-01 - 2012-12 | 77 | 105 | 1598 | Hatchback |
| DACIA SANDERO (BS_) Fitting Position Rear Axle | 2008-11 - 2012-12 | 48 | 65 | 1461 | Hatchback |
| DACIA SANDERO (BS_) Fitting Position Rear Axle | 2008-11 - 2012-12 | 50 | 68 | 1461 | Hatchback |
| DACIA SANDERO (BS_) Braking/Driving Dynamics for vehicles without ABS Construction Year to 201302 Fitting Position Rear Axle | 2010-05 - 2013-06 | 55 | 75 | 1461 | Hatchback |
| DACIA SANDERO (BS_) Braking/Driving Dynamics for vehicles without ABS Construction Year to 201302 Fitting Position Rear Axle | 2010-05 - 2013-06 | 65 | 88 | 1461 | Hatchback |
| DACIA SANDERO II (B8_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle Inner brake drum diameter [inch] 8 Inch | 2012-10 - | 66 | 90 | 898 | Hatchback |
| DACIA SANDERO II (B8_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle Inner brake drum diameter [inch] 8 Inch | 2015-09 - | 66 | 90 | 898 | Hatchback |
| DACIA SANDERO II (B8_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle Inner brake drum diameter [inch] 8 Inch | 2016-12 - 2020-09 | 54 | 73 | 999 | Hatchback |
| DACIA SANDERO II (B8_) Fitting Position Rear Axle Braking/Driving Dynamics for vehicles without ABS | 2019-11 - | 74 | 101 | 999 | Hatchback |
| DACIA SANDERO II (B8_) Fitting Position Rear Axle Braking/Driving Dynamics for vehicles without ABS | 2019-11 - | 74 | 101 | 999 | Hatchback |
| DACIA SANDERO II (B8_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2015-05 - | 54 | 73 | 1149 | Hatchback |
| DACIA SANDERO II (B8_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2012-10 - | 55 | 75 | 1149 | Hatchback |
| DACIA SANDERO II (B8_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2012-10 - | 55 | 75 | 1149 | Hatchback |
| DACIA SANDERO II (B8_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle Inner brake drum diameter [inch] 8 Inch | 2012-10 - | 55 | 75 | 1461 | Hatchback |
| DACIA SANDERO II (B8_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle Inner brake drum diameter [inch] 8 Inch | 2012-10 - | 66 | 90 | 1461 | Hatchback |
| DACIA SANDERO II (B8_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle Inner brake drum diameter [inch] 8 Inch | 2018-08 - | 70 | 95 | 1461 | Hatchback |
| RENAULT LOGAN II Estate (K8_) Fitting Position Rear Axle Braking/Driving Dynamics for vehicles without ABS Inner brake drum diameter [inch] 8 Inch | 2013-12 - | 78 | 106 | 1598 | Estate |
| RENAULT LOGAN/STEPWAY II (L8_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2016-09 - | 83 | 113 | 1598 | Saloon |
| RENAULT SANDERO/STEPWAY I (BS_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2009-02 - 2013-07 | 55 | 75 | 1390 | Hatchback |
| RENAULT SANDERO/STEPWAY I (BS_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2009-02 - 2012-10 | 64 | 87 | 1598 | Hatchback |
| RENAULT SANDERO/STEPWAY II (B8_) Fitting Position Rear Axle Braking/Driving Dynamics for vehicles without ABS Inner brake drum diameter [inch] 8 Inch | 2017-01 - | 66 | 90 | 1461 | Hatchback |
| RENAULT SYMBOL/LOGAN III (L8_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2014-06 - | 66 | 90 | 898 | Saloon |
| RENAULT SYMBOL/LOGAN III (L8_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2014-07 - | 55 | 75 | 1461 | Saloon |
| RENAULT SYMBOL/LOGAN III (L8_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2013-12 - | 66 | 90 | 1461 | Saloon |
| RENAULT SYMBOL/LOGAN III (L8_) Fitting Position Rear Axle Braking/Driving Dynamics for vehicles without ABS | 2019-11 - | 70 | 95 | 1461 | Saloon |
24.0220-3753.2
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Dacia
Renault - Handelsnummer
- 480222
- Herkunftsland
- Italien
- Zusätzliche Informationen
- mit Radlager
ohne ABS-Sensorring - Höhe
- 76,0
- Außendurchmesser [mm]
- 234,0
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 100,0
- Trägerplattendurchmesser [mm]
- 55,0
- Innendurchmesser [mm]
- 203,3
- Gewindegröße
- M12x1,5
- Max. Bohrende Dimension [mm]
- 204,5
- Innenhöhe der Bremstrommel [mm]
- 48,0
Spezifische Referenzen
- ean13
- 4006633504300
- Hersteller-Teilenummer (MPN)
- 2402203753202
ATE 24.0220-3753.2
(240220-37532)
- Außendurchmesser [mm]: 234,0
- Innendurchmesser [mm]: 203,3
- Trägerplattendurchmesser [mm]: 55,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile der Bremstrommel
- Handelsnummer: 480222
