ATE Originaler zweiteiliger Bremstrommel (24022200031) für Suzuki
search
  • ATE Originaler zweiteiliger Bremstrommel (24022200031) für Suzuki
  • ATE Originaler zweiteiliger Bremstrommel (24022200031) für Suzuki

ATE Originaler zweiteiliger Bremstrommel (24022200031) für Suzuki

112,53 € (inkl. MwSt.)

93,00 € Steuerexzl.

Teilenummer:

ATE 24.0222-0003.1
(240222-00031)

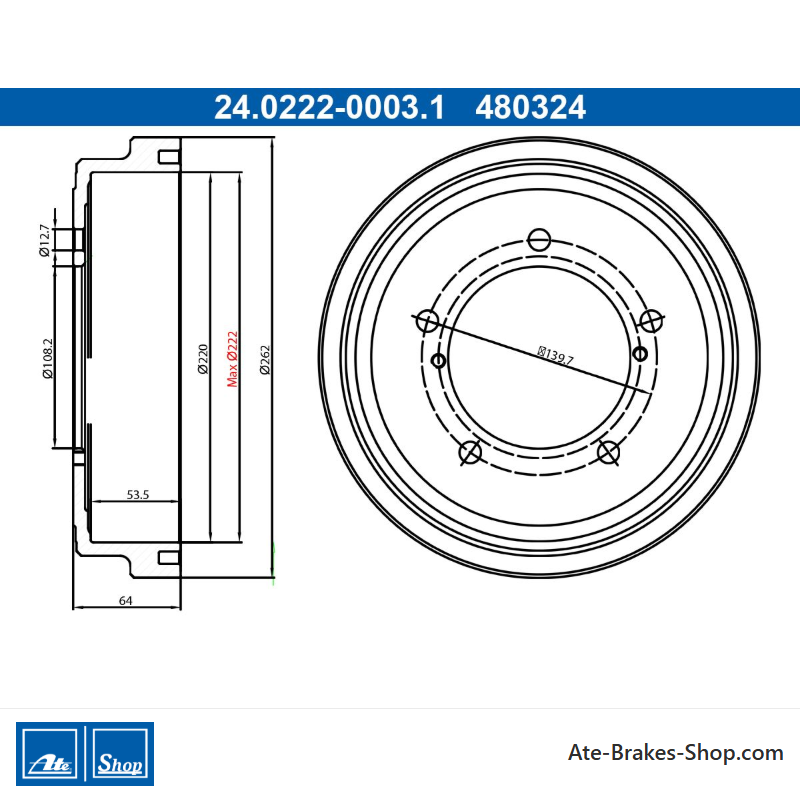

  • Außendurchmesser [mm]: 262,0
  • Innendurchmesser [mm]: 220,0
  • Trägerplattendurchmesser [mm]: 108,2
  • Anzahl der Bolzenlöcher: 5
  • 2 Teile der Bremstrommel
  • Handelsnummer: 480324
  • Ean-Code: 4006633470179
  • Gewicht: 11.99kg
Menge

Specification of ATE 24.0222-0003.1 / 240222-00031 / 24022200031:

OE NumberReference info
SUZUKI 43511-65D10Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
SUZUKI 43511-67D01Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
SUZUKI GRAND VITARA I (FT, HT)

Construction Year to 200411

Fitting Position Rear Axle		1998-03 - 2003-0769941590Closed Off-Road Vehicle
SUZUKI GRAND VITARA I (FT, HT)

Construction Year to 200411

Fitting Position Rear Axle		2003-09 - 2005-0971971590Closed Off-Road Vehicle
SUZUKI GRAND VITARA I (FT, HT)

Construction Year to 200411

Fitting Position Rear Axle		1998-03 - 2003-07941281995Closed Off-Road Vehicle
SUZUKI GRAND VITARA I (FT, HT)

Fitting Position Rear Axle

Vehicle Identification Number (VIN) from JSAFTL52V00109148		2001-04 - 2003-071161582493Closed Off-Road Vehicle
SUZUKI GRAND VITARA I (FT, HT)

Fitting Position Rear Axle

Vehicle Identification Number (VIN) from JSAFTL52V00109148		1998-04 - 2003-071061442493Closed Off-Road Vehicle
SUZUKI GRAND VITARA I (FT, HT)

Fitting Position Rear Axle		2001-09 - 2003-071271732736Closed Off-Road Vehicle
SUZUKI GRAND VITARA I (FT, HT)

Fitting Position Rear Axle		2003-04 - 2003-071351842736Closed Off-Road Vehicle
SUZUKI GRAND VITARA I (FT, HT)

Fitting Position Rear Axle

Vehicle Identification Number (VIN) from JSAFTL52V00200001		2000-04 - 2005-0963861998Closed Off-Road Vehicle
SUZUKI GRAND VITARA I Open Off-Road Vehicle (GT)

Fitting Position Rear Axle		1998-03 - 2003-0769941590Open Off-Road Vehicle
SUZUKI GRAND VITARA I Open Off-Road Vehicle (GT)

Fitting Position Rear Axle

Vehicle Identification Number (VIN) from 2S2GTA52C00450001		1998-03 - 2003-07941281995Open Off-Road Vehicle
SUZUKI GRAND VITARA II (JT, TE, TD)

Fitting Position Rear Axle		2005-09 - 2015-0273991586Closed Off-Road Vehicle
SUZUKI GRAND VITARA II (JT, TE, TD)

Construction Year to 201502

Fitting Position Rear Axle		2005-10 -781061586Closed Off-Road Vehicle
SUZUKI GRAND VITARA II (JT, TE, TD)

Fitting Position Rear Axle		2005-04 - 2015-02781061586Closed Off-Road Vehicle
SUZUKI GRAND VITARA II (JT, TE, TD)

Construction Year to 201112

Fitting Position Rear Axle		2005-10 - 2015-021031401995Closed Off-Road Vehicle
SUZUKI GRAND VITARA II (JT, TE, TD)

Fitting Position Rear Axle		2005-10 - 2015-021031401995Closed Off-Road Vehicle
SUZUKI GRAND VITARA II (JT, TE, TD)

Fitting Position Rear Axle		2007-01 - 2008-121361852737Closed Off-Road Vehicle
SUZUKI GRAND VITARA II (JT, TE, TD)

Fitting Position Rear Axle		2006-03 - 2008-08951291870Closed Off-Road Vehicle
SUZUKI GRAND VITARA II (JT, TE, TD)

Construction Year to 200808

Fitting Position Rear Axle		2005-10 - 2015-02951291870Closed Off-Road Vehicle
24.0222-0003.1

Datenblatt

Artikelstatus
Bestellbar
Automarke
Suzuki
Handelsnummer
480324
Herkunftsland
China
Höhe
64,0
Außendurchmesser [mm]
262,0
Anzahl der Schraublöcher
5
Bolzenlochdurchmesser [mm]
139,7
Trägerplattendurchmesser [mm]
108,2
Innendurchmesser [mm]
220,0
Bohrdurchmesser [mm]
12,7
Max. Bohrende Dimension [mm]
222,0
Innenhöhe der Bremstrommel [mm]
53,5

Spezifische Referenzen

ean13
4006633470179
Hersteller-Teilenummer (MPN)
2402220003102
