ATE Original zweiteilige Bremstrommel (24022280131) für BMW
90,75 €
(inkl. MwSt.)
75,00 € Steuerexzl.
Teilenummer:
ATE 24.0222-8013.1
(240222-80131)

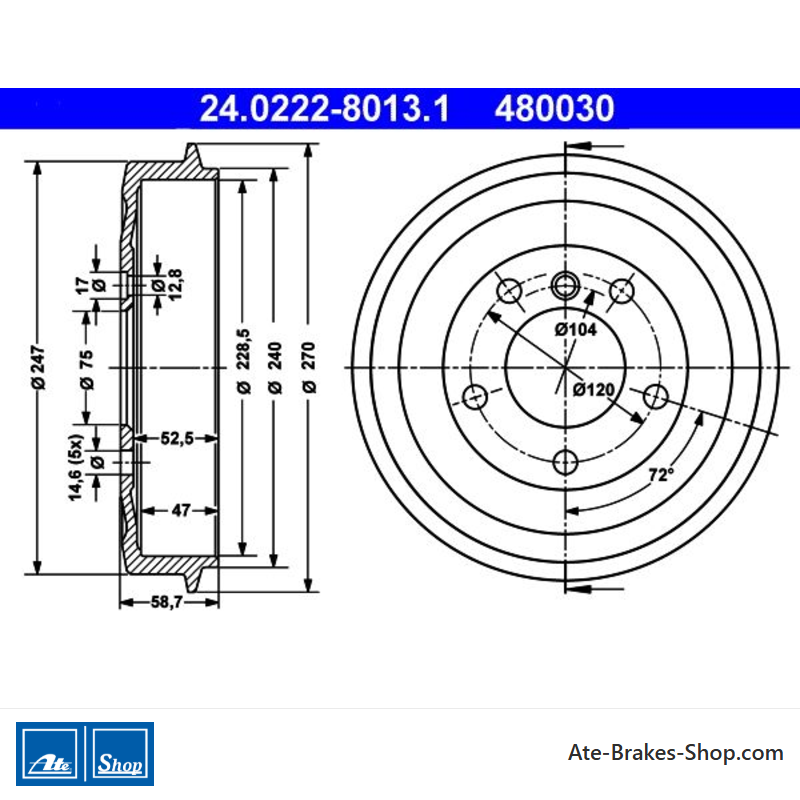

- Außendurchmesser [mm]: 270,0
- Innendurchmesser [mm]: 229
- Trägerplattendurchmesser [mm]: 75,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile der Bremstrommel
- Handelsnummer: 480030
- Ean-Code: 4006633280945
- Gewicht: 9.46kg
Specification of ATE 24.0222-8013.1 / 240222-80131 / 24022280131:
| OE Number | Reference info |
| BMW 34 21 1 159 486 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34211159486 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34 21 6 752 366 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34216752366 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| BMW 3 (E36) Fitting Position Rear Axle | 1991-03 - 1993-08 | 73 | 100 | 1596 | Saloon |
| BMW 3 (E36) Fitting Position Rear Axle | 1993-09 - 1998-05 | 75 | 102 | 1596 | Saloon |
| BMW 3 (E36) Fitting Position Rear Axle | 1990-09 - 1993-08 | 83 | 113 | 1796 | Saloon |
| BMW 3 (E36) Fitting Position Rear Axle | 1993-09 - 1998-11 | 85 | 115 | 1796 | Saloon |
| BMW 3 (E36) Fitting Position Rear Axle | 1995-01 - 1998-02 | 66 | 90 | 1665 | Saloon |
| BMW 3 Coupe (E36) Fitting Position Rear Axle | 1993-09 - 1998-11 | 75 | 102 | 1596 | Coupe |
| BMW 3 Compact (E36) Fitting Position Rear Axle | 1994-01 - 2000-08 | 75 | 102 | 1596 | Hatchback |
| BMW 3 Compact (E36) Fitting Position Rear Axle | 1996-02 - 2000-08 | 75 | 102 | 1596 | Hatchback |
| BMW 3 Compact (E36) Fitting Position Rear Axle | 1995-06 - 2000-08 | 66 | 90 | 1665 | Hatchback |
24.0222-8013.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- BMW
- Handelsnummer
- 480030
- Herkunftsland
- China
- Höhe
- 58,7
- Außendurchmesser [mm]
- 270,0
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 120,0
- Trägerplattendurchmesser [mm]
- 75,0
- Innendurchmesser [mm]
- 229
- Bohrdurchmesser [mm]
- 14,6
- Max. Bohrende Dimension [mm]
- 229,5
- Innenhöhe der Bremstrommel [mm]
- 47,0
Spezifische Referenzen
- ean13
- 4006633280945
- Hersteller-Teilenummer (MPN)
- 2402228013102
ATE 24.0222-8013.1
(240222-80131)
- Außendurchmesser [mm]: 270,0
- Innendurchmesser [mm]: 229
- Trägerplattendurchmesser [mm]: 75,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile der Bremstrommel
- Handelsnummer: 480030
