ATE Original zweiteiliger Bremstrommel (24022280181) für Alfa Romeo, Citroën, Fiat, Lancia, Peugeot
83,49 €
(inkl. MwSt.)
69,00 € Steuerexzl.
Teilenummer:
ATE 24.0222-8018.1
(240222-80181)

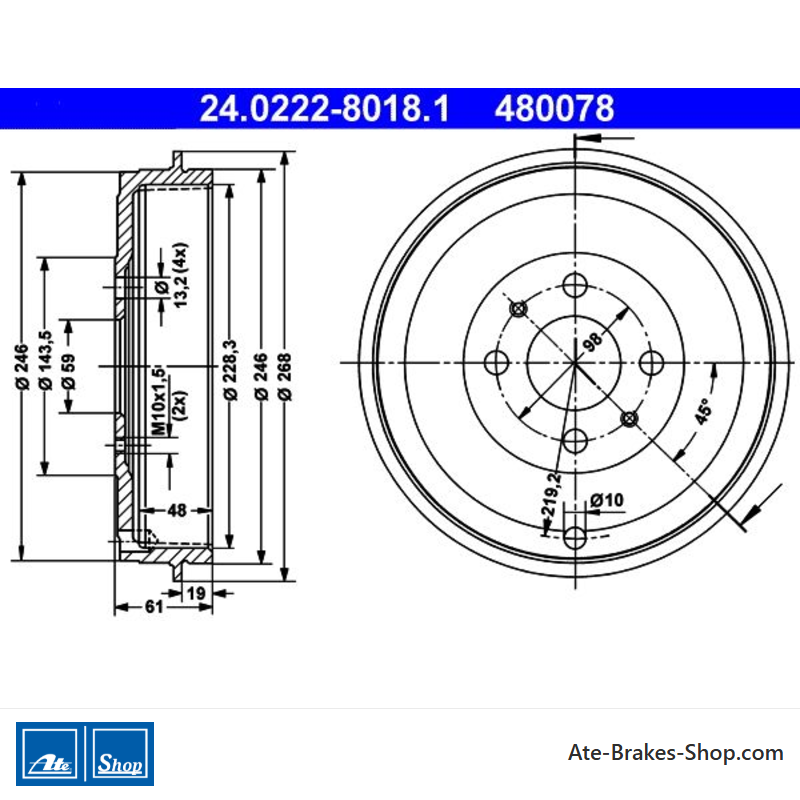

- Außendurchmesser [mm]: 268,0
- Innendurchmesser [mm]: 228
- Trägerplattendurchmesser [mm]: 59,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile der Bremstrommel
- Handelsnummer: 480078
- Ean-Code: 4006633068727
- Gewicht: 11.82kg
Specification of ATE 24.0222-8018.1 / 240222-80181 / 24022280181:
| OE Number | Reference info |
| CITROËN 4247 55 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 424755 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4247 58 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 424758 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 16 089 454 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 1608945480 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 16 173 290 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 1617329080 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 7769850 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 7569600 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 60810025 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 60814839 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 51816526 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 52015299 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4247 55 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 424755 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4247 58 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 424758 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 16 089 454 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 1608945480 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 16 173 290 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 1617329080 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| ALFA ROMEO 145 (930_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1994-07 - 1996-12 | 66 | 90 | 1351 | Hatchback |
| ALFA ROMEO 145 (930_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1994-10 - 1996-12 | 76 | 103 | 1596 | Hatchback |
| ALFA ROMEO 145 (930_) Construction Year to 199612 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1994-10 - 1999-02 | 66 | 90 | 1929 | Hatchback |
| ALFA ROMEO 146 (930_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1994-12 - 1996-12 | 66 | 90 | 1351 | Hatchback |
| ALFA ROMEO 146 (930_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1994-12 - 1996-12 | 76 | 103 | 1596 | Hatchback |
| ALFA ROMEO 146 (930_) Construction Year to 199612 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1994-12 - 1999-02 | 66 | 90 | 1929 | Hatchback |
| CITROËN NEMO MPV Fitting Position Rear Axle | 2010-10 - | 55 | 75 | 1248 | MPV |
| CITROËN NEMO MPV Fitting Position Rear Axle | 2009-04 - | 50 | 68 | 1399 | MPV |
| CITROËN NEMO Box Body/MPV (AA_) Fitting Position Rear Axle | 2010-10 - | 55 | 75 | 1248 | Box Body/MPV |
| CITROËN NEMO Box Body/MPV (AA_) Fitting Position Rear Axle | 2016-02 - | 59 | 80 | 1248 | Box Body/MPV |
| CITROËN NEMO Box Body/MPV (AA_) Fitting Position Rear Axle | 2008-02 - | 50 | 68 | 1398 | Box Body/MPV |
| FIAT DOBLO MPV (119_, 223_) Construction Year to 200509 Fitting Position Rear Axle | 2001-03 - | 48 | 65 | 1242 | MPV |
| FIAT DOBLO MPV (119_, 223_) Construction Year to 201001 Fitting Position Rear Axle | 2005-10 - | 57 | 77 | 1368 | MPV |
| FIAT DOBLO MPV (119_, 223_) Construction Year to 201001 Fitting Position Rear Axle | 2001-10 - | 76 | 103 | 1596 | MPV |
| FIAT DOBLO MPV (119_, 223_) Construction Year to 201001 Fitting Position Rear Axle | 2002-09 - | 76 | 103 | 1596 | MPV |
| FIAT DOBLO MPV (119_, 223_) Fitting Position Rear Axle | 2004-12 - 2005-05 | 51 | 70 | 1248 | MPV |
| FIAT DOBLO MPV (119_, 223_) Construction Year from 200510 Construction Year to 201001 Fitting Position Rear Axle | 2005-05 - | 55 | 75 | 1248 | MPV |
| FIAT DOBLO MPV (119_, 223_) Construction Year to 201001 Fitting Position Rear Axle | 2005-10 - | 62 | 84 | 1248 | MPV |
| FIAT DOBLO MPV (119_, 223_) Construction Year to 200509 Fitting Position Rear Axle | 2001-03 - | 46 | 63 | 1910 | MPV |
| FIAT DOBLO MPV (119_, 223_) Construction Year to 201001 Fitting Position Rear Axle | 2001-10 - | 74 | 100 | 1910 | MPV |
| FIAT DOBLO MPV (119_, 223_) Construction Year to 201001 Fitting Position Rear Axle | 2003-07 - | 77 | 105 | 1910 | MPV |
| FIAT DOBLO MPV (119_, 223_) Construction Year to 201001 Fitting Position Rear Axle | 2005-10 - | 88 | 120 | 1910 | MPV |
| FIAT FIORINO MPV (225_) Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 2007-11 - | 54 | 73 | 1360 | MPV |
| FIAT FIORINO MPV (225_) Fitting Position Rear Axle | 2014-07 - | 51 | 69 | 1368 | MPV |
| FIAT FIORINO MPV (225_) Fitting Position Rear Axle | 2014-07 - | 57 | 77 | 1368 | MPV |
| FIAT FIORINO MPV (225_) Fitting Position Rear Axle | 2008-06 - | 57 | 77 | 1368 | MPV |
| FIAT FIORINO MPV (225_) Fitting Position Rear Axle | 2007-11 - | 55 | 75 | 1248 | MPV |
| FIAT FIORINO MPV (225_) Fitting Position Rear Axle | 2016-03 - | 59 | 80 | 1248 | MPV |
| FIAT FIORINO MPV (225_) Fitting Position Rear Axle | 2011-01 - | 70 | 95 | 1248 | MPV |
| FIAT FIORINO Pick up (146_) Construction Year to 200103 Fitting Position Rear Axle | 1994-05 - 2001-05 | 49 | 67 | 1372 | Pickup |
| FIAT FIORINO Pick up (146_) Construction Year to 200103 Fitting Position Rear Axle | 1994-01 - 2001-05 | 55 | 75 | 1581 | Pickup |
| FIAT FIORINO Pick up (146_) Fitting Position Rear Axle | 1993-10 - 1999-10 | 42 | 57 | 1697 | Pickup |
| FIAT FIORINO Pick up (146_) Construction Year from 199309 Fitting Position Rear Axle | 1988-05 - 1999-10 | 44 | 60 | 1698 | Pickup |
| FIAT FIORINO Pick up (146_) Construction Year to 200103 Fitting Position Rear Axle | 1997-01 - 2001-05 | 46 | 63 | 1698 | Pickup |
| FIAT IDEA (350_) Construction Year from 200511 Construction Year to 200802 Fitting Position Rear Axle | 2005-10 - | 66 | 90 | 1248 | MPV |
| FIAT IDEA (350_) Construction Year to 201207 Fitting Position Rear Axle | 2008-05 - 2012-12 | 70 | 95 | 1248 | MPV |
| FIAT IDEA (350_) Construction Year to 200802 Fitting Position Rear Axle | 2004-01 - | 74 | 101 | 1910 | MPV |
| FIAT LINEA (323_, 110_) Construction Year from 200707 Construction Year to 201105 Fitting Position Rear Axle | 2007-06 - | 57 | 77 | 1368 | Saloon |
| FIAT LINEA (323_, 110_) Construction Year from 200707 Construction Year to 201105 Fitting Position Rear Axle | 2006-10 - | 63 | 86 | 1248 | Saloon |
| FIAT LINEA (323_, 110_) Construction Year from 200707 Construction Year to 201105 Fitting Position Rear Axle | 2007-06 - | 66 | 90 | 1248 | Saloon |
| FIAT MAREA Weekend (185_) Fitting Position Rear Axle | 1996-09 - 2002-05 | 76 | 103 | 1581 | Estate |
| FIAT MAREA Weekend (185_) Fitting Position Rear Axle | 2000-09 - 2002-08 | 76 | 103 | 1596 | Estate |
| FIAT MAREA Weekend (185_) Fitting Position Rear Axle | 1996-09 - 2002-05 | 83 | 113 | 1747 | Estate |
| FIAT MAREA Weekend (185_) Fitting Position Rear Axle | 1996-09 - 2002-05 | 55 | 75 | 1910 | Estate |
| FIAT MAREA Weekend (185_) Fitting Position Rear Axle | 1996-09 - 2003-06 | 74 | 100 | 1910 | Estate |
| FIAT MAREA Weekend (185_) Fitting Position Rear Axle | 1998-12 - 2002-12 | 77 | 105 | 1910 | Estate |
| FIAT MAREA Weekend (185_) Fitting Position Rear Axle | 2000-09 - 2002-08 | 81 | 110 | 1910 | Estate |
| FIAT MULTIPLA (186_) Fitting Position Rear Axle | 1999-04 - 2004-09 | 70 | 95 | 1581 | MPV |
| FIAT MULTIPLA (186_) Fitting Position Rear Axle | 1999-04 - 2004-09 | 76 | 103 | 1581 | MPV |
| FIAT MULTIPLA (186_) Fitting Position Rear Axle | 1999-04 - 2000-08 | 76 | 103 | 1581 | MPV |
| FIAT MULTIPLA (186_) Fitting Position Rear Axle | 2002-04 - 2010-06 | 70 | 95 | 1596 | MPV |
| FIAT MULTIPLA (186_) Fitting Position Rear Axle | 2000-09 - 2010-06 | 76 | 103 | 1596 | MPV |
| FIAT MULTIPLA (186_) Fitting Position Rear Axle | 2001-10 - 2005-08 | 76 | 103 | 1596 | MPV |
| FIAT MULTIPLA (186_) Fitting Position Rear Axle | 2001-10 - 2010-06 | 76 | 103 | 1596 | MPV |
| FIAT MULTIPLA (186_) Fitting Position Rear Axle | 1999-04 - 2000-08 | 77 | 105 | 1910 | MPV |
| FIAT MULTIPLA (186_) Fitting Position Rear Axle | 2001-03 - 2002-07 | 81 | 110 | 1910 | MPV |
| FIAT MULTIPLA (186_) Fitting Position Rear Axle | 2002-07 - 2010-06 | 85 | 115 | 1910 | MPV |
| FIAT MULTIPLA (186_) Fitting Position Rear Axle | 2002-04 - 2010-06 | 88 | 120 | 1910 | MPV |
| FIAT PALIO (178_, 171_, 371_) Construction Year from 199710 Fitting Position Rear Axle | 1997-07 - 2002-08 | 44 | 60 | 1242 | Hatchback |
| FIAT PALIO (178_, 171_, 371_) Fitting Position Rear Axle | 1999-06 - 2000-10 | 50 | 68 | 1242 | Hatchback |
| FIAT PALIO Weekend (178_, 173_, 373_, 374_, 171_) Construction Year from 199710 Fitting Position Rear Axle | 1997-07 - 2004-10 | 44 | 60 | 1242 | Estate |
| FIAT PALIO Weekend (178_, 173_, 373_, 374_, 171_) Construction Year from 199710 Fitting Position Rear Axle | 1996-04 - 2004-02 | 54 | 73 | 1242 | Estate |
| FIAT PALIO Weekend (178_, 173_, 373_, 374_, 171_) Fitting Position Rear Axle | 2001-09 - 2004-10 | 59 | 80 | 1242 | Estate |
| FIAT PALIO Weekend (178_, 173_, 373_, 374_, 171_) Construction Year from 199710 Fitting Position Rear Axle | 1996-06 - 2001-02 | 74 | 100 | 1581 | Estate |
| FIAT PALIO Weekend (178_, 173_, 373_, 374_, 171_) Construction Year to 200612 Fitting Position Rear Axle | 2001-02 - 2012-01 | 76 | 103 | 1596 | Estate |
| FIAT PALIO Weekend (178_, 173_, 373_, 374_, 171_) Construction Year from 199710 Fitting Position Rear Axle | 1996-04 - 2001-03 | 51 | 70 | 1698 | Estate |
| FIAT PALIO Weekend (178_, 173_, 373_, 374_, 171_) Construction Year to 200612 Fitting Position Rear Axle | 2001-03 - | 46 | 63 | 1910 | Estate |
| FIAT PALIO Weekend (178_, 173_, 373_, 374_, 171_) Construction Year to 200612 Fitting Position Rear Axle | 2001-09 - | 59 | 80 | 1910 | Estate |
| FIAT QUBO (225_) Construction Year from 200809 Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 2008-02 - | 54 | 73 | 1360 | MPV |
| FIAT QUBO (225_) Fitting Position Rear Axle | 2009-10 - | 57 | 78 | 1368 | MPV |
| FIAT QUBO (225_) Fitting Position Rear Axle | 2009-10 - | 57 | 78 | 1368 | MPV |
| FIAT QUBO (225_) Construction Year from 200809 Fitting Position Rear Axle | 2008-02 - | 55 | 75 | 1248 | MPV |
| FIAT QUBO (225_) Fitting Position Rear Axle | 2015-03 - | 59 | 80 | 1248 | MPV |
| FIAT QUBO (225_) Fitting Position Rear Axle | 2010-07 - | 70 | 95 | 1248 | MPV |
| FIAT STRADA Pickup (178_, 278_) Construction Year to 201112 Fitting Position Rear Axle | 2003-04 - | 44 | 60 | 1242 | Pickup |
| FIAT STRADA Pickup (178_, 278_) Fitting Position Rear Axle | 1999-06 - 2006-12 | 54 | 73 | 1242 | Pickup |
| FIAT STRADA Pickup (178_, 278_) Construction Year to 201112 Fitting Position Rear Axle | 2006-05 - 2012-08 | 62 | 85 | 1248 | Pickup |
| FIAT STRADA Pickup (178_, 278_) Construction Year from 201101 Fitting Position Rear Axle | 2010-10 - | 70 | 95 | 1248 | Pickup |
| FIAT STRADA Pickup (178_, 278_) Fitting Position Rear Axle | 1999-06 - 2006-12 | 51 | 69 | 1698 | Pickup |
| FIAT STRADA Pickup (178_, 278_) Construction Year to 201112 Fitting Position Rear Axle | 2000-12 - | 46 | 63 | 1910 | Pickup |
| FIAT STRADA Pickup (178_, 278_) Construction Year to 201112 Fitting Position Rear Axle | 2003-04 - | 59 | 80 | 1910 | Pickup |
| FIAT TEMPRA (159_) Construction Year to 199304 Transmission Type Automatic Transmission Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1990-04 - 1996-08 | 51 | 69 | 1372 | Saloon |
| FIAT TEMPRA (159_) Construction Year from 199305 Transmission Type Automatic Transmission Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1992-06 - 1996-08 | 55 | 75 | 1581 | Saloon |
| FIAT TEMPRA (159_) Construction Year to 199304 Transmission Type Automatic Transmission Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1992-06 - 1996-08 | 55 | 75 | 1581 | Saloon |
| FIAT TEMPRA (159_) Transmission Type Automatic Transmission Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1990-06 - 1992-07 | 57 | 78 | 1581 | Saloon |
| FIAT TEMPRA (159_) Construction Year to 199304 Transmission Type Automatic Transmission Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1990-03 - 1994-04 | 63 | 86 | 1581 | Saloon |
| FIAT TEMPRA (159_) Transmission Type Automatic Transmission Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1994-06 - 1996-08 | 66 | 90 | 1581 | Saloon |
| FIAT TEMPRA (159_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1993-09 - 1996-08 | 66 | 90 | 1756 | Saloon |
| FIAT TEMPRA (159_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1994-10 - 1996-08 | 74 | 101 | 1756 | Saloon |
| FIAT TEMPRA (159_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1993-09 - 1996-08 | 76 | 103 | 1756 | Saloon |
| FIAT TEMPRA (159_) Construction Year from 199305 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1992-03 - 1996-08 | 77 | 105 | 1756 | Saloon |
| FIAT TEMPRA (159_) Construction Year to 199304 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1992-03 - 1996-08 | 77 | 105 | 1756 | Saloon |
| FIAT TEMPRA (159_) Construction Year from 199305 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1992-07 - 1996-08 | 59 | 80 | 1929 | Saloon |
| FIAT TEMPRA (159_) Construction Year to 199304 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1992-07 - 1996-08 | 59 | 80 | 1929 | Saloon |
| FIAT TEMPRA (159_) Construction Year from 199305 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1990-05 - 1996-08 | 66 | 90 | 1929 | Saloon |
| FIAT TEMPRA (159_) Construction Year to 199304 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1990-05 - 1996-08 | 66 | 90 | 1929 | Saloon |
| FIAT TEMPRA S.W. (159_) Construction Year to 199304 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1992-10 - 1996-08 | 51 | 69 | 1372 | Estate |
| FIAT TEMPRA S.W. (159_) Construction Year from 199305 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1992-10 - 1996-08 | 51 | 69 | 1372 | Estate |
| FIAT TEMPRA S.W. (159_) Construction Year to 199304 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1992-10 - 1996-08 | 55 | 75 | 1581 | Estate |
| FIAT TEMPRA S.W. (159_) Construction Year from 199305 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1992-10 - 1996-08 | 55 | 75 | 1581 | Estate |
| FIAT TEMPRA S.W. (159_) Construction Year to 199304 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1990-10 - 1996-08 | 57 | 78 | 1581 | Estate |
| FIAT TEMPRA S.W. (159_) Construction Year from 199305 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1990-10 - 1996-08 | 57 | 78 | 1581 | Estate |
| FIAT TEMPRA S.W. (159_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1990-12 - 1993-04 | 63 | 86 | 1581 | Estate |
| FIAT TEMPRA S.W. (159_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1994-06 - 1996-08 | 66 | 90 | 1581 | Estate |
| FIAT TEMPRA S.W. (159_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1993-09 - 1996-08 | 66 | 90 | 1756 | Estate |
| FIAT TEMPRA S.W. (159_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1994-10 - 1996-08 | 74 | 101 | 1756 | Estate |
| FIAT TEMPRA S.W. (159_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1993-09 - 1996-08 | 76 | 103 | 1756 | Estate |
| FIAT TEMPRA S.W. (159_) Construction Year to 199304 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1992-03 - 1993-12 | 77 | 105 | 1756 | Estate |
| FIAT TEMPRA S.W. (159_) Construction Year to 199304 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1992-03 - 1993-06 | 59 | 80 | 1929 | Estate |
| FIAT TEMPRA S.W. (159_) Construction Year from 199305 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1991-07 - 1995-02 | 66 | 90 | 1929 | Estate |
| FIAT TEMPRA S.W. (159_) Construction Year to 199304 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1991-07 - 1995-02 | 66 | 90 | 1929 | Estate |
| FIAT TIPO (160_) Construction Year from 199305 Transmission Type Automatic Transmission Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1992-10 - 1995-04 | 55 | 75 | 1581 | Hatchback |
| FIAT TIPO (160_) Transmission Type Automatic Transmission Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1990-07 - 1993-01 | 57 | 78 | 1581 | Hatchback |
| FIAT TIPO (160_) Transmission Type Automatic Transmission Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1988-01 - 1991-10 | 61 | 83 | 1581 | Hatchback |
| FIAT TIPO (160_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1988-02 - 1991-05 | 66 | 90 | 1595 | Hatchback |
| FIAT TIPO (160_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1993-09 - 1995-04 | 66 | 90 | 1756 | Hatchback |
| FIAT TIPO (160_) Construction Year from 199305 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1993-03 - 1995-04 | 71 | 97 | 1756 | Hatchback |
| FIAT TIPO (160_) Construction Year to 199509 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1994-10 - 1995-10 | 74 | 101 | 1756 | Hatchback |
| FIAT TIPO (160_) Construction Year from 199305 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1993-04 - 1995-04 | 76 | 103 | 1756 | Hatchback |
| FIAT TIPO (160_) Construction Year to 199304 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1990-10 - 1993-06 | 77 | 105 | 1756 | Hatchback |
| FIAT TIPO (160_) Construction Year to 199304 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1990-10 - 1993-06 | 81 | 110 | 1756 | Hatchback |
| FIAT TIPO (160_) Construction Year from 199003 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1989-11 - 1992-06 | 100 | 136 | 1756 | Hatchback |
| FIAT TIPO (160_) Construction Year to 199304 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1992-03 - 1993-06 | 59 | 80 | 1929 | Hatchback |
| FIAT TIPO (160_) Construction Year from 199305 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1992-03 - 1993-06 | 59 | 80 | 1929 | Hatchback |
| FIAT TIPO (160_) Construction Year to 199304 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1990-09 - 1995-04 | 66 | 90 | 1929 | Hatchback |
| FIAT TIPO (160_) Construction Year from 199305 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1990-09 - 1995-04 | 66 | 90 | 1929 | Hatchback |
| FIAT DOBLO Box Body/MPV (223_) Fitting Position Rear Axle | 2001-03 - 2004-01 | 48 | 65 | 1242 | Box Body/MPV |
| FIAT DOBLO Box Body/MPV (223_) Construction Year to 201001 Fitting Position Rear Axle | 2005-10 - | 57 | 77 | 1368 | Box Body/MPV |
| FIAT DOBLO Box Body/MPV (223_) Construction Year to 201001 Fitting Position Rear Axle | 2001-10 - | 76 | 103 | 1596 | Box Body/MPV |
| FIAT DOBLO Box Body/MPV (223_) Construction Year to 201001 Fitting Position Rear Axle | 2002-09 - | 76 | 103 | 1596 | Box Body/MPV |
| FIAT DOBLO Box Body/MPV (223_) Construction Year to 200509 Fitting Position Rear Axle | 2004-05 - 2006-12 | 51 | 70 | 1248 | Box Body/MPV |
| FIAT DOBLO Box Body/MPV (223_) Fitting Position Rear Axle | 2005-10 - 2010-01 | 55 | 75 | 1248 | Box Body/MPV |
| FIAT DOBLO Box Body/MPV (223_) Construction Year to 201001 Fitting Position Rear Axle | 2006-08 - | 62 | 84 | 1248 | Box Body/MPV |
| FIAT DOBLO Box Body/MPV (223_) Construction Year to 200509 Fitting Position Rear Axle | 2001-03 - | 46 | 63 | 1910 | Box Body/MPV |
| FIAT DOBLO Box Body/MPV (223_) Construction Year to 201001 Fitting Position Rear Axle | 2001-10 - | 74 | 100 | 1910 | Box Body/MPV |
| FIAT DOBLO Box Body/MPV (223_) Construction Year to 201001 Fitting Position Rear Axle | 2003-07 - | 77 | 105 | 1910 | Box Body/MPV |
| FIAT DOBLO Box Body/MPV (223_) Construction Year to 201001 Fitting Position Rear Axle | 2006-12 - | 88 | 120 | 1910 | Box Body/MPV |
| FIAT FIORINO Box Body/MPV (146_) Construction Year from 199309 Fitting Position Rear Axle | 1988-01 - 1994-12 | 49 | 67 | 1301 | Box Body/MPV |
| FIAT FIORINO Box Body/MPV (146_) Construction Year to 200103 Fitting Position Rear Axle | 1994-05 - 2001-05 | 49 | 67 | 1372 | Box Body/MPV |
| FIAT FIORINO Box Body/MPV (146_) Construction Year to 200103 Fitting Position Rear Axle | 1993-10 - 2001-05 | 55 | 75 | 1581 | Box Body/MPV |
| FIAT FIORINO Box Body/MPV (146_) Construction Year from 199309 Fitting Position Rear Axle | 1988-05 - 1996-10 | 42 | 57 | 1697 | Box Body/MPV |
| FIAT FIORINO Box Body/MPV (146_) Fitting Position Rear Axle | 1996-11 - 2000-05 | 46 | 63 | 1697 | Box Body/MPV |
| FIAT FIORINO Box Body/MPV (146_) Construction Year from 199309 Fitting Position Rear Axle | 1988-05 - 2000-05 | 44 | 60 | 1698 | Box Body/MPV |
| FIAT FIORINO Box Body/MPV (146_) Construction Year to 200103 Fitting Position Rear Axle | 1997-01 - 2001-05 | 46 | 63 | 1698 | Box Body/MPV |
| FIAT FIORINO Box Body/MPV (225_) Fitting Position Rear Axle | 2010-01 - 2012-12 | 24 | 33 | CC | Box Body/MPV |
| FIAT FIORINO Box Body/MPV (225_) Fitting Position Rear Axle | 2008-06 - | 51 | 69 | 1368 | Box Body/MPV |
| FIAT FIORINO Box Body/MPV (225_) Construction Year from 200809 Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 2007-11 - | 54 | 73 | 1360 | Box Body/MPV |
| FIAT FIORINO Box Body/MPV (225_) Fitting Position Rear Axle | 2009-10 - | 57 | 78 | 1368 | Box Body/MPV |
| FIAT FIORINO Box Body/MPV (225_) Construction Year from 200910 Fitting Position Rear Axle | 2008-06 - | 57 | 78 | 1368 | Box Body/MPV |
| FIAT FIORINO Box Body/MPV (225_) Fitting Position Rear Axle | 2007-11 - | 55 | 75 | 1248 | Box Body/MPV |
| FIAT FIORINO Box Body/MPV (225_) Fitting Position Rear Axle | 2015-03 - | 59 | 80 | 1248 | Box Body/MPV |
| FIAT FIORINO Box Body/MPV (225_) Construction Year from 201007 Fitting Position Rear Axle | 2009-07 - | 70 | 95 | 1248 | Box Body/MPV |
| FIAT IDEA Van (350_) Fitting Position Rear Axle | 2005-04 - 2010-12 | 66 | 90 | 1248 | Box Body/MPV |
| FIAT IDEA Van (350_) Fitting Position Rear Axle | 2004-10 - 2010-12 | 74 | 101 | 1910 | Box Body/MPV |
| FIAT MULTIPLA VAN (186_) Fitting Position Rear Axle | 2001-10 - 2010-06 | 76 | 103 | 1596 | Box Body/MPV |
| FIAT MULTIPLA VAN (186_) Fitting Position Rear Axle | 2004-05 - 2010-06 | 85 | 116 | 1910 | Box Body/MPV |
| FIAT MULTIPLA VAN (186_) Fitting Position Rear Axle | 2002-04 - 2010-06 | 88 | 120 | 1910 | Box Body/MPV |
| LANCIA MUSA (350_) Fitting Position Rear Axle | 2006-09 - 2012-09 | 66 | 90 | 1248 | MPV |
| LANCIA MUSA (350_) Fitting Position Rear Axle | 2009-03 - 2012-09 | 70 | 95 | 1248 | MPV |
| LANCIA MUSA (350_) Fitting Position Rear Axle | 2004-10 - 2012-09 | 74 | 101 | 1910 | MPV |
| PEUGEOT BIPPER TEPEE Fitting Position Rear Axle | 2010-10 - | 55 | 75 | 1248 | MPV |
| PEUGEOT BIPPER TEPEE Fitting Position Rear Axle | 2015-12 - | 59 | 80 | 1248 | MPV |
| PEUGEOT BIPPER TEPEE Fitting Position Rear Axle | 2008-04 - | 50 | 68 | 1398 | MPV |
| PEUGEOT BIPPER (AA_) Fitting Position Rear Axle | 2010-10 - | 55 | 75 | 1248 | Box Body/MPV |
| PEUGEOT BIPPER (AA_) Fitting Position Rear Axle | 2015-12 - | 59 | 80 | 1248 | Box Body/MPV |
| PEUGEOT BIPPER (AA_) Fitting Position Rear Axle | 2008-02 - | 50 | 68 | 1398 | Box Body/MPV |
24.0222-8018.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Alfa Romeo
Citroën
Fiat
Lancia
Peugeot - Handelsnummer
- 480078
- Herkunftsland
- China
- Höhe
- 61,0
- Außendurchmesser [mm]
- 268,0
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 98,0
- Trägerplattendurchmesser [mm]
- 59,0
- Innendurchmesser [mm]
- 228
- Bohrdurchmesser [mm]
- 13,2
- Max. Bohrende Dimension [mm]
- 230,0
- Innenhöhe der Bremstrommel [mm]
- 48,0
Spezifische Referenzen
- ean13
- 4006633068727
- Hersteller-Teilenummer (MPN)
- 2402228018102
ATE 24.0222-8018.1
(240222-80181)
- Außendurchmesser [mm]: 268,0
- Innendurchmesser [mm]: 228
- Trägerplattendurchmesser [mm]: 59,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile der Bremstrommel
- Handelsnummer: 480078
