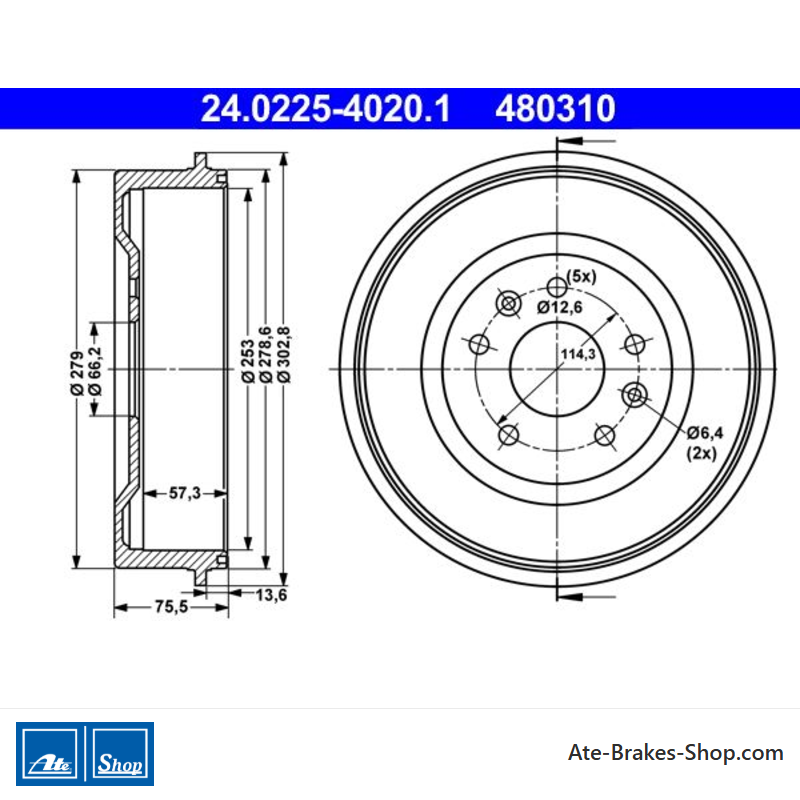

ATE Original zweiteilige Bremstrommel (24022540201) für Land Rover
185,13 €
(inkl. MwSt.)
153,00 € Steuerexzl.
Teilenummer:
ATE 24.0225-4020.1
(240225-40201)
- Außendurchmesser [mm]: 303,0
- Innendurchmesser [mm]: 254,0
- Trägerplattendurchmesser [mm]: 66,2
- Anzahl der Bolzenlöcher: 5
- 2 Teile der Bremstrommel
- Handelsnummer: 480310
- Ean-Code: 4006633381994
- Gewicht: 17.55kg
Specification of ATE 24.0225-4020.1 / 240225-40201 / 24022540201:
| OE Number | Reference info |
| LAND ROVER SDC000010 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| LAND ROVER FREELANDER I (L314) Vehicle Identification Number (VIN) from 1A000001 Fitting Position Rear Axle | 1998-04 - 2006-10 | 86 | 117 | 1796 | Closed Off-Road Vehicle |
| LAND ROVER FREELANDER I (L314) Vehicle Identification Number (VIN) from 1A000001 Fitting Position Rear Axle | 2000-11 - 2006-10 | 130 | 177 | 2497 | Closed Off-Road Vehicle |
| LAND ROVER FREELANDER I (L314) Vehicle Identification Number (VIN) from 1A000001 Fitting Position Rear Axle | 2001-03 - 2006-10 | 80 | 109 | 1951 | Closed Off-Road Vehicle |
| LAND ROVER FREELANDER I (L314) Vehicle Identification Number (VIN) from 1A000001 Fitting Position Rear Axle | 2000-11 - 2006-10 | 82 | 112 | 1951 | Closed Off-Road Vehicle |
| LAND ROVER FREELANDER I Soft Top (L314) Vehicle Identification Number (VIN) from 1A000001 Fitting Position Rear Axle | 2000-10 - 2006-10 | 86 | 117 | 1796 | Open Off-Road Vehicle |
| LAND ROVER FREELANDER I Soft Top (L314) Vehicle Identification Number (VIN) from 1A000001 Fitting Position Rear Axle | 2000-10 - 2006-10 | 82 | 112 | 1951 | Open Off-Road Vehicle |
24.0225-4020.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Land Rover
- Handelsnummer
- 480310
- Herkunftsland
- China
- Höhe
- 75,5
- Außendurchmesser [mm]
- 303,0
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 114,3
- Trägerplattendurchmesser [mm]
- 66,2
- Innendurchmesser [mm]
- 254,0
- Bohrdurchmesser [mm]
- 12,6
- Max. Bohrende Dimension [mm]
- 255,5
- Innenhöhe der Bremstrommel [mm]
- 57,3
Spezifische Referenzen
- ean13
- 4006633381994
- Hersteller-Teilenummer (MPN)
- 2402254020102
ATE 24.0225-4020.1
(240225-40201)
- Außendurchmesser [mm]: 303,0
- Innendurchmesser [mm]: 254,0
- Trägerplattendurchmesser [mm]: 66,2
- Anzahl der Bolzenlöcher: 5
- 2 Teile der Bremstrommel
- Handelsnummer: 480310
