ATE originalen Keramikbremsbelägen (13047038272) für Abarth, Fiat, Lancia, Opel
50,82 €
(inkl. MwSt.)
42,00 € Steuerexzl.
Teilenummer:
ATE 13.0470-3827.2
(130470-38272)

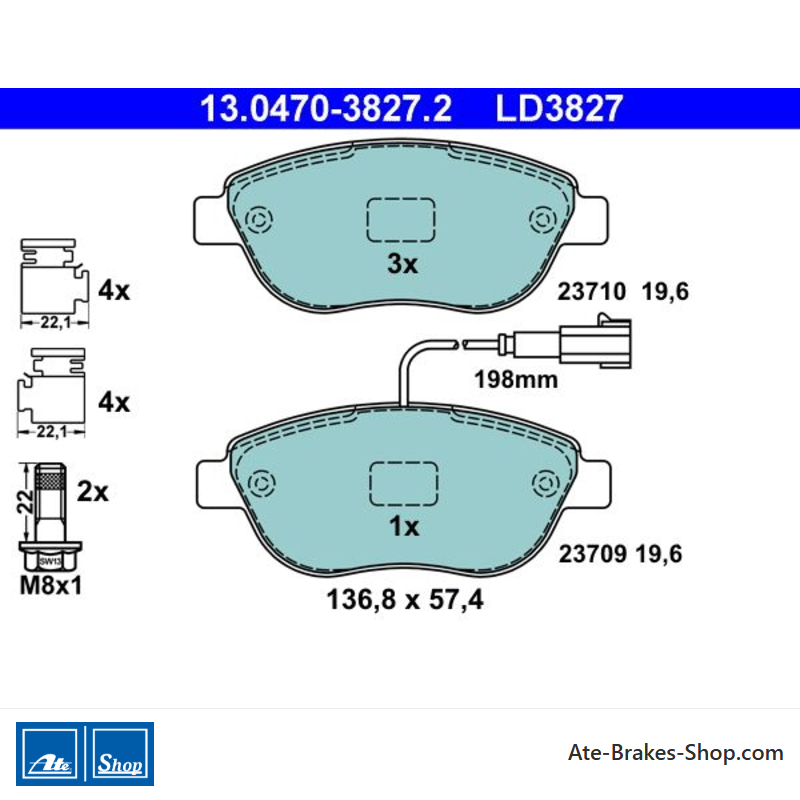

- Breite [mm]: 136,8
- Höhe [mm]: 57,4
- Dicke [mm]: 19,6
- Verschleißwarnkontakt: einschließlich Verschleißwarnkontakt
- Bremssystem: Bosch
- Handelsnummer: LD3827
- Ean-Code: 4006633346528
- Gewicht: 1.96kg
Specification of ATE 13.0470-3827.2 / 130470-38272 / 13047038272:
| OE Number | Reference info |
| FIAT 77363958 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77364473 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77364875 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77365379 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77365623 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 71770122 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 51928528 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| LANCIA 77365623 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 95511321 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 16 05 157 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 1605157 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 16 05 181 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 1605181 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 95515027 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4254 08 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 425408 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 95511321 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 16 05 157 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 1605157 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 95515027 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 16 05 181 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 1605181 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| ABARTH 77365623 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| ABARTH 500C / 595C / 695C Fitting Position Front Axle | 2008-05 - | 99 | 135 | 1368 | Convertible |
| ABARTH 500C / 595C / 695C Fitting Position Front Axle | 2009-09 - | 103 | 140 | 1368 | Convertible |
| ABARTH 500C / 595C / 695C Fitting Position Front Axle | 2016-05 - | 107 | 145 | 1368 | Convertible |
| ABARTH 500C / 595C / 695C Fitting Position Front Axle | 2011-05 - | 118 | 160 | 1368 | Convertible |
| ABARTH 500C / 595C / 695C Fitting Position Front Axle | 2016-05 - | 121 | 165 | 1368 | Convertible |
| ABARTH 500C / 595C / 695C Fitting Position Front Axle | 2010-06 - | 132 | 180 | 1368 | Convertible |
| ABARTH 500 / 595 / 695 Fitting Position Front Axle | 2008-08 - | 99 | 135 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Fitting Position Front Axle | 2010-05 - | 103 | 140 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Fitting Position Front Axle | 2016-05 - | 107 | 145 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Fitting Position Front Axle | 2008-08 - | 118 | 160 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Fitting Position Front Axle | 2016-06 - | 120 | 163 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Fitting Position Front Axle | 2016-05 - | 121 | 165 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Fitting Position Front Axle | 2008-08 - | 132 | 180 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Fitting Position Front Axle | 2008-08 - | 140 | 190 | 1368 | Hatchback |
| FIAT FIORINO MPV (225_) Fitting Position Front Axle | 2011-01 - | 70 | 95 | 1248 | MPV |
| FIAT GRANDE PUNTO (199_) Construction Year to 201101 Fitting Position Front Axle | 2007-09 - | 88 | 120 | 1368 | Hatchback |
| FIAT GRANDE PUNTO (199_) Fitting Position Front Axle | 2005-10 - 2010-12 | 66 | 90 | 1248 | Hatchback |
| FIAT GRANDE PUNTO (199_) Construction Year to 201101 Fitting Position Front Axle | 2008-07 - | 88 | 120 | 1598 | Hatchback |
| FIAT GRANDE PUNTO (199_) Fitting Position Front Axle | 2006-06 - 2009-12 | 85 | 116 | 1910 | Hatchback |
| FIAT GRANDE PUNTO (199_) Construction Year to 201101 Fitting Position Front Axle | 2005-10 - | 88 | 120 | 1910 | Hatchback |
| FIAT GRANDE PUNTO (199_) Construction Year from 200602 Construction Year to 201101 Fitting Position Front Axle | 2005-10 - | 96 | 130 | 1910 | Hatchback |
| FIAT IDEA (350_) Construction Year from 200511 Construction Year to 200802 Fitting Position Front Axle | 2005-10 - | 66 | 90 | 1248 | MPV |
| FIAT IDEA (350_) Construction Year to 201207 Fitting Position Front Axle | 2008-05 - 2012-12 | 70 | 95 | 1248 | MPV |
| FIAT IDEA (350_) Construction Year to 201207 Fitting Position Front Axle | 2008-05 - | 88 | 120 | 1598 | MPV |
| FIAT IDEA (350_) Construction Year to 200802 Fitting Position Front Axle | 2004-01 - | 74 | 101 | 1910 | MPV |
| FIAT LINEA (323_, 110_) Construction Year to 201105 Fitting Position Front Axle | 2007-05 - | 88 | 120 | 1368 | Saloon |
| FIAT LINEA (323_, 110_) Fitting Position Front Axle | 2011-10 - | 81 | 110 | 1598 | Saloon |
| FIAT LINEA (323_, 110_) Construction Year to 201105 Fitting Position Front Axle | 2009-06 - | 77 | 105 | 1598 | Saloon |
| FIAT MULTIPLA (186_) Fitting Position Front Axle | 1999-04 - 2004-09 | 70 | 95 | 1581 | MPV |
| FIAT MULTIPLA (186_) Vehicle Identification Number (VIN) from 2232224 Fitting Position Front Axle | 1999-04 - 2004-09 | 76 | 103 | 1581 | MPV |
| FIAT MULTIPLA (186_) Fitting Position Front Axle | 2002-04 - 2010-06 | 70 | 95 | 1596 | MPV |
| FIAT MULTIPLA (186_) Vehicle Identification Number (VIN) from 2232224 Fitting Position Front Axle | 2001-10 - 2005-08 | 76 | 103 | 1596 | MPV |
| FIAT MULTIPLA (186_) Construction Year from 200410 Fitting Position Front Axle | 2001-10 - 2010-06 | 76 | 103 | 1596 | MPV |
| FIAT MULTIPLA (186_) Construction Year from 200410 Fitting Position Front Axle | 2002-07 - 2010-06 | 85 | 115 | 1910 | MPV |
| FIAT MULTIPLA (186_) Construction Year from 200410 Fitting Position Front Axle | 2002-04 - 2010-06 | 88 | 120 | 1910 | MPV |
| FIAT QUBO (225_) Fitting Position Front Axle | 2010-07 - | 70 | 95 | 1248 | MPV |
| FIAT DOBLO Platform/Chassis (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-04 - 2023-12 | 70 | 95 | 1368 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2011-10 - 2023-12 | 88 | 120 | 1368 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-06 - 2023-12 | 88 | 120 | 1368 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2013-11 - 2023-12 | 55 | 75 | 1248 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2016-03 - 2023-12 | 59 | 80 | 1248 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-02 - 2023-12 | 66 | 90 | 1248 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2016-03 - 2023-12 | 70 | 95 | 1248 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-02 - 2023-12 | 66 | 90 | 1598 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2011-02 - 2023-12 | 74 | 101 | 1598 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-02 - 2023-12 | 77 | 105 | 1598 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2016-02 - 2023-12 | 88 | 120 | 1598 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) Fitting Position Front Axle | 2010-02 - 2023-12 | 99 | 135 | 1956 | Platform/Chassis |
| FIAT DOBLO Kombi (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-02 - 2023-12 | 70 | 95 | 1368 | Bus |
| FIAT DOBLO Kombi (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2011-10 - 2023-12 | 88 | 120 | 1368 | Bus |
| FIAT DOBLO Kombi (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-02 - 2023-12 | 88 | 120 | 1368 | Bus |
| FIAT DOBLO Kombi (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-02 - 2023-12 | 66 | 90 | 1248 | Bus |
| FIAT DOBLO Kombi (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2016-03 - 2023-12 | 70 | 95 | 1248 | Bus |
| FIAT DOBLO Kombi (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-02 - 2023-12 | 66 | 90 | 1598 | Bus |
| FIAT DOBLO Kombi (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2015-03 - 2023-12 | 70 | 95 | 1598 | Bus |
| FIAT DOBLO Kombi (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2016-03 - 2023-12 | 74 | 100 | 1598 | Bus |
| FIAT DOBLO Kombi (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-01 - 2023-12 | 77 | 105 | 1598 | Bus |
| FIAT DOBLO Kombi (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2015-03 - 2023-12 | 88 | 120 | 1598 | Bus |
| FIAT DOBLO Kombi (263_) Fitting Position Front Axle | 2010-01 - 2023-12 | 99 | 135 | 1956 | Bus |
| FIAT DOBLO Cargo (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-02 - 2023-12 | 70 | 95 | 1368 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2011-10 - 2023-12 | 88 | 120 | 1368 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-06 - 2023-12 | 88 | 120 | 1368 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2013-11 - 2023-12 | 55 | 75 | 1248 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2016-03 - 2023-12 | 59 | 80 | 1248 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-02 - 2023-12 | 66 | 90 | 1248 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-02 - 2023-12 | 66 | 90 | 1598 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2016-03 - 2023-12 | 70 | 95 | 1248 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2015-03 - 2023-12 | 70 | 95 | 1598 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-02 - 2023-12 | 74 | 100 | 1598 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-02 - | 77 | 105 | 1598 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2016-02 - 2023-12 | 88 | 120 | 1598 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) Fitting Position Front Axle | 2010-02 - 2023-12 | 99 | 135 | 1956 | Box Body/MPV |
| FIAT FIORINO Box Body/MPV (225_) Construction Year from 201007 Fitting Position Front Axle | 2009-07 - | 70 | 95 | 1248 | Box Body/MPV |
| FIAT GRANDE PUNTO Van (199_) Construction Year to 201101 Fitting Position Front Axle | 2006-02 - 2013-06 | 55 | 75 | 1248 | Hatchback Van |
| FIAT GRANDE PUNTO Van (199_) Fitting Position Front Axle | 2006-02 - 2010-08 | 66 | 90 | 1248 | Hatchback Van |
| FIAT IDEA Van (350_) Fitting Position Front Axle | 2005-04 - 2010-12 | 66 | 90 | 1248 | Box Body/MPV |
| FIAT IDEA Van (350_) Fitting Position Front Axle | 2004-10 - 2010-12 | 74 | 101 | 1910 | Box Body/MPV |
| FIAT MULTIPLA VAN (186_) Vehicle Identification Number (VIN) from 2232224 Fitting Position Front Axle | 2001-10 - 2010-06 | 76 | 103 | 1596 | Box Body/MPV |
| FIAT MULTIPLA VAN (186_) Construction Year from 200410 Fitting Position Front Axle | 2004-05 - 2010-06 | 85 | 116 | 1910 | Box Body/MPV |
| FIAT MULTIPLA VAN (186_) Construction Year from 200410 Fitting Position Front Axle | 2002-04 - 2010-06 | 88 | 120 | 1910 | Box Body/MPV |
| LANCIA MUSA (350_) Fitting Position Front Axle | 2006-09 - 2012-09 | 66 | 90 | 1248 | MPV |
| LANCIA MUSA (350_) Fitting Position Front Axle | 2009-03 - 2012-09 | 70 | 95 | 1248 | MPV |
| LANCIA MUSA (350_) Fitting Position Front Axle | 2008-07 - 2012-09 | 85 | 116 | 1598 | MPV |
| LANCIA MUSA (350_) Fitting Position Front Axle | 2008-07 - 2012-09 | 88 | 120 | 1598 | MPV |
| LANCIA MUSA (350_) Fitting Position Front Axle | 2004-10 - 2012-09 | 74 | 101 | 1910 | MPV |
| OPEL COMBO Tour (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 70 | 95 | 1368 | MPV |
| OPEL COMBO Tour (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 88 | 120 | 1368 | MPV |
| OPEL COMBO Tour (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 88 | 120 | 1368 | MPV |
| OPEL COMBO Tour (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2015-03 - | 59 | 80 | 1248 | MPV |
| OPEL COMBO Tour (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 66 | 90 | 1248 | MPV |
| OPEL COMBO Tour (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2016-03 - | 70 | 95 | 1248 | MPV |
| OPEL COMBO Tour (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 66 | 90 | 1598 | MPV |
| OPEL COMBO Tour (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2015-03 - | 70 | 95 | 1598 | MPV |
| OPEL COMBO Tour (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 77 | 105 | 1598 | MPV |
| OPEL COMBO Tour (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2015-03 - | 88 | 120 | 1598 | MPV |
| OPEL COMBO Tour (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 99 | 135 | 1956 | MPV |
| OPEL COMBO Box Body/MPV (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 70 | 95 | 1368 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 88 | 120 | 1368 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 88 | 120 | 1368 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) Construction Year from 201503 for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 59 | 80 | 1248 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 66 | 90 | 1248 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2016-03 - | 70 | 95 | 1248 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 66 | 90 | 1598 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 74 | 101 | 1598 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 77 | 105 | 1598 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2015-04 - | 88 | 120 | 1598 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 99 | 135 | 1956 | Box Body/MPV |
13.0470-3827.2
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Abarth
Fiat
Lancia
Opel - Handelsnummer
- LD3827
- Bremssystem
- Bosch
- Herkunftsland
- EU
- Verschleißanzeige
- Elektronisch
Enthalten - Zusätzliche Informationen
- Mit Zubehör
mit Bremssättelschrauben - Breite
- 136,8
- Höhe
- 57,4
- Dicke
- 19,6
- Anzahl der Schrauben/Schrauben
- 2
- Warnanzeige-Länge
- 198 mm
- Zulässig bis zur Fahrzeugkapazität
- 225 kW
Spezifische Referenzen
- ean13
- 4006633346528
- Hersteller-Teilenummer (MPN)
- 1304703827202
ATE 13.0470-3827.2
(130470-38272)
- Breite [mm]: 136,8
- Höhe [mm]: 57,4
- Dicke [mm]: 19,6
- Verschleißwarnkontakt: einschließlich Verschleißwarnkontakt
- Bremssystem: Bosch
- Handelsnummer: LD3827
