ATE originale Keramikbremsbeläge (13047038922) für Volkswagen (VW)
search
  • ATE originale Keramikbremsbeläge (13047038922) für Volkswagen (VW)
  • ATE originale Keramikbremsbeläge (13047038922) für Volkswagen (VW)
  • ATE originale Keramikbremsbeläge (13047038922) für Volkswagen (VW)

ATE originale Keramikbremsbeläge (13047038922) für Volkswagen (VW)

94,38 € (inkl. MwSt.)

78,00 € Steuerexzl.

Teilenummer:

ATE 13.0470-3892.2
(130470-38922)

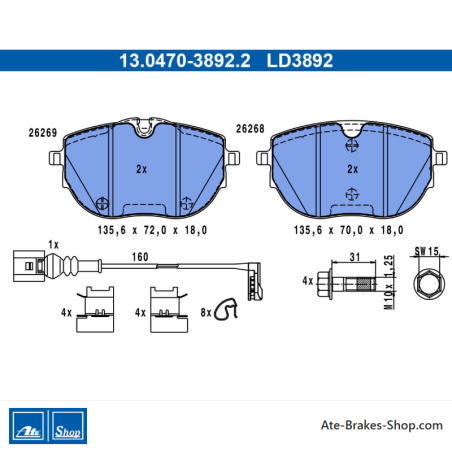

  • Breite [mm]: 135,6
  • Höhe 1 [mm]: 72,0, Höhe 2 [mm]: 70,0
  • Dicke [mm]: 18,0
  • Verschleißwarnkontakt: einschließlich Verschleißwarnkontakt
  • Bremssystem: CBI
  • Handelsnummer: LD3892
  • Ean-Code: 4006633495653
  • Gewicht: 2.47kg
Menge

Specification of ATE 13.0470-3892.2 / 130470-38922 / 13047038922:

OE NumberReference info
VAG 7LA 698 151 BPlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
VAG 7LA698151BPlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
VAG 7LA 698 151Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
VAG 7LA698151Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
VAG 7LA 698 151 DPlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
VAG 7LA698151DPlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
VW CALIFORNIA T6 Camper (SGC, SGG, SHC)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch		2019-10 - 2024-0866901968Bus
VW CALIFORNIA T6 Camper (SGC, SGG, SHC)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch		2019-07 - 2024-08811101968Bus
VW CALIFORNIA T6 Camper (SGC, SGG, SHC)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch

Model Year from 2020		2015-04 - 2024-081101501968Bus
VW CALIFORNIA T6 Camper (SGC, SGG, SHC)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch

Model Year from 2020		2015-08 - 2024-081101501968Bus
VW CALIFORNIA T6 Camper (SGC, SGG, SHC)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch

Model Year from 2020		2018-08 - 2024-081461991968Bus
VW CALIFORNIA T6 Camper (SGC, SGG, SHC)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch

Model Year from 2020		2018-08 - 2024-081461991968Bus
VW CALIFORNIA T6 Camper (SGC, SGG, SHC)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch

Model Year from 2020		2015-06 - 2024-081502041968Bus
VW CALIFORNIA T6 Camper (SGC, SGG, SHC)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch

Model Year from 2020		2015-06 - 2024-081502041968Bus
VW MULTIVAN T6 (SGF, SGM, SGN, SHM, SHN)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch

Model Year from 2020		2019-07 - 2024-08811101968Bus
VW MULTIVAN T6 (SGF, SGM, SGN, SHM, SHN)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch

Model Year from 2020		2015-04 - 2024-081101501968Bus
VW MULTIVAN T6 (SGF, SGM, SGN, SHM, SHN)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch

Model Year from 2020		2015-08 - 2024-081101501968Bus
VW MULTIVAN T6 (SGF, SGM, SGN, SHM, SHN)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch

Model Year from 2020		2018-08 - 2024-081461991968Bus
VW MULTIVAN T6 (SGF, SGM, SGN, SHM, SHN)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch

Model Year from 2020		2018-08 - 2024-081461991968Bus
VW MULTIVAN T6 (SGF, SGM, SGN, SHM, SHN)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch

Model Year from 2020		2015-06 - 2024-081502041968Bus
VW MULTIVAN T6 (SGF, SGM, SGN, SHM, SHN)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch

Model Year from 2020		2015-06 - 2024-081502041968Bus
VW TRANSPORTER T6 Van (SGA, SGH, SHA, SHH)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch		2020-01 - 2024-0883113CCVan
VW TRANSPORTER T6 Van (SGA, SGH, SHA, SHH)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch		2019-10 - 2024-0866901968Van
VW TRANSPORTER T6 Van (SGA, SGH, SHA, SHH)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch		2019-07 - 2024-08811101968Van
VW TRANSPORTER T6 Van (SGA, SGH, SHA, SHH)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch

Model Year from 2020		2015-04 - 2024-081101501968Van
VW TRANSPORTER T6 Van (SGA, SGH, SHA, SHH)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch

Model Year from 2020		2015-08 - 2024-081101501968Van
VW TRANSPORTER T6 Van (SGA, SGH, SHA, SHH)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch

Model Year from 2020		2019-08 - 2024-081461991968Van
VW TRANSPORTER T6 Van (SGA, SGH, SHA, SHH)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch

Model Year from 2020		2018-08 - 2024-081461991968Van
VW TRANSPORTER T6 Van (SGA, SGH, SHA, SHH)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch

Model Year from 2020		2015-06 - 2024-081502041968Van
VW TRANSPORTER T6 Van (SGA, SGH, SHA, SHH)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch

Model Year from 2020		2015-06 - 2024-081502041968Van
VW TRANSPORTER T6 Platform/Chassis (SFD, SFE, SFL, SFZ, SJD, SJ

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch		2019-10 - 2024-0866901968Platform/Chassis
VW TRANSPORTER T6 Platform/Chassis (SFD, SFE, SFL, SFZ, SJD, SJ

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch		2019-07 - 2024-08811101968Platform/Chassis
VW TRANSPORTER T6 Platform/Chassis (SFD, SFE, SFL, SFZ, SJD, SJ

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch

Model Year from 2020		2015-08 - 2024-081101501968Platform/Chassis
VW TRANSPORTER T6 Platform/Chassis (SFD, SFE, SFL, SFZ, SJD, SJ

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch

Model Year from 2020		2016-05 - 2024-081101501968Platform/Chassis
VW TRANSPORTER T6 Platform/Chassis (SFD, SFE, SFL, SFZ, SJD, SJ

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch		2019-08 - 2024-081461991968Platform/Chassis
VW TRANSPORTER T6 Platform/Chassis (SFD, SFE, SFL, SFZ, SJD, SJ

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch		2019-08 - 2024-081461991968Platform/Chassis
VW TRANSPORTER T6 Platform/Chassis (SFD, SFE, SFL, SFZ, SJD, SJ

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch

Model Year from 2020		2016-05 - 2024-081502041968Platform/Chassis
VW TRANSPORTER T6 Platform/Chassis (SFD, SFE, SFL, SFZ, SJD, SJ

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch

Model Year from 2020		2016-05 - 2024-081502041968Platform/Chassis
VW TRANSPORTER T6 / CARAVELLE T6 Bus (SGB, SGJ, SHB, SHJ)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch		2020-01 - 2024-0883113CCBus
VW TRANSPORTER T6 / CARAVELLE T6 Bus (SGB, SGJ, SHB, SHJ)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch		2019-10 - 2024-0866901968Bus
VW TRANSPORTER T6 / CARAVELLE T6 Bus (SGB, SGJ, SHB, SHJ)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch		2019-07 - 2024-08811101968Bus
VW TRANSPORTER T6 / CARAVELLE T6 Bus (SGB, SGJ, SHB, SHJ)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch

Model Year from 2020		2015-04 - 2024-081101501968Bus
VW TRANSPORTER T6 / CARAVELLE T6 Bus (SGB, SGJ, SHB, SHJ)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch

Model Year from 2020		2015-08 - 2024-081101501968Bus
VW TRANSPORTER T6 / CARAVELLE T6 Bus (SGB, SGJ, SHB, SHJ)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch

Model Year from 2020		2018-08 - 2024-081461991968Bus
VW TRANSPORTER T6 / CARAVELLE T6 Bus (SGB, SGJ, SHB, SHJ)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch

Model Year from 2020		2018-08 - 2024-081461991968Bus
VW TRANSPORTER T6 / CARAVELLE T6 Bus (SGB, SGJ, SHB, SHJ)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch

Model Year from 2020		2015-06 - 2024-081502041968Bus
VW TRANSPORTER T6 / CARAVELLE T6 Bus (SGB, SGJ, SHB, SHJ)

Fitting Position Front Axle

for PR number 2E3

Rim Size [inch] 16.0 Inch

Model Year from 2020		2015-06 - 2024-081502041968Bus
13.0470-3892.2

Datenblatt

Artikelstatus
Bestellbar
Automarke
Volkswagen (VW)
Handelsnummer
LD3892
Bremssystem
CBI
Herkunftsland
Tschechien
Verschleißanzeige
Elektronisch
Enthalten
Zusätzliche Informationen
Mit Zubehör
mit Bremssättelschrauben
Breite
135,6
Höhe
70,0
72,0
Dicke
18,0
Anzahl der Schrauben/Schrauben
4
Warnanzeige-Länge
160 mm
Zulässig bis zur Fahrzeugkapazität
225 kW

Spezifische Referenzen

ean13
4006633495653
Hersteller-Teilenummer (MPN)
1304703892202
