ATE originale Keramikbremsbeläge (13047073252) für Opel
79,86 €
(inkl. MwSt.)
66,00 € Steuerexzl.
Teilenummer:
ATE 13.0470-7325.2
(130470-73252)

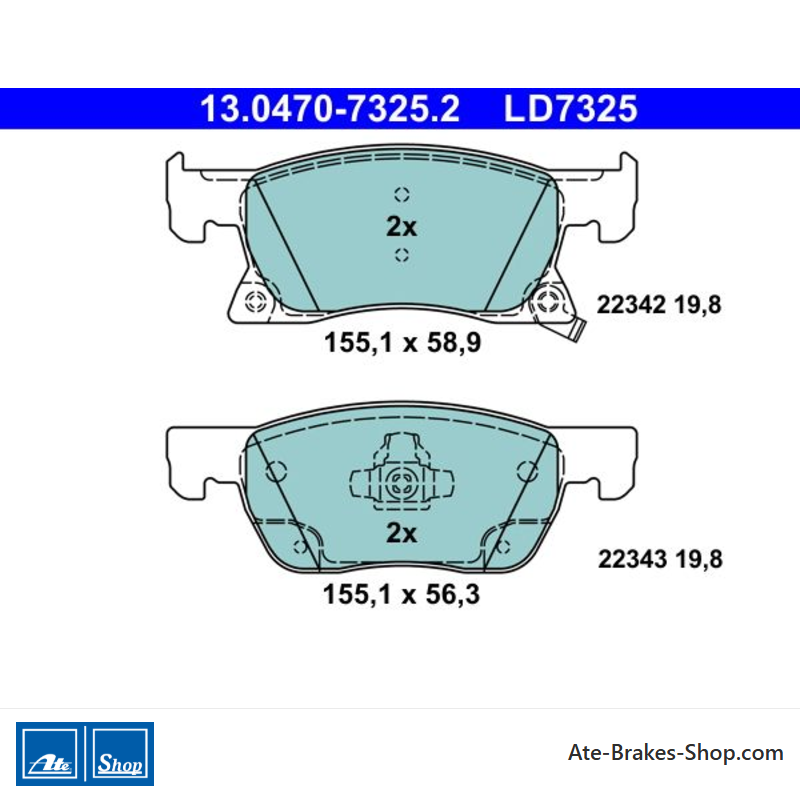

- Breite 1 [mm]: 155,1, Breite 2 [mm]: 155,1
- Höhe 1 [mm]: 58,9, Höhe 2 [mm]: 56,3
- Dicke [mm]: 19,8
- Abnutzungswarnhinweis: mit akustischer Verschleißwarnung
- Bremssystem: ATE
- Handelsnummer: LD7325
- Ean-Code: 4006633440479
- Gewicht: 1.98kg
Specification of ATE 13.0470-7325.2 / 130470-73252 / 13047073252:
| OE Number | Reference info |
| OPEL 13478300 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 39103797 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 39103797 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 13478300 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| OPEL ASTRA K (B16) for brake disc diameter [mm] 276 mm Fitting Position Front Axle | 2015-06 - 2019-08 | 77 | 105 | 999 | Hatchback |
| OPEL ASTRA K (B16) Fitting Position Front Axle for brake disc diameter [mm] 276 mm | 2018-06 - 2019-08 | 66 | 90 | 999 | Hatchback |
| OPEL ASTRA K (B16) Fitting Position Front Axle for brake disc diameter [mm] 276 mm | 2019-08 - 2021-09 | 81 | 110 | 1199 | Hatchback |
| OPEL ASTRA K (B16) Fitting Position Front Axle for brake disc diameter [mm] 276 mm | 2019-08 - 2021-09 | 96 | 131 | 1199 | Hatchback |
| OPEL ASTRA K (B16) Fitting Position Front Axle for brake disc diameter [mm] 276 mm | 2019-08 - 2021-09 | 107 | 145 | 1199 | Hatchback |
| OPEL ASTRA K (B16) Fitting Position Front Axle for brake disc diameter [mm] 276 mm | 2019-08 - 2021-09 | 107 | 145 | 1342 | Hatchback |
| OPEL ASTRA K (B16) for brake disc diameter [mm] 276 mm Fitting Position Front Axle | 2015-06 - 2018-08 | 74 | 100 | 1399 | Hatchback |
| OPEL ASTRA K (B16) for brake disc diameter [mm] 276 mm Fitting Position Front Axle | 2017-10 - 2018-05 | 81 | 110 | 1399 | Hatchback |
| OPEL ASTRA K (B16) for brake disc diameter [mm] 276 mm Fitting Position Front Axle | 2015-06 - 2019-08 | 92 | 125 | 1399 | Hatchback |
| OPEL ASTRA K (B16) for brake disc diameter [mm] 276 mm Fitting Position Front Axle | 2015-10 - 2019-08 | 110 | 150 | 1399 | Hatchback |
| OPEL ASTRA K (B16) for brake disc diameter [mm] 276 mm Fitting Position Front Axle | 2015-11 - 2019-02 | 147 | 200 | 1598 | Hatchback |
| OPEL ASTRA K (B16) Fitting Position Front Axle for brake disc diameter [mm] 276 mm | 2019-08 - 2021-09 | 77 | 105 | 1496 | Hatchback |
| OPEL ASTRA K (B16) Fitting Position Front Axle for brake disc diameter [mm] 276 mm | 2019-08 - 2021-09 | 90 | 122 | 1496 | Hatchback |
| OPEL ASTRA K (B16) for brake disc diameter [mm] 276 mm Fitting Position Front Axle | 2015-10 - 2018-05 | 70 | 95 | 1598 | Hatchback |
| OPEL ASTRA K (B16) for brake disc diameter [mm] 276 mm Fitting Position Front Axle | 2015-06 - 2019-08 | 81 | 110 | 1598 | Hatchback |
| OPEL ASTRA K (B16) for brake disc diameter [mm] 276 mm Fitting Position Front Axle | 2015-06 - 2019-08 | 100 | 136 | 1598 | Hatchback |
| OPEL ASTRA K (B16) Fitting Position Front Axle for brake disc diameter [mm] 276 mm | 2018-07 - 2019-02 | 110 | 150 | 1598 | Hatchback |
| OPEL ASTRA K (B16) for brake disc diameter [mm] 276 mm Fitting Position Front Axle | 2015-11 - 2018-05 | 118 | 160 | 1598 | Hatchback |
| OPEL ASTRA K Sports Tourer (B16) Fitting Position Front Axle for brake disc diameter [mm] 276 mm | 2018-06 - 2019-08 | 66 | 90 | 999 | Estate |
| OPEL ASTRA K Sports Tourer (B16) for brake disc diameter [mm] 276 mm Fitting Position Front Axle | 2018-06 - 2019-08 | 77 | 105 | 999 | Estate |
| OPEL ASTRA K Sports Tourer (B16) Fitting Position Front Axle for brake disc diameter [mm] 276 mm | 2019-08 - 2021-12 | 81 | 110 | 1199 | Estate |
| OPEL ASTRA K Sports Tourer (B16) Fitting Position Front Axle for brake disc diameter [mm] 276 mm | 2019-08 - 2021-12 | 96 | 131 | 1199 | Estate |
| OPEL ASTRA K Sports Tourer (B16) Fitting Position Front Axle for brake disc diameter [mm] 276 mm | 2019-08 - 2021-12 | 107 | 145 | 1199 | Estate |
| OPEL ASTRA K Sports Tourer (B16) for brake disc diameter [mm] 276 mm Fitting Position Front Axle | 2016-04 - 2018-05 | 74 | 100 | 1399 | Estate |
| OPEL ASTRA K Sports Tourer (B16) for brake disc diameter [mm] 276 mm Fitting Position Front Axle | 2017-08 - 2018-05 | 81 | 110 | 1399 | Estate |
| OPEL ASTRA K Sports Tourer (B16) for brake disc diameter [mm] 276 mm Fitting Position Front Axle | 2016-04 - 2019-08 | 92 | 125 | 1399 | Estate |
| OPEL ASTRA K Sports Tourer (B16) Fitting Position Front Axle for brake disc diameter [mm] 276 mm | 2019-08 - 2021-12 | 107 | 145 | 1342 | Estate |
| OPEL ASTRA K Sports Tourer (B16) for brake disc diameter [mm] 276 mm Fitting Position Front Axle | 2016-04 - 2019-08 | 110 | 150 | 1399 | Estate |
| OPEL ASTRA K Sports Tourer (B16) Fitting Position Front Axle for brake disc diameter [mm] 276 mm | 2019-08 - 2021-12 | 77 | 105 | 1496 | Estate |
| OPEL ASTRA K Sports Tourer (B16) Fitting Position Front Axle for brake disc diameter [mm] 276 mm | 2019-08 - 2021-12 | 90 | 122 | 1496 | Estate |
| OPEL ASTRA K Sports Tourer (B16) Fitting Position Front Axle for brake disc diameter [mm] 276 mm | 2018-07 - 2019-02 | 110 | 150 | 1598 | Estate |
| OPEL ASTRA K Sports Tourer (B16) for brake disc diameter [mm] 276 mm Fitting Position Front Axle | 2016-04 - 2019-02 | 147 | 200 | 1598 | Estate |
| OPEL ASTRA K Sports Tourer (B16) for brake disc diameter [mm] 276 mm Fitting Position Front Axle | 2016-04 - 2018-05 | 70 | 95 | 1598 | Estate |
| OPEL ASTRA K Sports Tourer (B16) for brake disc diameter [mm] 276 mm Fitting Position Front Axle | 2016-04 - 2019-08 | 81 | 110 | 1598 | Estate |
| OPEL ASTRA K Sports Tourer (B16) for brake disc diameter [mm] 276 mm Fitting Position Front Axle | 2016-04 - 2019-08 | 100 | 136 | 1598 | Estate |
| OPEL ASTRA K Sports Tourer (B16) for brake disc diameter [mm] 276 mm Fitting Position Front Axle | 2016-04 - 2018-05 | 118 | 160 | 1598 | Estate |
| OPEL ASTRA K Hatchback Van for brake disc diameter [mm] 276 mm Fitting Position Front Axle | 2018-04 - 2019-08 | 100 | 136 | 1598 | Hatchback Van |
| OPEL ASTRA K Estate Van Fitting Position Front Axle for brake disc diameter [mm] 276 mm | 2019-08 - 2021-09 | 77 | 105 | 1496 | Estate Van |
| OPEL ASTRA K Estate Van Fitting Position Front Axle for brake disc diameter [mm] 276 mm | 2018-05 - 2019-08 | 77 | 105 | 999 | Estate Van |
| OPEL ASTRA K Estate Van Fitting Position Front Axle for brake disc diameter [mm] 276 mm | 2018-06 - 2021-09 | 110 | 150 | 1399 | Estate Van |
13.0470-7325.2
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Opel
- Handelsnummer
- LD7325
- Bremssystem
- ATE
- Herkunftsland
- Italien
- Verschleißanzeige
- Akustik
- Breite
- 155,1
- Höhe
- 56,3
58,9 - Dicke
- 19,8
- Anzahl der Verschleißindikatoren
- 2 pro Achse
- Zulässig bis zur Fahrzeugkapazität
- 225 kW
Spezifische Referenzen
- ean13
- 4006633440479
- Hersteller-Teilenummer (MPN)
- 1304707325202
ATE 13.0470-7325.2
(130470-73252)
- Breite 1 [mm]: 155,1, Breite 2 [mm]: 155,1
- Höhe 1 [mm]: 58,9, Höhe 2 [mm]: 56,3
- Dicke [mm]: 19,8
- Abnutzungswarnhinweis: mit akustischer Verschleißwarnung
- Bremssystem: ATE
- Handelsnummer: LD7325
