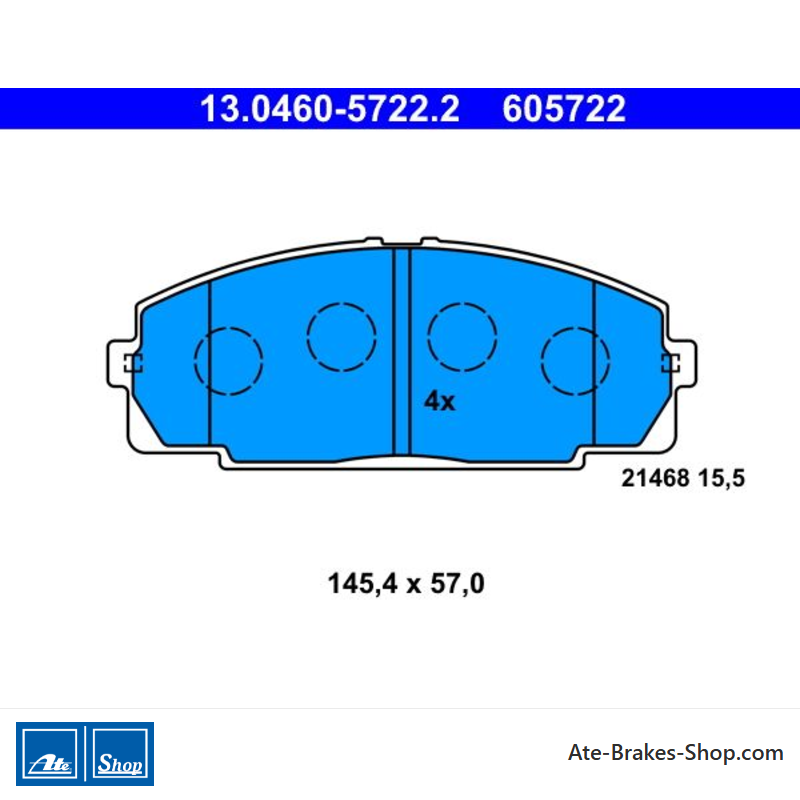

ATE originale Bremsbeläge (13046057222) für Toyota
36,30 €
(inkl. MwSt.)
30,00 € Steuerexzl.
Teilenummer:
ATE 13.0460-5722.2
(130460-57222)
- Breite [mm]: 145,4
- Höhe [mm]: 57,0
- Dicke [mm]: 15,5
- Verschleißwarnkontakt: Ohne Verschleißwarnkontakt
- Handelsnummer: 605722
- Ean-Code: 4006633337328
- Gewicht: 1.52kg
Specification of ATE 13.0460-5722.2 / 130460-57222 / 13046057222:
| OE Number | Reference info |
| TOYOTA 04465-26300 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 04465-26301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 04465-26370 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 04465-26390 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA DYNA 100 Platform/Chassis (LY1_, YY1_) Fitting Position Front Axle | 1995-05 - 2001-07 | 54 | 73 | 2446 | Platform/Chassis |
| TOYOTA DYNA Platform/Chassis (KD_, LY_, _Y2_, _U3_, _U4_, _U6_, _U8 Fitting Position Front Axle | 2001-07 - | 65 | 88 | 2494 | Platform/Chassis |
| TOYOTA DYNA Platform/Chassis (KD_, LY_, _Y2_, _U3_, _U4_, _U6_, _U8 Fitting Position Front Axle | 2001-08 - | 75 | 102 | 2494 | Platform/Chassis |
| TOYOTA DYNA Platform/Chassis (KD_, LY_, _Y2_, _U3_, _U4_, _U6_, _U8 Fitting Position Front Axle | 2006-09 - | 80 | 109 | 2982 | Platform/Chassis |
| TOYOTA DYNA Platform/Chassis (KD_, LY_, _Y2_, _U3_, _U4_, _U6_, _U8 Fitting Position Front Axle | 2009-10 - | 100 | 136 | 2982 | Platform/Chassis |
| TOYOTA HIACE IV Bus (_H1_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1989-08 - 1998-04 | 74 | 101 | 1998 | Bus |
| TOYOTA HIACE IV Bus (_H1_) Fitting Position Front Axle | 1989-08 - 1995-07 | 88 | 120 | 2438 | Bus |
| TOYOTA HIACE IV Van (_H1_) Fitting Position Front Axle | 1989-08 - 1995-08 | 88 | 120 | 2438 | Van |
| TOYOTA HIACE IV Van (_H1_) Fitting Position Front Axle | 1989-08 - 1998-07 | 85 | 116 | 2438 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 1995-08 - 2003-11 | 85 | 116 | 2438 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 1995-08 - 1998-04 | 85 | 116 | 2438 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Construction Year to 199804 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1995-08 - 2004-08 | 88 | 120 | 2438 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 1998-04 - 2005-06 | 105 | 143 | 2694 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1998-07 - 2005-06 | 106 | 144 | 2694 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 1995-08 - 2001-08 | 55 | 75 | 2446 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 1995-08 - 2001-08 | 58 | 79 | 2446 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 1995-08 - 2001-08 | 66 | 90 | 2446 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 1995-08 - 2001-08 | 66 | 90 | 2446 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 2001-08 - 2006-08 | 65 | 88 | 2494 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 2001-08 - 2004-08 | 65 | 88 | 2494 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 2006-09 - 2012-12 | 70 | 95 | 2494 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 2001-08 - 2006-08 | 75 | 102 | 2494 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 2001-08 - 2006-08 | 75 | 102 | 2494 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 2006-09 - 2012-12 | 86 | 117 | 2494 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 2006-09 - 2012-12 | 86 | 117 | 2494 | Van |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Fitting Position Front Axle | 1995-08 - 1998-04 | 85 | 115 | 2438 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1995-08 - 1998-04 | 85 | 116 | 2438 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Fitting Position Front Axle | 1998-04 - 2001-11 | 105 | 143 | 2694 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1998-04 - 2006-08 | 105 | 143 | 2694 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Fitting Position Front Axle | 1998-07 - 2006-12 | 106 | 144 | 2694 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1998-07 - 2005-06 | 106 | 144 | 2694 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Fitting Position Front Axle | 1995-08 - 2001-08 | 55 | 75 | 2446 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Fitting Position Front Axle | 1995-08 - 2001-08 | 58 | 79 | 2446 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Fitting Position Front Axle | 1995-08 - 2001-08 | 66 | 90 | 2446 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Fitting Position Front Axle | 1995-08 - 2001-08 | 66 | 90 | 2446 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Fitting Position Front Axle | 2001-08 - 2006-08 | 65 | 88 | 2494 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Fitting Position Front Axle | 2006-09 - 2012-12 | 70 | 95 | 2494 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Fitting Position Front Axle | 2001-08 - 2006-08 | 75 | 102 | 2494 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Fitting Position Front Axle | 2001-11 - 2006-08 | 75 | 102 | 2494 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Fitting Position Front Axle | 2006-08 - 2012-12 | 86 | 117 | 2494 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Fitting Position Front Axle | 2006-09 - 2012-12 | 86 | 117 | 2494 | Bus |
| TOYOTA HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__) Fitting Position Front Axle | 2006-09 - | 70 | 95 | 2494 | Van |
| TOYOTA HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__) Fitting Position Front Axle | 2004-06 - | 75 | 102 | 2494 | Van |
| TOYOTA HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__) Fitting Position Front Axle | 2006-09 - | 86 | 117 | 2494 | Van |
| TOYOTA HIACE / COMMUTER V Bus (TRH2__, KDH2__, LH2__, GDH2__) Fitting Position Front Axle | 2006-09 - | 75 | 102 | 2494 | Bus |
13.0460-5722.2
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Toyota
- Handelsnummer
- 605722
- Herkunftsland
- Spanien
- Verschleißanzeige
- Keine
Nicht enthalten - Breite
- 145,4
- Höhe
- 57,0
- Dicke
- 15,5
Spezifische Referenzen
- ean13
- 4006633337328
- Hersteller-Teilenummer (MPN)
- 1304605722202
ATE 13.0460-5722.2
(130460-57222)
- Breite [mm]: 145,4
- Höhe [mm]: 57,0
- Dicke [mm]: 15,5
- Verschleißwarnkontakt: Ohne Verschleißwarnkontakt
- Handelsnummer: 605722
