ATE originalen Bremsbeläge (13046072882) für Fiat
43,56 €
(inkl. MwSt.)
36,00 € Steuerexzl.
Teilenummer:
ATE 13.0460-7288.2
(130460-72882)

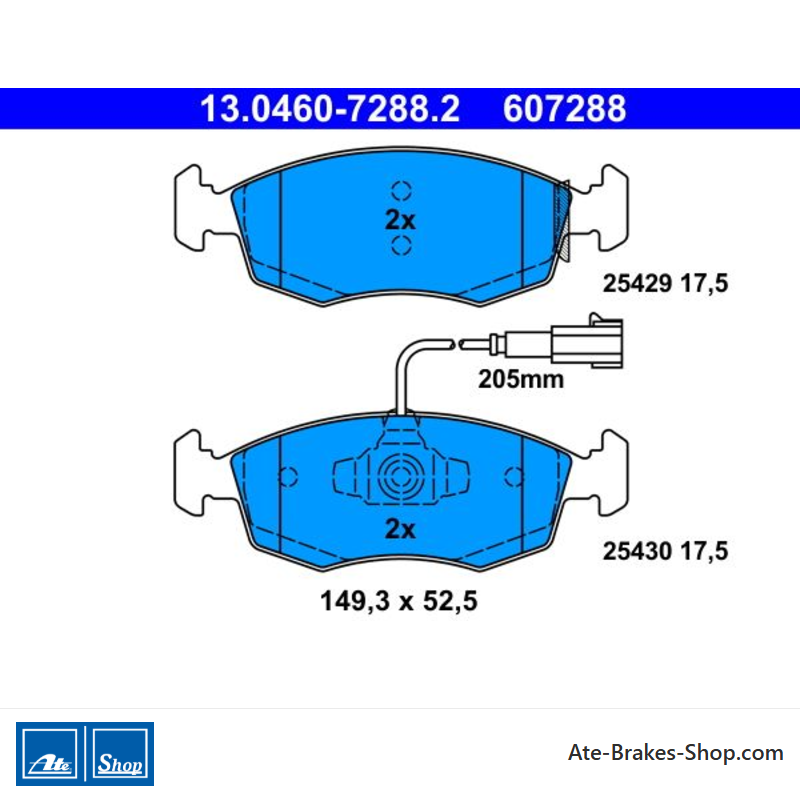

- Breite [mm]: 149,3
- Höhe [mm]: 52,5
- Dicke [mm]: 17,5
- Verschleißwarnkontakt: einschließlich Verschleißwarnkontakt
- Bremssystem: ATE
- Handelsnummer: 607288
- Ean-Code: 4006633424738
- Gewicht: 1.63kg
Specification of ATE 13.0460-7288.2 / 130460-72882 / 13046072882:
| OE Number | Reference info |
| FIAT 77366537 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77365729 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77366538 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77365811 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77366270 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FIAT 500 C (312_) Fitting Position Front Axle | 2013-12 - | 44 | 60 | 964 | Convertible |
| FIAT 500 C (312_) Fitting Position Front Axle | 2012-09 - | 48 | 65 | 964 | Convertible |
| FIAT 500 C (312_) Fitting Position Front Axle | 2013-12 - | 59 | 80 | 875 | Convertible |
| FIAT 500 C (312_) Fitting Position Front Axle | 2009-09 - | 63 | 86 | 875 | Convertible |
| FIAT 500 C (312_) Fitting Position Front Axle Construction Year from 201506 | 2009-09 - | 51 | 69 | 1242 | Convertible |
| FIAT 500 (312_) Fitting Position Front Axle | 2013-12 - | 59 | 80 | 875 | Hatchback |
| FIAT 500 (312_) Fitting Position Front Axle | 2010-07 - | 63 | 86 | 875 | Hatchback |
| FIAT 500 (312_) Fitting Position Front Axle | 2013-12 - | 44 | 60 | 964 | Hatchback |
| FIAT 500 (312_) Fitting Position Front Axle | 2012-09 - | 48 | 65 | 964 | Hatchback |
| FIAT 500 (312_) Fitting Position Front Axle Construction Year from 201506 | 2007-07 - | 51 | 69 | 1242 | Hatchback |
| FIAT 500 (312_) Fitting Position Front Axle Construction Year from 201506 | 2010-12 - | 51 | 69 | 1242 | Hatchback |
| FIAT PUNTO (188_) Construction Year from 201005 Fitting Position Front Axle | 2007-08 - 2012-03 | 44 | 60 | 1242 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 63 | 86 | 875 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 63 | 86 | 875 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2013-12 - | 74 | 101 | 875 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2013-07 - | 77 | 105 | 875 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2014-02 - | 49 | 67 | 1242 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 51 | 69 | 1242 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 55 | 75 | 1368 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 57 | 78 | 1368 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 57 | 78 | 1368 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 57 | 78 | 1368 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 77 | 105 | 1368 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 99 | 135 | 1368 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 55 | 75 | 1248 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2013-12 - | 59 | 80 | 1248 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 62 | 84 | 1248 | Hatchback |
| FIAT PUNTO EVO (199_) Construction Year from 201005 Fitting Position Front Axle | 2009-10 - 2012-02 | 48 | 65 | 1242 | Hatchback |
| FIAT PUNTO EVO (199_) Construction Year from 201005 Fitting Position Front Axle | 2009-10 - 2012-02 | 51 | 69 | 1242 | Hatchback |
| FIAT PUNTO EVO (199_) Construction Year from 201005 Fitting Position Front Axle | 2009-07 - 2012-02 | 55 | 75 | 1368 | Hatchback |
| FIAT PUNTO EVO (199_) Construction Year from 201005 Fitting Position Front Axle | 2009-10 - 2012-02 | 57 | 77 | 1368 | Hatchback |
| FIAT PUNTO EVO (199_) Construction Year from 201005 Fitting Position Front Axle | 2009-06 - 2012-02 | 57 | 78 | 1368 | Hatchback |
| FIAT PUNTO EVO (199_) Construction Year from 201005 Fitting Position Front Axle | 2009-10 - 2012-02 | 57 | 78 | 1368 | Hatchback |
| FIAT PUNTO EVO (199_) Construction Year from 201005 Fitting Position Front Axle | 2009-10 - 2012-02 | 77 | 105 | 1368 | Hatchback |
| FIAT PUNTO EVO (199_) Construction Year from 201005 Fitting Position Front Axle | 2009-10 - 2012-02 | 99 | 135 | 1368 | Hatchback |
| FIAT PUNTO EVO (199_) Construction Year from 201005 Fitting Position Front Axle | 2009-10 - 2012-02 | 55 | 75 | 1248 | Hatchback |
| FIAT PUNTO Hatchback Van (199_) Construction Year from 201005 Fitting Position Front Axle | 2009-03 - | 57 | 78 | 1368 | Hatchback Van |
| FIAT PUNTO EVO Hatchback Van (199_) Construction Year from 201005 Fitting Position Front Axle | 2009-03 - 2012-02 | 57 | 78 | 1368 | Hatchback Van |
| FIAT PUNTO EVO Hatchback Van (199_) Construction Year from 201005 Fitting Position Front Axle | 2009-03 - 2012-02 | 55 | 75 | 1248 | Hatchback Van |
13.0460-7288.2
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Fiat
- Handelsnummer
- 607288
- Bremssystem
- ATE
- Herkunftsland
- EU
- Verschleißanzeige
- Elektronisch
Enthalten - Breite
- 149,3
- Höhe
- 52,5
- Dicke
- 17,5
- Warnanzeige-Länge
- 205 mm
Spezifische Referenzen
- ean13
- 4006633424738
- Hersteller-Teilenummer (MPN)
- 1304607288202
ATE 13.0460-7288.2
(130460-72882)
- Breite [mm]: 149,3
- Höhe [mm]: 52,5
- Dicke [mm]: 17,5
- Verschleißwarnkontakt: einschließlich Verschleißwarnkontakt
- Bremssystem: ATE
- Handelsnummer: 607288
