ATE originale Bremsbeläge (13046073242) für Opel
54,45 €
(inkl. MwSt.)
45,00 € Steuerexzl.

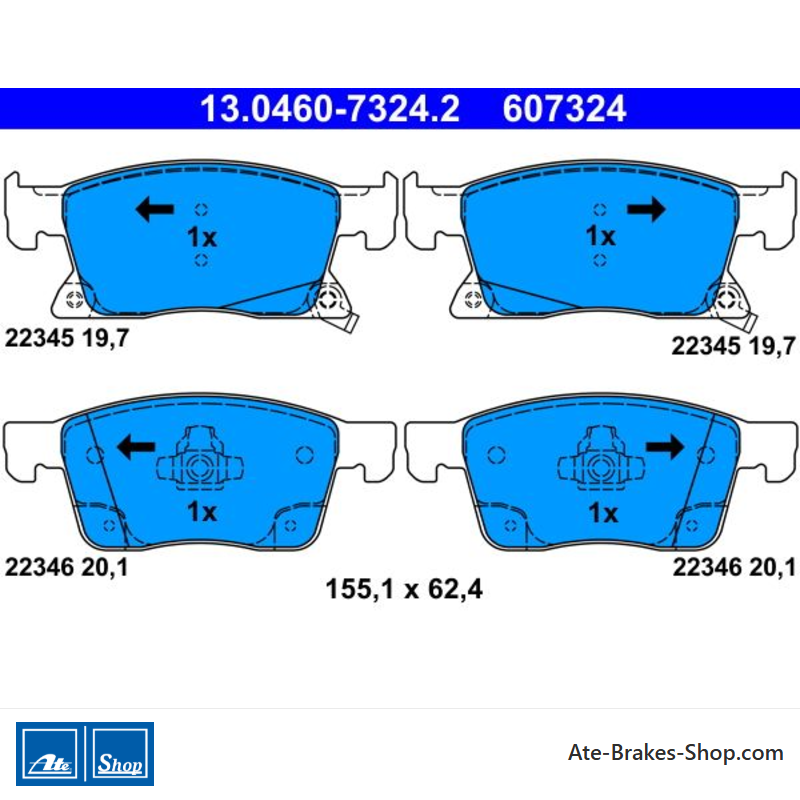

Teilenummer:
ATE 13.0460-7324.2
(130460-73242)
- Breite [mm]: 155,1
- Höhe [mm]: 62,4
- Dicke 1 [mm]: 19,7, Dicke 2 [mm]: 20,1
- Abnutzungswarnhinweis: mit akustischer Verschleißwarnung
- Bremssystem: ATE
- Handelsnummer: 607324
- Ean-Code: 4006633440356
- Gewicht: 2.27kg
Specification of ATE 13.0460-7324.2 / 130460-73242 / 13046073242:
| OE Number | Reference info |
| OPEL 13478301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 95526567 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 13478301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| OPEL ASTRA K (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2015-06 - 2019-08 | 77 | 105 | 999 | Hatchback |
| OPEL ASTRA K (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2018-06 - 2019-08 | 66 | 90 | 999 | Hatchback |
| OPEL ASTRA K (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2019-08 - 2021-09 | 81 | 110 | 1199 | Hatchback |
| OPEL ASTRA K (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2019-08 - 2021-09 | 96 | 131 | 1199 | Hatchback |
| OPEL ASTRA K (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2019-08 - 2021-09 | 107 | 145 | 1199 | Hatchback |
| OPEL ASTRA K (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2019-08 - 2021-09 | 107 | 145 | 1342 | Hatchback |
| OPEL ASTRA K (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2015-06 - 2018-08 | 74 | 100 | 1399 | Hatchback |
| OPEL ASTRA K (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2017-10 - 2018-05 | 81 | 110 | 1399 | Hatchback |
| OPEL ASTRA K (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2015-06 - 2019-08 | 92 | 125 | 1399 | Hatchback |
| OPEL ASTRA K (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2015-10 - 2019-08 | 110 | 150 | 1399 | Hatchback |
| OPEL ASTRA K (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2015-11 - 2019-02 | 147 | 200 | 1598 | Hatchback |
| OPEL ASTRA K (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2019-08 - 2021-09 | 77 | 105 | 1496 | Hatchback |
| OPEL ASTRA K (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2019-08 - 2021-09 | 90 | 122 | 1496 | Hatchback |
| OPEL ASTRA K (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2015-10 - 2018-05 | 70 | 95 | 1598 | Hatchback |
| OPEL ASTRA K (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2015-06 - 2019-08 | 81 | 110 | 1598 | Hatchback |
| OPEL ASTRA K (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2015-06 - 2019-08 | 100 | 136 | 1598 | Hatchback |
| OPEL ASTRA K (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2018-07 - 2019-02 | 110 | 150 | 1598 | Hatchback |
| OPEL ASTRA K (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2015-11 - 2018-05 | 118 | 160 | 1598 | Hatchback |
| OPEL ASTRA K Sports Tourer (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2018-06 - 2019-08 | 66 | 90 | 999 | Estate |
| OPEL ASTRA K Sports Tourer (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2018-06 - 2019-08 | 77 | 105 | 999 | Estate |
| OPEL ASTRA K Sports Tourer (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2019-08 - 2021-12 | 81 | 110 | 1199 | Estate |
| OPEL ASTRA K Sports Tourer (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2019-08 - 2021-12 | 96 | 131 | 1199 | Estate |
| OPEL ASTRA K Sports Tourer (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2019-08 - 2021-12 | 107 | 145 | 1199 | Estate |
| OPEL ASTRA K Sports Tourer (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2016-04 - 2018-05 | 74 | 100 | 1399 | Estate |
| OPEL ASTRA K Sports Tourer (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2017-08 - 2018-05 | 81 | 110 | 1399 | Estate |
| OPEL ASTRA K Sports Tourer (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2016-04 - 2019-08 | 92 | 125 | 1399 | Estate |
| OPEL ASTRA K Sports Tourer (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2019-08 - 2021-12 | 107 | 145 | 1342 | Estate |
| OPEL ASTRA K Sports Tourer (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2016-04 - 2019-08 | 110 | 150 | 1399 | Estate |
| OPEL ASTRA K Sports Tourer (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2019-08 - 2021-12 | 77 | 105 | 1496 | Estate |
| OPEL ASTRA K Sports Tourer (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2019-08 - 2021-12 | 90 | 122 | 1496 | Estate |
| OPEL ASTRA K Sports Tourer (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2018-07 - 2019-02 | 110 | 150 | 1598 | Estate |
| OPEL ASTRA K Sports Tourer (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2016-04 - 2019-02 | 147 | 200 | 1598 | Estate |
| OPEL ASTRA K Sports Tourer (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2016-04 - 2018-05 | 70 | 95 | 1598 | Estate |
| OPEL ASTRA K Sports Tourer (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2016-04 - 2019-08 | 81 | 110 | 1598 | Estate |
| OPEL ASTRA K Sports Tourer (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2016-04 - 2019-08 | 100 | 136 | 1598 | Estate |
| OPEL ASTRA K Sports Tourer (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2016-04 - 2018-05 | 118 | 160 | 1598 | Estate |
| OPEL ASTRA K Hatchback Van for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2018-04 - 2019-08 | 100 | 136 | 1598 | Hatchback Van |
| OPEL ASTRA K Estate Van Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2019-08 - 2021-09 | 77 | 105 | 1496 | Estate Van |
| OPEL ASTRA K Estate Van Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2018-05 - 2019-08 | 77 | 105 | 999 | Estate Van |
| OPEL ASTRA K Estate Van Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2018-06 - 2021-09 | 110 | 150 | 1399 | Estate Van |
13.0460-7324.2
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Opel
- Handelsnummer
- 607324
- Bremssystem
- ATE
- Herkunftsland
- Tschechien
- Verschleißanzeige
- Akustik
- Breite
- 155,1
- Höhe
- 62,4
- Dicke
- 19,7
20,1 - Anzahl der Verschleißindikatoren
- 2 pro Achse
Spezifische Referenzen
- ean13
- 4006633440356
- Hersteller-Teilenummer (MPN)
- 1304607324202
ATE 13.0460-7324.2
(130460-73242)
- Breite [mm]: 155,1
- Höhe [mm]: 62,4
- Dicke 1 [mm]: 19,7, Dicke 2 [mm]: 20,1
- Abnutzungswarnhinweis: mit akustischer Verschleißwarnung
- Bremssystem: ATE
- Handelsnummer: 607324
