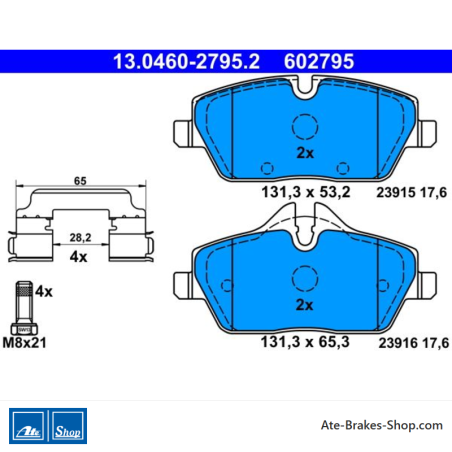

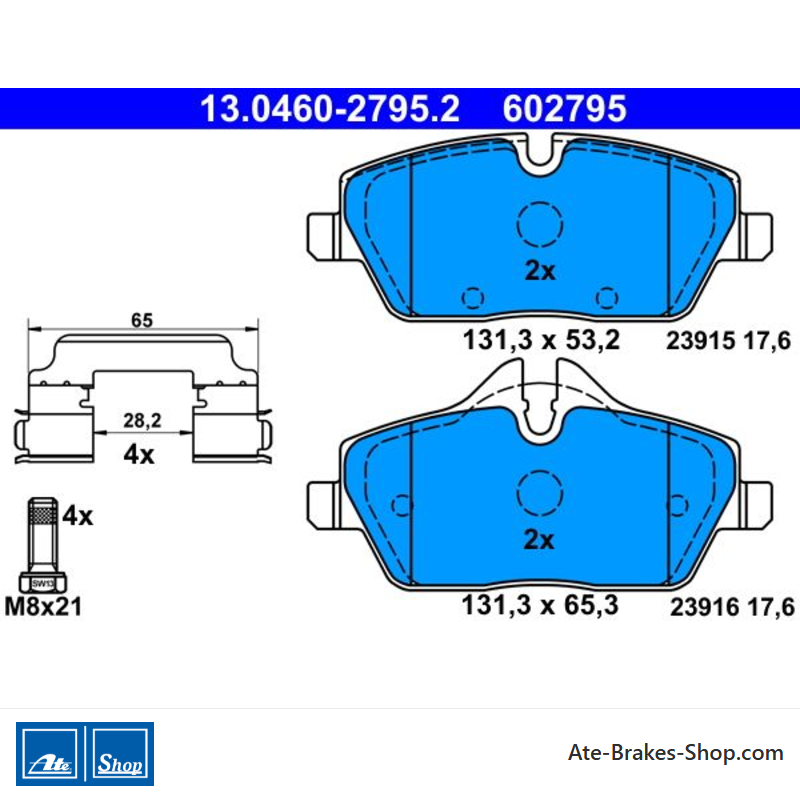

ATE originale Bremsbeläge (13046027952) für BMW, Mini
65,34 €
(inkl. MwSt.)
54,00 € Steuerexzl.
Teilenummer:
ATE 13.0460-2795.2
(130460-27952)
- Breite [mm]: 131,3
- Höhe 1 [mm]: 53,2, Höhe 2 [mm]: 65,3
- Dicke [mm]: 17,6
- Verschleißwarnkontakt: vorbereitet für Verschleißwarnhinweis; ausgenommen Verschleißwarnkontakt
- Bremssystem: Lucas / TRW
- Handelsnummer: 602795
- Ean-Code: 4006633435833
- Gewicht: 1.72kg
Specification of ATE 13.0460-2795.2 / 130460-27952 / 13046027952:
| OE Number | Reference info |
| BMW 34 10 6 863 292 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34106863292 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34 11 6 860 016 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34116860016 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34 10 6 884 263 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34106884263 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MINI 34 10 6 863 292 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MINI 34106863292 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MINI 34 11 6 860 016 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MINI 34116860016 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MINI 34 10 6 884 263 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MINI 34106884263 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| BMW 2 Active Tourer (F45) Construction Year from 201511 Fitting Position Front Axle | 2015-02 - 2018-02 | 75 | 102 | 1499 | MPV |
| BMW 2 Active Tourer (F45) Fitting Position Front Axle | 2018-03 - 2021-10 | 80 | 109 | 1499 | MPV |
| BMW 2 Active Tourer (F45) Construction Year from 201503 Fitting Position Front Axle | 2014-07 - 2018-02 | 70 | 95 | 1496 | MPV |
| MINI MINI (F55) Construction Year from 201503 Fitting Position Front Axle | 2014-11 - 2017-10 | 55 | 75 | 1198 | Hatchback |
| MINI MINI (F55) Fitting Position Front Axle | 2017-11 - | 55 | 75 | 1499 | Hatchback |
| MINI MINI (F55) Fitting Position Front Axle | 2014-05 - 2017-10 | 75 | 102 | 1198 | Hatchback |
| MINI MINI (F55) Fitting Position Front Axle | 2017-11 - | 75 | 102 | 1499 | Hatchback |
| MINI MINI (F55) Construction Year from 201410 Fitting Position Front Axle | 2014-07 - | 100 | 136 | 1499 | Hatchback |
| MINI MINI (F55) Fitting Position Front Axle | 2014-11 - | 70 | 95 | 1496 | Hatchback |
| MINI MINI (F55) Construction Year from 201410 Fitting Position Front Axle | 2014-07 - | 85 | 116 | 1496 | Hatchback |
| MINI MINI (F56) Fitting Position Front Axle | 2019-11 - | 135 | 184 | CC | Hatchback |
| MINI MINI (F56) Fitting Position Front Axle | 2014-07 - 2017-10 | 55 | 75 | 1198 | Hatchback |
| MINI MINI (F56) Fitting Position Front Axle | 2017-11 - | 55 | 75 | 1499 | Hatchback |
| MINI MINI (F56) Fitting Position Front Axle | 2014-04 - 2017-10 | 75 | 102 | 1198 | Hatchback |
| MINI MINI (F56) Fitting Position Front Axle | 2017-11 - | 75 | 102 | 1499 | Hatchback |
| MINI MINI (F56) Fitting Position Front Axle | 2013-12 - | 100 | 136 | 1499 | Hatchback |
| MINI MINI (F56) Fitting Position Front Axle | 2014-03 - | 70 | 95 | 1496 | Hatchback |
| MINI MINI (F56) Fitting Position Front Axle | 2013-12 - | 85 | 116 | 1496 | Hatchback |
| MINI MINI Convertible (F57) Fitting Position Front Axle | 2023-04 - | 135 | 184 | CC | Convertible |
| MINI MINI Convertible (F57) Fitting Position Front Axle | 2016-03 - 2017-10 | 75 | 102 | 1198 | Convertible |
| MINI MINI Convertible (F57) Fitting Position Front Axle | 2017-11 - | 75 | 102 | 1499 | Convertible |
| MINI MINI Convertible (F57) Fitting Position Front Axle | 2015-11 - | 100 | 136 | 1499 | Convertible |
| MINI MINI Convertible (F57) Fitting Position Front Axle | 2015-11 - | 85 | 116 | 1496 | Convertible |
| MINI MINI CLUBMAN (F54) Fitting Position Front Axle | 2015-11 - 2024-01 | 75 | 102 | 1499 | Estate |
| MINI MINI CLUBMAN (F54) Fitting Position Front Axle | 2015-11 - 2024-01 | 85 | 116 | 1496 | Estate |
13.0460-2795.2
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- BMW
Mini - Handelsnummer
- 602795
- Bremssystem
- Lucas / TRW
- Herkunftsland
- Italien
- Verschleißanzeige
- Elektronisch
Nicht enthalten
Vorbereitet - Zusätzliche Informationen
- Mit Zubehör
mit Bremssättelschrauben - Breite
- 131,3
- Höhe
- 53,2
65,3 - Dicke
- 17,6
- Anzahl der Schrauben/Schrauben
- 4
Spezifische Referenzen
- ean13
- 4006633435833
- Hersteller-Teilenummer (MPN)
- 1304602795202
ATE 13.0460-2795.2
(130460-27952)
- Breite [mm]: 131,3
- Höhe 1 [mm]: 53,2, Höhe 2 [mm]: 65,3
- Dicke [mm]: 17,6
- Verschleißwarnkontakt: vorbereitet für Verschleißwarnhinweis; ausgenommen Verschleißwarnkontakt
- Bremssystem: Lucas / TRW
- Handelsnummer: 602795
