ATE originalen Bremsbeläge (13046039842) für Alfa Romeo, Fiat, Lancia
39,93 €
(inkl. MwSt.)
33,00 € Steuerexzl.
Teilenummer:
ATE 13.0460-3984.2
(130460-39842)

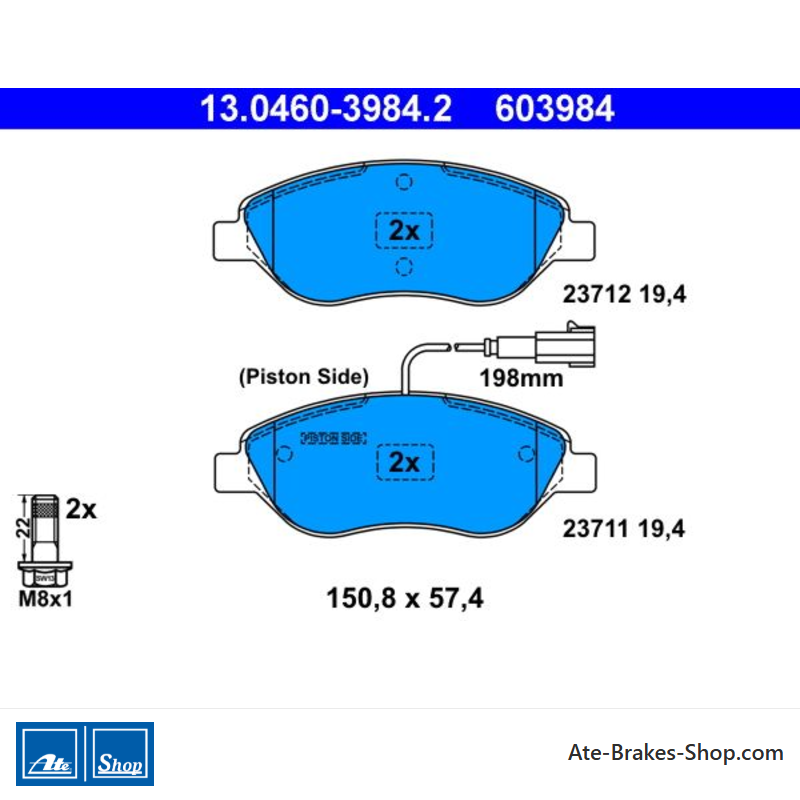

- Breite [mm]: 150,8
- Höhe [mm]: 57,4
- Dicke [mm]: 19,4
- Verschleißwarnkontakt: einschließlich Verschleißwarnkontakt
- Bremssystem: Bosch
- Handelsnummer: 603984
- Ean-Code: 4006633075732
- Gewicht: 1.85kg
Specification of ATE 13.0460-3984.2 / 130460-39842 / 13046039842:
| OE Number | Reference info |
| FIAT 9949279 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77362093 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77362196 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77364589 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77365188 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77365808 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| ALFA ROMEO 147 (937_) VET Number to 3021488 Fitting Position Front Axle | 2001-01 - 2010-03 | 77 | 105 | 1598 | Hatchback |
| ALFA ROMEO 147 (937_) VET Number to 3021488 Fitting Position Front Axle | 2009-01 - 2010-03 | 77 | 105 | 1598 | Hatchback |
| ALFA ROMEO 156 (932_) Construction Year from 200003 Construction Year to 200102 Fitting Position Front Axle | 1997-09 - 2005-09 | 82 | 112 | 1598 | Saloon |
| ALFA ROMEO 156 (932_) Construction Year from 200003 Construction Year to 200102 Fitting Position Front Axle | 1997-09 - 2005-09 | 88 | 120 | 1598 | Saloon |
| ALFA ROMEO 156 (932_) Construction Year from 200003 Construction Year to 200102 Fitting Position Front Axle | 1997-09 - 2005-09 | 103 | 140 | 1747 | Saloon |
| ALFA ROMEO 156 (932_) Construction Year from 200003 Fitting Position Front Axle | 1997-09 - 2000-10 | 106 | 144 | 1747 | Saloon |
| ALFA ROMEO 156 (932_) Construction Year from 200003 Fitting Position Front Axle | 1997-09 - 2000-10 | 77 | 105 | 1910 | Saloon |
| ALFA ROMEO 156 (932_) Construction Year to 200102 Fitting Position Front Axle | 2000-10 - 2001-05 | 81 | 110 | 1910 | Saloon |
| ALFA ROMEO 156 Sportwagon (932_) Construction Year from 200003 Construction Year to 200102 Fitting Position Front Axle | 2000-01 - 2005-09 | 82 | 112 | 1598 | Estate |
| ALFA ROMEO 156 Sportwagon (932_) Construction Year to 200102 Fitting Position Front Axle | 2000-05 - 2006-05 | 88 | 120 | 1598 | Estate |
| ALFA ROMEO 156 Sportwagon (932_) Construction Year from 200003 Construction Year to 200102 Fitting Position Front Axle | 1997-02 - 2006-05 | 103 | 140 | 1747 | Estate |
| ALFA ROMEO 156 Sportwagon (932_) Fitting Position Front Axle | 2000-05 - 2000-10 | 106 | 144 | 1747 | Estate |
| ALFA ROMEO 156 Sportwagon (932_) Fitting Position Front Axle | 2000-05 - 2000-10 | 77 | 105 | 1910 | Estate |
| ALFA ROMEO 156 Sportwagon (932_) Construction Year to 200102 Fitting Position Front Axle | 2000-10 - 2001-05 | 81 | 110 | 1910 | Estate |
| ALFA ROMEO MITO (955_) Fitting Position Front Axle | 2008-08 - 2013-08 | 88 | 120 | 1368 | Hatchback |
| ALFA ROMEO MITO (955_) Fitting Position Front Axle | 2009-01 - 2016-08 | 88 | 120 | 1368 | Hatchback |
| ALFA ROMEO MITO (955_) Fitting Position Front Axle | 2016-04 - 2018-10 | 88 | 120 | 1368 | Hatchback |
| ALFA ROMEO MITO (955_) Fitting Position Front Axle | 2009-10 - 2014-12 | 99 | 135 | 1368 | Hatchback |
| ALFA ROMEO MITO (955_) Fitting Position Front Axle | 2013-12 - 2015-12 | 59 | 80 | 1248 | Hatchback |
| ALFA ROMEO MITO (955_) Fitting Position Front Axle | 2011-01 - 2015-12 | 62 | 84 | 1248 | Hatchback |
| ALFA ROMEO MITO (955_) Fitting Position Front Axle | 2008-08 - 2010-08 | 66 | 90 | 1248 | Hatchback |
| ALFA ROMEO MITO (955_) Fitting Position Front Axle | 2009-09 - 2018-10 | 70 | 95 | 1248 | Hatchback |
| ALFA ROMEO MITO (955_) Fitting Position Front Axle | 2008-08 - 2015-08 | 85 | 115 | 1598 | Hatchback |
| ALFA ROMEO MITO (955_) Fitting Position Front Axle | 2008-08 - 2015-08 | 88 | 120 | 1598 | Hatchback |
| FIAT BRAVO II (198_) Fitting Position Front Axle | 2010-04 - 2014-12 | 103 | 140 | 1368 | Hatchback |
| FIAT BRAVO II (198_) Fitting Position Front Axle | 2007-09 - 2014-12 | 110 | 150 | 1368 | Hatchback |
| FIAT BRAVO II (198_) Fitting Position Front Axle | 2007-04 - 2014-12 | 110 | 150 | 1910 | Hatchback |
| FIAT BRAVO II (198_) Fitting Position Front Axle | 2008-09 - 2014-12 | 120 | 163 | 1956 | Hatchback |
| FIAT BRAVO II (198_) Fitting Position Front Axle | 2008-09 - 2014-12 | 121 | 165 | 1956 | Hatchback |
| FIAT STILO (192_) Fitting Position Front Axle | 2001-10 - 2007-04 | 125 | 170 | 2446 | Hatchback |
| FIAT STILO (192_) Fitting Position Front Axle | 2004-01 - 2005-08 | 103 | 140 | 1910 | Hatchback |
| FIAT STILO (192_) Fitting Position Front Axle | 2005-09 - 2006-11 | 110 | 150 | 1910 | Hatchback |
| FIAT STILO Multi Wagon (192_) Construction Year to 200803 Fitting Position Front Axle | 2004-01 - 2008-08 | 103 | 140 | 1910 | Estate |
| FIAT STILO Multi Wagon (192_) Construction Year to 200803 Fitting Position Front Axle | 2005-09 - 2008-08 | 110 | 150 | 1910 | Estate |
| FIAT STILO VAN (192_) Fitting Position Front Axle | 2003-09 - 2005-08 | 103 | 140 | 1910 | Estate Van |
| FIAT STILO VAN (192_) Fitting Position Front Axle | 2004-02 - 2008-08 | 100 | 136 | 1910 | Estate Van |
| FIAT STILO VAN (192_) Fitting Position Front Axle | 2005-09 - 2008-08 | 110 | 150 | 1910 | Estate Van |
| LANCIA DELTA III (844_) Construction Year from 200911 Fitting Position Front Axle | 2008-09 - 2014-08 | 88 | 120 | 1368 | Hatchback |
| LANCIA DELTA III (844_) Fitting Position Front Axle | 2011-07 - 2014-08 | 88 | 120 | 1368 | Hatchback |
| LANCIA DELTA III (844_) Fitting Position Front Axle | 2010-07 - 2014-08 | 103 | 140 | 1368 | Hatchback |
| LANCIA DELTA III (844_) Fitting Position Front Axle | 2008-09 - 2014-08 | 110 | 150 | 1368 | Hatchback |
| LANCIA DELTA III (844_) Fitting Position Front Axle | 2011-04 - 2014-08 | 77 | 105 | 1598 | Hatchback |
| LANCIA DELTA III (844_) Construction Year from 200911 Fitting Position Front Axle | 2008-08 - 2014-08 | 85 | 116 | 1598 | Hatchback |
| LANCIA DELTA III (844_) Construction Year from 200911 Fitting Position Front Axle | 2008-09 - 2014-08 | 88 | 120 | 1598 | Hatchback |
| LANCIA LYBRA (839_) Construction Year from 200003 Fitting Position Front Axle | 1999-07 - 2005-10 | 76 | 103 | 1581 | Saloon |
| LANCIA LYBRA (839_) Fitting Position Front Axle | 2000-10 - 2005-10 | 76 | 103 | 1596 | Saloon |
| LANCIA LYBRA SW (839_) Construction Year from 200003 Fitting Position Front Axle | 1999-07 - 2005-10 | 76 | 103 | 1581 | Estate |
| LANCIA LYBRA SW (839_) Fitting Position Front Axle | 2000-10 - 2005-10 | 76 | 103 | 1596 | Estate |
13.0460-3984.2
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Alfa Romeo
Fiat
Lancia - Handelsnummer
- 603984
- Bremssystem
- Bosch
- Herkunftsland
- QU
- Verschleißanzeige
- Elektronisch
Enthalten - Zusätzliche Informationen
- mit Bremssättelschrauben
- Breite
- 150,8
- Höhe
- 57,4
- Dicke
- 19,4
- Anzahl der Schrauben/Schrauben
- 2
- Warnanzeige-Länge
- 198 mm
Spezifische Referenzen
- ean13
- 4006633075732
- Hersteller-Teilenummer (MPN)
- 1304603984202
ATE 13.0460-3984.2
(130460-39842)
- Breite [mm]: 150,8
- Höhe [mm]: 57,4
- Dicke [mm]: 19,4
- Verschleißwarnkontakt: einschließlich Verschleißwarnkontakt
- Bremssystem: Bosch
- Handelsnummer: 603984
