ATE Originale zweiteilige Servobremsscheibe (24031301851) für Citroën, Peugeot
79,86 €
(inkl. MwSt.)
66,00 € Steuerexzl.
Teilenummer:
ATE 24.0313-0185.1
(240313-01851)

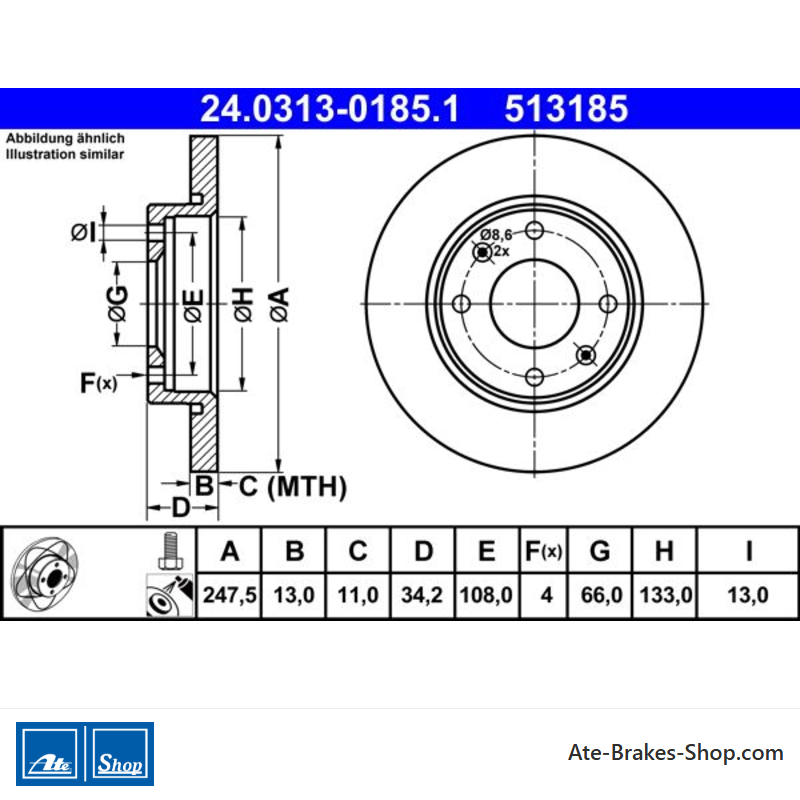

- Außendurchmesser [mm]: 247,5
- Innendurchmesser [mm]: 133,0
- Bremsscheibendicke [mm]: 13,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 513185
Logistische Informationen:
- Ean-Code: 4006633418744
- Gewicht: 7.78kg
Specification of ATE 24.0313-0185.1 / 240313-01851 / 24031301851:
| OE Number | Reference info |
| CITROËN 4246 R9 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4246R9 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4246 R8 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4246R8 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4249 A5 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4249A5 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CITROËN XSARA (N1) Construction Year to 200008 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1997-04 - 2005-03 | 55 | 75 | 1360 | Hatchback |
| CITROËN XSARA (N1) Construction Year to 200008 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1997-04 - 2000-09 | 42 | 57 | 1527 | Hatchback |
| CITROËN XSARA Coupe (N0) Construction Year to 200008 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1998-03 - 2005-03 | 55 | 75 | 1360 | Coupe |
| PEUGEOT 206+ (2L_, 2M_) not for country specific design Germany Construction Year to 201305 Fitting Position Front Axle | 2009-01 - 2013-06 | 44 | 60 | 1124 | Hatchback |
| PEUGEOT 206+ (2L_, 2M_) not for country specific design Germany Construction Year to 201305 Fitting Position Front Axle | 2009-04 - 2013-06 | 44 | 60 | 1124 | Hatchback |
| PEUGEOT 206+ (2L_, 2M_) not for country specific design Germany Construction Year to 201305 Fitting Position Front Axle | 2010-09 - 2013-06 | 54 | 73 | 1360 | Hatchback |
| PEUGEOT 206+ (2L_, 2M_) not for country specific design Germany Construction Year to 201305 Fitting Position Front Axle | 2009-01 - 2013-08 | 55 | 75 | 1360 | Hatchback |
| PEUGEOT 206+ (2L_, 2M_) not for country specific design Germany Construction Year to 201305 Fitting Position Front Axle | 2009-01 - 2013-06 | 50 | 68 | 1398 | Hatchback |
| PEUGEOT 206 Hatchback (2A/C) Construction Year from 199809 Fitting Position Front Axle | 1998-08 - 2000-07 | 40 | 54 | 1124 | Hatchback |
| PEUGEOT 206 Hatchback (2A/C) for RPO number from 08989 for RPO number up to 09974 not for country specific design Germany Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1998-08 - 2000-07 | 40 | 54 | 1124 | Hatchback |
| PEUGEOT 206 Hatchback (2A/C) Fitting Position Front Axle | 1998-09 - 2007-02 | 44 | 60 | 1124 | Hatchback |
| PEUGEOT 206 Hatchback (2A/C) for RPO number from 08989 for RPO number up to 09974 not for country specific design Germany Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1998-09 - 2007-02 | 44 | 60 | 1124 | Hatchback |
| PEUGEOT 206 Hatchback (2A/C) Construction Year to 200902 Vehicle Equipment Line/Trim Level - Roland Garros Fitting Position Front Axle | 1998-09 - 2012-12 | 55 | 75 | 1360 | Hatchback |
| PEUGEOT 206 Hatchback (2A/C) Vehicle Equipment Line/Trim Level - Roland Garros Fitting Position Front Axle | 2006-05 - 2007-09 | 55 | 75 | 1360 | Hatchback |
| PEUGEOT 206 Hatchback (2A/C) Vehicle Equipment Line/Trim Level - Roland Garros Fitting Position Front Axle | 2006-05 - 2007-09 | 55 | 75 | 1360 | Hatchback |
| PEUGEOT 206 Hatchback (2A/C) Construction Year to 200902 Fitting Position Front Axle | 2001-09 - 2009-04 | 50 | 68 | 1398 | Hatchback |
| PEUGEOT 206 SW (2E/K) Fitting Position Front Axle | 2002-07 - 2007-02 | 44 | 60 | 1124 | Estate |
| PEUGEOT 206 SW (2E/K) Fitting Position Front Axle | 2002-07 - 2007-02 | 55 | 75 | 1360 | Estate |
| PEUGEOT 206 SW (2E/K) Fitting Position Front Axle | 2002-07 - 2007-02 | 50 | 68 | 1398 | Estate |
| PEUGEOT 206 Saloon Construction Year to 200902 Vehicle Equipment Line/Trim Level - Roland Garros Fitting Position Front Axle | 2007-03 - | 55 | 75 | 1360 | Saloon |
| PEUGEOT 206 Saloon Construction Year to 200902 Fitting Position Front Axle | 2008-09 - | 50 | 68 | 1398 | Saloon |
| PEUGEOT 306 Hatchback (7A, 7C, N3, N5) Construction Year from 199705 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1993-04 - 2001-07 | 55 | 75 | 1360 | Hatchback |
| PEUGEOT 306 (7B, N3, N5) Construction Year from 199705 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1994-06 - 2001-05 | 55 | 75 | 1360 | Saloon |
24.0313-0185.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Citroën
Peugeot - Handelsnummer
- 513185
- Herkunftsland
- Deutschland
- Zusätzliche Informationen
- mit Schrauben/Schrauben
- Höhe
- 34,2
- Außendurchmesser [mm]
- 247,5
- Bremsscheibendicke [mm]
- 13,0
- Bremsscheibentyp
- Solide
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 108,0
- Zentrierungsdurchmesser [mm]
- 66,0
- Innendurchmesser [mm]
- 133,0
- Bohrdurchmesser [mm]
- 13,0
- Mindestdicke [mm]
- 11,0
Spezifische Referenzen
- ean13
- 4006633418744
- Hersteller-Teilenummer (MPN)
- 2403130185102
ATE 24.0313-0185.1
(240313-01851)
- Außendurchmesser [mm]: 247,5
- Innendurchmesser [mm]: 133,0
- Bremsscheibendicke [mm]: 13,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 513185
