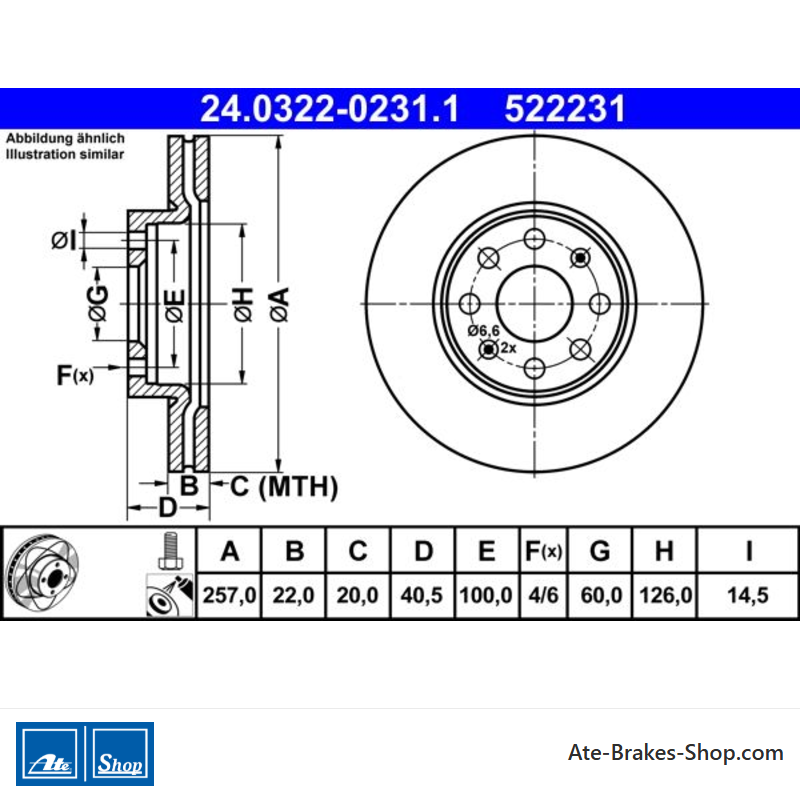

ATE Original 2 Teile Servobremsscheibe (24032202311) für Fiat, Opel
137,94 €
(inkl. MwSt.)
114,00 € Steuerexzl.
Teilenummer:
ATE 24.0322-0231.1
(240322-02311)
- Außendurchmesser [mm]: 257,0
- Innendurchmesser [mm]: 126,0
- Bremsscheibendicke [mm]: 22,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 522231
Logistische Informationen:
- Ean-Code: 4006633418782
- Gewicht: 10.73kg
Specification of ATE 24.0322-0231.1 / 240322-02311 / 24032202311:
| OE Number | Reference info |
| FIAT 55700920 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 55700921 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 93188917 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 93197241 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 5 69 024 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 569024 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 5 69 065 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 569065 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 13317922 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 5 69 065 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 569065 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 93188917 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 93197241 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 5 69 024 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 569024 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 13317922 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FIAT GRANDE PUNTO (199_) Construction Year to 201101 Fitting Position Front Axle | 2005-10 - | 48 | 65 | 1242 | Hatchback |
| FIAT GRANDE PUNTO (199_) Construction Year to 201101 Fitting Position Front Axle | 2010-09 - | 51 | 69 | 1242 | Hatchback |
| FIAT GRANDE PUNTO (199_) Fitting Position Front Axle | 2005-10 - 2007-07 | 55 | 75 | 1368 | Hatchback |
| FIAT GRANDE PUNTO (199_) Construction Year to 201101 Fitting Position Front Axle | 2005-06 - 2015-12 | 57 | 77 | 1368 | Hatchback |
| FIAT GRANDE PUNTO (199_) Construction Year to 201101 Fitting Position Front Axle | 2008-12 - | 57 | 78 | 1368 | Hatchback |
| FIAT GRANDE PUNTO (199_) Construction Year to 201101 Fitting Position Front Axle | 2008-07 - | 57 | 78 | 1368 | Hatchback |
| FIAT GRANDE PUNTO (199_) Construction Year to 201101 Fitting Position Front Axle | 2005-10 - 2011-08 | 70 | 95 | 1368 | Hatchback |
| FIAT GRANDE PUNTO (199_) Construction Year to 201101 Fitting Position Front Axle | 2008-07 - | 51 | 69 | 1248 | Hatchback |
| FIAT GRANDE PUNTO (199_) Fitting Position Front Axle | 2005-10 - 2013-06 | 55 | 75 | 1248 | Hatchback |
| FIAT PUNTO (188_) Construction Year from 200910 Fitting Position Front Axle | 2007-08 - 2012-03 | 44 | 60 | 1242 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 63 | 86 | 875 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 63 | 86 | 875 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2013-12 - | 74 | 101 | 875 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2013-07 - | 77 | 105 | 875 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2014-02 - | 49 | 67 | 1242 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 51 | 69 | 1242 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 55 | 75 | 1368 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 57 | 78 | 1368 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 57 | 78 | 1368 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 57 | 78 | 1368 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 77 | 105 | 1368 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 55 | 75 | 1248 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2013-12 - | 59 | 80 | 1248 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 62 | 84 | 1248 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Front Axle | 2009-10 - 2012-02 | 48 | 65 | 1242 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Front Axle | 2009-10 - 2012-02 | 51 | 69 | 1242 | Hatchback |
| FIAT PUNTO EVO (199_) Construction Year from 200910 Fitting Position Front Axle | 2009-07 - 2012-02 | 55 | 75 | 1368 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Front Axle | 2009-10 - 2012-02 | 57 | 77 | 1368 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Front Axle | 2009-06 - 2012-02 | 57 | 78 | 1368 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Front Axle | 2009-10 - 2012-02 | 57 | 78 | 1368 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Front Axle | 2009-10 - 2012-02 | 77 | 105 | 1368 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Front Axle | 2009-10 - 2012-02 | 99 | 135 | 1368 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Front Axle | 2008-07 - 2012-02 | 51 | 69 | 1248 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Front Axle | 2009-10 - 2012-02 | 55 | 75 | 1248 | Hatchback |
| FIAT GRANDE PUNTO Van (199_) Construction Year to 201101 Fitting Position Front Axle | 2006-02 - 2013-06 | 57 | 77 | 1368 | Hatchback Van |
| FIAT GRANDE PUNTO Van (199_) Construction Year to 201101 Fitting Position Front Axle | 2009-03 - 2012-12 | 57 | 77 | 1368 | Hatchback Van |
| FIAT GRANDE PUNTO Van (199_) Construction Year to 201101 Fitting Position Front Axle | 2009-03 - 2012-12 | 57 | 77 | 1368 | Hatchback Van |
| FIAT PUNTO Hatchback Van (199_) Construction Year from 200910 Fitting Position Front Axle | 2009-03 - | 57 | 78 | 1368 | Hatchback Van |
| FIAT PUNTO Hatchback Van (199_) Construction Year to 201101 Fitting Position Front Axle | 2008-04 - | 55 | 75 | 1248 | Hatchback Van |
| FIAT PUNTO EVO Hatchback Van (199_) Fitting Position Front Axle | 2009-03 - 2012-02 | 57 | 78 | 1368 | Hatchback Van |
| FIAT PUNTO EVO Hatchback Van (199_) Fitting Position Front Axle | 2009-03 - 2012-02 | 55 | 75 | 1248 | Hatchback Van |
| OPEL ADAM (M13) Fitting Position Front Axle | 2014-07 - 2018-11 | 66 | 90 | 999 | Hatchback |
| OPEL ADAM (M13) Fitting Position Front Axle | 2014-07 - 2018-11 | 85 | 115 | 999 | Hatchback |
| OPEL ADAM (M13) Construction Year from 201301 Fitting Position Front Axle | 2012-10 - 2019-05 | 51 | 69 | 1229 | Hatchback |
| OPEL ADAM (M13) Construction Year from 201301 Fitting Position Front Axle | 2012-10 - 2019-05 | 64 | 87 | 1398 | Hatchback |
| OPEL ADAM (M13) Fitting Position Front Axle | 2013-07 - 2018-11 | 64 | 87 | 1398 | Hatchback |
| OPEL ADAM (M13) Construction Year from 201301 Fitting Position Front Axle | 2012-10 - 2019-05 | 74 | 101 | 1398 | Hatchback |
| OPEL ADAM (M13) Fitting Position Front Axle | 2014-11 - 2019-05 | 110 | 150 | 1364 | Hatchback |
| OPEL CORSA D (S07) Construction Year from 200610 Fitting Position Front Axle | 2006-07 - 2010-12 | 44 | 60 | 998 | Hatchback |
| OPEL CORSA D (S07) Fitting Position Front Axle | 2009-12 - 2014-08 | 48 | 65 | 998 | Hatchback |
| OPEL CORSA D (S07) Fitting Position Front Axle | 2009-12 - 2014-08 | 51 | 69 | 1229 | Hatchback |
| OPEL CORSA D (S07) Construction Year from 200610 Fitting Position Front Axle | 2006-07 - 2014-08 | 59 | 80 | 1229 | Hatchback |
| OPEL CORSA D (S07) Fitting Position Front Axle | 2006-08 - 2014-08 | 59 | 80 | 1229 | Hatchback |
| OPEL CORSA D (S07) Fitting Position Front Axle | 2011-06 - 2014-08 | 61 | 83 | 1229 | Hatchback |
| OPEL CORSA D (S07) Fitting Position Front Axle | 2009-12 - 2014-08 | 63 | 86 | 1229 | Hatchback |
| OPEL CORSA D (S07) Fitting Position Front Axle | 2011-06 - 2014-08 | 63 | 86 | 1229 | Hatchback |
| OPEL CORSA D (S07) Construction Year from 200610 Fitting Position Front Axle | 2006-07 - 2014-08 | 66 | 90 | 1364 | Hatchback |
| OPEL CORSA D (S07) Construction Year from 200610 Fitting Position Front Axle | 2006-08 - 2011-12 | 66 | 90 | 1364 | Hatchback |
| OPEL CORSA D (S07) Fitting Position Front Axle | 2009-09 - 2014-08 | 64 | 87 | 1398 | Hatchback |
| OPEL CORSA D (S07) Fitting Position Front Axle | 2009-09 - 2014-08 | 64 | 87 | 1398 | Hatchback |
| OPEL CORSA D (S07) Fitting Position Front Axle | 2009-12 - 2014-08 | 74 | 100 | 1398 | Hatchback |
| OPEL CORSA D (S07) Construction Year from 200610 Fitting Position Front Axle | 2006-07 - 2014-08 | 55 | 75 | 1248 | Hatchback |
| OPEL CORSA D (S07) Fitting Position Front Axle | 2009-06 - 2014-08 | 70 | 95 | 1248 | Hatchback |
| OPEL CORSA E (X15) Construction Year from 201411 Fitting Position Front Axle | 2014-09 - | 66 | 90 | 999 | Hatchback |
| OPEL CORSA E (X15) Construction Year from 201411 Fitting Position Front Axle | 2014-09 - | 85 | 115 | 999 | Hatchback |
| OPEL CORSA E (X15) Construction Year from 201411 Fitting Position Front Axle | 2014-09 - | 51 | 69 | 1229 | Hatchback |
| OPEL CORSA E (X15) Construction Year from 201411 Fitting Position Front Axle | 2014-09 - | 55 | 75 | 1398 | Hatchback |
| OPEL CORSA E (X15) Construction Year from 201411 Fitting Position Front Axle | 2014-09 - | 66 | 90 | 1398 | Hatchback |
| OPEL CORSA E (X15) Fitting Position Front Axle | 2015-11 - | 64 | 87 | 1398 | Hatchback |
| OPEL CORSA E (X15) Fitting Position Front Axle | 2015-03 - | 66 | 90 | 1398 | Hatchback |
| OPEL CORSA E (X15) Construction Year from 201411 Fitting Position Front Axle | 2014-09 - 2019-06 | 74 | 101 | 1364 | Hatchback |
| OPEL CORSA E (X15) Fitting Position Front Axle | 2015-03 - | 110 | 150 | 1364 | Hatchback |
| OPEL CORSA E (X15) Fitting Position Front Axle | 2015-03 - | 152 | 207 | 1598 | Hatchback |
| OPEL CORSA E (X15) Construction Year from 201411 Fitting Position Front Axle | 2014-09 - | 55 | 75 | 1248 | Hatchback |
| OPEL CORSA E (X15) Construction Year from 201411 Fitting Position Front Axle | 2014-09 - | 70 | 95 | 1248 | Hatchback |
| OPEL CORSA D Hatchback Van (S07) Construction Year from 200610 Fitting Position Front Axle | 2006-08 - 2014-08 | 44 | 60 | 998 | Hatchback Van |
| OPEL CORSA D Hatchback Van (S07) Fitting Position Front Axle | 2010-01 - 2014-08 | 48 | 65 | 998 | Hatchback Van |
| OPEL CORSA D Hatchback Van (S07) Fitting Position Front Axle | 2010-01 - 2014-08 | 51 | 69 | 1229 | Hatchback Van |
| OPEL CORSA D Hatchback Van (S07) Fitting Position Front Axle | 2006-08 - 2014-08 | 59 | 80 | 1229 | Hatchback Van |
| OPEL CORSA D Hatchback Van (S07) Fitting Position Front Axle | 2010-06 - 2014-08 | 63 | 86 | 1229 | Hatchback Van |
| OPEL CORSA D Hatchback Van (S07) Fitting Position Front Axle | 2012-07 - 2014-08 | 74 | 101 | 1398 | Hatchback Van |
| OPEL CORSA D Hatchback Van (S07) Construction Year from 200610 Fitting Position Front Axle | 2006-07 - 2014-08 | 55 | 75 | 1248 | Hatchback Van |
| OPEL CORSA D Hatchback Van (S07) Fitting Position Front Axle | 2009-11 - 2014-08 | 70 | 95 | 1248 | Hatchback Van |
| OPEL CORSA E Hatchback Van (X15) Fitting Position Front Axle | 2015-01 - | 51 | 69 | 1229 | Hatchback Van |
| OPEL CORSA E Hatchback Van (X15) Construction Year from 201411 Fitting Position Front Axle | 2014-09 - | 55 | 75 | 1398 | Hatchback Van |
| OPEL CORSA E Hatchback Van (X15) Construction Year from 201411 Fitting Position Front Axle | 2014-09 - | 66 | 90 | 1398 | Hatchback Van |
| OPEL CORSA E Hatchback Van (X15) Fitting Position Front Axle | 2015-01 - | 55 | 75 | 1248 | Hatchback Van |
| OPEL CORSA E Hatchback Van (X15) Construction Year from 201411 Fitting Position Front Axle | 2014-09 - | 70 | 95 | 1248 | Hatchback Van |
24.0322-0231.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Fiat
Opel - Handelsnummer
- 522231
- Herkunftsland
- Deutschland
- Zusätzliche Informationen
- mit Schrauben/Schrauben
- Höhe
- 40,5
- Außendurchmesser [mm]
- 257,0
- Bremsscheibendicke [mm]
- 22,0
- Bremsscheibentyp
- Entlüftet
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 100,0
- Zentrierungsdurchmesser [mm]
- 60,0
- Innendurchmesser [mm]
- 126,0
- Bohrdurchmesser [mm]
- 14,5
- Mindestdicke [mm]
- 20,0
Spezifische Referenzen
- ean13
- 4006633418782
- Hersteller-Teilenummer (MPN)
- 2403220231102
ATE 24.0322-0231.1
(240322-02311)
- Außendurchmesser [mm]: 257,0
- Innendurchmesser [mm]: 126,0
- Bremsscheibendicke [mm]: 22,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 522231
