ATE Originale zweiteilige Bremsscheibe (24032202321) für Mercedes-Benz
105,27 €
(inkl. MwSt.)
87,00 € Steuerexzl.
Teilenummer:
ATE 24.0322-0232.1
(240322-02321)
- Außendurchmesser [mm]: 276,0
- Innendurchmesser [mm]: 145,0
- Bremsscheibendicke [mm]: 22,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 522232
Logistische Informationen:
- Ean-Code: 4006633418799
- Gewicht: 11.67kg
Specification of ATE 24.0322-0232.1 / 240322-02321 / 24032202321:
| OE Number | Reference info |
| MERCEDES-BENZ A 169 421 01 12 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ A 1694210112 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ A 169 421 08 12 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ A 1694210812 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ 169 421 01 12 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ 1694210112 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ 169 421 08 12 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ 1694210812 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MERCEDES-BENZ A-CLASS (W169) Construction Year to 201205 Payload for increased payload Fitting Position Front Axle | 2004-09 - 2012-06 | 70 | 95 | 1498 | Hatchback |
| MERCEDES-BENZ A-CLASS (W169) Construction Year to 201205 Payload for increased payload Fitting Position Front Axle | 2009-04 - 2012-06 | 70 | 95 | 1498 | Hatchback |
| MERCEDES-BENZ A-CLASS (W169) Construction Year to 201205 Fitting Position Front Axle | 2004-09 - 2012-06 | 85 | 116 | 1699 | Hatchback |
| MERCEDES-BENZ A-CLASS (W169) Construction Year to 201205 Fitting Position Front Axle | 2009-04 - 2012-06 | 85 | 116 | 1699 | Hatchback |
| MERCEDES-BENZ A-CLASS (W169) Construction Year to 201205 Fitting Position Front Axle | 2004-09 - 2012-06 | 100 | 136 | 2034 | Hatchback |
| MERCEDES-BENZ A-CLASS (W169) Construction Year to 201205 Payload for increased payload Fitting Position Front Axle | 2004-09 - 2012-06 | 60 | 82 | 1991 | Hatchback |
| MERCEDES-BENZ A-CLASS (W169) Construction Year to 201205 Fitting Position Front Axle | 2004-09 - 2012-06 | 80 | 109 | 1991 | Hatchback |
| MERCEDES-BENZ B-CLASS Sports Tourer (W245) Construction Year to 201104 Fitting Position Front Axle | 2005-03 - 2011-11 | 70 | 95 | 1498 | Hatchback |
| MERCEDES-BENZ B-CLASS Sports Tourer (W245) Construction Year to 201104 Fitting Position Front Axle | 2009-04 - 2011-11 | 70 | 95 | 1498 | Hatchback |
| MERCEDES-BENZ B-CLASS Sports Tourer (W245) Construction Year to 201104 Fitting Position Front Axle | 2005-03 - 2011-11 | 85 | 116 | 1699 | Hatchback |
| MERCEDES-BENZ B-CLASS Sports Tourer (W245) Construction Year to 201104 Fitting Position Front Axle | 2009-04 - 2011-11 | 85 | 116 | 1699 | Hatchback |

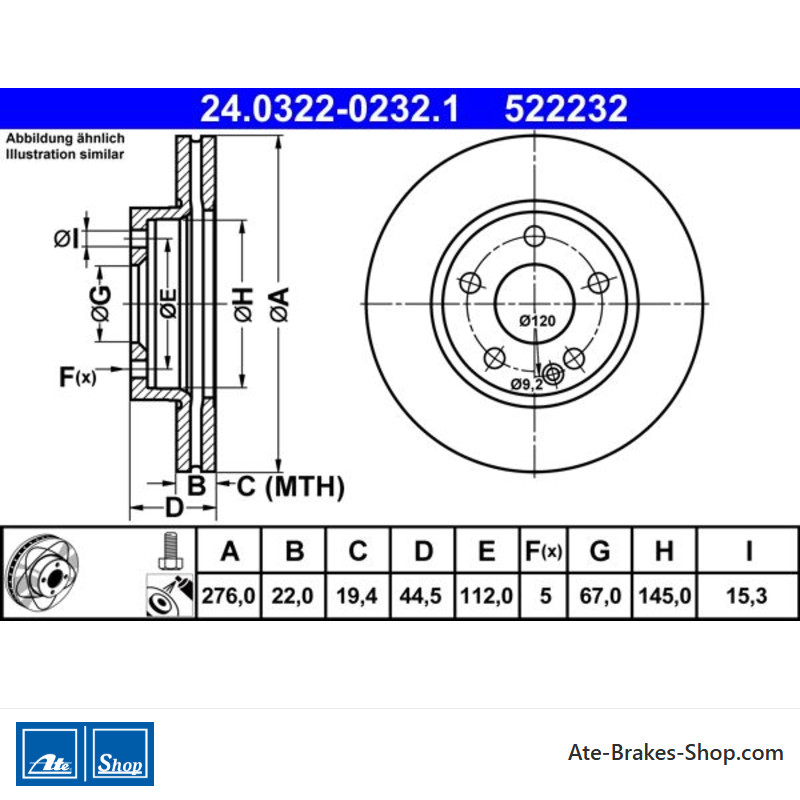

24.0322-0232.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Mercedes-Benz
- Handelsnummer
- 522232
- Herkunftsland
- Deutschland
- Zusätzliche Informationen
- mit Schrauben/Schrauben
- Höhe
- 44,5
- Außendurchmesser [mm]
- 276,0
- Bremsscheibendicke [mm]
- 22,0
- Bremsscheibentyp
- Entlüftet
- Verarbeitung
- Legierte/Hochkohlenstoff-Legierungen
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 112,0
- Zentrierungsdurchmesser [mm]
- 67,0
- Innendurchmesser [mm]
- 145,0
- Bohrdurchmesser [mm]
- 15,3
- Mindestdicke [mm]
- 19,4
Spezifische Referenzen
- ean13
- 4006633418799
- Hersteller-Teilenummer (MPN)
- 2403220232102
ATE 24.0322-0232.1
(240322-02321)
- Außendurchmesser [mm]: 276,0
- Innendurchmesser [mm]: 145,0
- Bremsscheibendicke [mm]: 22,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 522232
