ATE Original 2 Teile Bremsscheibe (24010801061) für Citroën, Peugeot
58,08 €
(inkl. MwSt.)
48,00 € Steuerexzl.
Teilenummer:
ATE 24.0108-0106.1
(240108-01061)
- Außendurchmesser [mm]: 247,0
- Innendurchmesser [mm]: 133,5
- Bremsscheibendicke [mm]: 8,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 408106
Logistische Informationen:
- Ean-Code: 4006633147286
- Gewicht: 5.34kg
Specification of ATE 24.0108-0106.1 / 240108-01061 / 24010801061:
| OE Number | Reference info |
| CITROËN 95 661 749 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 95661749 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 96 012 770 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 96012770 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4249 F5 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4249F5 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4246 G6 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4246G6 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4249 F5 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4249F5 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CITROËN SAXO (S0, S1) Fitting Position Rear Axle | 1996-11 - 2003-06 | 20 | 27 | CC | Hatchback |
| CITROËN SAXO (S0, S1) Fitting Position Rear Axle | 1996-05 - 2003-06 | 65 | 88 | 1587 | Hatchback |
| CITROËN SAXO (S0, S1) Fitting Position Rear Axle | 1996-02 - 2003-06 | 66 | 90 | 1587 | Hatchback |
| CITROËN SAXO (S0, S1) Fitting Position Rear Axle | 2000-09 - 2003-09 | 72 | 98 | 1587 | Hatchback |
| CITROËN SAXO (S0, S1) Fitting Position Rear Axle | 2001-02 - 2004-04 | 74 | 101 | 1587 | Hatchback |
| CITROËN SAXO (S0, S1) Construction Year from 199607 Fitting Position Rear Axle | 1996-06 - 2003-09 | 87 | 118 | 1587 | Hatchback |
| CITROËN SAXO (S0, S1) Fitting Position Rear Axle | 1996-02 - 2004-04 | 88 | 120 | 1587 | Hatchback |
| CITROËN XSARA (N1) Fitting Position Rear Axle | 2000-09 - 2005-03 | 80 | 109 | 1587 | Hatchback |
| CITROËN XSARA (N1) Construction Year to 200008 Fitting Position Rear Axle Country Specific Design Brazil | 1997-04 - 2000-09 | 74 | 101 | 1761 | Hatchback |
| CITROËN XSARA (N1) Construction Year to 200008 Fitting Position Rear Axle | 1997-04 - 2000-09 | 81 | 110 | 1761 | Hatchback |
| CITROËN XSARA (N1) Construction Year to 200008 Fitting Position Rear Axle | 1998-07 - 2000-09 | 97 | 132 | 1998 | Hatchback |
| CITROËN XSARA (N1) Fitting Position Rear Axle | 2000-09 - 2005-03 | 100 | 136 | 1997 | Hatchback |
| CITROËN XSARA (N1) Fitting Position Rear Axle | 1999-02 - 2005-03 | 66 | 90 | 1997 | Hatchback |
| CITROËN XSARA (N1) Fitting Position Rear Axle | 2001-05 - 2005-03 | 80 | 109 | 1997 | Hatchback |
| CITROËN XSARA Break (N2) Fitting Position Rear Axle | 2000-09 - 2005-08 | 80 | 109 | 1587 | Estate |
| CITROËN XSARA Break (N2) Construction Year to 200008 Fitting Position Rear Axle Country Specific Design Brazil | 1997-10 - 2000-09 | 74 | 101 | 1761 | Estate |
| CITROËN XSARA Break (N2) Construction Year to 200008 Fitting Position Rear Axle | 1997-10 - 2000-09 | 81 | 110 | 1761 | Estate |
| CITROËN XSARA Break (N2) Construction Year to 200008 Fitting Position Rear Axle | 1998-07 - 2000-09 | 97 | 132 | 1998 | Estate |
| CITROËN XSARA Break (N2) Fitting Position Rear Axle | 2000-09 - 2005-08 | 100 | 136 | 1997 | Estate |
| CITROËN XSARA Break (N2) Fitting Position Rear Axle | 1999-02 - 2005-08 | 66 | 90 | 1997 | Estate |
| CITROËN XSARA Break (N2) Fitting Position Rear Axle | 2001-05 - 2005-08 | 80 | 109 | 1997 | Estate |
| CITROËN XSARA Coupe (N0) Fitting Position Rear Axle | 2000-09 - 2005-03 | 80 | 109 | 1587 | Coupe |
| CITROËN XSARA Coupe (N0) Construction Year to 200008 Fitting Position Rear Axle | 1998-02 - 2000-09 | 81 | 110 | 1761 | Coupe |
| CITROËN XSARA Coupe (N0) Fitting Position Rear Axle | 2000-09 - 2005-03 | 100 | 136 | 1997 | Coupe |
| CITROËN XSARA Coupe (N0) Fitting Position Rear Axle | 1998-02 - 2005-03 | 120 | 163 | 1998 | Coupe |
| CITROËN XSARA Coupe (N0) Fitting Position Rear Axle | 1999-02 - 2005-03 | 66 | 90 | 1997 | Coupe |
| CITROËN XSARA Coupe (N0) Fitting Position Rear Axle | 2001-05 - 2005-03 | 80 | 109 | 1997 | Coupe |
| CITROËN ZX (N2) Fitting Position Rear Axle | 1991-03 - 1997-06 | 65 | 88 | 1580 | Hatchback |
| CITROËN ZX (N2) Construction Year to 199706 Fitting Position Rear Axle | 1994-07 - 1997-10 | 66 | 90 | 1580 | Hatchback |
| CITROËN ZX (N2) Fitting Position Rear Axle | 1992-07 - 1997-06 | 74 | 101 | 1761 | Hatchback |
| CITROËN ZX (N2) Construction Year to 199706 Fitting Position Rear Axle | 1991-03 - 1997-10 | 76 | 103 | 1761 | Hatchback |
| CITROËN ZX (N2) Fitting Position Rear Axle | 1996-01 - 1997-06 | 81 | 110 | 1761 | Hatchback |
| CITROËN ZX (N2) Fitting Position Rear Axle | 1991-03 - 1997-06 | 88 | 120 | 1905 | Hatchback |
| CITROËN ZX (N2) Fitting Position Rear Axle | 1991-03 - 1997-06 | 93 | 126 | 1905 | Hatchback |
| CITROËN ZX (N2) Fitting Position Rear Axle | 1992-07 - 1997-06 | 89 | 121 | 1998 | Hatchback |
| CITROËN ZX (N2) Construction Year to 199706 Fitting Position Rear Axle | 1994-07 - 1997-10 | 90 | 122 | 1998 | Hatchback |
| CITROËN ZX (N2) Fitting Position Rear Axle | 1994-06 - 1997-06 | 110 | 150 | 1998 | Hatchback |
| CITROËN ZX (N2) Fitting Position Rear Axle | 1992-07 - 1994-10 | 112 | 152 | 1998 | Hatchback |
| CITROËN ZX (N2) Fitting Position Rear Axle | 1996-05 - 1997-06 | 120 | 163 | 1998 | Hatchback |
| CITROËN ZX (N2) Fitting Position Rear Axle | 1996-09 - 1997-10 | 122 | 166 | 1998 | Hatchback |
| CITROËN ZX (N2) Fitting Position Rear Axle | 1993-06 - 1997-06 | 44 | 60 | 1769 | Hatchback |
| CITROËN ZX (N2) Fitting Position Rear Axle | 1991-03 - 1997-06 | 47 | 64 | 1905 | Hatchback |
| CITROËN ZX (N2) Construction Year from 199406 Fitting Position Rear Axle | 1993-07 - 1997-06 | 50 | 68 | 1905 | Hatchback |
| CITROËN ZX (N2) Construction Year to 199706 Fitting Position Rear Axle | 1994-07 - 1997-10 | 65 | 88 | 1905 | Hatchback |
| CITROËN ZX (N2) Fitting Position Rear Axle | 1992-07 - 1997-06 | 66 | 90 | 1905 | Hatchback |
| CITROËN ZX (N2) Construction Year from 199207 Fitting Position Rear Axle | 1992-06 - 1994-06 | 68 | 92 | 1905 | Hatchback |
| CITROËN ZX Break (N2) Fitting Position Rear Axle | 1993-10 - 1997-10 | 65 | 88 | 1580 | Estate |
| CITROËN ZX Break (N2) Fitting Position Rear Axle | 1993-10 - 1997-10 | 74 | 101 | 1761 | Estate |
| CITROËN ZX Break (N2) Fitting Position Rear Axle | 1996-01 - 1998-02 | 81 | 110 | 1761 | Estate |
| CITROËN ZX Break (N2) Fitting Position Rear Axle | 1993-10 - 1997-10 | 44 | 60 | 1769 | Estate |
| CITROËN ZX Break (N2) Fitting Position Rear Axle | 1993-10 - 1997-10 | 47 | 64 | 1905 | Estate |
| CITROËN ZX Break (N2) Fitting Position Rear Axle | 1994-06 - 1997-10 | 50 | 68 | 1905 | Estate |
| CITROËN ZX Break (N2) Fitting Position Rear Axle | 1993-10 - 1997-10 | 66 | 90 | 1905 | Estate |
| CITROËN XSARA Hatchback Van (N3_) Fitting Position Rear Axle | 2000-09 - 2005-03 | 66 | 90 | 1997 | Hatchback Van |
| CITROËN XSARA Estate Van Fitting Position Rear Axle | 2000-09 - 2005-03 | 66 | 90 | 1997 | Estate Van |
| PEUGEOT 106 II (1A_, 1C_) Fitting Position Rear Axle | 1996-05 - 2001-01 | 74 | 101 | 1587 | Hatchback |
| PEUGEOT 106 II (1A_, 1C_) Construction Year to 200403 Fitting Position Rear Axle | 1996-05 - 2004-07 | 87 | 118 | 1587 | Hatchback |
| PEUGEOT 206 Hatchback (2A/C) Fitting Position Rear Axle | 2003-10 - 2008-02 | 65 | 88 | 1360 | Hatchback |
| PEUGEOT 206 Hatchback (2A/C) Fitting Position Rear Axle | 2001-06 - 2009-04 | 79 | 107 | 1587 | Hatchback |
| PEUGEOT 206 Hatchback (2A/C) Construction Year to 200902 Fitting Position Rear Axle | 2000-07 - 2009-04 | 80 | 109 | 1587 | Hatchback |
| PEUGEOT 206 Hatchback (2A/C) Construction Year to 200902 Fitting Position Rear Axle | 2000-07 - 2009-04 | 80 | 109 | 1587 | Hatchback |
| PEUGEOT 206 Hatchback (2A/C) Fitting Position Rear Axle | 1999-04 - 2000-10 | 99 | 135 | 1997 | Hatchback |
| PEUGEOT 206 Hatchback (2A/C) Construction Year from 200010 Fitting Position Rear Axle | 1999-06 - 2007-12 | 100 | 136 | 1997 | Hatchback |
| PEUGEOT 206 Hatchback (2A/C) Fitting Position Rear Axle | 2003-07 - 2007-12 | 130 | 177 | 1997 | Hatchback |
| PEUGEOT 206 Hatchback (2A/C) Fitting Position Rear Axle | 2004-05 - 2007-02 | 80 | 109 | 1560 | Hatchback |
| PEUGEOT 206 CC (2D) Construction Year to 200701 Fitting Position Rear Axle | 2000-09 - 2007-12 | 80 | 109 | 1587 | Convertible |
| PEUGEOT 206 CC (2D) Construction Year to 200701 Fitting Position Rear Axle | 2000-09 - 2007-12 | 100 | 136 | 1997 | Convertible |
| PEUGEOT 206 CC (2D) Construction Year to 200701 Fitting Position Rear Axle | 2005-04 - 2007-02 | 80 | 109 | 1560 | Convertible |
| PEUGEOT 206 SW (2E/K) Construction Year to 200705 Fitting Position Rear Axle | 2003-10 - | 65 | 88 | 1360 | Estate |
| PEUGEOT 206 SW (2E/K) Construction Year to 200705 Fitting Position Rear Axle | 2002-07 - | 80 | 109 | 1587 | Estate |
| PEUGEOT 206 SW (2E/K) Fitting Position Rear Axle | 2002-07 - 2007-02 | 80 | 109 | 1587 | Estate |
| PEUGEOT 206 SW (2E/K) Fitting Position Rear Axle | 2002-07 - 2007-02 | 100 | 136 | 1997 | Estate |
| PEUGEOT 206 SW (2E/K) Construction Year to 200705 Fitting Position Rear Axle | 2004-05 - | 80 | 109 | 1560 | Estate |
| PEUGEOT 206 Saloon Construction Year to 200902 Fitting Position Rear Axle | 2007-03 - | 80 | 109 | 1587 | Saloon |
| PEUGEOT 306 Hatchback (7A, 7C, N3, N5) Fitting Position Rear Axle | 1997-03 - 2001-05 | 81 | 110 | 1761 | Hatchback |
| PEUGEOT 306 Hatchback (7A, 7C, N3, N5) Construction Year from 199403 Fitting Position Rear Axle | 1993-05 - 2001-05 | 89 | 121 | 1998 | Hatchback |
| PEUGEOT 306 Hatchback (7A, 7C, N3, N5) Fitting Position Rear Axle | 1997-03 - 2001-05 | 97 | 132 | 1998 | Hatchback |
| PEUGEOT 306 Hatchback (7A, 7C, N3, N5) Fitting Position Rear Axle | 1994-06 - 2001-05 | 110 | 150 | 1998 | Hatchback |
| PEUGEOT 306 Hatchback (7A, 7C, N3, N5) Construction Year from 199407 Fitting Position Rear Axle | 1993-05 - 2001-05 | 112 | 152 | 1998 | Hatchback |
| PEUGEOT 306 Hatchback (7A, 7C, N3, N5) Fitting Position Rear Axle | 1996-06 - 2001-05 | 120 | 163 | 1998 | Hatchback |
| PEUGEOT 306 Hatchback (7A, 7C, N3, N5) Fitting Position Rear Axle | 1999-06 - 2002-12 | 66 | 90 | 1997 | Hatchback |
| PEUGEOT 306 (7B, N3, N5) Fitting Position Rear Axle | 1997-03 - 2001-05 | 81 | 110 | 1761 | Saloon |
| PEUGEOT 306 (7B, N3, N5) Fitting Position Rear Axle | 1994-07 - 2001-05 | 89 | 121 | 1998 | Saloon |
| PEUGEOT 306 (7B, N3, N5) Fitting Position Rear Axle | 1997-03 - 2001-05 | 97 | 132 | 1998 | Saloon |
| PEUGEOT 306 (7B, N3, N5) Fitting Position Rear Axle | 1994-06 - 2001-05 | 110 | 150 | 1998 | Saloon |
| PEUGEOT 306 (7B, N3, N5) Construction Year from 199407 Fitting Position Rear Axle | 1994-06 - 2001-05 | 112 | 152 | 1998 | Saloon |
| PEUGEOT 306 (7B, N3, N5) Fitting Position Rear Axle | 1999-06 - 2001-12 | 66 | 90 | 1997 | Saloon |
| PEUGEOT 306 Convertible (7D, N3, N5) Fitting Position Rear Axle | 1997-05 - 2002-04 | 81 | 110 | 1761 | Convertible |
| PEUGEOT 306 Convertible (7D, N3, N5) Construction Year to 199704 Fitting Position Rear Axle | 1994-03 - 2002-04 | 89 | 121 | 1998 | Convertible |
| PEUGEOT 306 Convertible (7D, N3, N5) Construction Year to 200010 Fitting Position Rear Axle | 1997-03 - 2002-04 | 97 | 132 | 1998 | Convertible |
| PEUGEOT 306 Break (7E, N3, N5) Construction Year to 200203 Fitting Position Rear Axle | 1997-03 - 2002-04 | 81 | 110 | 1761 | Estate |
| PEUGEOT 306 Break (7E, N3, N5) Construction Year to 200203 Fitting Position Rear Axle | 1997-03 - 2002-04 | 97 | 132 | 1998 | Estate |
| PEUGEOT 306 Break (7E, N3, N5) Construction Year to 200203 Fitting Position Rear Axle | 1999-06 - 2002-04 | 66 | 90 | 1997 | Estate |

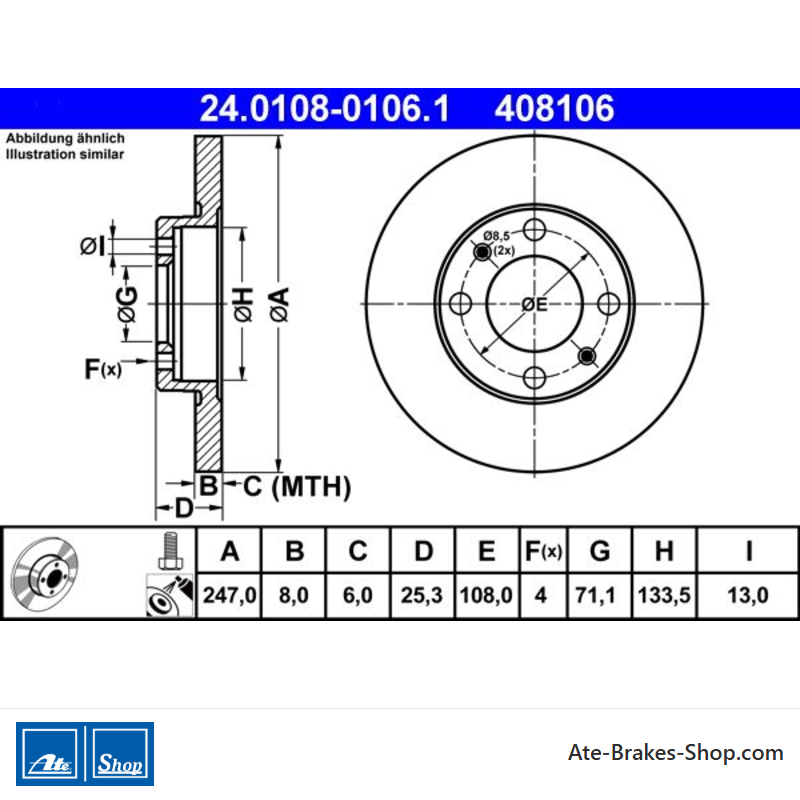

24.0108-0106.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Citroën
Peugeot - Handelsnummer
- 408106
- Herkunftsland
- QU
- Zusätzliche Informationen
- mit Schrauben/Schrauben
- Höhe
- 25,3
- Außendurchmesser [mm]
- 247,0
- Bremsscheibendicke [mm]
- 8,0
- Bremsscheibentyp
- Solide
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 108,0
- Zentrierungsdurchmesser [mm]
- 71,1
- Innendurchmesser [mm]
- 133,5
- Bohrdurchmesser [mm]
- 13,0
- Mindestdicke [mm]
- 6,0
Spezifische Referenzen
- ean13
- 4006633147286
- Hersteller-Teilenummer (MPN)
- 2401080106101
ATE 24.0108-0106.1
(240108-01061)
- Außendurchmesser [mm]: 247,0
- Innendurchmesser [mm]: 133,5
- Bremsscheibendicke [mm]: 8,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 408106
