ATE Originale zweiteilige Bremsscheibe (24010901461) für Chrysler
105,27 €
(inkl. MwSt.)
87,00 € Steuerexzl.
Teilenummer:
ATE 24.0109-0146.1
(240109-01461)
- Außendurchmesser [mm]: 270,0
- Innendurchmesser [mm]: 172,0
- Bremsscheibendicke [mm]: 9,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 409146
Logistische Informationen:
- Ean-Code: 4006633209670
- Gewicht: 8.18kg
Specification of ATE 24.0109-0146.1 / 240109-01461 / 24010901461:
| OE Number | Reference info |
| CHRYSLER 4509 553 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4509553 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4509 553AB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4509553AB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4509 553AC | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4509553AC | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 0 4509 553 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 04509553 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 0 4509 553AB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 04509553AB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 0 4509 553AC | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 04509553AC | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CHRYSLER NEON (PL) Rim Hole Number 5 -Hole Fitting Position Rear Axle | 1997-09 - 1999-08 | 85 | 116 | 1796 | Saloon |
| CHRYSLER NEON (PL) Construction Year from 199501 Rim Hole Number 5 -Hole Fitting Position Rear Axle | 1994-05 - 1999-08 | 98 | 133 | 1996 | Saloon |
| CHRYSLER NEON (PL) Rim Hole Number 5 -Hole Fitting Position Rear Axle | 1994-06 - 1999-08 | 107 | 145 | 1996 | Saloon |
| CHRYSLER NEON (PL) Rim Hole Number 5 -Hole Fitting Position Rear Axle | 1996-04 - 1999-08 | 109 | 148 | 1996 | Saloon |
| CHRYSLER NEON II Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2001-11 - 2006-12 | 85 | 116 | 1598 | Saloon |
| CHRYSLER NEON II Fitting Position Rear Axle | 2000-01 - 2001-12 | 91 | 124 | 1796 | Saloon |
| CHRYSLER NEON II Fitting Position Rear Axle | 2002-10 - 2006-12 | 97 | 131 | 1996 | Saloon |
| CHRYSLER NEON II Fitting Position Rear Axle | 1999-08 - 2006-12 | 98 | 133 | 1996 | Saloon |
| CHRYSLER NEON II Fitting Position Rear Axle | 2001-10 - 2006-12 | 110 | 150 | 1996 | Saloon |
| CHRYSLER NEON II Fitting Position Rear Axle | 2001-10 - 2004-12 | 112 | 152 | 1996 | Saloon |
| CHRYSLER PT CRUISER (PT_) Construction Year to 201009 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2001-11 - 2010-12 | 85 | 116 | 1598 | Estate |
| CHRYSLER PT CRUISER (PT_) Fitting Position Rear Axle | 2000-06 - 2004-09 | 104 | 141 | 1996 | Estate |
| CHRYSLER PT CRUISER (PT_) Construction Year to 201009 Fitting Position Rear Axle | 2004-10 - 2010-12 | 100 | 136 | 1996 | Estate |
| CHRYSLER PT CRUISER (PT_) Construction Year to 201009 Fitting Position Rear Axle | 2000-06 - 2010-12 | 110 | 150 | 2429 | Estate |
| CHRYSLER PT CRUISER (PT_) Construction Year to 201009 Fitting Position Rear Axle | 2003-08 - 2010-12 | 164 | 223 | 2429 | Estate |
| CHRYSLER PT CRUISER (PT_) Construction Year to 201009 Fitting Position Rear Axle | 2004-09 - 2010-12 | 169 | 230 | 2429 | Estate |
| CHRYSLER PT CRUISER (PT_) Construction Year to 201009 Fitting Position Rear Axle | 2005-08 - 2010-12 | 105 | 143 | 2429 | Estate |
| CHRYSLER PT CRUISER (PT_) Construction Year to 201009 Fitting Position Rear Axle | 2002-03 - 2010-12 | 89 | 121 | 2148 | Estate |
| CHRYSLER PT CRUISER (PT_) Construction Year to 201009 Fitting Position Rear Axle | 2005-08 - 2010-12 | 110 | 150 | 2148 | Estate |
| CHRYSLER PT CRUISER Convertible Fitting Position Rear Axle | 2004-03 - 2008-03 | 105 | 143 | 2429 | Convertible |
| CHRYSLER PT CRUISER Convertible Fitting Position Rear Axle | 2004-03 - 2008-03 | 164 | 223 | 2429 | Convertible |

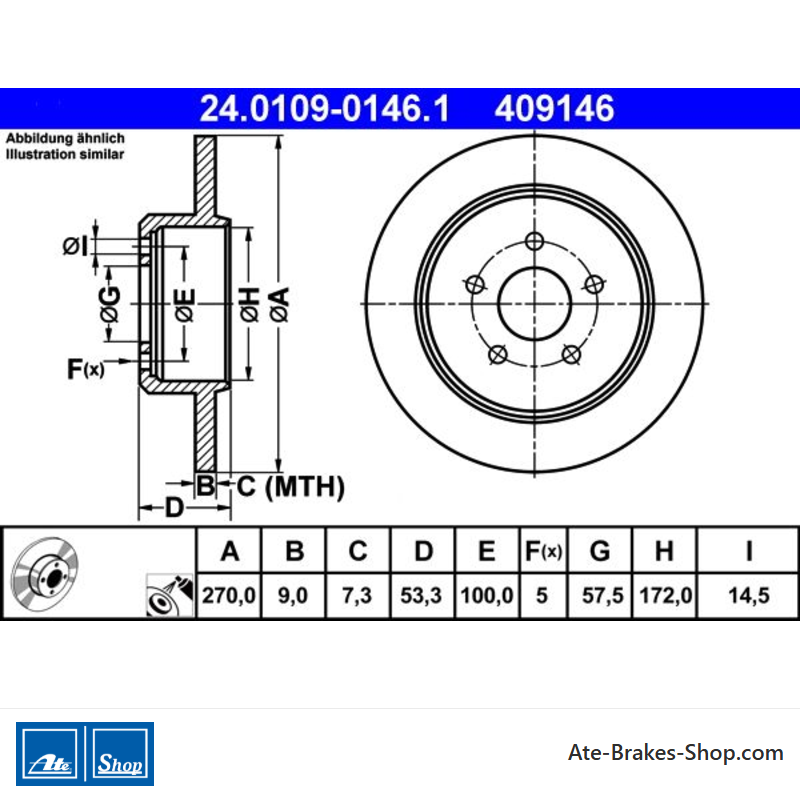

24.0109-0146.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Chrysler
- Handelsnummer
- 409146
- Herkunftsland
- Tschechien
- Höhe
- 53,3
- Außendurchmesser [mm]
- 270,0
- Bremsscheibendicke [mm]
- 9,0
- Bremsscheibentyp
- Solide
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 100,0
- Zentrierungsdurchmesser [mm]
- 57,5
- Innendurchmesser [mm]
- 172,0
- Bohrdurchmesser [mm]
- 14,5
- Mindestdicke [mm]
- 7,3
Spezifische Referenzen
- ean13
- 4006633209670
- Hersteller-Teilenummer (MPN)
- 2401090146102
ATE 24.0109-0146.1
(240109-01461)
- Außendurchmesser [mm]: 270,0
- Innendurchmesser [mm]: 172,0
- Bremsscheibendicke [mm]: 9,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 409146
