ATE Originale Bremsscheibe (24010901502) für Citroën, Peugeot
206,91 €
(inkl. MwSt.)
171,00 € Steuerexzl.
Teilenummer:
ATE 24.0109-0150.2
(240109-01502)
- Außendurchmesser [mm]: 249,0
- Innendurchmesser [mm]: 60,0
- Bremsscheibendicke [mm]: 9,0
- Anzahl der Bolzenlöcher: 4
- Handelsnummer: 409150
Logistische Informationen:
- Ean-Code: 4006633322867
- Gewicht: 5.69kg
Specification of ATE 24.0109-0150.2 / 240109-01502 / 24010901502:
| OE Number | Reference info |
| CITROËN 4246 Z9 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4246Z9 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4249 34 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 424934 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4246 Z9 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4246Z9 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CITROËN C4 I (LC_) Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2004-11 - 2011-07 | 65 | 88 | 1360 | Hatchback |
| CITROËN C4 I (LC_) Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2004-11 - 2011-07 | 80 | 109 | 1587 | Hatchback |
| CITROËN C4 I (LC_) Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2007-09 - 2008-07 | 80 | 109 | 1587 | Hatchback |
| CITROËN C4 I (LC_) Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2008-07 - 2011-07 | 88 | 120 | 1598 | Hatchback |
| CITROËN C4 I (LC_) Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2008-07 - 2011-07 | 103 | 140 | 1598 | Hatchback |
| CITROËN C4 I (LC_) Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2008-07 - 2011-07 | 110 | 150 | 1598 | Hatchback |
| CITROËN C4 I (LC_) Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2004-11 - 2007-07 | 100 | 136 | 1997 | Hatchback |
| CITROËN C4 I (LC_) Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2004-11 - 2011-07 | 103 | 140 | 1997 | Hatchback |
| CITROËN C4 I (LC_) Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2004-11 - 2008-07 | 130 | 177 | 1997 | Hatchback |
| CITROËN C4 I (LC_) Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2004-11 - 2011-07 | 66 | 90 | 1560 | Hatchback |
| CITROËN C4 I (LC_) Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2004-11 - 2011-07 | 80 | 109 | 1560 | Hatchback |
| CITROËN C4 I (LC_) Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2004-11 - 2011-07 | 100 | 136 | 1997 | Hatchback |
| CITROËN C4 I (LC_) Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2008-07 - 2011-07 | 103 | 140 | 1997 | Hatchback |
| CITROËN C4 Coupe (LA_) Construction Year to 201007 Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2004-11 - 2011-07 | 65 | 88 | 1360 | Coupe |
| CITROËN C4 Coupe (LA_) Construction Year to 201007 Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2004-11 - 2011-07 | 80 | 109 | 1587 | Coupe |
| CITROËN C4 Coupe (LA_) Construction Year to 201007 Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2008-07 - 2011-07 | 88 | 120 | 1598 | Coupe |
| CITROËN C4 Coupe (LA_) Construction Year to 201007 Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2008-07 - 2011-07 | 110 | 150 | 1598 | Coupe |
| CITROËN C4 Coupe (LA_) Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2004-11 - 2007-07 | 100 | 136 | 1997 | Coupe |
| CITROËN C4 Coupe (LA_) Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2006-10 - 2007-12 | 103 | 140 | 1997 | Coupe |
| CITROËN C4 Coupe (LA_) Construction Year to 201007 Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2004-11 - 2010-12 | 130 | 177 | 1997 | Coupe |
| CITROËN C4 Coupe (LA_) Construction Year to 201007 Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2004-11 - 2011-07 | 66 | 90 | 1560 | Coupe |
| CITROËN C4 Coupe (LA_) Construction Year to 201007 Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2004-11 - 2011-07 | 80 | 109 | 1560 | Coupe |
| CITROËN C4 Coupe (LA_) Construction Year to 201007 Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2004-11 - 2010-12 | 100 | 136 | 1997 | Coupe |
| CITROËN C4 Coupe (LA_) Construction Year to 201007 Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2008-07 - 2011-07 | 103 | 140 | 1997 | Coupe |
| CITROËN C4 I Saloon Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2006-07 - 2011-07 | 80 | 109 | 1587 | Saloon |
| CITROËN C4 I Saloon Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2006-07 - 2011-07 | 103 | 140 | 1997 | Saloon |
| CITROËN C4 I Saloon Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2006-07 - 2011-07 | 80 | 109 | 1560 | Saloon |
| CITROËN C4 I Hatchback Van (LR_) Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2005-02 - 2010-12 | 100 | 136 | 1997 | Hatchback Van |
| PEUGEOT 307 (3A/C) for RPO number up to 10897 Fitting Position Rear Axle | 2000-08 - 2003-09 | 55 | 75 | 1360 | Hatchback |
| PEUGEOT 307 (3A/C) for RPO number up to 10897 Fitting Position Rear Axle | 2003-11 - 2007-07 | 65 | 88 | 1360 | Hatchback |
| PEUGEOT 307 (3A/C) for RPO number up to 10897 Fitting Position Rear Axle | 2000-08 - 2007-11 | 80 | 109 | 1587 | Hatchback |
| PEUGEOT 307 (3A/C) for RPO number up to 10897 Fitting Position Rear Axle | 2000-08 - 2005-06 | 100 | 136 | 1997 | Hatchback |
| PEUGEOT 307 (3A/C) for RPO number up to 10897 Fitting Position Rear Axle | 2005-03 - 2007-11 | 103 | 140 | 1997 | Hatchback |
| PEUGEOT 307 (3A/C) for RPO number up to 10897 Fitting Position Rear Axle | 2001-10 - 2005-06 | 50 | 68 | 1398 | Hatchback |
| PEUGEOT 307 (3A/C) for RPO number up to 10897 Fitting Position Rear Axle | 2005-04 - 2009-03 | 66 | 90 | 1560 | Hatchback |
| PEUGEOT 307 (3A/C) for RPO number up to 10897 Fitting Position Rear Axle | 2004-02 - 2009-03 | 80 | 109 | 1560 | Hatchback |
| PEUGEOT 307 (3A/C) for RPO number up to 10897 Fitting Position Rear Axle | 2000-08 - 2007-03 | 66 | 90 | 1997 | Hatchback |
| PEUGEOT 307 (3A/C) for RPO number up to 10897 Fitting Position Rear Axle | 2000-08 - 2007-03 | 79 | 107 | 1997 | Hatchback |
| PEUGEOT 307 (3A/C) for RPO number up to 10897 Fitting Position Rear Axle | 2003-10 - 2007-11 | 100 | 136 | 1997 | Hatchback |
| PEUGEOT 307 Break (3E) for RPO number up to 10897 Fitting Position Rear Axle | 2002-04 - 2003-09 | 55 | 75 | 1360 | Estate |
| PEUGEOT 307 Break (3E) for RPO number up to 10897 Fitting Position Rear Axle | 2003-11 - 2007-07 | 65 | 88 | 1360 | Estate |
| PEUGEOT 307 Break (3E) for RPO number up to 10897 Fitting Position Rear Axle | 2002-03 - 2008-04 | 80 | 109 | 1587 | Estate |
| PEUGEOT 307 Break (3E) for RPO number up to 10897 Fitting Position Rear Axle | 2002-03 - 2005-06 | 100 | 136 | 1997 | Estate |
| PEUGEOT 307 Break (3E) for RPO number up to 10897 Fitting Position Rear Axle | 2005-03 - 2008-04 | 103 | 140 | 1997 | Estate |
| PEUGEOT 307 Break (3E) for RPO number up to 10897 Fitting Position Rear Axle | 2002-03 - 2005-06 | 50 | 68 | 1398 | Estate |
| PEUGEOT 307 Break (3E) for RPO number up to 10897 Fitting Position Rear Axle | 2005-04 - 2008-04 | 66 | 90 | 1560 | Estate |
| PEUGEOT 307 Break (3E) for RPO number up to 10897 Fitting Position Rear Axle | 2004-02 - 2008-04 | 80 | 109 | 1560 | Estate |
| PEUGEOT 307 Break (3E) for RPO number up to 10897 Fitting Position Rear Axle | 2002-03 - 2008-04 | 66 | 90 | 1997 | Estate |
| PEUGEOT 307 Break (3E) for RPO number up to 10897 Fitting Position Rear Axle | 2002-03 - 2009-12 | 79 | 107 | 1997 | Estate |
| PEUGEOT 307 Break (3E) for RPO number up to 10897 Fitting Position Rear Axle | 2004-02 - 2008-04 | 100 | 136 | 1997 | Estate |
| PEUGEOT 307 SW (3H) for RPO number up to 10897 Fitting Position Rear Axle | 2002-04 - 2003-09 | 55 | 75 | 1360 | Estate |
| PEUGEOT 307 SW (3H) for RPO number up to 10897 Fitting Position Rear Axle | 2003-11 - 2007-07 | 65 | 88 | 1360 | Estate |
| PEUGEOT 307 SW (3H) for RPO number up to 10897 Fitting Position Rear Axle | 2002-03 - 2008-04 | 80 | 109 | 1587 | Estate |
| PEUGEOT 307 SW (3H) for RPO number up to 10897 Fitting Position Rear Axle | 2002-03 - 2005-06 | 100 | 136 | 1997 | Estate |
| PEUGEOT 307 SW (3H) for RPO number up to 10897 Fitting Position Rear Axle | 2005-03 - 2008-04 | 103 | 140 | 1997 | Estate |
| PEUGEOT 307 SW (3H) for RPO number up to 10897 Fitting Position Rear Axle | 2005-04 - 2008-04 | 66 | 90 | 1560 | Estate |
| PEUGEOT 307 SW (3H) for RPO number up to 10897 Fitting Position Rear Axle | 2003-11 - 2007-12 | 80 | 109 | 1560 | Estate |
| PEUGEOT 307 SW (3H) for RPO number up to 10897 Fitting Position Rear Axle | 2002-03 - 2008-04 | 66 | 90 | 1997 | Estate |
| PEUGEOT 307 SW (3H) for RPO number up to 10897 Fitting Position Rear Axle | 2002-03 - 2009-12 | 79 | 107 | 1997 | Estate |
| PEUGEOT 307 SW (3H) for RPO number up to 10897 Fitting Position Rear Axle | 2004-02 - 2008-04 | 100 | 136 | 1997 | Estate |
| PEUGEOT 307 CC (3B) Construction Year from 200503 for RPO number up to 10897 Fitting Position Rear Axle | 2003-03 - 2009-04 | 80 | 110 | 1587 | Convertible |
| PEUGEOT 307 CC (3B) for RPO number up to 10897 Fitting Position Rear Axle | 2003-10 - 2005-06 | 100 | 136 | 1997 | Convertible |
| PEUGEOT 307 CC (3B) for RPO number up to 10897 Fitting Position Rear Axle | 2004-12 - 2009-04 | 103 | 140 | 1997 | Convertible |
| PEUGEOT 307 CC (3B) for RPO number up to 10897 Fitting Position Rear Axle | 2005-06 - 2009-04 | 100 | 136 | 1997 | Convertible |
| PEUGEOT 307 SW Estate Van (3E_, 3H_) for RPO number up to 10897 Fitting Position Rear Axle | 2006-04 - 2008-10 | 66 | 90 | 1560 | Estate Van |
| PEUGEOT 307 SW Estate Van (3E_, 3H_) for RPO number up to 10897 Fitting Position Rear Axle | 2003-04 - 2008-04 | 66 | 90 | 1997 | Estate Van |
| PEUGEOT 307 SW Estate Van (3E_, 3H_) for RPO number up to 10897 Fitting Position Rear Axle | 2004-04 - 2007-11 | 100 | 136 | 1997 | Estate Van |
24.0109-0150.2
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Citroën
Peugeot - Handelsnummer
- 409150
- Herkunftsland
- QU
- Zusätzliche Informationen
- mit ABS-Sensorring
mit Radlager - Höhe
- 67,1

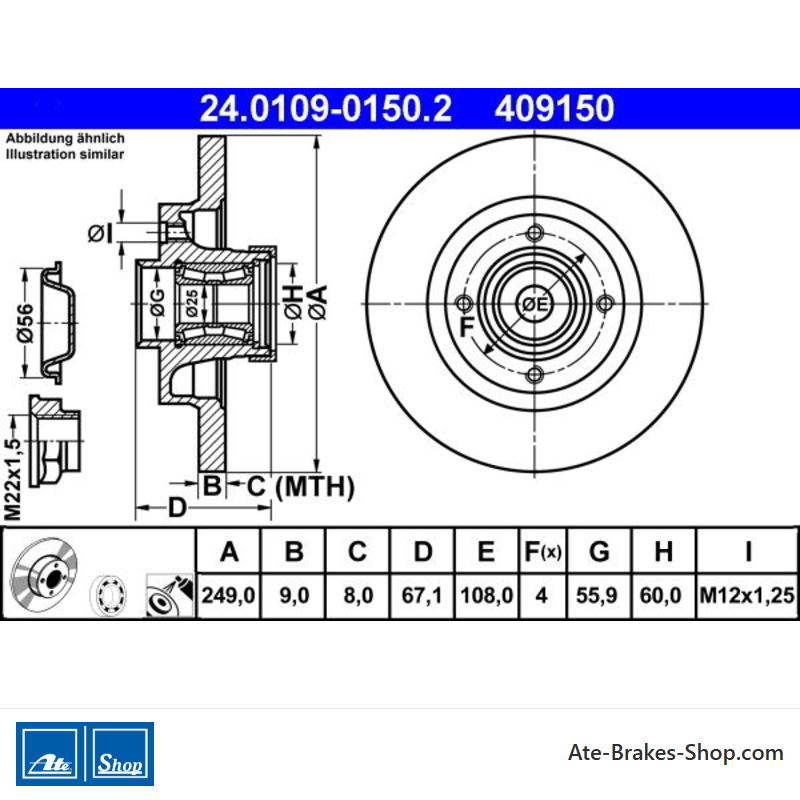

- Außendurchmesser [mm]
- 249,0
- Bremsscheibendicke [mm]
- 9,0
- Bremsscheibentyp
- Solide
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 108,0
- Trägerplattendurchmesser [mm]
- 25
- Zentrierungsdurchmesser [mm]
- 55,9
- Innendurchmesser [mm]
- 60,0
- Gewindegröße
- M12x1,25
- Mindestdicke [mm]
- 7,0
Spezifische Referenzen
- ean13
- 4006633322867
- Hersteller-Teilenummer (MPN)
- 2401090150202
ATE 24.0109-0150.2
(240109-01502)
- Außendurchmesser [mm]: 249,0
- Innendurchmesser [mm]: 60,0
- Bremsscheibendicke [mm]: 9,0
- Anzahl der Bolzenlöcher: 4
- Handelsnummer: 409150
