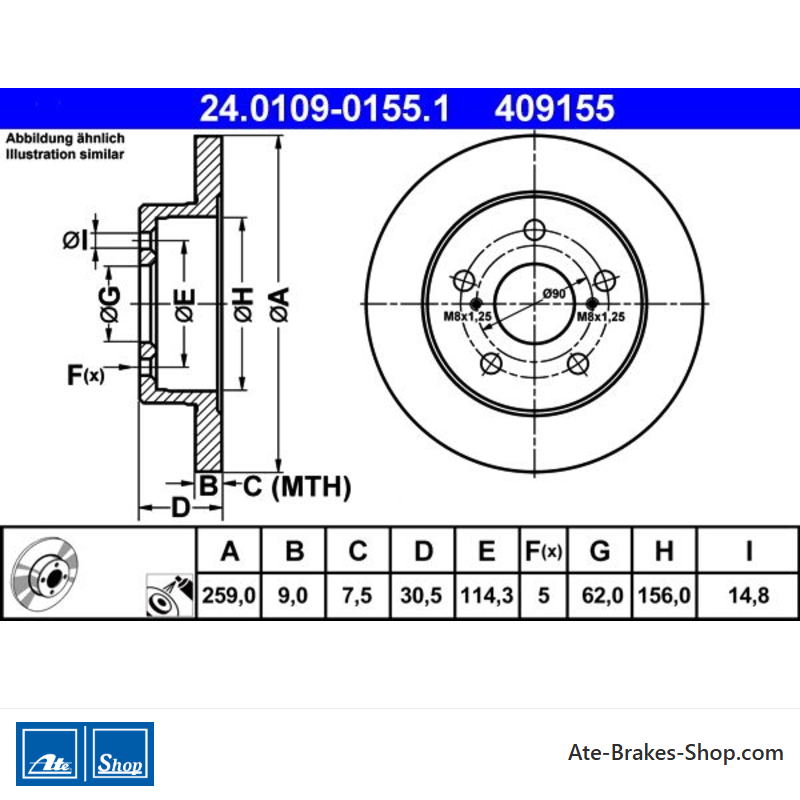

ATE Originale zweiteilige Bremsscheibe (24010901551) für Toyota
90,75 €
(inkl. MwSt.)
75,00 € Steuerexzl.
Teilenummer:
ATE 24.0109-0155.1
(240109-01551)
- Außendurchmesser [mm]: 259,0
- Innendurchmesser [mm]: 156,0
- Bremsscheibendicke [mm]: 9,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 409155
Logistische Informationen:
- Ean-Code: 4006633314541
- Gewicht: 6.49kg
Specification of ATE 24.0109-0155.1 / 240109-01551 / 24010901551:
| OE Number | Reference info |
| TOYOTA 42431-12260 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 42431-02190 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA AURIS (_E15_) Vehicle Production Country Japan Fitting Position Rear Axle | 2010-01 - 2012-09 | 73 | 99 | 1329 | Hatchback |
| TOYOTA AURIS (_E15_) Vehicle Production Country Japan Fitting Position Rear Axle | 2009-05 - 2012-09 | 74 | 101 | 1329 | Hatchback |
| TOYOTA AURIS (_E15_) Vehicle Production Country Japan Fitting Position Rear Axle | 2007-03 - 2012-09 | 71 | 97 | 1398 | Hatchback |
| TOYOTA AURIS (_E15_) Vehicle Production Country Japan Fitting Position Rear Axle | 2007-03 - 2012-09 | 91 | 124 | 1598 | Hatchback |
| TOYOTA AURIS (_E15_) Vehicle Production Country Japan Fitting Position Rear Axle | 2009-05 - 2012-09 | 97 | 132 | 1598 | Hatchback |
| TOYOTA AURIS (_E15_) Fitting Position Rear Axle | 2010-09 - 2012-09 | 100 | 136 | 1798 | Hatchback |
| TOYOTA AURIS (_E15_) Vehicle Production Country Japan Fitting Position Rear Axle | 2009-02 - 2012-09 | 108 | 147 | 1798 | Hatchback |
| TOYOTA COROLLA Saloon (_E15_) Construction Year to 201305 Fitting Position Rear Axle | 2008-12 - 2014-07 | 74 | 101 | 1329 | Saloon |
| TOYOTA COROLLA Saloon (_E15_) Construction Year to 200812 Fitting Position Rear Axle | 2006-11 - 2013-11 | 71 | 97 | 1398 | Saloon |
| TOYOTA COROLLA Saloon (_E15_) Fitting Position Rear Axle | 2010-07 - 2014-05 | 90 | 122 | 1598 | Saloon |
| TOYOTA COROLLA Saloon (_E15_) Construction Year to 200812 Fitting Position Rear Axle | 2007-01 - 2014-07 | 91 | 124 | 1598 | Saloon |
| TOYOTA COROLLA Saloon (_E15_) Construction Year to 201305 Fitting Position Rear Axle | 2006-11 - 2013-11 | 97 | 132 | 1598 | Saloon |
| TOYOTA COROLLA Saloon (_E15_) Construction Year to 200812 Fitting Position Rear Axle | 2006-10 - 2014-07 | 100 | 136 | 1798 | Saloon |
| TOYOTA COROLLA Saloon (_E18_, ZRE1_) Braking/Driving Dynamics for vehicles with brake assist Fitting Position Rear Axle | 2013-06 - 2018-12 | 97 | 132 | 1598 | Saloon |
| TOYOTA COROLLA Saloon (_E18_, ZRE1_) Braking/Driving Dynamics for vehicles with brake assist Fitting Position Rear Axle | 2013-06 - 2018-12 | 90 | 122 | 1598 | Saloon |
24.0109-0155.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Toyota
- Handelsnummer
- 409155
- Herkunftsland
- Tschechien
- Höhe
- 30,5
- Außendurchmesser [mm]
- 259,0
- Bremsscheibendicke [mm]
- 9,0
- Bremsscheibentyp
- Solide
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 114,3
- Zentrierungsdurchmesser [mm]
- 62,0
- Innendurchmesser [mm]
- 156,0
- Bohrdurchmesser [mm]
- 14,8
- Mindestdicke [mm]
- 7,5
Spezifische Referenzen
- ean13
- 4006633314541
- Hersteller-Teilenummer (MPN)
- 2401090155102
ATE 24.0109-0155.1
(240109-01551)
- Außendurchmesser [mm]: 259,0
- Innendurchmesser [mm]: 156,0
- Bremsscheibendicke [mm]: 9,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 409155
