ATE Original-2-teilige Bremsscheibe (24010901631) für Lexus, Subaru, Toyota
90,75 €
(inkl. MwSt.)
75,00 € Steuerexzl.
Teilenummer:
ATE 24.0109-0163.1
(240109-01631)
- Außendurchmesser [mm]: 259,0
- Innendurchmesser [mm]: 156,2
- Bremsscheibendicke [mm]: 9,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 409163
Logistische Informationen:
- Ean-Code: 4006633337342
- Gewicht: 6.49kg

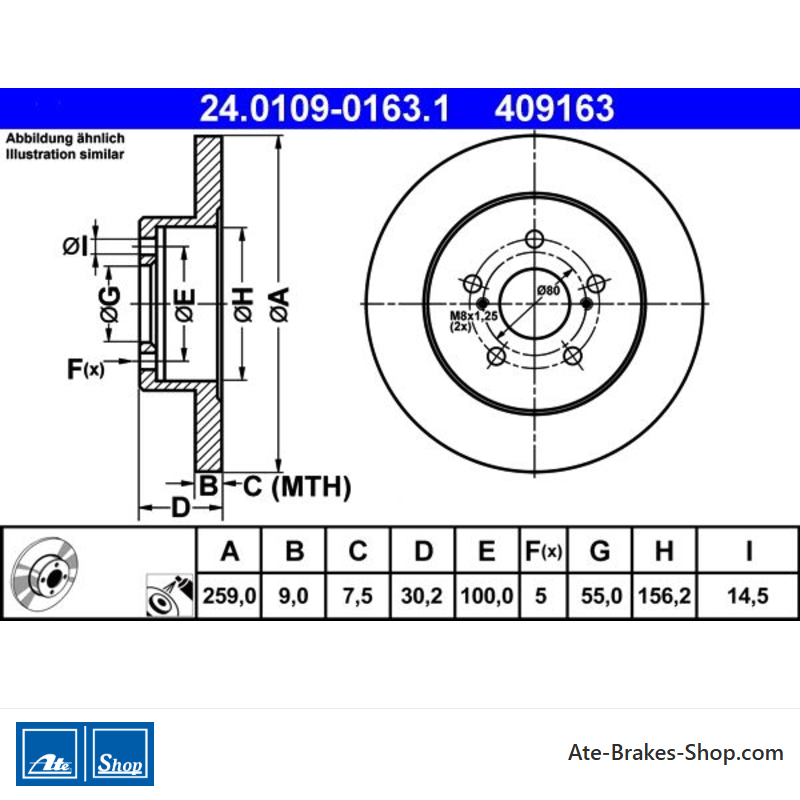

Specification of ATE 24.0109-0163.1 / 240109-01631 / 24010901631:
| OE Number | Reference info |
| SUBARU 4243112310 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 42431-12310 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| LEXUS CT (ZWA10_) Fitting Position Rear Axle | 2011-09 - | 100 | 136 | 1798 | Hatchback |
| SUBARU TREZIA Fitting Position Rear Axle | 2011-03 - | 73 | 99 | 1329 | Hatchback |
| SUBARU TREZIA Fitting Position Rear Axle | 2011-03 - | 66 | 90 | 1364 | Hatchback |
| TOYOTA PRIUS (_W3_) Fitting Position Rear Axle | 2009-04 - 2015-12 | 100 | 136 | 1798 | Hatchback |
| TOYOTA PRIUS (_W3_) Fitting Position Rear Axle | 2008-06 - 2016-06 | 100 | 136 | 1798 | Hatchback |
| TOYOTA PRIUS (_W5_) Fitting Position Rear Axle | 2015-09 - 2022-12 | 90 | 122 | 1798 | Hatchback |
| TOYOTA PRIUS PHV (_W52_) Fitting Position Rear Axle | 2016-01 - 2022-12 | 90 | 122 | 1798 | Hatchback |
| TOYOTA VERSO S (_P12_) Fitting Position Rear Axle | 2010-11 - 2016-10 | 73 | 99 | 1329 | MPV |
| TOYOTA VERSO S (_P12_) Fitting Position Rear Axle | 2010-11 - 2016-10 | 66 | 90 | 1364 | MPV |
24.0109-0163.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Lexus
Subaru
Toyota - Handelsnummer
- 409163
- Herkunftsland
- Italien
- Höhe
- 30,2
- Außendurchmesser [mm]
- 259,0
- Bremsscheibendicke [mm]
- 9,0
- Bremsscheibentyp
- Solide
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 100,0
- Zentrierungsdurchmesser [mm]
- 55,0
- Innendurchmesser [mm]
- 156,2
- Bohrdurchmesser [mm]
- 14,5
- Mindestdicke [mm]
- 7,5
Spezifische Referenzen
- ean13
- 4006633337342
- Hersteller-Teilenummer (MPN)
- 2401090163102
ATE 24.0109-0163.1
(240109-01631)
- Außendurchmesser [mm]: 259,0
- Innendurchmesser [mm]: 156,2
- Bremsscheibendicke [mm]: 9,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 409163
