ATE Original 2 Teile Bremsscheibe (24010901671) für Fiat, Suzuki
83,49 €
(inkl. MwSt.)
69,00 € Steuerexzl.
Teilenummer:
ATE 24.0109-0167.1
(240109-01671)
- Außendurchmesser [mm]: 278,0
- Innendurchmesser [mm]: 169,0
- Bremsscheibendicke [mm]: 9,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 409167
Logistische Informationen:
- Ean-Code: 4006633381383
- Gewicht: 8.34kg

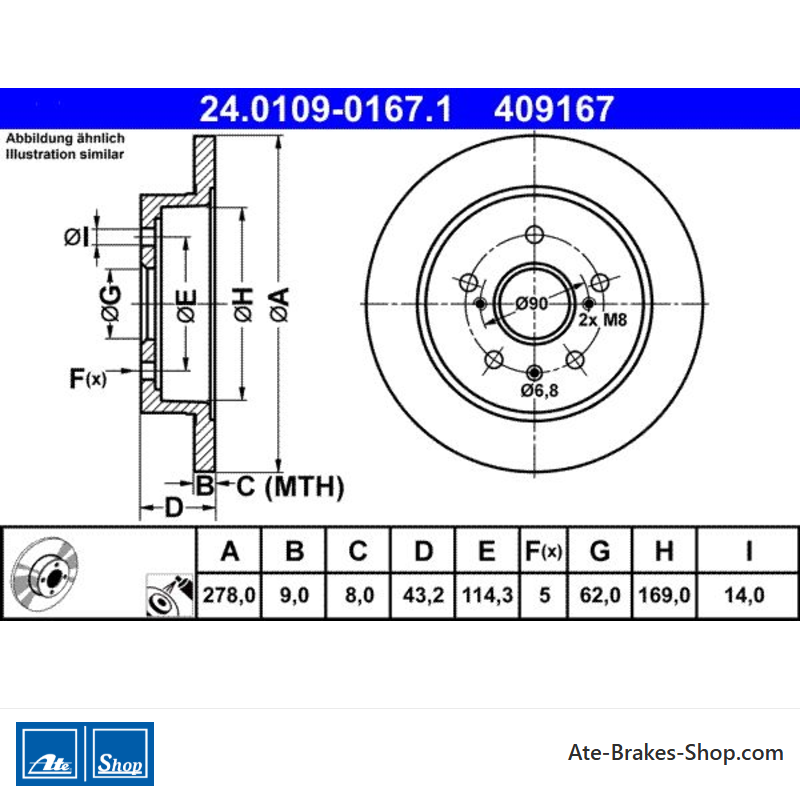

Specification of ATE 24.0109-0167.1 / 240109-01671 / 24010901671:
| OE Number | Reference info |
| FIAT 71750932 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 71768089 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55611-55L00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55611-80J01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55611-80J02 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55611-80J00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FIAT SEDICI (189_) Fitting Position Rear Axle | 2006-06 - 2014-10 | 79 | 107 | 1586 | SUV |
| FIAT SEDICI (189_) Fitting Position Rear Axle | 2006-06 - 2014-10 | 79 | 107 | 1586 | SUV |
| FIAT SEDICI (189_) Fitting Position Rear Axle | 2006-06 - 2014-10 | 88 | 120 | 1586 | SUV |
| FIAT SEDICI (189_) Fitting Position Rear Axle | 2006-06 - 2014-10 | 88 | 120 | 1586 | SUV |
| FIAT SEDICI (189_) Fitting Position Rear Axle | 2006-06 - 2011-10 | 88 | 120 | 1910 | SUV |
| FIAT SEDICI (189_) Fitting Position Rear Axle | 2006-06 - 2011-10 | 88 | 120 | 1910 | SUV |
| FIAT SEDICI (189_) Fitting Position Rear Axle | 2006-06 - 2014-10 | 99 | 135 | 1956 | SUV |
| FIAT SEDICI (189_) Fitting Position Rear Axle | 2006-06 - 2014-10 | 99 | 135 | 1956 | SUV |
| SUZUKI SWIFT III (MZ, EZ) Fitting Position Rear Axle Vehicle Production Country Japan Vehicle Identification Number (VIN) JSA | 2006-05 - 2015-12 | 92 | 125 | 1586 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Rear Axle | 2006-06 - 2010-07 | 73 | 99 | 1490 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Rear Axle | 2007-07 - 2015-12 | 81 | 110 | 1490 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Rear Axle | 2010-07 - | 82 | 112 | 1490 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Rear Axle | 2006-06 - | 79 | 107 | 1586 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Rear Axle | 2006-06 - | 79 | 107 | 1586 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Rear Axle | 2009-07 - | 82 | 112 | 1586 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Rear Axle | 2009-07 - | 88 | 120 | 1586 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Rear Axle | 2009-07 - | 88 | 120 | 1586 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Rear Axle | 2006-06 - | 107 | 146 | 1995 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Rear Axle | 2007-04 - | 66 | 90 | 1560 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Rear Axle | 2006-06 - | 88 | 120 | 1910 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Rear Axle | 2006-06 - | 88 | 120 | 1910 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Rear Axle | 2009-07 - | 99 | 135 | 1956 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Rear Axle | 2009-07 - | 99 | 135 | 1956 | Hatchback |
| SUZUKI SX4 Saloon (GY, RW) Fitting Position Rear Axle | 2007-10 - | 79 | 107 | 1586 | Saloon |
| SUZUKI SX4 Saloon (GY, RW) Fitting Position Rear Axle | 2007-10 - | 88 | 120 | 1586 | Saloon |
24.0109-0167.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Fiat
Suzuki - Handelsnummer
- 409167
- Herkunftsland
- Italien
- Höhe
- 43,2
- Außendurchmesser [mm]
- 278,0
- Bremsscheibendicke [mm]
- 9,0
- Bremsscheibentyp
- Solide
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 114,3
- Zentrierungsdurchmesser [mm]
- 62,0
- Innendurchmesser [mm]
- 169,0
- Bohrdurchmesser [mm]
- 14,0
- Mindestdicke [mm]
- 8,0
Spezifische Referenzen
- ean13
- 4006633381383
- Hersteller-Teilenummer (MPN)
- 2401090167102
ATE 24.0109-0167.1
(240109-01671)
- Außendurchmesser [mm]: 278,0
- Innendurchmesser [mm]: 169,0
- Bremsscheibendicke [mm]: 9,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 409167
