ATE Originale zweiteilige Bremsscheibe (24011002001) für Audi
68,97 €
(inkl. MwSt.)
57,00 € Steuerexzl.
Teilenummer:
ATE 24.0110-0200.1
(240110-02001)
- Außendurchmesser [mm]: 245,0
- Innendurchmesser [mm]: 135,5
- Bremsscheibendicke [mm]: 10,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 410200
Logistische Informationen:
- Ean-Code: 4006633139441
- Gewicht: 8.45kg
Specification of ATE 24.0110-0200.1 / 240110-02001 / 24011002001:
| OE Number | Reference info |
| VAG 443 615 601 E | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 443615601E | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| AUDI 100 C3 Saloon (443, 444) Construction Year from 198801 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1986-02 - 1988-07 | 65 | 88 | 1781 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Construction Year from 198801 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1983-08 - 1989-07 | 66 | 90 | 1781 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Construction Year from 198801 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1985-03 - 1990-11 | 66 | 90 | 1781 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1988-01 - 1990-11 | 85 | 115 | 1994 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Construction Year from 198801 Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1984-08 - 1988-12 | 101 | 137 | 2226 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1984-10 - 1987-12 | 101 | 137 | 2226 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1990-01 - 1990-11 | 98 | 133 | 2309 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Construction Year from 198801 Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1986-10 - 1990-11 | 100 | 136 | 2309 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Construction Year from 198801 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1982-08 - 1988-07 | 51 | 70 | 1986 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1988-03 - 1990-11 | 74 | 100 | 1986 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Construction Year to 199012 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1989-08 - 1991-07 | 60 | 82 | 2370 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1990-01 - 1990-11 | 88 | 120 | 2461 | Saloon |
| AUDI 100 C3 Avant (445, 446) Construction Year from 198801 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1986-02 - 1990-07 | 65 | 88 | 1781 | Estate |
| AUDI 100 C3 Avant (445, 446) Construction Year from 198801 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1983-08 - 1989-07 | 66 | 90 | 1781 | Estate |
| AUDI 100 C3 Avant (445, 446) Construction Year from 198801 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1985-03 - 1990-11 | 66 | 90 | 1781 | Estate |
| AUDI 100 C3 Avant (445, 446) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1988-01 - 1990-11 | 85 | 115 | 1994 | Estate |
| AUDI 100 C3 Avant (445, 446) Construction Year from 198801 Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1984-08 - 1988-12 | 101 | 137 | 2226 | Estate |
| AUDI 100 C3 Avant (445, 446) Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1989-06 - 1990-11 | 101 | 137 | 2226 | Estate |
| AUDI 100 C3 Avant (445, 446) Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1990-03 - 1990-11 | 98 | 133 | 2309 | Estate |
| AUDI 100 C3 Avant (445, 446) Construction Year from 198801 Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1986-08 - 1990-11 | 100 | 136 | 2309 | Estate |
| AUDI 100 C3 Avant (445, 446) Construction Year from 198801 Construction Year to 198907 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1983-03 - 1990-11 | 51 | 70 | 1986 | Estate |
| AUDI 100 C3 Avant (445, 446) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1988-03 - 1990-11 | 74 | 100 | 1986 | Estate |
| AUDI 100 C3 Avant (445, 446) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1989-08 - 1990-11 | 60 | 82 | 2370 | Estate |
| AUDI 100 C3 Avant (445, 446) Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1990-01 - 1990-11 | 88 | 120 | 2461 | Estate |

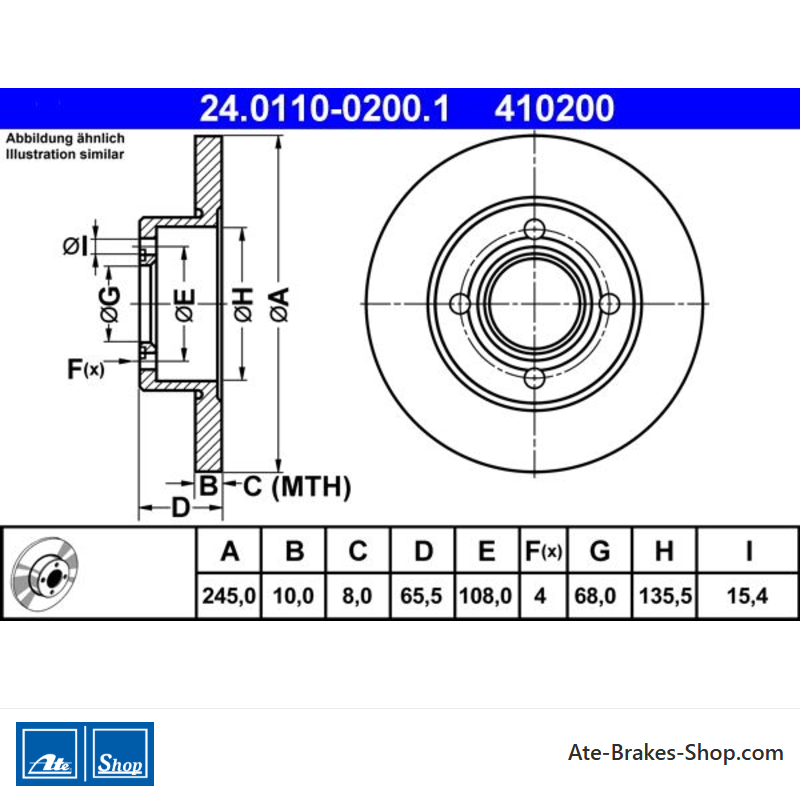

24.0110-0200.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Audi
- Handelsnummer
- 410200
- Herkunftsland
- Italien
- Höhe
- 65,5
- Außendurchmesser [mm]
- 245,0
- Bremsscheibendicke [mm]
- 10,0
- Bremsscheibentyp
- Solide
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 108,0
- Zentrierungsdurchmesser [mm]
- 68,0
- Innendurchmesser [mm]
- 135,5
- Bohrdurchmesser [mm]
- 15,4
- Mindestdicke [mm]
- 8,0
Spezifische Referenzen
- ean13
- 4006633139441
- Hersteller-Teilenummer (MPN)
- 2401100200101
ATE 24.0110-0200.1
(240110-02001)
- Außendurchmesser [mm]: 245,0
- Innendurchmesser [mm]: 135,5
- Bremsscheibendicke [mm]: 10,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 410200
