ATE Originale zweiteilige Bremsscheibe (24011003141) für BMW
79,86 €
(inkl. MwSt.)
66,00 € Steuerexzl.
Teilenummer:
ATE 24.0110-0314.1
(240110-03141)
- Außendurchmesser [mm]: 280,0
- Innendurchmesser [mm]: 160,8
- Bremsscheibendicke [mm]: 10,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 410314
Logistische Informationen:
- Ean-Code: 4006633268189
- Gewicht: 9.27kg
Specification of ATE 24.0110-0314.1 / 240110-03141 / 24011003141:
| OE Number | Reference info |
| BMW 34 21 6 764 647 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34216764647 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34 21 6 855 001 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34216855001 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| BMW 1 (E87) Construction Year from 200409 Construction Year to 200708 Braking System for vehicles without Performance brakes Fitting Position Rear Axle | 2004-06 - 2011-06 | 85 | 115 | 1596 | Hatchback |
| BMW 1 (E87) Construction Year to 200812 Braking System for vehicles without Performance brakes Fitting Position Rear Axle | 2007-09 - 2011-06 | 90 | 122 | 1599 | Hatchback |
| BMW 1 (E87) Construction Year to 201105 Braking System for vehicles without Performance brakes Fitting Position Rear Axle | 2009-01 - 2011-06 | 90 | 122 | 1995 | Hatchback |
| BMW 1 (E87) Construction Year from 200409 Braking System for vehicles without Performance brakes Fitting Position Rear Axle Number of Doors 5 | 2004-07 - 2007-02 | 95 | 129 | 1995 | Hatchback |
| BMW 1 (E87) Construction Year to 200703 Braking System for vehicles without Performance brakes Fitting Position Rear Axle Number of Doors 5 | 2006-10 - 2011-06 | 100 | 136 | 1995 | Hatchback |
| BMW 1 (E87) Braking System for vehicles without Performance brakes Fitting Position Rear Axle | 2011-01 - 2011-12 | 66 | 90 | 1995 | Hatchback |
| BMW 1 (E87) Construction Year to 201105 Braking System for vehicles without Performance brakes Fitting Position Rear Axle | 2009-03 - 2011-06 | 85 | 116 | 1995 | Hatchback |
| BMW 1 (E87) Construction Year from 200409 Braking System for vehicles without Performance brakes Fitting Position Rear Axle Number of Doors 5 | 2004-06 - 2007-02 | 90 | 122 | 1995 | Hatchback |
| BMW 1 (E81) Braking System for vehicles without Performance brakes Fitting Position Rear Axle | 2007-09 - 2011-12 | 85 | 115 | 1596 | Hatchback |
| BMW 1 (E81) Construction Year from 200709 Construction Year to 200812 Braking System for vehicles without Performance brakes Fitting Position Rear Axle | 2007-03 - 2011-12 | 90 | 122 | 1599 | Hatchback |
| BMW 1 (E81) Construction Year from 200901 Construction Year to 201105 Braking System for vehicles without Performance brakes Fitting Position Rear Axle | 2008-11 - 2011-12 | 90 | 122 | 1995 | Hatchback |
| BMW 1 (E81) Braking System for vehicles without Performance brakes Fitting Position Rear Axle | 2011-01 - 2011-12 | 66 | 90 | 1995 | Hatchback |
| BMW 1 (E81) Construction Year from 200903 Construction Year to 201105 Braking System for vehicles without Performance brakes Fitting Position Rear Axle | 2008-11 - 2011-12 | 85 | 116 | 1995 | Hatchback |

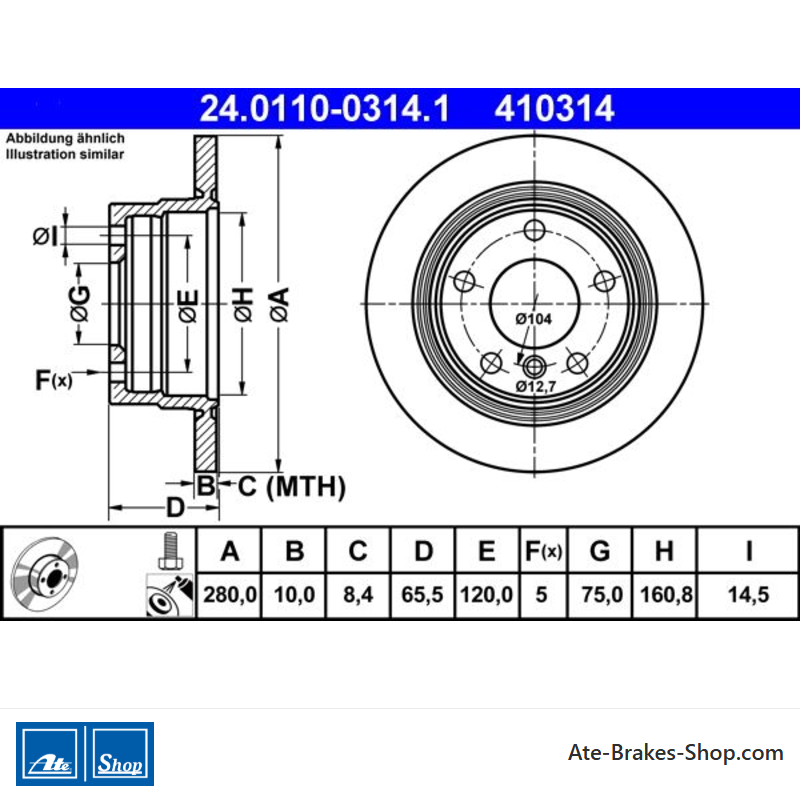

24.0110-0314.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- BMW
- Handelsnummer
- 410314
- Herkunftsland
- Tschechien
- Zusätzliche Informationen
- mit Schrauben/Schrauben
- Höhe
- 65,5
- Außendurchmesser [mm]
- 280,0
- Bremsscheibendicke [mm]
- 10,0
- Bremsscheibentyp
- Solide
- Verarbeitung
- Kohlenstoffhoch
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 120,0
- Zentrierungsdurchmesser [mm]
- 75,0
- Innendurchmesser [mm]
- 160,8
- Bohrdurchmesser [mm]
- 14,5
- Mindestdicke [mm]
- 8,4
Spezifische Referenzen
- ean13
- 4006633268189
- Hersteller-Teilenummer (MPN)
- 2401100314102
ATE 24.0110-0314.1
(240110-03141)
- Außendurchmesser [mm]: 280,0
- Innendurchmesser [mm]: 160,8
- Bremsscheibendicke [mm]: 10,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 410314
