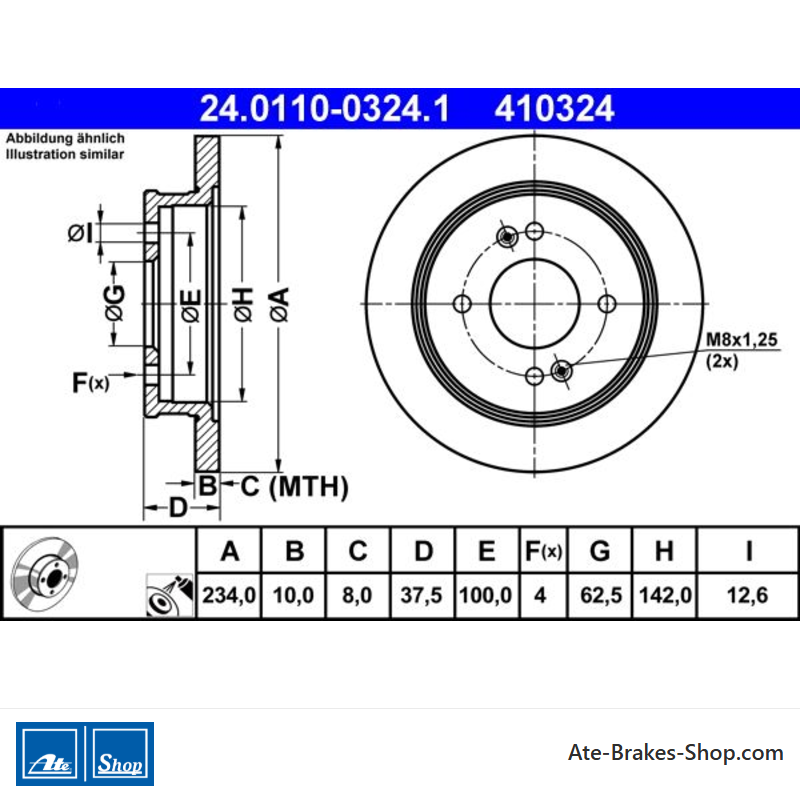

ATE Original 2-teilige Bremsscheibe (24011003241) für Hyundai, Kia
79,86 €
(inkl. MwSt.)
66,00 € Steuerexzl.
Teilenummer:
ATE 24.0110-0324.1
(240110-03241)
- Außendurchmesser [mm]: 234,0
- Innendurchmesser [mm]: 142,0
- Bremsscheibendicke [mm]: 10,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 410324
Logistische Informationen:
- Ean-Code: 4006633306683
- Gewicht: 6.26kg
Specification of ATE 24.0110-0324.1 / 240110-03241 / 24011003241:
| OE Number | Reference info |
| HYUNDAI 58411-0X500 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HYUNDAI 58411-G6300 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 58411-07300 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 58411-07500 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 58411-G6300 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HYUNDAI i10 I (PA) Construction Year to 201311 Fitting Position Rear Axle | 2011-01 - 2013-12 | 51 | 69 | 998 | Hatchback |
| HYUNDAI i10 I (PA) Construction Year from 200801 Construction Year to 201311 Fitting Position Rear Axle | 2007-12 - 2013-12 | 48 | 65 | 1086 | Hatchback |
| HYUNDAI i10 I (PA) Fitting Position Rear Axle | 2009-01 - 2013-12 | 48 | 65 | 1086 | Hatchback |
| HYUNDAI i10 I (PA) Construction Year to 201311 Fitting Position Rear Axle | 2008-01 - 2013-12 | 49 | 67 | 1086 | Hatchback |
| HYUNDAI i10 I (PA) Construction Year to 201311 Fitting Position Rear Axle | 2008-11 - 2013-12 | 50 | 68 | 1086 | Hatchback |
| HYUNDAI i10 I (PA) Construction Year to 201311 Fitting Position Rear Axle | 2011-04 - 2013-12 | 51 | 69 | 1086 | Hatchback |
| HYUNDAI i10 I (PA) Construction Year to 201311 Fitting Position Rear Axle | 2011-04 - 2013-12 | 51 | 69 | 1086 | Hatchback |
| HYUNDAI i10 I (PA) Fitting Position Rear Axle | 2008-11 - 2011-12 | 57 | 78 | 1248 | Hatchback |
| HYUNDAI i10 I (PA) Construction Year to 201311 Fitting Position Rear Axle | 2010-01 - 2013-12 | 57 | 78 | 1248 | Hatchback |
| HYUNDAI i10 I (PA) Construction Year to 201311 Fitting Position Rear Axle | 2011-04 - 2013-12 | 63 | 86 | 1248 | Hatchback |
| HYUNDAI i10 I (PA) Fitting Position Rear Axle | 2008-01 - 2011-12 | 55 | 75 | 1120 | Hatchback |
| KIA PICANTO I (SA) Construction Year from 200405 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2004-04 - 2011-04 | 45 | 61 | 999 | Hatchback |
| KIA PICANTO I (SA) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2009-01 - 2011-04 | 45 | 61 | 999 | Hatchback |
| KIA PICANTO I (SA) Construction Year from 200911 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2007-09 - 2011-04 | 46 | 63 | 999 | Hatchback |
| KIA PICANTO I (SA) Construction Year to 201104 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2004-04 - 2011-09 | 48 | 65 | 1086 | Hatchback |
| KIA PICANTO I (SA) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2009-01 - 2011-04 | 48 | 65 | 1086 | Hatchback |
| KIA PICANTO I (SA) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2005-10 - 2011-04 | 55 | 75 | 1120 | Hatchback |
| KIA PICANTO II (TA) Fitting Position Rear Axle | 2011-05 - 2017-03 | 49 | 67 | 998 | Hatchback |
| KIA PICANTO II (TA) Fitting Position Rear Axle | 2013-08 - 2017-03 | 49 | 67 | 998 | Hatchback |
| KIA PICANTO II (TA) Fitting Position Rear Axle | 2011-05 - 2017-03 | 51 | 69 | 998 | Hatchback |
| KIA PICANTO II (TA) Fitting Position Rear Axle | 2011-05 - 2014-10 | 60 | 82 | 998 | Hatchback |
| KIA PICANTO II (TA) Fitting Position Rear Axle | 2011-09 - 2017-03 | 63 | 85 | 1248 | Hatchback |
| KIA PICANTO III (JA) Fitting Position Rear Axle | 2024-05 - | 46 | 63 | 998 | Hatchback |
| KIA PICANTO III (JA) Fitting Position Rear Axle | 2018-11 - | 48 | 65 | 998 | Hatchback |
| KIA PICANTO III (JA) Fitting Position Rear Axle | 2017-03 - | 49 | 67 | 998 | Hatchback |
| KIA PICANTO III (JA) Fitting Position Rear Axle | 2017-03 - | 74 | 101 | 998 | Hatchback |
| KIA PICANTO III (JA) Fitting Position Rear Axle | 2024-05 - | 58 | 79 | 1197 | Hatchback |
| KIA PICANTO III (JA) Fitting Position Rear Axle | 2020-07 - | 62 | 84 | 1197 | Hatchback |
| KIA PICANTO III (JA) Fitting Position Rear Axle | 2017-03 - | 62 | 84 | 1248 | Hatchback |
24.0110-0324.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Hyundai
Kia - Handelsnummer
- 410324
- Herkunftsland
- EU
- Höhe
- 37,5
- Außendurchmesser [mm]
- 234,0
- Bremsscheibendicke [mm]
- 10,0
- Bremsscheibentyp
- Solide
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 100,0
- Zentrierungsdurchmesser [mm]
- 62,5
- Innendurchmesser [mm]
- 142,0
- Bohrdurchmesser [mm]
- 12,6
- Mindestdicke [mm]
- 8,0
Spezifische Referenzen
- ean13
- 4006633306683
- Hersteller-Teilenummer (MPN)
- 2401100324102
ATE 24.0110-0324.1
(240110-03241)
- Außendurchmesser [mm]: 234,0
- Innendurchmesser [mm]: 142,0
- Bremsscheibendicke [mm]: 10,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 410324
