ATE Originale zweiteilige Bremsscheibe (24011003701) für Hyundai
119,79 €
(inkl. MwSt.)
99,00 € Steuerexzl.
Teilenummer:
ATE 24.0110-0370.1
(240110-03701)
- Außendurchmesser [mm]: 284,0
- Innendurchmesser [mm]: 154,5
- Bremsscheibendicke [mm]: 10,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 410370
Logistische Informationen:
- Ean-Code: 4006633383707
- Gewicht: 7.89kg
Specification of ATE 24.0110-0370.1 / 240110-03701 / 24011003701:
| OE Number | Reference info |
| HYUNDAI 58411-3Z100 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch | 2011-07 - 2019-05 | 99 | 135 | 1591 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch | 2012-10 - 2019-05 | 110 | 150 | 1999 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch | 2014-12 - 2019-05 | 121 | 165 | 1999 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch | 2012-06 - 2019-05 | 121 | 165 | 1999 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch | 2011-07 - 2019-05 | 130 | 177 | 1999 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch | 2011-07 - 2019-05 | 130 | 177 | 1999 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch | 2018-07 - 2019-05 | 85 | 116 | 1598 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch | 2018-07 - 2019-05 | 100 | 136 | 1598 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch | 2011-07 - 2019-05 | 85 | 116 | 1685 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch | 2011-07 - 2019-05 | 100 | 136 | 1685 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch | 2015-01 - 2019-05 | 104 | 141 | 1685 | Estate |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch | 2012-03 - 2019-05 | 99 | 135 | 1591 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch | 2012-10 - 2019-05 | 110 | 150 | 1999 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch | 2014-12 - 2019-05 | 121 | 165 | 1999 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch | 2012-03 - 2019-05 | 121 | 165 | 1999 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch | 2012-03 - 2019-05 | 130 | 177 | 1999 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch | 2012-03 - 2019-05 | 131 | 178 | 1999 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch | 2018-07 - 2019-05 | 85 | 116 | 1598 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch | 2018-07 - 2019-05 | 100 | 136 | 1598 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch | 2012-03 - 2019-05 | 85 | 116 | 1685 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch | 2012-03 - 2019-05 | 100 | 136 | 1685 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch | 2015-01 - 2019-05 | 104 | 141 | 1685 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch | 2012-03 - 2019-05 | 130 | 177 | 1999 | Saloon |

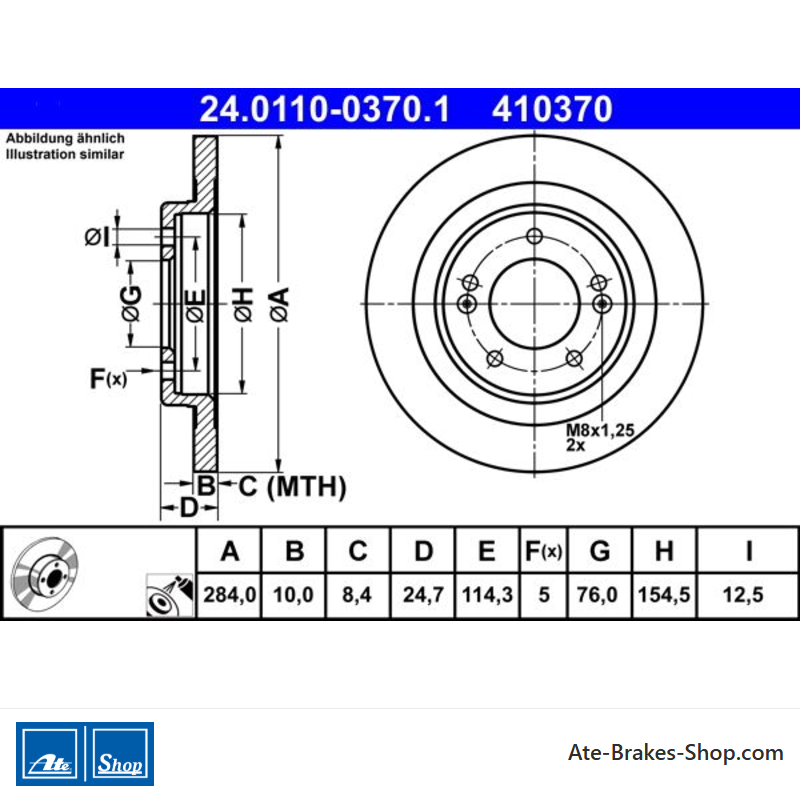

24.0110-0370.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Hyundai
- Handelsnummer
- 410370
- Herkunftsland
- Tschechien
- Höhe
- 24,7
- Außendurchmesser [mm]
- 284,0
- Bremsscheibendicke [mm]
- 10,0
- Bremsscheibentyp
- Solide
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 114,3
- Zentrierungsdurchmesser [mm]
- 76,0
- Innendurchmesser [mm]
- 154,5
- Bohrdurchmesser [mm]
- 12,5
- Mindestdicke [mm]
- 8,4
Spezifische Referenzen
- ean13
- 4006633383707
- Hersteller-Teilenummer (MPN)
- 2401100370102
ATE 24.0110-0370.1
(240110-03701)
- Außendurchmesser [mm]: 284,0
- Innendurchmesser [mm]: 154,5
- Bremsscheibendicke [mm]: 10,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 410370
