ATE Originale zweiteilige Bremsscheibe (24011007281) für Subaru
98,01 €
(inkl. MwSt.)
81,00 € Steuerexzl.
Teilenummer:
ATE 24.0110-0728.1
(240110-07281)
- Außendurchmesser [mm]: 273,8
- Innendurchmesser [mm]: 170,0
- Bremsscheibendicke [mm]: 10,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 410728
Logistische Informationen:
- Ean-Code: 4006633332569
- Gewicht: 9.71kg
Specification of ATE 24.0110-0728.1 / 240110-07281 / 24011007281:
| OE Number | Reference info |
| SUBARU 26700AG000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUBARU 26700AG001 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUBARU LEGACY IV Station Wagon (BP) Fitting Position Rear Axle | 2003-09 - 2005-10 | 101 | 138 | 1994 | Estate |
| SUBARU LEGACY IV Station Wagon (BP) Construction Year to 200904 Fitting Position Rear Axle | 2008-02 - 2009-12 | 110 | 150 | 1998 | Estate |
| SUBARU LEGACY IV Station Wagon (BP) Construction Year to 200904 Fitting Position Rear Axle | 2007-09 - 2009-12 | 110 | 150 | 1994 | Estate |
| SUBARU LEGACY IV Station Wagon (BP) Fitting Position Rear Axle | 2003-09 - 2009-04 | 121 | 165 | 2457 | Estate |
| SUBARU LEGACY IV Station Wagon (BP) Fitting Position Rear Axle | 2005-06 - 2009-04 | 121 | 165 | 1994 | Estate |
| SUBARU LEGACY IV Station Wagon (BP) Construction Year to 200904 Fitting Position Rear Axle | 2008-01 - 2009-12 | 127 | 173 | 2457 | Estate |
| SUBARU LEGACY IV (BL) Fitting Position Rear Axle | 2003-09 - 2005-10 | 101 | 138 | 1994 | Saloon |
| SUBARU LEGACY IV (BL) Construction Year to 200904 Fitting Position Rear Axle | 2007-09 - 2009-12 | 110 | 150 | 1994 | Saloon |
| SUBARU LEGACY IV (BL) Construction Year to 200904 Fitting Position Rear Axle | 2008-02 - 2009-12 | 110 | 150 | 1998 | Saloon |
| SUBARU LEGACY IV (BL) Fitting Position Rear Axle | 2003-09 - 2009-04 | 121 | 165 | 2457 | Saloon |
| SUBARU LEGACY IV (BL) Construction Year to 200904 Fitting Position Rear Axle | 2007-09 - 2009-12 | 127 | 173 | 2457 | Saloon |
| SUBARU OUTBACK (BP) Construction Year to 200904 Fitting Position Rear Axle | 2003-11 - 2009-09 | 121 | 165 | 2457 | Estate |
| SUBARU OUTBACK (BP) Construction Year to 200906 Fitting Position Rear Axle | 2008-09 - 2009-09 | 127 | 173 | 2457 | Estate |
| SUBARU OUTBACK (BP) Fitting Position Rear Axle | 2008-09 - 2009-06 | 127 | 173 | 2457 | Estate |
| SUBARU OUTBACK (BP) Construction Year to 200906 Fitting Position Rear Axle | 2003-11 - 2009-09 | 180 | 245 | 3000 | Estate |
| SUBARU OUTBACK (BP) Construction Year to 200904 Fitting Position Rear Axle | 2008-09 - 2009-09 | 110 | 150 | 1998 | Estate |

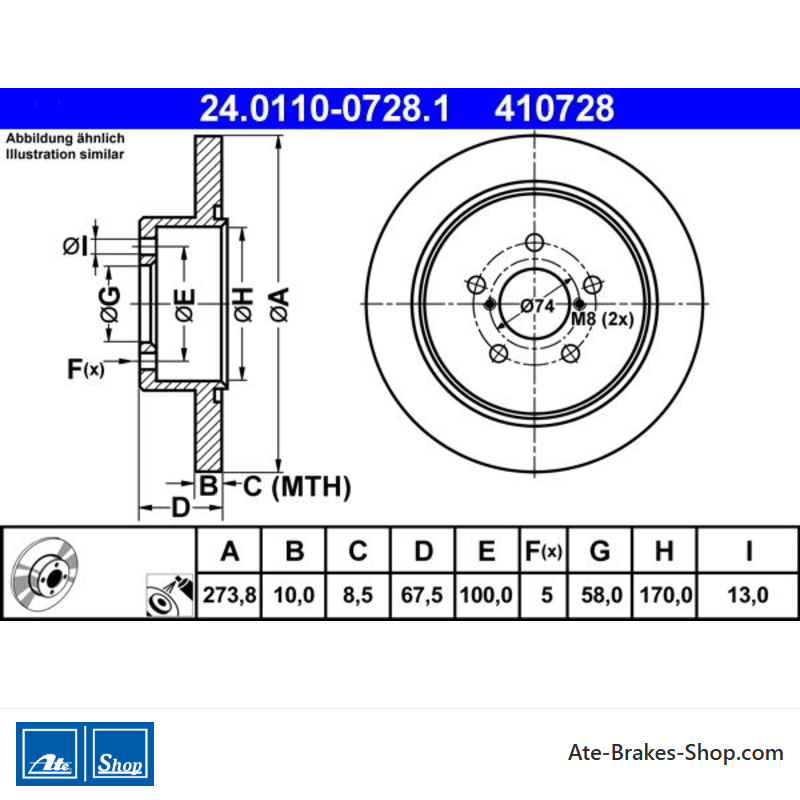

24.0110-0728.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Subaru
- Handelsnummer
- 410728
- Herkunftsland
- China
- Höhe
- 67,5
- Außendurchmesser [mm]
- 273,8
- Bremsscheibendicke [mm]
- 10,0
- Bremsscheibentyp
- Solide
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 100,0
- Zentrierungsdurchmesser [mm]
- 58,0
- Innendurchmesser [mm]
- 170,0
- Bohrdurchmesser [mm]
- 13,0
- Mindestdicke [mm]
- 8,5
Spezifische Referenzen
- ean13
- 4006633332569
- Hersteller-Teilenummer (MPN)
- 2401100728102
ATE 24.0110-0728.1
(240110-07281)
- Außendurchmesser [mm]: 273,8
- Innendurchmesser [mm]: 170,0
- Bremsscheibendicke [mm]: 10,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 410728
