ATE Original 2 Teile Bremsscheibe (24011101191) für Abarth, Fiat, Ford, Lancia
47,19 €
(inkl. MwSt.)
39,00 € Steuerexzl.

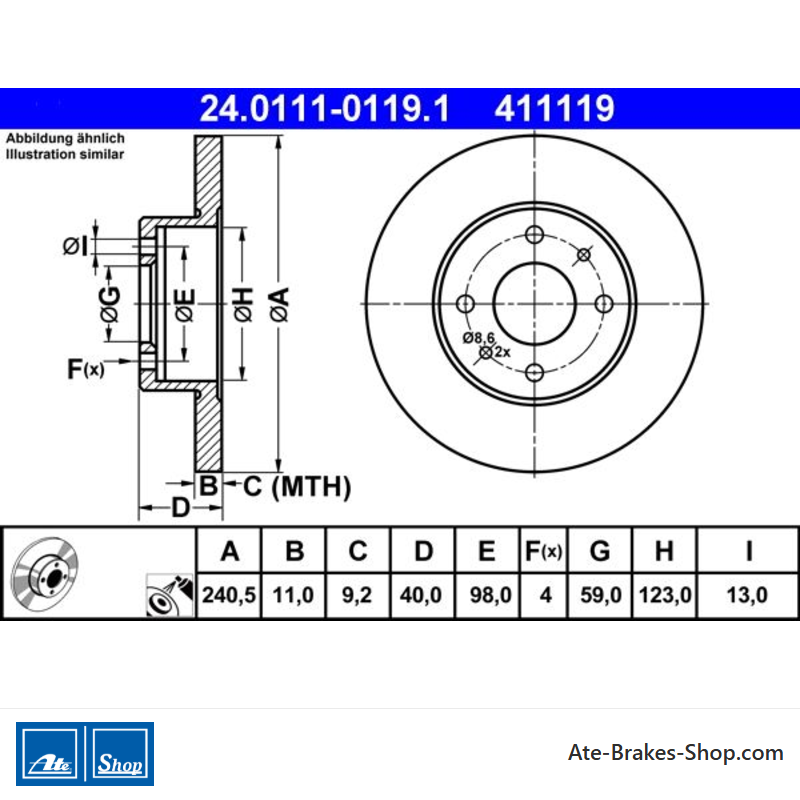

Teilenummer:
ATE 24.0111-0119.1
(240111-01191)
- Außendurchmesser [mm]: 240,5
- Innendurchmesser [mm]: 123,0
- Bremsscheibendicke [mm]: 11,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 411119
Logistische Informationen:
- Ean-Code: 4006633138802
- Gewicht: 7.26kg
Specification of ATE 24.0111-0119.1 / 240111-01191 / 24011101191:
| OE Number | Reference info |
| FIAT 7663465 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 46403960 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 60811879 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 7685656 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 71769481 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 51876438 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 71770933 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 71772238 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 51859078 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 51866264 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 71738421 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1541804 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 9S51-1125-CA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1715410 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD BS51-1125-AA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| LANCIA 7663465 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| ABARTH 7663465 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| ABARTH 500C / 595C / 695C Vehicle Equipment Line/Trim Level - Kit ESSEESSE Fitting Position Rear Axle | 2008-05 - | 99 | 135 | 1368 | Convertible |
| ABARTH 500C / 595C / 695C Vehicle Equipment Line/Trim Level - Kit ESSEESSE Fitting Position Rear Axle | 2009-09 - | 103 | 140 | 1368 | Convertible |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level - Kit ESSEESSE Fitting Position Rear Axle | 2008-08 - | 99 | 135 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level - Kit ESSEESSE Fitting Position Rear Axle | 2010-05 - | 103 | 140 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Fitting Position Rear Axle | 2016-05 - | 107 | 145 | 1368 | Hatchback |
| FIAT 500 C (312_) Fitting Position Rear Axle | 2013-12 - | 77 | 105 | 875 | Convertible |
| FIAT 500 C (312_) Fitting Position Front Axle Construction Year to 201505 | 2009-09 - | 51 | 69 | 1242 | Convertible |
| FIAT 500 C (312_) Fitting Position Rear Axle | 2009-06 - | 74 | 100 | 1368 | Convertible |
| FIAT 500 C (312_) Fitting Position Rear Axle | 2011-09 - | 75 | 102 | 1368 | Convertible |
| FIAT 500 (312_) Construction Year from 201312 Fitting Position Rear Axle | 2010-01 - | 24 | 33 | CC | Hatchback |
| FIAT 500 (312_) Construction Year from 201312 Fitting Position Rear Axle | 2012-09 - | 83 | 113 | CC | Hatchback |
| FIAT 500 (312_) Construction Year from 201312 Fitting Position Rear Axle | 2013-10 - | 77 | 105 | 875 | Hatchback |
| FIAT 500 (312_) Fitting Position Front Axle Construction Year to 201505 | 2007-07 - | 51 | 69 | 1242 | Hatchback |
| FIAT 500 (312_) Fitting Position Front Axle Construction Year to 201505 | 2010-12 - | 51 | 69 | 1242 | Hatchback |
| FIAT 500 (312_) Fitting Position Rear Axle | 2007-10 - | 74 | 100 | 1368 | Hatchback |
| FIAT 500 (312_) Fitting Position Rear Axle | 2008-09 - | 75 | 102 | 1368 | Hatchback |
| FIAT BARCHETTA (183_) Construction Year to 200410 Fitting Position Rear Axle | 1995-04 - 2005-05 | 96 | 130 | 1747 | Convertible |
| FIAT CINQUECENTO (170_) Fitting Position Front Axle | 1994-07 - 1998-01 | 22 | 30 | 704 | Hatchback |
| FIAT CINQUECENTO (170_) Construction Year from 199202 Fitting Position Front Axle | 1991-12 - 1996-01 | 23 | 31 | 704 | Hatchback |
| FIAT CINQUECENTO (170_) Construction Year from 199202 Construction Year to 199805 Fitting Position Front Axle | 1991-07 - 1999-07 | 29 | 40 | 899 | Hatchback |
| FIAT CINQUECENTO (170_) Construction Year from 199202 Fitting Position Front Axle | 1991-07 - 1993-12 | 30 | 41 | 903 | Hatchback |
| FIAT CINQUECENTO (170_) Construction Year from 199202 Fitting Position Front Axle | 1991-07 - 1994-09 | 30 | 41 | 903 | Hatchback |
| FIAT CINQUECENTO (170_) Construction Year from 199411 Fitting Position Front Axle | 1994-10 - 1998-01 | 40 | 54 | 1108 | Hatchback |
| FIAT PANDA / PANDA CLASSIC (169_) Construction Year to 201306 Fitting Position Front Axle | 2003-09 - | 40 | 54 | 1108 | Hatchback |
| FIAT PANDA / PANDA CLASSIC (169_) Construction Year to 201306 Fitting Position Front Axle | 2003-09 - | 44 | 60 | 1242 | Hatchback |
| FIAT PANDA / PANDA CLASSIC (169_) Construction Year to 201306 Fitting Position Rear Axle | 2004-10 - | 44 | 60 | 1242 | Hatchback |
| FIAT PANDA / PANDA CLASSIC (169_) Construction Year to 201306 Fitting Position Front Axle | 2010-03 - 2013-08 | 51 | 69 | 1242 | Hatchback |
| FIAT PANDA / PANDA CLASSIC (169_) Construction Year from 201010 Construction Year to 201306 Fitting Position Rear Axle | 2010-04 - 2013-08 | 51 | 69 | 1242 | Hatchback |
| FIAT PANDA / PANDA CLASSIC (169_) Construction Year from 200611 Construction Year to 201306 Fitting Position Rear Axle | 2006-10 - | 74 | 100 | 1368 | Hatchback |
| FIAT PANDA / PANDA CLASSIC (169_) Construction Year from 200604 Construction Year to 201108 Fitting Position Rear Axle | 2004-10 - | 51 | 70 | 1248 | Hatchback |
| FIAT PANDA / PANDA CLASSIC (169_) Construction Year to 201306 Fitting Position Rear Axle | 2004-10 - | 51 | 70 | 1248 | Hatchback |
| FIAT PANDA / PANDA CLASSIC (169_) Construction Year to 201306 Fitting Position Rear Axle | 2010-09 - 2013-08 | 55 | 75 | 1248 | Hatchback |
| FIAT PANDA (312_, 319_) Rims not for light alloy rims Fitting Position Rear Axle | 2012-09 - | 63 | 86 | 875 | Hatchback |
| FIAT PANDA (312_, 319_) Rims for light alloy rims Fitting Position Rear Axle Vehicle Equipment Line/Trim Level Extra Serie 2 | 2012-09 - | 63 | 86 | 875 | Hatchback |
| FIAT PANDA (312_, 319_) Rims not for light alloy rims Fitting Position Rear Axle | 2014-06 - | 66 | 90 | 875 | Hatchback |
| FIAT PANDA (312_, 319_) Rims for light alloy rims Fitting Position Rear Axle Vehicle Equipment Line/Trim Level Extra Serie 2 | 2014-06 - | 66 | 90 | 875 | Hatchback |
| FIAT PANDA (312_, 319_) Rims not for light alloy rims Fitting Position Rear Axle | 2012-06 - | 55 | 75 | 1248 | Hatchback |
| FIAT PANDA (312_, 319_) Rims for light alloy rims Fitting Position Rear Axle Vehicle Equipment Line/Trim Level Extra Serie 2 | 2012-06 - | 55 | 75 | 1248 | Hatchback |
| FIAT PANDA (312_, 319_) Rims not for light alloy rims Fitting Position Rear Axle | 2014-06 - | 59 | 80 | 1248 | Hatchback |
| FIAT PANDA (312_, 319_) Rims for light alloy rims Fitting Position Rear Axle Vehicle Equipment Line/Trim Level Extra Serie 2 | 2014-06 - | 59 | 80 | 1248 | Hatchback |
| FIAT PANDA (312_, 319_) Rims not for light alloy rims Fitting Position Rear Axle | 2015-04 - | 70 | 95 | 1248 | Hatchback |
| FIAT PANDA (312_, 319_) Rims for light alloy rims Fitting Position Rear Axle Vehicle Equipment Line/Trim Level Extra Serie 2 | 2015-04 - | 70 | 95 | 1248 | Hatchback |
| FIAT PUNTO (176_) Construction Year from 199311 Fitting Position Front Axle | 1993-09 - 1999-09 | 40 | 54 | 1108 | Hatchback |
| FIAT PUNTO (176_) Construction Year to 199705 Fitting Position Front Axle | 1994-01 - 1999-09 | 43 | 58 | 1242 | Hatchback |
| FIAT PUNTO (176_) Construction Year from 199706 Fitting Position Front Axle | 1994-01 - 1999-09 | 43 | 58 | 1242 | Hatchback |
| FIAT PUNTO (176_) Construction Year from 199311 Construction Year to 199705 Fitting Position Front Axle | 1993-09 - 1999-09 | 44 | 60 | 1242 | Hatchback |
| FIAT PUNTO (176_) Construction Year from 199706 Fitting Position Front Axle | 1993-09 - 1999-09 | 44 | 60 | 1242 | Hatchback |
| FIAT PUNTO (176_) Construction Year from 199311 Construction Year to 199705 Fitting Position Front Axle | 1993-10 - 1999-09 | 54 | 73 | 1242 | Hatchback |
| FIAT PUNTO (176_) Construction Year from 199706 Fitting Position Front Axle | 1993-10 - 1999-09 | 54 | 73 | 1242 | Hatchback |
| FIAT PUNTO (176_) Fitting Position Rear Axle | 1996-09 - 1999-07 | 96 | 131 | 1372 | Hatchback |
| FIAT PUNTO (176_) Fitting Position Rear Axle | 1993-10 - 1997-03 | 98 | 133 | 1372 | Hatchback |
| FIAT PUNTO (176_) Construction Year from 199501 Construction Year to 199705 Fitting Position Front Axle | 1994-04 - 1997-09 | 42 | 57 | 1698 | Hatchback |
| FIAT PUNTO Convertible (176_) Construction Year from 199706 Fitting Position Front Axle | 1994-04 - 2000-06 | 43 | 58 | 1242 | Convertible |
| FIAT PUNTO Convertible (176_) Construction Year to 199705 Fitting Position Front Axle | 1994-04 - 2000-06 | 43 | 58 | 1242 | Convertible |
| FIAT PUNTO Convertible (176_) Construction Year from 199706 Fitting Position Front Axle | 1995-05 - 2000-06 | 44 | 60 | 1242 | Convertible |
| FIAT PUNTO Convertible (176_) Construction Year to 199705 Fitting Position Front Axle | 1995-05 - 2000-06 | 44 | 60 | 1242 | Convertible |
| FIAT PUNTO (188_) Construction Year from 199910 Construction Year to 200306 Fitting Position Front Axle | 1999-09 - 2010-12 | 44 | 60 | 1242 | Hatchback |
| FIAT PUNTO (188_) Fitting Position Front Axle | 2001-08 - 2003-05 | 44 | 60 | 1242 | Hatchback |
| FIAT PUNTO (188_) Construction Year from 200307 Construction Year to 200511 Fitting Position Rear Axle | 2003-06 - 2012-03 | 74 | 101 | 1910 | Hatchback |
| FIAT SEICENTO / 600 (187_) Construction Year from 199804 Construction Year to 200803 Fitting Position Front Axle | 1997-11 - 2008-12 | 29 | 39 | 899 | Hatchback |
| FIAT SEICENTO / 600 (187_) Construction Year from 199804 Construction Year to 200803 Fitting Position Front Axle | 1998-01 - 2010-01 | 40 | 54 | 1108 | Hatchback |
| FIAT TEMPRA (159_) Construction Year to 199304 Transmission Type Manual Transmission Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1990-04 - 1996-08 | 51 | 69 | 1372 | Saloon |
| FIAT TEMPRA (159_) Construction Year from 199305 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1990-04 - 1996-08 | 51 | 69 | 1372 | Saloon |
| FIAT TEMPRA (159_) Construction Year from 199305 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1990-04 - 1996-08 | 51 | 69 | 1372 | Saloon |
| FIAT TEMPRA (159_) Construction Year to 199304 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1990-04 - 1996-08 | 51 | 69 | 1372 | Saloon |
| FIAT TEMPRA (159_) Construction Year to 199304 Transmission Type Manual Transmission Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1992-06 - 1996-08 | 55 | 75 | 1581 | Saloon |
| FIAT TEMPRA (159_) Construction Year from 199305 Transmission Type Manual Transmission Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1992-06 - 1996-08 | 55 | 75 | 1581 | Saloon |
| FIAT TEMPRA (159_) Construction Year from 199305 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1992-06 - 1996-08 | 55 | 75 | 1581 | Saloon |
| FIAT TEMPRA (159_) Construction Year to 199304 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1992-06 - 1996-08 | 55 | 75 | 1581 | Saloon |
| FIAT TEMPRA (159_) Transmission Type Manual Transmission Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1990-06 - 1992-07 | 57 | 78 | 1581 | Saloon |
| FIAT TEMPRA (159_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1990-06 - 1992-07 | 57 | 78 | 1581 | Saloon |
| FIAT TEMPRA (159_) Construction Year to 199304 Transmission Type Manual Transmission Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1990-03 - 1994-04 | 63 | 86 | 1581 | Saloon |
| FIAT TEMPRA (159_) Construction Year to 199304 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1990-03 - 1994-04 | 63 | 86 | 1581 | Saloon |
| FIAT TEMPRA (159_) Transmission Type Manual Transmission Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1994-06 - 1996-08 | 66 | 90 | 1581 | Saloon |
| FIAT TEMPRA (159_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1994-06 - 1996-08 | 66 | 90 | 1581 | Saloon |
| FIAT TEMPRA (159_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1993-09 - 1996-08 | 66 | 90 | 1756 | Saloon |
| FIAT TEMPRA (159_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1994-10 - 1996-08 | 74 | 101 | 1756 | Saloon |
| FIAT TEMPRA (159_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1993-09 - 1996-08 | 76 | 103 | 1756 | Saloon |
| FIAT TEMPRA (159_) Construction Year to 199304 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1992-03 - 1996-08 | 77 | 105 | 1756 | Saloon |
| FIAT TEMPRA (159_) Construction Year from 199305 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1992-03 - 1996-08 | 77 | 105 | 1756 | Saloon |
| FIAT TEMPRA (159_) Construction Year to 199304 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1992-07 - 1996-08 | 59 | 80 | 1929 | Saloon |
| FIAT TEMPRA (159_) Construction Year from 199305 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1992-07 - 1996-08 | 59 | 80 | 1929 | Saloon |
| FIAT TEMPRA (159_) Construction Year to 199304 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1990-05 - 1996-08 | 66 | 90 | 1929 | Saloon |
| FIAT TEMPRA (159_) Construction Year from 199305 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1990-05 - 1996-08 | 66 | 90 | 1929 | Saloon |
| FIAT TEMPRA S.W. (159_) Construction Year to 199304 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1992-10 - 1996-08 | 51 | 69 | 1372 | Estate |
| FIAT TEMPRA S.W. (159_) Construction Year from 199305 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1992-10 - 1996-08 | 51 | 69 | 1372 | Estate |
| FIAT TEMPRA S.W. (159_) Construction Year from 199305 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1992-10 - 1996-08 | 55 | 75 | 1581 | Estate |
| FIAT TEMPRA S.W. (159_) Construction Year to 199304 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1992-10 - 1996-08 | 55 | 75 | 1581 | Estate |
| FIAT TEMPRA S.W. (159_) Construction Year to 199304 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1990-10 - 1996-08 | 57 | 78 | 1581 | Estate |
| FIAT TEMPRA S.W. (159_) Construction Year from 199305 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1990-10 - 1996-08 | 57 | 78 | 1581 | Estate |
| FIAT TEMPRA S.W. (159_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1990-12 - 1993-04 | 63 | 86 | 1581 | Estate |
| FIAT TEMPRA S.W. (159_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1994-06 - 1996-08 | 66 | 90 | 1581 | Estate |
| FIAT TEMPRA S.W. (159_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1993-09 - 1996-08 | 66 | 90 | 1756 | Estate |
| FIAT TEMPRA S.W. (159_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1994-10 - 1996-08 | 74 | 101 | 1756 | Estate |
| FIAT TEMPRA S.W. (159_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1993-09 - 1996-08 | 76 | 103 | 1756 | Estate |
| FIAT TEMPRA S.W. (159_) Construction Year to 199304 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1992-03 - 1993-12 | 77 | 105 | 1756 | Estate |
| FIAT TEMPRA S.W. (159_) Construction Year to 199304 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1992-03 - 1993-06 | 59 | 80 | 1929 | Estate |
| FIAT TEMPRA S.W. (159_) Construction Year to 199304 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1991-07 - 1995-02 | 66 | 90 | 1929 | Estate |
| FIAT TEMPRA S.W. (159_) Construction Year from 199305 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1991-07 - 1995-02 | 66 | 90 | 1929 | Estate |
| FIAT TIPO (160_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1988-01 - 1991-10 | 41 | 56 | 1108 | Hatchback |
| FIAT TIPO (160_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1988-01 - 1991-10 | 41 | 56 | 1108 | Hatchback |
| FIAT TIPO (160_) Construction Year to 199304 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1989-05 - 1995-04 | 51 | 70 | 1372 | Hatchback |
| FIAT TIPO (160_) Construction Year from 199305 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1989-05 - 1995-04 | 51 | 70 | 1372 | Hatchback |
| FIAT TIPO (160_) Construction Year to 199304 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1989-05 - 1995-04 | 51 | 70 | 1372 | Hatchback |
| FIAT TIPO (160_) Construction Year from 199305 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1989-05 - 1995-04 | 51 | 70 | 1372 | Hatchback |
| FIAT TIPO (160_) Construction Year from 198801 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1987-07 - 1989-12 | 52 | 71 | 1372 | Hatchback |
| FIAT TIPO (160_) Construction Year from 198801 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1987-07 - 1989-12 | 52 | 71 | 1372 | Hatchback |
| FIAT TIPO (160_) Construction Year to 199304 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1989-05 - 1995-04 | 57 | 78 | 1372 | Hatchback |
| FIAT TIPO (160_) Construction Year to 199304 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1989-05 - 1995-04 | 57 | 78 | 1372 | Hatchback |
| FIAT TIPO (160_) Construction Year from 199305 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1992-10 - 1995-04 | 55 | 75 | 1581 | Hatchback |
| FIAT TIPO (160_) Construction Year from 199305 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1992-10 - 1995-04 | 55 | 75 | 1581 | Hatchback |
| FIAT TIPO (160_) Construction Year to 199304 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1992-10 - 1995-04 | 55 | 75 | 1581 | Hatchback |
| FIAT TIPO (160_) Transmission Type Manual Transmission Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1990-07 - 1993-01 | 57 | 78 | 1581 | Hatchback |
| FIAT TIPO (160_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1990-07 - 1993-01 | 57 | 78 | 1581 | Hatchback |
| FIAT TIPO (160_) Transmission Type Manual Transmission Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1988-01 - 1991-10 | 61 | 83 | 1581 | Hatchback |
| FIAT TIPO (160_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1988-01 - 1991-10 | 61 | 83 | 1581 | Hatchback |
| FIAT TIPO (160_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1988-02 - 1991-05 | 66 | 90 | 1595 | Hatchback |
| FIAT TIPO (160_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1993-09 - 1995-04 | 66 | 90 | 1756 | Hatchback |
| FIAT TIPO (160_) Construction Year from 199305 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1993-03 - 1995-04 | 71 | 97 | 1756 | Hatchback |
| FIAT TIPO (160_) Construction Year to 199509 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1994-10 - 1995-10 | 74 | 101 | 1756 | Hatchback |
| FIAT TIPO (160_) Construction Year from 199305 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1993-04 - 1995-04 | 76 | 103 | 1756 | Hatchback |
| FIAT TIPO (160_) Construction Year to 199304 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1990-10 - 1993-06 | 77 | 105 | 1756 | Hatchback |
| FIAT TIPO (160_) Construction Year to 199304 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1990-10 - 1993-06 | 81 | 110 | 1756 | Hatchback |
| FIAT TIPO (160_) Construction Year from 199009 Fitting Position Rear Axle | 1990-06 - 1992-03 | 80 | 109 | 1995 | Hatchback |
| FIAT TIPO (160_) Construction Year from 199305 Fitting Position Rear Axle | 1990-03 - 1995-04 | 83 | 113 | 1995 | Hatchback |
| FIAT TIPO (160_) Construction Year from 199009 Construction Year to 199304 Fitting Position Rear Axle | 1990-03 - 1995-04 | 83 | 113 | 1995 | Hatchback |
| FIAT TIPO (160_) Construction Year to 199304 Fitting Position Rear Axle | 1991-07 - 1995-04 | 107 | 146 | 1995 | Hatchback |
| FIAT TIPO (160_) Construction Year to 199304 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1988-01 - 1994-10 | 43 | 58 | 1697 | Hatchback |
| FIAT TIPO (160_) Construction Year to 199304 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1988-01 - 1994-10 | 43 | 58 | 1697 | Hatchback |
| FIAT TIPO (160_) Construction Year to 199304 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1992-03 - 1993-06 | 59 | 80 | 1929 | Hatchback |
| FIAT TIPO (160_) Construction Year from 199305 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1992-03 - 1993-06 | 59 | 80 | 1929 | Hatchback |
| FIAT TIPO (160_) Construction Year to 199304 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1990-09 - 1995-04 | 66 | 90 | 1929 | Hatchback |
| FIAT TIPO (160_) Construction Year from 199305 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1990-09 - 1995-04 | 66 | 90 | 1929 | Hatchback |
| FIAT PANDA Hatchback Van (169_) Construction Year to 201306 Fitting Position Front Axle | 2004-09 - | 40 | 54 | 1108 | Hatchback Van |
| FIAT PANDA Hatchback Van (169_) Construction Year to 201306 Fitting Position Front Axle | 2004-09 - | 44 | 60 | 1242 | Hatchback Van |
| FIAT PANDA Hatchback Van (169_) Construction Year from 200410 Construction Year to 201306 Fitting Position Rear Axle | 2004-09 - | 44 | 60 | 1242 | Hatchback Van |
| FIAT PANDA Hatchback Van (169_) Fitting Position Front Axle | 2004-09 - 2011-12 | 44 | 60 | 1242 | Hatchback Van |
| FIAT PANDA Hatchback Van (169_) Construction Year to 201306 Fitting Position Front Axle | 2010-09 - | 51 | 69 | 1242 | Hatchback Van |
| FIAT PANDA Hatchback Van (169_) Construction Year from 201010 Construction Year to 201306 Fitting Position Rear Axle | 2010-09 - | 51 | 69 | 1242 | Hatchback Van |
| FIAT PANDA Hatchback Van (169_) Fitting Position Rear Axle | 2004-10 - 2006-12 | 51 | 70 | 1248 | Hatchback Van |
| FIAT PANDA Hatchback Van (169_) Construction Year to 201306 Fitting Position Rear Axle | 2006-01 - | 55 | 75 | 1248 | Hatchback Van |
| FIAT PANDA VAN (312_, 519_) Rims not for light alloy rims Fitting Position Rear Axle | 2012-09 - | 63 | 86 | 875 | Hatchback Van |
| FIAT PANDA VAN (312_, 519_) Rims for light alloy rims Fitting Position Rear Axle Vehicle Equipment Line/Trim Level Extra Serie 2 | 2012-09 - | 63 | 86 | 875 | Hatchback Van |
| FIAT PANDA VAN (312_, 519_) Rims not for light alloy rims Fitting Position Rear Axle | 2012-06 - | 55 | 75 | 1248 | Hatchback Van |
| FIAT PANDA VAN (312_, 519_) Rims for light alloy rims Fitting Position Rear Axle Vehicle Equipment Line/Trim Level Extra Serie 2 | 2012-06 - | 55 | 75 | 1248 | Hatchback Van |
| FIAT PANDA VAN (312_, 519_) Rims not for light alloy rims Fitting Position Rear Axle | 2014-06 - | 59 | 80 | 1248 | Hatchback Van |
| FIAT PANDA VAN (312_, 519_) Rims for light alloy rims Fitting Position Rear Axle Vehicle Equipment Line/Trim Level Extra Serie 2 | 2014-06 - | 59 | 80 | 1248 | Hatchback Van |
| FIAT PUNTO Van (176_) Construction Year to 199909 Fitting Position Front Axle | 1996-04 - 2000-02 | 40 | 54 | 1108 | Hatchback Van |
| FIAT PUNTO Van (176_) Construction Year to 199705 Fitting Position Front Axle | 1996-04 - 2000-02 | 42 | 57 | 1698 | Hatchback Van |
| FIAT PUNTO Hatchback Van (188_) Construction Year to 200306 Fitting Position Front Axle | 2000-02 - 2009-10 | 44 | 60 | 1242 | Hatchback Van |
| FORD KA (RU8) Fitting Position Front Axle | 2008-10 - 2016-05 | 51 | 69 | 1242 | Hatchback |
| LANCIA DEDRA (835_) Construction Year to 199310 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1993-04 - 1999-07 | 55 | 75 | 1581 | Saloon |
| LANCIA DEDRA (835_) Construction Year from 199601 Fitting Position Rear Axle | 1993-04 - 1999-07 | 55 | 75 | 1581 | Saloon |
| LANCIA DEDRA (835_) Construction Year from 199001 Construction Year to 199301 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1989-08 - 1993-03 | 57 | 78 | 1581 | Saloon |
| LANCIA DEDRA (835_) Construction Year from 199001 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1989-08 - 1993-03 | 57 | 78 | 1581 | Saloon |
| LANCIA DEDRA (835_) Construction Year from 199001 Construction Year to 199301 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1989-08 - 1994-06 | 66 | 90 | 1581 | Saloon |
| LANCIA DEDRA (835_) Construction Year from 199001 Construction Year to 199310 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1989-08 - 1994-06 | 66 | 90 | 1581 | Saloon |
| LANCIA DEDRA (835_) Construction Year from 199601 Fitting Position Rear Axle | 1994-07 - 1999-07 | 66 | 90 | 1581 | Saloon |
| LANCIA DEDRA (835_) Fitting Position Rear Axle | 1996-01 - 1999-07 | 76 | 103 | 1581 | Saloon |
| LANCIA DEDRA (835_) Construction Year to 199310 Fitting Position Rear Axle | 1993-08 - 1999-07 | 66 | 90 | 1756 | Saloon |
| LANCIA DEDRA (835_) Construction Year from 199311 Fitting Position Rear Axle | 1993-08 - 1999-07 | 66 | 90 | 1756 | Saloon |
| LANCIA DEDRA (835_) Fitting Position Rear Axle | 1994-07 - 1999-07 | 74 | 101 | 1756 | Saloon |
| LANCIA DEDRA (835_) Construction Year from 199001 Construction Year to 199310 Fitting Position Rear Axle | 1989-09 - 1999-07 | 77 | 105 | 1756 | Saloon |
| LANCIA DEDRA (835_) Construction Year from 199311 Fitting Position Rear Axle | 1989-09 - 1999-07 | 77 | 105 | 1756 | Saloon |
| LANCIA DEDRA (835_) Construction Year from 199001 Construction Year to 199310 Fitting Position Rear Axle | 1989-09 - 1994-06 | 80 | 109 | 1756 | Saloon |
| LANCIA DEDRA (835_) Construction Year from 199001 Fitting Position Rear Axle | 1989-09 - 1992-07 | 86 | 117 | 1995 | Saloon |
| LANCIA DEDRA (835_) Fitting Position Rear Axle | 1990-04 - 1991-08 | 121 | 165 | 1995 | Saloon |
| LANCIA DEDRA (835_) Construction Year from 199105 Construction Year to 199310 Fitting Position Rear Axle | 1990-11 - 1994-06 | 130 | 177 | 1995 | Saloon |
| LANCIA DEDRA (835_) Construction Year from 199001 Construction Year to 199310 Fitting Position Rear Axle | 1989-04 - 1999-07 | 66 | 90 | 1929 | Saloon |
| LANCIA DEDRA (835_) Construction Year from 199311 Fitting Position Rear Axle | 1989-04 - 1999-07 | 66 | 90 | 1929 | Saloon |
| LANCIA DEDRA SW (835_) Construction Year from 199601 Fitting Position Rear Axle | 1994-10 - 1999-07 | 66 | 90 | 1581 | Estate |
| LANCIA DEDRA SW (835_) Fitting Position Rear Axle | 1996-01 - 1999-07 | 76 | 103 | 1581 | Estate |
| LANCIA DEDRA SW (835_) Fitting Position Rear Axle | 1994-07 - 1999-07 | 74 | 101 | 1756 | Estate |
| LANCIA DEDRA SW (835_) Fitting Position Rear Axle | 1994-07 - 1999-07 | 66 | 90 | 1929 | Estate |
| LANCIA DELTA II (836_) Fitting Position Front Axle | 1994-10 - 1999-08 | 51 | 69 | 1372 | Hatchback |
| LANCIA DELTA II (836_) Fitting Position Rear Axle | 1994-07 - 1999-08 | 66 | 90 | 1756 | Hatchback |
| LANCIA DELTA II (836_) Construction Year from 199311 Fitting Position Rear Axle | 1993-06 - 1999-08 | 76 | 103 | 1756 | Hatchback |
| LANCIA DELTA II (836_) Fitting Position Rear Axle | 1994-10 - 1999-08 | 66 | 90 | 1929 | Hatchback |
| LANCIA MUSA (350_) Fitting Position Rear Axle | 2008-07 - 2012-09 | 85 | 116 | 1598 | MPV |
| LANCIA Y (840_) Construction Year from 199705 Construction Year to 199812 Fitting Position Front Axle | 1995-11 - 2003-09 | 40 | 54 | 1108 | Hatchback |
| LANCIA Y (840_) Construction Year to 200009 Fitting Position Front Axle | 1996-03 - 2003-09 | 44 | 60 | 1242 | Hatchback |
| LANCIA Y (840_) Construction Year from 200010 Construction Year to 200307 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1996-03 - 2003-09 | 44 | 60 | 1242 | Hatchback |
| LANCIA YPSILON (843_) Fitting Position Rear Axle Vehicle Equipment Line/Trim Level MOMO Design | 2003-10 - 2011-12 | 44 | 60 | 1242 | Hatchback |
| LANCIA YPSILON (843_) Fitting Position Rear Axle Vehicle Equipment Line/Trim Level MOMO Design | 2006-02 - 2011-12 | 57 | 78 | 1368 | Hatchback |
24.0111-0119.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Abarth
Fiat
Ford
Lancia - Handelsnummer
- 411119
- Herkunftsland
- QU
- Höhe
- 40,0
- Außendurchmesser [mm]
- 240,5
- Bremsscheibendicke [mm]
- 11,0
- Bremsscheibentyp
- Solide
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 98,0
- Zentrierungsdurchmesser [mm]
- 59,0
- Innendurchmesser [mm]
- 123,0
- Bohrdurchmesser [mm]
- 13,0
- Mindestdicke [mm]
- 9,2
Spezifische Referenzen
- ean13
- 4006633138802
- Hersteller-Teilenummer (MPN)
- 2401110119102
Vielleicht gefällt dir auch
ATE 24.0111-0119.1
(240111-01191)
- Außendurchmesser [mm]: 240,5
- Innendurchmesser [mm]: 123,0
- Bremsscheibendicke [mm]: 11,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 411119
