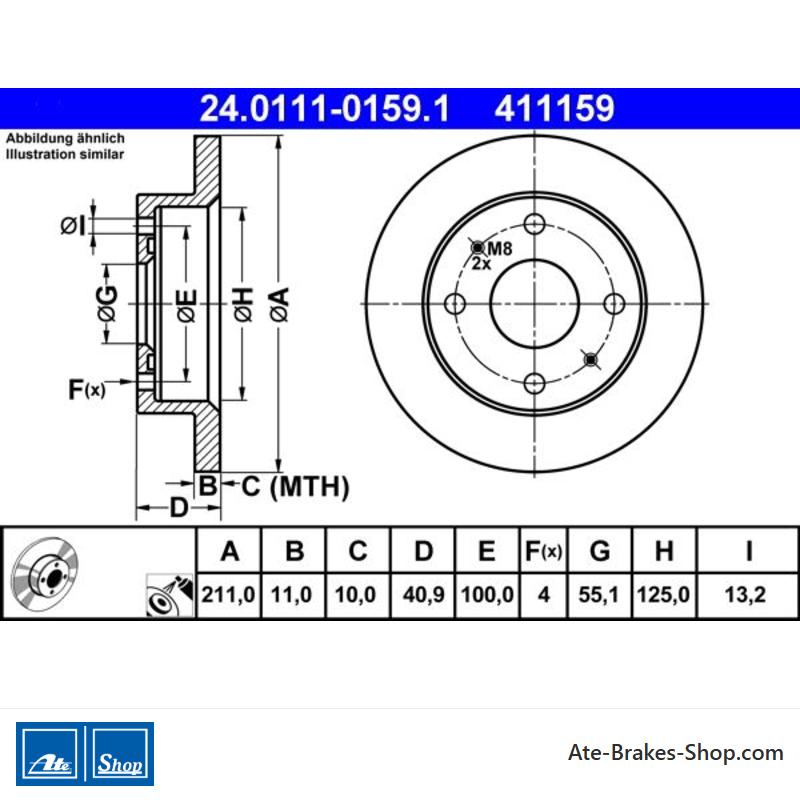

ATE Originale zweiteilige Bremsscheibe (24011101591) für Daihatsu
54,45 €
(inkl. MwSt.)
45,00 € Steuerexzl.
Teilenummer:
ATE 24.0111-0159.1
(240111-01591)
- Außendurchmesser [mm]: 211,0
- Innendurchmesser [mm]: 125,0
- Bremsscheibendicke [mm]: 11,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 411159
Logistische Informationen:
- Ean-Code: 4006633221399
- Gewicht: 5.46kg
Specification of ATE 24.0111-0159.1 / 240111-01591 / 24011101591:
| OE Number | Reference info |
| DAIHATSU 43512-97207-000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DAIHATSU 43512-97204-000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DAIHATSU 43512-B2100-000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| DAIHATSU CUORE V (L7_) Fitting Position Front Axle | 1998-11 - 2002-12 | 41 | 56 | 989 | Hatchback |
| DAIHATSU CUORE V (L7_) Construction Year to 200212 Fitting Position Front Axle | 2000-10 - 2003-02 | 43 | 58 | 989 | Hatchback |
| DAIHATSU CUORE VI (L251, L250_, L260_) Construction Year to 200708 Fitting Position Front Axle | 2003-05 - | 43 | 58 | 989 | Hatchback |
| DAIHATSU CUORE VII (L275_, L285_, L276_) Construction Year from 200709 Construction Year to 201301 Fitting Position Front Axle Rim Size [inch] 13.0 Inch | 2007-04 - | 51 | 70 | 998 | Hatchback |
| DAIHATSU TREVIS Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 2006-06 - | 43 | 58 | 989 | Hatchback |
24.0111-0159.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Daihatsu
- Handelsnummer
- 411159
- Herkunftsland
- China
- Höhe
- 40,9
- Außendurchmesser [mm]
- 211,0
- Bremsscheibendicke [mm]
- 11,0
- Bremsscheibentyp
- Solide
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 100,0
- Zentrierungsdurchmesser [mm]
- 55,1
- Innendurchmesser [mm]
- 125,0
- Bohrdurchmesser [mm]
- 13,2
- Mindestdicke [mm]
- 10,0
Spezifische Referenzen
- ean13
- 4006633221399
- Hersteller-Teilenummer (MPN)
- 2401110159102
ATE 24.0111-0159.1
(240111-01591)
- Außendurchmesser [mm]: 211,0
- Innendurchmesser [mm]: 125,0
- Bremsscheibendicke [mm]: 11,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 411159
