ATE Original-2-teilige Bremsscheibe (24011201121) für Fiat, Lancia
72,60 €
(inkl. MwSt.)
60,00 € Steuerexzl.
Teilenummer:
ATE 24.0112-0112.1
(240112-01121)
- Außendurchmesser [mm]: 257,0
- Innendurchmesser [mm]: 135,0
- Bremsscheibendicke [mm]: 12,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 412112
Logistische Informationen:
- Ean-Code: 4006633055895
- Gewicht: 10.31kg
Specification of ATE 24.0112-0112.1 / 240112-01121 / 24011201121:
| OE Number | Reference info |
| FIAT 4448411 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FIAT ARGENTA (132_) Construction Year from 198109 Construction Year to 198308 Fitting Position Front Axle | 1981-04 - 1985-12 | 66 | 90 | 1585 | Saloon |
| FIAT ARGENTA (132_) Construction Year from 198109 Construction Year to 198308 Fitting Position Front Axle | 1981-04 - 1985-12 | 72 | 98 | 1585 | Saloon |
| FIAT ARGENTA (132_) Construction Year from 198109 Fitting Position Front Axle | 1978-06 - 1985-12 | 83 | 113 | 1995 | Saloon |
| FIAT ARGENTA (132_) Construction Year from 198109 Fitting Position Front Axle | 1981-06 - 1986-07 | 90 | 122 | 1995 | Saloon |
| FIAT ARGENTA (132_) Fitting Position Front Axle | 1984-06 - 1985-07 | 99 | 135 | 1995 | Saloon |
| FIAT ARGENTA (132_) Construction Year from 198109 Fitting Position Front Axle | 1981-06 - 1985-11 | 53 | 72 | 2445 | Saloon |
| FIAT ARGENTA (132_) Fitting Position Front Axle | 1983-07 - 1985-08 | 66 | 90 | 2445 | Saloon |
| FIAT REGATA Weekend (138_) Fitting Position Front Axle | 1984-09 - 1989-07 | 55 | 75 | 1498 | Estate |
| FIAT REGATA Weekend (138_) Fitting Position Front Axle | 1984-01 - 1989-04 | 60 | 82 | 1498 | Estate |
| FIAT REGATA Weekend (138_) Fitting Position Front Axle | 1987-01 - 1989-07 | 66 | 90 | 1595 | Estate |
| FIAT REGATA Weekend (138_) Fitting Position Front Axle | 1984-04 - 1989-07 | 48 | 65 | 1929 | Estate |
| FIAT REGATA Weekend (138_) Fitting Position Front Axle | 1986-05 - 1989-07 | 59 | 80 | 1929 | Estate |
| FIAT REGATA (138_) Fitting Position Front Axle | 1983-10 - 1989-07 | 70 | 95 | 1585 | Saloon |
| FIAT REGATA (138_) Construction Year to 198909 Fitting Position Front Axle | 1983-10 - 1990-12 | 74 | 101 | 1585 | Saloon |
| FIAT RITMO (138_) Construction Year from 198309 Construction Year to 198512 Fitting Position Front Axle | 1981-05 - 1987-12 | 77 | 105 | 1585 | Hatchback |
| FIAT RITMO (138_) Construction Year from 198606 Fitting Position Front Axle | 1985-12 - 1987-12 | 59 | 80 | 1929 | Hatchback |
| LANCIA DELTA I (831_) Construction Year from 198304 Fitting Position Front Axle | 1982-11 - 1986-04 | 77 | 105 | 1585 | Hatchback |
| LANCIA DELTA I (831_) Construction Year to 198606 Fitting Position Front Axle | 1983-10 - 1986-12 | 96 | 131 | 1585 | Hatchback |
| LANCIA DELTA I (831_) Fitting Position Front Axle | 1986-10 - 1989-12 | 59 | 80 | 1929 | Hatchback |
| LANCIA DELTA II (836_) Construction Year to 199310 Fitting Position Front Axle | 1993-06 - 1999-08 | 55 | 75 | 1581 | Hatchback |
| LANCIA PRISMA (831_) Construction Year to 198906 Fitting Position Front Axle | 1987-05 - 1989-12 | 66 | 90 | 1585 | Saloon |
| LANCIA PRISMA (831_) Construction Year to 198906 Fitting Position Front Axle | 1986-08 - 1992-02 | 73 | 99 | 1585 | Saloon |
| LANCIA PRISMA (831_) Construction Year from 198304 Fitting Position Front Axle | 1983-01 - 1986-04 | 77 | 105 | 1585 | Saloon |
| LANCIA PRISMA (831_) Construction Year from 198607 Construction Year to 198906 Fitting Position Front Axle | 1986-05 - 1989-12 | 80 | 109 | 1585 | Saloon |
| LANCIA PRISMA (831_) Construction Year from 198701 Construction Year to 198906 Fitting Position Front Axle | 1986-04 - 1989-12 | 85 | 115 | 1995 | Saloon |
| LANCIA PRISMA (831_) Construction Year from 198506 Construction Year to 198606 Fitting Position Front Axle | 1983-01 - 1992-02 | 48 | 65 | 1911 | Saloon |
| LANCIA PRISMA (831_) Construction Year from 198506 Construction Year to 198606 Fitting Position Front Axle | 1985-05 - 1989-12 | 59 | 80 | 1928 | Saloon |
| LANCIA PRISMA (831_) Construction Year from 198607 Construction Year to 198906 Fitting Position Front Axle | 1985-05 - 1989-12 | 59 | 80 | 1928 | Saloon |

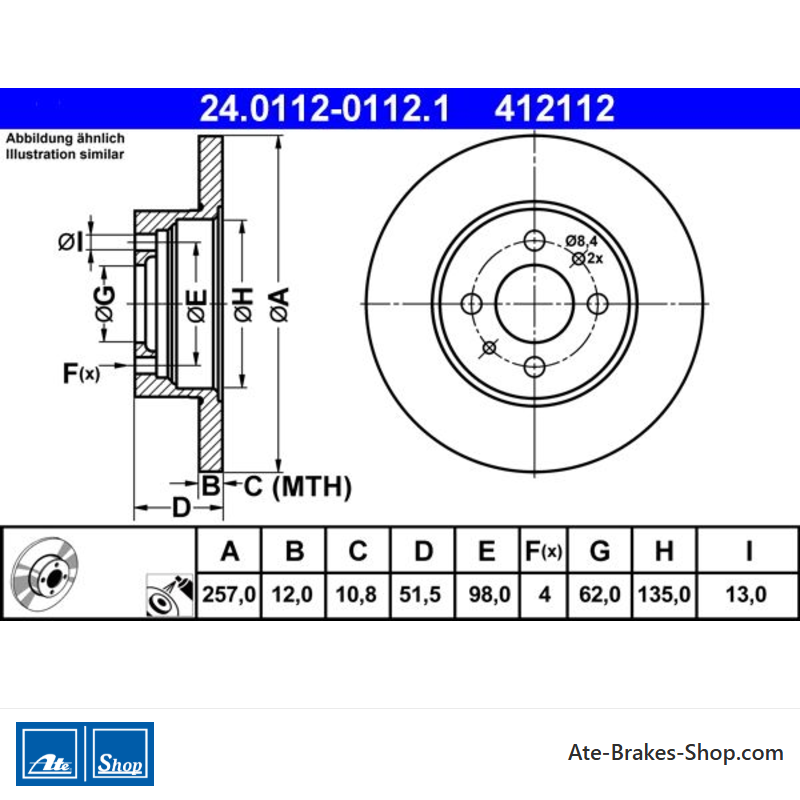

24.0112-0112.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Fiat
Lancia - Handelsnummer
- 412112
- Herkunftsland
- EU
- Höhe
- 51,5
- Außendurchmesser [mm]
- 257,0
- Bremsscheibendicke [mm]
- 12,0
- Bremsscheibentyp
- Solide
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 98,0
- Zentrierungsdurchmesser [mm]
- 62,0
- Innendurchmesser [mm]
- 135,0
- Bohrdurchmesser [mm]
- 13,0
- Mindestdicke [mm]
- 10,8
Spezifische Referenzen
- ean13
- 4006633055895
- Hersteller-Teilenummer (MPN)
- 2401120112101
ATE 24.0112-0112.1
(240112-01121)
- Außendurchmesser [mm]: 257,0
- Innendurchmesser [mm]: 135,0
- Bremsscheibendicke [mm]: 12,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 412112
