ATE Original 2 Teile Bremsscheibe (24011201221) für Fiat, Lancia
61,71 €
(inkl. MwSt.)
51,00 € Steuerexzl.
Teilenummer:
ATE 24.0112-0122.1
(240112-01221)
- Außendurchmesser [mm]: 240,0
- Innendurchmesser [mm]: 127,5
- Bremsscheibendicke [mm]: 12,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 412122
Logistische Informationen:
- Ean-Code: 4006633127189
- Gewicht: 7.68kg
Specification of ATE 24.0112-0122.1 / 240112-01221 / 24011201221:
| OE Number | Reference info |
| FIAT 5961814 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 71738423 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| AUTOBIANCHI Y10 Construction Year from 198506 Construction Year to 198912 Fitting Position Front Axle | 1985-03 - 1995-10 | 63 | 85 | 1049 | Hatchback |
| AUTOBIANCHI Y10 Fitting Position Front Axle | 1989-06 - 1995-10 | 54 | 73 | 1297 | Hatchback |
| AUTOBIANCHI Y10 Fitting Position Front Axle | 1989-06 - 1995-10 | 57 | 78 | 1301 | Hatchback |
| FIAT DUNA (146_) Construction Year from 198703 Construction Year to 199012 Fitting Position Front Axle | 1987-01 - 1991-12 | 43 | 58 | 1116 | Saloon |
| FIAT DUNA (146_) Construction Year from 198703 Construction Year to 199012 Fitting Position Front Axle | 1987-01 - 1991-12 | 49 | 67 | 1301 | Saloon |
| FIAT DUNA (146_) Construction Year from 198703 Construction Year to 199012 Fitting Position Front Axle | 1987-01 - 1991-12 | 44 | 60 | 1698 | Saloon |
| FIAT DUNA Weekend (146_) Construction Year from 198703 Construction Year to 199012 Fitting Position Front Axle | 1987-01 - 1991-12 | 43 | 58 | 1116 | Estate |
| FIAT DUNA Weekend (146_) Construction Year from 198703 Construction Year to 199012 Fitting Position Front Axle | 1987-01 - 1991-12 | 49 | 67 | 1301 | Estate |
| FIAT DUNA Weekend (146_) Construction Year from 198703 Construction Year to 199012 Fitting Position Front Axle | 1987-01 - 1991-12 | 44 | 60 | 1698 | Estate |
| FIAT FIORINO Pick up (147_) Construction Year from 198809 Fitting Position Front Axle | 1986-12 - 1989-10 | 41 | 56 | 1049 | Pickup |
| FIAT FIORINO Pick up (146_) Construction Year from 198809 Construction Year to 199308 Fitting Position Front Axle | 1988-01 - 1994-12 | 49 | 67 | 1301 | Pickup |
| FIAT FIORINO Pick up (146_) Construction Year to 200103 Fitting Position Front Axle | 1994-05 - 2001-05 | 49 | 67 | 1372 | Pickup |
| FIAT FIORINO Pick up (146_) Construction Year to 200103 Fitting Position Front Axle | 1994-01 - 2001-05 | 55 | 75 | 1581 | Pickup |
| FIAT FIORINO Pick up (146_) Fitting Position Front Axle | 1993-10 - 1999-10 | 42 | 57 | 1697 | Pickup |
| FIAT FIORINO Pick up (146_) Construction Year from 199309 Fitting Position Front Axle | 1988-05 - 1999-10 | 44 | 60 | 1698 | Pickup |
| FIAT FIORINO Pick up (146_) Construction Year to 200103 Fitting Position Front Axle | 1997-01 - 2001-05 | 46 | 63 | 1698 | Pickup |
| FIAT PANDA (141_) Transmission Type Automatic Transmission Fitting Position Front Axle | 1991-05 - 1999-12 | 37 | 50 | 1108 | Hatchback |
| FIAT PANDA (141_) Construction Year to 200212 Transmission Type Automatic Transmission Fitting Position Front Axle | 1995-02 - 2003-09 | 40 | 54 | 1108 | Hatchback |
| FIAT UNO (146_, 158_) Construction Year from 198910 Fitting Position Front Axle | 1985-10 - 1993-12 | 55 | 75 | 1498 | Hatchback |
| FIAT UNO (146_, 158_) Construction Year to 198909 Fitting Position Front Axle | 1985-10 - 1993-12 | 55 | 75 | 1498 | Hatchback |
| FIAT UNO (146_, 158_) Construction Year from 198910 Fitting Position Front Axle | 1986-10 - 1990-10 | 52 | 71 | 1367 | Hatchback |
| FIAT FIORINO (147_) Construction Year from 198809 Fitting Position Front Axle | 1987-12 - 1993-08 | 49 | 67 | 1301 | Box Body/MPV |
| FIAT FIORINO Box Body/MPV (146_) Construction Year from 198809 Construction Year to 199308 Fitting Position Front Axle | 1988-05 - 1993-12 | 40 | 54 | 1116 | Box Body/MPV |
| FIAT FIORINO Box Body/MPV (146_) Construction Year from 199309 Fitting Position Front Axle | 1988-01 - 1994-12 | 49 | 67 | 1301 | Box Body/MPV |
| FIAT FIORINO Box Body/MPV (146_) Construction Year to 200103 Fitting Position Front Axle | 1994-05 - 2001-05 | 49 | 67 | 1372 | Box Body/MPV |
| FIAT FIORINO Box Body/MPV (146_) Construction Year from 198809 Construction Year to 199308 Fitting Position Front Axle | 1988-05 - 1993-12 | 55 | 75 | 1498 | Box Body/MPV |
| FIAT FIORINO Box Body/MPV (146_) Construction Year to 200103 Fitting Position Front Axle | 1993-10 - 2001-05 | 55 | 75 | 1581 | Box Body/MPV |
| FIAT FIORINO Box Body/MPV (146_) Construction Year from 198809 Construction Year to 199308 Fitting Position Front Axle | 1988-05 - 1996-10 | 42 | 57 | 1697 | Box Body/MPV |
| FIAT FIORINO Box Body/MPV (146_) Construction Year from 199309 Fitting Position Front Axle | 1988-05 - 1996-10 | 42 | 57 | 1697 | Box Body/MPV |
| FIAT FIORINO Box Body/MPV (146_) Fitting Position Front Axle | 1996-11 - 2000-05 | 46 | 63 | 1697 | Box Body/MPV |
| FIAT FIORINO Box Body/MPV (146_) Construction Year from 198809 Construction Year to 199308 Fitting Position Front Axle | 1988-05 - 2000-05 | 44 | 60 | 1698 | Box Body/MPV |
| FIAT FIORINO Box Body/MPV (146_) Construction Year from 199309 Fitting Position Front Axle | 1988-05 - 2000-05 | 44 | 60 | 1698 | Box Body/MPV |
| FIAT FIORINO Box Body/MPV (146_) Construction Year to 200103 Fitting Position Front Axle | 1997-01 - 2001-05 | 46 | 63 | 1698 | Box Body/MPV |
| FIAT PANDA Hatchback Van (141_) Construction Year to 200212 Transmission Type Automatic Transmission Fitting Position Front Axle | 2000-09 - 2004-02 | 40 | 54 | 1108 | Hatchback Van |
| LANCIA Y10 (156_) Construction Year from 198506 Fitting Position Front Axle | 1985-03 - 1989-02 | 62 | 84 | 1049 | Hatchback |
| LANCIA Y10 (156_) Fitting Position Front Axle | 1989-02 - 1995-12 | 53 | 72 | 1297 | Hatchback |

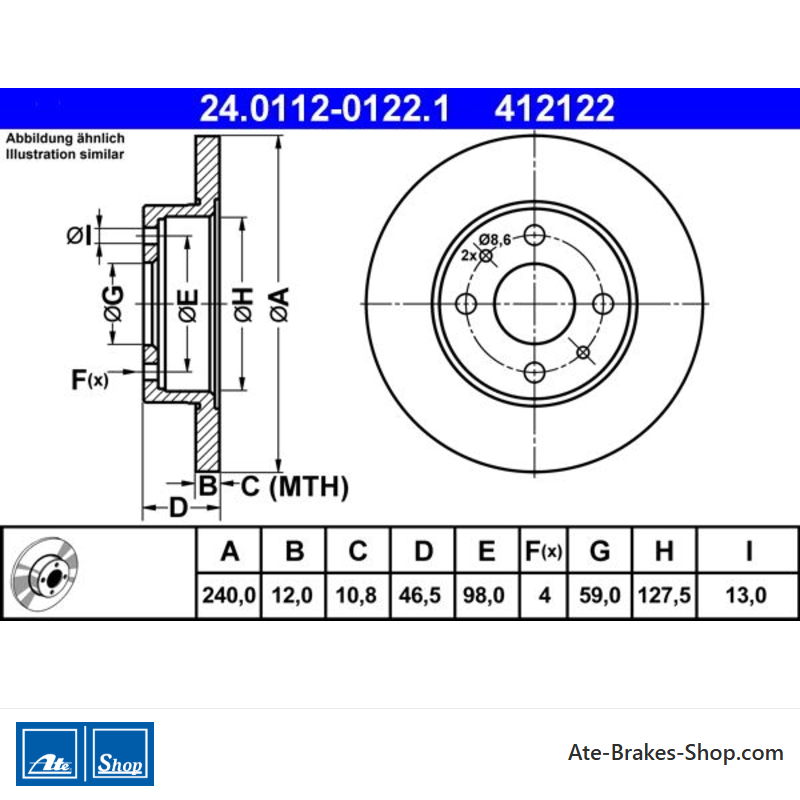

24.0112-0122.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Fiat
Lancia - Handelsnummer
- 412122
- Herkunftsland
- EU
- Höhe
- 46,5
- Außendurchmesser [mm]
- 240,0
- Bremsscheibendicke [mm]
- 12,0
- Bremsscheibentyp
- Solide
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 98,0
- Zentrierungsdurchmesser [mm]
- 59,0
- Innendurchmesser [mm]
- 127,5
- Bohrdurchmesser [mm]
- 13,0
- Mindestdicke [mm]
- 10,8
Spezifische Referenzen
- ean13
- 4006633127189
- Hersteller-Teilenummer (MPN)
- 2401120122101
ATE 24.0112-0122.1
(240112-01221)
- Außendurchmesser [mm]: 240,0
- Innendurchmesser [mm]: 127,5
- Bremsscheibendicke [mm]: 12,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 412122
