ATE Originale zweiteilige Bremsscheibe (24011201411) für Ford, Mazda
50,82 €
(inkl. MwSt.)
42,00 € Steuerexzl.
Teilenummer:
ATE 24.0112-0141.1
(240112-01411)
- Außendurchmesser [mm]: 239,5
- Innendurchmesser [mm]: 136,0
- Bremsscheibendicke [mm]: 12,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 412141
Logistische Informationen:
- Ean-Code: 4006633068147
- Gewicht: 7.40kg

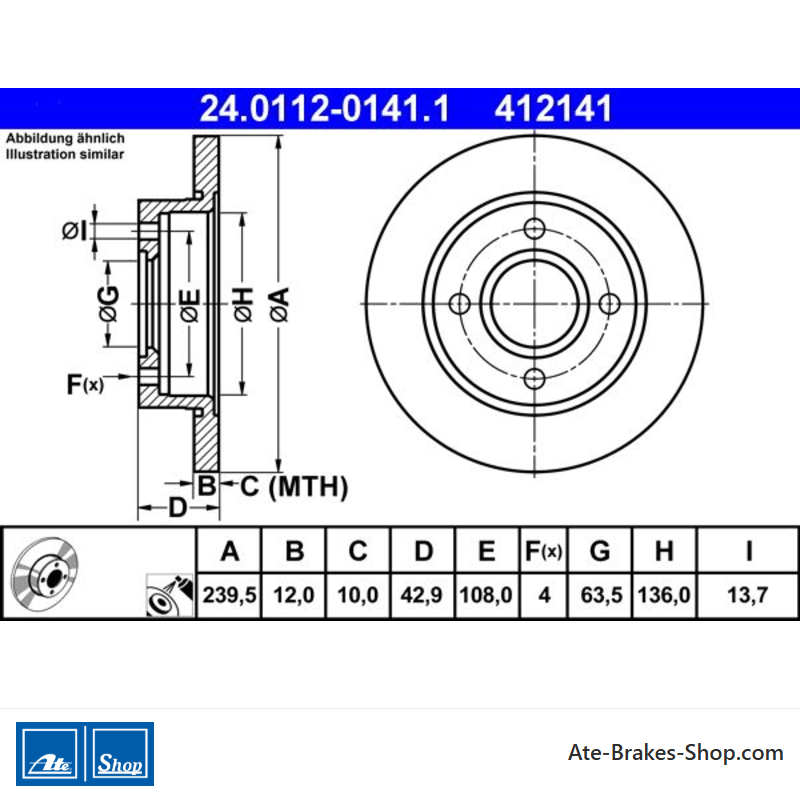

Specification of ATE 24.0112-0141.1 / 240112-01411 / 24011201411:
| OE Number | Reference info |
| FORD 1019598 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1013581 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1112542 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA 1E03-33-251 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA 1E03-33-251A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA 1E04-33-251 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD FIESTA III (GFJ) Construction Year from 199511 Fitting Position Front Axle | 1989-03 - 1995-12 | 33 | 45 | 1001 | Hatchback |
| FORD FIESTA III (GFJ) Construction Year from 199511 Fitting Position Front Axle | 1989-03 - 1995-12 | 37 | 50 | 1119 | Hatchback |
| FORD FIESTA III (GFJ) Construction Year from 199511 Fitting Position Front Axle | 1989-03 - 1995-12 | 40 | 55 | 1119 | Hatchback |
| FORD FIESTA III (GFJ) Construction Year from 199511 Fitting Position Front Axle | 1989-03 - 1995-12 | 44 | 60 | 1299 | Hatchback |
| FORD FIESTA III (GFJ) Construction Year from 199511 Construction Year to 199611 Fitting Position Front Axle | 1991-05 - 1997-01 | 44 | 60 | 1299 | Hatchback |
| FORD FIESTA III (GFJ) Construction Year from 199511 Fitting Position Front Axle | 1989-03 - 1995-12 | 52 | 71 | 1391 | Hatchback |
| FORD FIESTA III (GFJ) Construction Year from 199511 Fitting Position Front Axle | 1989-03 - 1995-12 | 54 | 73 | 1392 | Hatchback |
| FORD FIESTA III (GFJ) Construction Year from 199511 Fitting Position Front Axle | 1994-01 - 1995-12 | 65 | 88 | 1597 | Hatchback |
| FORD FIESTA III (GFJ) Construction Year from 199511 Fitting Position Front Axle | 1992-02 - 1995-12 | 77 | 105 | 1796 | Hatchback |
| FORD FIESTA III (GFJ) Construction Year from 199511 Fitting Position Front Axle | 1992-02 - 1995-12 | 96 | 130 | 1796 | Hatchback |
| FORD FIESTA III (GFJ) Construction Year from 199511 Fitting Position Front Axle | 1989-03 - 1995-12 | 44 | 60 | 1753 | Hatchback |
| FORD FIESTA IV (JA_, JB_) Construction Year from 199601 Construction Year to 200001 Transmission Type Manual Transmission Fitting Position Front Axle | 1995-08 - 2002-01 | 55 | 75 | 1242 | Hatchback |
| FORD FIESTA IV (JA_, JB_) Construction Year from 199601 Construction Year to 200001 Fitting Position Front Axle | 1995-08 - 2002-01 | 37 | 50 | 1299 | Hatchback |
| FORD FIESTA IV (JA_, JB_) Construction Year from 199601 Construction Year to 200001 Fitting Position Front Axle | 1995-08 - 2002-01 | 44 | 60 | 1299 | Hatchback |
| FORD FIESTA IV (JA_, JB_) Construction Year from 199601 Construction Year to 200001 Fitting Position Front Axle | 1995-08 - 2000-04 | 44 | 60 | 1753 | Hatchback |
| FORD KA (RB_) Construction Year to 200001 Fitting Position Front Axle | 1998-06 - 2008-11 | 36 | 49 | 1299 | Hatchback |
| FORD KA (RB_) Construction Year from 199611 Construction Year to 200001 Fitting Position Front Axle | 1996-09 - 2002-10 | 37 | 50 | 1299 | Hatchback |
| FORD KA (RB_) Construction Year from 199611 Construction Year to 200001 Fitting Position Front Axle | 1996-09 - 2008-11 | 44 | 60 | 1299 | Hatchback |
| FORD FIESTA Hatchback Van (FVD) Construction Year from 199511 Fitting Position Front Axle | 1989-03 - 1995-12 | 44 | 60 | 1753 | Hatchback Van |
| FORD COURIER Box Body/MPV (F3L, F5L) Construction Year from 199511 Fitting Position Front Axle | 1991-09 - 1996-02 | 44 | 60 | 1299 | Box Body/MPV |
| FORD COURIER Box Body/MPV (F3L, F5L) Construction Year from 199511 Fitting Position Front Axle | 1991-09 - 1996-02 | 44 | 60 | 1753 | Box Body/MPV |
| MAZDA 121 III (JASM, JBSM) Construction Year to 200001 Transmission Type Manual Transmission Fitting Position Front Axle | 1996-03 - 2003-04 | 55 | 75 | 1242 | Hatchback |
| MAZDA 121 III (JASM, JBSM) Construction Year to 200001 Fitting Position Front Axle | 1996-03 - 2003-04 | 37 | 50 | 1299 | Hatchback |
| MAZDA 121 III (JASM, JBSM) Construction Year to 200001 Fitting Position Front Axle | 1996-03 - 2003-04 | 44 | 60 | 1299 | Hatchback |
| MAZDA 121 III (JASM, JBSM) Construction Year to 200001 Fitting Position Front Axle | 1996-03 - 2003-04 | 44 | 60 | 1753 | Hatchback |
| MAZDA 121 III (JASM, JBSM) Fitting Position Front Axle Braking/Driving Dynamics for vehicles without ABS | 2000-02 - 2002-10 | 55 | 75 | 1753 | Hatchback |
24.0112-0141.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Ford
Mazda - Handelsnummer
- 412141
- Herkunftsland
- QU
- Höhe
- 42,9
- Außendurchmesser [mm]
- 239,5
- Bremsscheibendicke [mm]
- 12,0
- Bremsscheibentyp
- Solide
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 108,0
- Zentrierungsdurchmesser [mm]
- 63,5
- Innendurchmesser [mm]
- 136,0
- Bohrdurchmesser [mm]
- 13,7
- Mindestdicke [mm]
- 10,0
Spezifische Referenzen
- ean13
- 4006633068147
- Hersteller-Teilenummer (MPN)
- 2401120141101
ATE 24.0112-0141.1
(240112-01411)
- Außendurchmesser [mm]: 239,5
- Innendurchmesser [mm]: 136,0
- Bremsscheibendicke [mm]: 12,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 412141
