ATE Originale zweiteilige Bremsscheibe (24011201531) für Opel, Suzuki
76,23 €
(inkl. MwSt.)
63,00 € Steuerexzl.
Teilenummer:
ATE 24.0112-0153.1
(240112-01531)
- Außendurchmesser [mm]: 247,0
- Innendurchmesser [mm]: 125,0
- Bremsscheibendicke [mm]: 12,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 412153
Logistische Informationen:
- Ean-Code: 4006633092050
- Gewicht: 8.16kg
Specification of ATE 24.0112-0153.1 / 240112-01531 / 24011201531:
| OE Number | Reference info |
| OPEL 47 00 711 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 4700711 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 9193872 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55311-83E00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 9193872 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 47 00 711 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 4700711 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| OPEL AGILA A (H00) Vehicle Identification Number (VIN) to 3G002367 Fitting Position Front Axle | 2000-09 - 2007-12 | 43 | 58 | 973 | Hatchback |
| OPEL AGILA A (H00) Vehicle Identification Number (VIN) to 3G002367 Fitting Position Front Axle | 2003-08 - 2007-12 | 44 | 60 | 998 | Hatchback |
| OPEL AGILA A (H00) Vehicle Identification Number (VIN) to 3G002367 Fitting Position Front Axle | 2000-09 - 2007-12 | 55 | 75 | 1199 | Hatchback |
| OPEL AGILA A (H00) Vehicle Identification Number (VIN) to 3G002367 Fitting Position Front Axle | 2004-07 - 2007-12 | 59 | 80 | 1229 | Hatchback |
| OPEL AGILA A (H00) Vehicle Identification Number (VIN) to 3G002367 Fitting Position Front Axle | 2003-08 - 2007-12 | 51 | 70 | 1248 | Hatchback |
| SUZUKI WAGON R+ (MA) Fitting Position Front Axle | 2001-07 - 2006-12 | 39 | 53 | 993 | Hatchback |
| SUZUKI WAGON R+ (MA) Vehicle Identification Number (VIN) to 210000 Fitting Position Front Axle | 2000-05 - 2004-12 | 56 | 76 | 1298 | Hatchback |
| SUZUKI WAGON R+ (MA) Vehicle Identification Number (VIN) to 210000 Fitting Position Front Axle | 2001-10 - | 56 | 76 | 1298 | Hatchback |
| SUZUKI WAGON R+ (MA) Fitting Position Front Axle Vehicle Identification Number (VIN) to TSMMMA53S00210000 | 2003-09 - 2006-08 | 69 | 94 | 1328 | Hatchback |
| SUZUKI WAGON R+ (MA) Fitting Position Front Axle Vehicle Identification Number (VIN) to TSMMMA53S00210000 | 2003-09 - | 69 | 94 | 1328 | Hatchback |

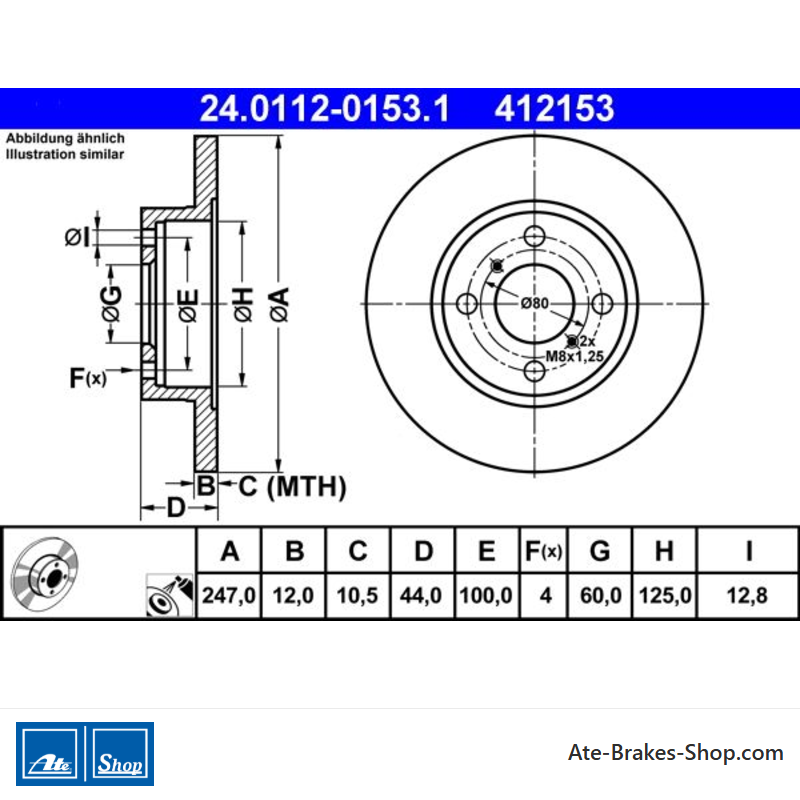

24.0112-0153.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Opel
Suzuki - Handelsnummer
- 412153
- Herkunftsland
- Tschechien
- Höhe
- 44,0
- Außendurchmesser [mm]
- 247,0
- Bremsscheibendicke [mm]
- 12,0
- Bremsscheibentyp
- Solide
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 100,0
- Zentrierungsdurchmesser [mm]
- 60,0
- Innendurchmesser [mm]
- 125,0
- Bohrdurchmesser [mm]
- 12,8
- Mindestdicke [mm]
- 10,5
Spezifische Referenzen
- ean13
- 4006633092050
- Hersteller-Teilenummer (MPN)
- 2401120153102
ATE 24.0112-0153.1
(240112-01531)
- Außendurchmesser [mm]: 247,0
- Innendurchmesser [mm]: 125,0
- Bremsscheibendicke [mm]: 12,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 412153
