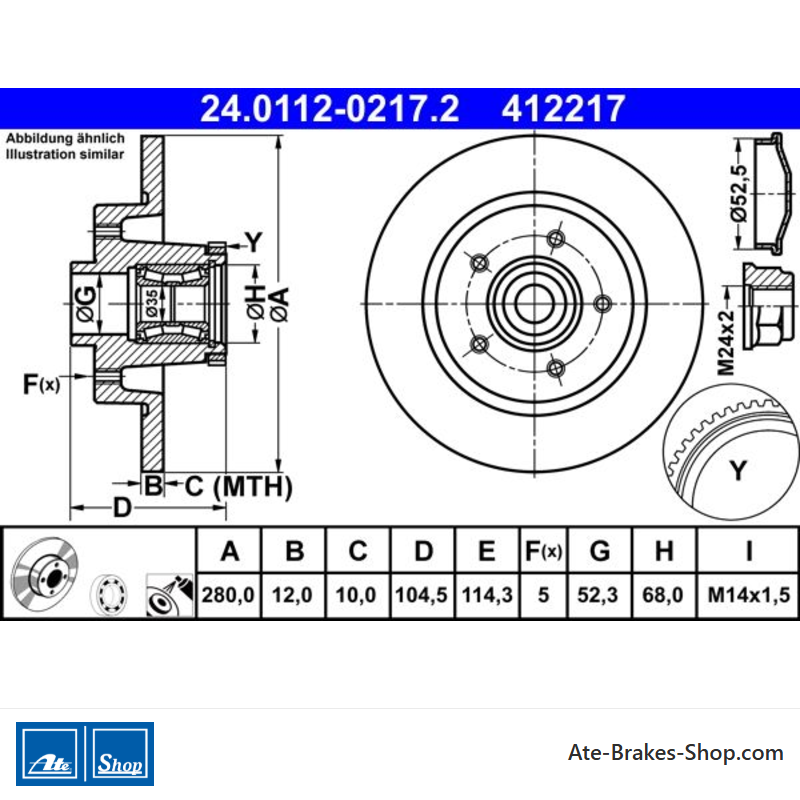

ATE Originale Bremsscheibe (24011202172) für Fiat, Nissan, Opel, Renault
286,77 €
(inkl. MwSt.)
237,00 € Steuerexzl.
Teilenummer:
ATE 24.0112-0217.2
(240112-02172)
- Außendurchmesser [mm]: 280,0
- Innendurchmesser [mm]: 68,0
- Bremsscheibendicke [mm]: 12,0
- Anzahl der Bolzenlöcher: 5
- Handelsnummer: 412217
Logistische Informationen:
- Ean-Code: 4006633426428
- Gewicht: 9.24kg
Specification of ATE 24.0112-0217.2 / 240112-02172 / 24011202172:
| OE Number | Reference info |
| FIAT 6000620071 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| NISSAN 43206-00Q0H | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| NISSAN 43206-00Q0M | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 44 22 288 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 4422288 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 95516956 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 43 20 073 43R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 432007343R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 43 20 227 42R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 432022742R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 44 22 288 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 4422288 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 95516956 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FIAT TALENTO Van (296_) Fitting Position Rear Axle | 2016-06 - | 70 | 95 | 1598 | Van |
| FIAT TALENTO Van (296_) Fitting Position Rear Axle | 2016-06 - | 85 | 115 | 1598 | Van |
| FIAT TALENTO Van (296_) Fitting Position Rear Axle | 2016-06 - | 89 | 121 | 1598 | Van |
| FIAT TALENTO Van (296_) Fitting Position Rear Axle | 2016-06 - | 92 | 125 | 1598 | Van |
| FIAT TALENTO Van (296_) Fitting Position Rear Axle | 2016-06 - | 107 | 145 | 1598 | Van |
| FIAT TALENTO Van (296_) Fitting Position Rear Axle | 2019-07 - | 88 | 120 | 1997 | Van |
| FIAT TALENTO Van (296_) Fitting Position Rear Axle | 2019-07 - | 107 | 145 | 1997 | Van |
| FIAT TALENTO Van (296_) Fitting Position Rear Axle | 2019-07 - | 125 | 170 | 1997 | Van |
| FIAT TALENTO Platform/Chassis (296_) Fitting Position Rear Axle | 2016-06 - | 89 | 121 | 1598 | Platform/Chassis |
| FIAT TALENTO Platform/Chassis (296_) Fitting Position Rear Axle | 2016-06 - | 92 | 125 | 1598 | Platform/Chassis |
| FIAT TALENTO Platform/Chassis (296_) Fitting Position Rear Axle | 2016-06 - | 107 | 145 | 1598 | Platform/Chassis |
| FIAT TALENTO Platform/Chassis (296_) Fitting Position Rear Axle | 2019-07 - | 107 | 145 | 1997 | Platform/Chassis |
| FIAT TALENTO Platform/Chassis (296_) Fitting Position Rear Axle | 2019-07 - | 125 | 170 | 1997 | Platform/Chassis |
| FIAT TALENTO Bus (296_) Fitting Position Rear Axle | 2016-06 - | 70 | 95 | 1598 | Bus |
| FIAT TALENTO Bus (296_) Fitting Position Rear Axle | 2018-05 - | 89 | 121 | 1598 | Bus |
| FIAT TALENTO Bus (296_) Fitting Position Rear Axle | 2016-06 - | 92 | 125 | 1598 | Bus |
| FIAT TALENTO Bus (296_) Fitting Position Rear Axle | 2016-06 - | 107 | 145 | 1598 | Bus |
| FIAT TALENTO Bus (296_) Fitting Position Rear Axle | 2019-07 - | 88 | 120 | 1997 | Bus |
| FIAT TALENTO Bus (296_) Fitting Position Rear Axle | 2019-07 - | 107 | 145 | 1997 | Bus |
| NISSAN NV300 Van (X82) Fitting Position Rear Axle | 2016-09 - | 70 | 95 | 1598 | Van |
| NISSAN NV300 Van (X82) Fitting Position Rear Axle | 2016-09 - | 89 | 121 | 1598 | Van |
| NISSAN NV300 Van (X82) Fitting Position Rear Axle | 2016-09 - | 92 | 125 | 1598 | Van |
| NISSAN NV300 Van (X82) Fitting Position Rear Axle | 2016-09 - | 107 | 146 | 1598 | Van |
| NISSAN NV300 Van (X82) Fitting Position Rear Axle | 2021-05 - | 81 | 110 | 1997 | Van |
| NISSAN NV300 Van (X82) Fitting Position Rear Axle | 2019-07 - | 88 | 120 | 1997 | Van |
| NISSAN NV300 Van (X82) Fitting Position Rear Axle | 2019-07 - | 107 | 145 | 1997 | Van |
| NISSAN NV300 Van (X82) Fitting Position Rear Axle | 2021-05 - | 110 | 150 | 1997 | Van |
| NISSAN NV300 Van (X82) Fitting Position Rear Axle | 2019-07 - | 125 | 170 | 1997 | Van |
| NISSAN NV300 Platform/Chassis (X82) Fitting Position Rear Axle | 2016-09 - | 92 | 125 | 1598 | Platform/Chassis |
| NISSAN NV300 Platform/Chassis (X82) Fitting Position Rear Axle | 2016-09 - | 107 | 146 | 1598 | Platform/Chassis |
| NISSAN NV300 Platform/Chassis (X82) Fitting Position Rear Axle | 2019-07 - | 107 | 145 | 1997 | Platform/Chassis |
| NISSAN NV300 Platform/Chassis (X82) Fitting Position Rear Axle | 2019-07 - | 125 | 170 | 1997 | Platform/Chassis |
| NISSAN NV300 Kombi (X82) Fitting Position Rear Axle | 2016-09 - | 70 | 95 | 1598 | Bus |
| NISSAN NV300 Kombi (X82) Fitting Position Rear Axle | 2016-09 - | 89 | 121 | 1598 | Bus |
| NISSAN NV300 Kombi (X82) Fitting Position Rear Axle | 2016-09 - | 92 | 125 | 1598 | Bus |
| NISSAN NV300 Kombi (X82) Fitting Position Rear Axle | 2016-09 - | 107 | 145 | 1598 | Bus |
| NISSAN NV300 Kombi (X82) Fitting Position Rear Axle | 2021-05 - | 81 | 110 | 1997 | Bus |
| NISSAN NV300 Kombi (X82) Fitting Position Rear Axle | 2019-07 - | 88 | 120 | 1997 | Bus |
| NISSAN NV300 Kombi (X82) Fitting Position Rear Axle | 2019-07 - | 107 | 145 | 1997 | Bus |
| NISSAN NV300 Kombi (X82) Fitting Position Rear Axle | 2021-05 - | 110 | 150 | 1997 | Bus |
| NISSAN NV300 Kombi (X82) Fitting Position Rear Axle | 2019-07 - | 125 | 170 | 1997 | Bus |
| NISSAN PRIMASTAR Van (X82) Fitting Position Rear Axle | 2021-11 - | 81 | 110 | 1997 | Van |
| NISSAN PRIMASTAR Van (X82) Fitting Position Rear Axle | 2021-11 - | 96 | 131 | 1997 | Van |
| NISSAN PRIMASTAR Van (X82) Fitting Position Rear Axle | 2021-11 - | 110 | 150 | 1997 | Van |
| NISSAN PRIMASTAR Van (X82) Fitting Position Rear Axle | 2021-11 - | 125 | 170 | 1997 | Van |
| NISSAN PRIMASTAR Bus (X82) Fitting Position Rear Axle | 2021-11 - | 81 | 110 | 1997 | Bus |
| NISSAN PRIMASTAR Bus (X82) Fitting Position Rear Axle | 2021-11 - | 110 | 150 | 1997 | Bus |
| NISSAN PRIMASTAR Bus (X82) Fitting Position Rear Axle | 2021-11 - | 125 | 170 | 1997 | Bus |
| OPEL VIVARO B Van (X82) Construction Year from 201407 Fitting Position Rear Axle | 2014-06 - 2016-12 | 66 | 90 | 1598 | Van |
| OPEL VIVARO B Van (X82) Fitting Position Rear Axle | 2016-03 - 2019-12 | 70 | 95 | 1598 | Van |
| OPEL VIVARO B Van (X82) Construction Year from 201407 Fitting Position Rear Axle | 2014-06 - 2016-12 | 85 | 116 | 1598 | Van |
| OPEL VIVARO B Van (X82) Construction Year from 201407 Fitting Position Rear Axle | 2014-06 - 2019-12 | 88 | 120 | 1598 | Van |
| OPEL VIVARO B Van (X82) Fitting Position Rear Axle | 2016-03 - 2019-12 | 89 | 121 | 1598 | Van |
| OPEL VIVARO B Van (X82) Fitting Position Rear Axle | 2016-03 - 2019-12 | 92 | 125 | 1598 | Van |
| OPEL VIVARO B Van (X82) Construction Year from 201407 Fitting Position Rear Axle | 2014-06 - 2016-12 | 103 | 140 | 1598 | Van |
| OPEL VIVARO B Van (X82) Fitting Position Rear Axle | 2016-03 - 2019-12 | 107 | 146 | 1598 | Van |
| OPEL VIVARO B Platform/Chassis (X82) Construction Year from 201407 Fitting Position Rear Axle | 2014-06 - 2016-12 | 85 | 116 | 1598 | Platform/Chassis |
| OPEL VIVARO B Platform/Chassis (X82) Fitting Position Rear Axle | 2015-08 - 2019-12 | 88 | 120 | 1598 | Platform/Chassis |
| OPEL VIVARO B Platform/Chassis (X82) Fitting Position Rear Axle | 2016-11 - 2019-12 | 92 | 125 | 1598 | Platform/Chassis |
| OPEL VIVARO B Platform/Chassis (X82) Fitting Position Rear Axle | 2015-08 - 2016-12 | 103 | 140 | 1598 | Platform/Chassis |
| OPEL VIVARO B Platform/Chassis (X82) Fitting Position Rear Axle | 2016-11 - 2019-12 | 107 | 146 | 1598 | Platform/Chassis |
| OPEL VIVARO B Bus (X82) Construction Year from 201407 Fitting Position Rear Axle | 2014-06 - 2016-12 | 66 | 90 | 1598 | Bus |
| OPEL VIVARO B Bus (X82) Fitting Position Rear Axle | 2015-04 - 2019-12 | 70 | 95 | 1598 | Bus |
| OPEL VIVARO B Bus (X82) Construction Year from 201407 Fitting Position Rear Axle | 2014-06 - 2016-12 | 85 | 116 | 1598 | Bus |
| OPEL VIVARO B Bus (X82) Construction Year from 201407 Fitting Position Rear Axle | 2014-06 - 2019-12 | 88 | 120 | 1598 | Bus |
| OPEL VIVARO B Bus (X82) Fitting Position Rear Axle | 2019-01 - 2019-12 | 89 | 121 | 1598 | Bus |
| OPEL VIVARO B Bus (X82) Fitting Position Rear Axle | 2015-04 - 2019-12 | 92 | 125 | 1598 | Bus |
| OPEL VIVARO B Bus (X82) Construction Year from 201407 Fitting Position Rear Axle | 2014-06 - 2016-12 | 103 | 140 | 1598 | Bus |
| OPEL VIVARO B Bus (X82) Fitting Position Rear Axle | 2015-04 - 2019-12 | 107 | 145 | 1598 | Bus |
| RENAULT TRAFIC III Van (FG_) Fitting Position Rear Axle | 2023-05 - | 90 | 122 | CC | Van |
| RENAULT TRAFIC III Van (FG_) Fitting Position Rear Axle | 2014-05 - | 66 | 90 | 1598 | Van |
| RENAULT TRAFIC III Van (FG_) Fitting Position Rear Axle | 2015-07 - | 70 | 95 | 1598 | Van |
| RENAULT TRAFIC III Van (FG_) Fitting Position Rear Axle | 2014-05 - | 85 | 116 | 1598 | Van |
| RENAULT TRAFIC III Van (FG_) Fitting Position Rear Axle | 2014-05 - | 88 | 120 | 1598 | Van |
| RENAULT TRAFIC III Van (FG_) Fitting Position Rear Axle | 2015-07 - | 89 | 121 | 1598 | Van |
| RENAULT TRAFIC III Van (FG_) Fitting Position Rear Axle | 2015-07 - | 92 | 125 | 1598 | Van |
| RENAULT TRAFIC III Van (FG_) Fitting Position Rear Axle | 2014-05 - | 103 | 140 | 1598 | Van |
| RENAULT TRAFIC III Van (FG_) Fitting Position Rear Axle | 2015-07 - | 107 | 145 | 1598 | Van |
| RENAULT TRAFIC III Van (FG_) Fitting Position Rear Axle | 2021-08 - | 81 | 110 | 1997 | Van |
| RENAULT TRAFIC III Van (FG_) Fitting Position Rear Axle | 2019-06 - | 88 | 120 | 1997 | Van |
| RENAULT TRAFIC III Van (FG_) Fitting Position Rear Axle | 2021-08 - | 96 | 131 | 1997 | Van |
| RENAULT TRAFIC III Van (FG_) Fitting Position Rear Axle | 2019-06 - | 107 | 145 | 1997 | Van |
| RENAULT TRAFIC III Van (FG_) Fitting Position Rear Axle | 2021-08 - | 110 | 150 | 1997 | Van |
| RENAULT TRAFIC III Van (FG_) Fitting Position Rear Axle | 2019-06 - | 125 | 170 | 1997 | Van |
| RENAULT TRAFIC III Platform/Chassis (EG_) Fitting Position Rear Axle | 2023-05 - | 90 | 122 | CC | Platform/Chassis |
| RENAULT TRAFIC III Platform/Chassis (EG_) Fitting Position Rear Axle | 2014-06 - | 88 | 120 | 1598 | Platform/Chassis |
| RENAULT TRAFIC III Platform/Chassis (EG_) Fitting Position Rear Axle | 2015-07 - | 92 | 125 | 1598 | Platform/Chassis |
| RENAULT TRAFIC III Platform/Chassis (EG_) Fitting Position Rear Axle | 2014-06 - | 103 | 140 | 1598 | Platform/Chassis |
| RENAULT TRAFIC III Platform/Chassis (EG_) Fitting Position Rear Axle | 2015-07 - | 107 | 145 | 1598 | Platform/Chassis |
| RENAULT TRAFIC III Platform/Chassis (EG_) Fitting Position Rear Axle | 2019-06 - | 107 | 145 | 1997 | Platform/Chassis |
| RENAULT TRAFIC III Platform/Chassis (EG_) Fitting Position Rear Axle | 2021-08 - | 110 | 150 | 1997 | Platform/Chassis |
| RENAULT TRAFIC III Platform/Chassis (EG_) Fitting Position Rear Axle | 2019-06 - | 125 | 170 | 1997 | Platform/Chassis |
| RENAULT TRAFIC III Bus (JG_) Fitting Position Rear Axle | 2014-05 - | 66 | 90 | 1598 | Bus |
| RENAULT TRAFIC III Bus (JG_) Fitting Position Rear Axle | 2015-07 - | 70 | 95 | 1598 | Bus |
| RENAULT TRAFIC III Bus (JG_) Fitting Position Rear Axle | 2014-05 - | 85 | 116 | 1598 | Bus |
| RENAULT TRAFIC III Bus (JG_) Fitting Position Rear Axle | 2014-05 - | 88 | 120 | 1598 | Bus |
| RENAULT TRAFIC III Bus (JG_) Fitting Position Rear Axle | 2019-01 - | 89 | 121 | 1598 | Bus |
| RENAULT TRAFIC III Bus (JG_) Fitting Position Rear Axle | 2015-07 - | 92 | 125 | 1598 | Bus |
| RENAULT TRAFIC III Bus (JG_) Fitting Position Rear Axle | 2014-05 - | 103 | 140 | 1598 | Bus |
| RENAULT TRAFIC III Bus (JG_) Fitting Position Rear Axle | 2015-07 - | 107 | 145 | 1598 | Bus |
| RENAULT TRAFIC III Bus (JG_) Fitting Position Rear Axle | 2021-05 - | 81 | 110 | 1997 | Bus |
| RENAULT TRAFIC III Bus (JG_) Fitting Position Rear Axle | 2019-06 - | 88 | 120 | 1997 | Bus |
| RENAULT TRAFIC III Bus (JG_) Fitting Position Rear Axle | 2019-06 - | 107 | 145 | 1997 | Bus |
| RENAULT TRAFIC III Bus (JG_) Fitting Position Rear Axle | 2021-05 - | 110 | 150 | 1997 | Bus |
| RENAULT TRAFIC III Bus (JG_) Fitting Position Rear Axle | 2019-06 - | 125 | 170 | 1997 | Bus |
24.0112-0217.2
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Fiat
Nissan
Opel
Renault - Handelsnummer
- 412217
- Herkunftsland
- Italien
- Zusätzliche Informationen
- mit ABS-Sensorring
mit Radlager - Höhe
- 104,5
- Außendurchmesser [mm]
- 280,0
- Bremsscheibendicke [mm]
- 12,0
- Bremsscheibentyp
- Solide
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 108,0
- Trägerplattendurchmesser [mm]
- 35
- Zentrierungsdurchmesser [mm]
- 52,3
- Innendurchmesser [mm]
- 68,0
- Gewindegröße
- M14x1,5
- Mindestdicke [mm]
- 10,0
Spezifische Referenzen
- ean13
- 4006633426428
- Hersteller-Teilenummer (MPN)
- 2401120217202
ATE 24.0112-0217.2
(240112-02172)
- Außendurchmesser [mm]: 280,0
- Innendurchmesser [mm]: 68,0
- Bremsscheibendicke [mm]: 12,0
- Anzahl der Bolzenlöcher: 5
- Handelsnummer: 412217
