ATE Originale zweiteilige Bremsscheibe (24011301601) für Audi
79,86 €
(inkl. MwSt.)
66,00 € Steuerexzl.
Teilenummer:
ATE 24.0113-0160.1
(240113-01601)
- Außendurchmesser [mm]: 256,0
- Innendurchmesser [mm]: 135,5
- Bremsscheibendicke [mm]: 13,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 413160
Logistische Informationen:
- Ean-Code: 4006633056519
- Gewicht: 8.77kg
Specification of ATE 24.0113-0160.1 / 240113-01601 / 24011301601:
| OE Number | Reference info |
| VAG 431 615 301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 431615301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 443 615 301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 443615301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| AUDI 80 B3 Saloon (893, 894, 8A2) Construction Year to 198907 Fitting Position Front Axle | 1987-08 - 1991-09 | 51 | 70 | 1595 | Saloon |
| AUDI 80 B3 Saloon (893, 894, 8A2) Construction Year from 198908 Construction Year to 199107 Transmission Type Manual Transmission Fitting Position Front Axle | 1987-08 - 1991-09 | 51 | 70 | 1595 | Saloon |
| AUDI 80 B3 Saloon (893, 894, 8A2) Construction Year to 198907 Fitting Position Front Axle | 1986-09 - 1991-08 | 55 | 75 | 1595 | Saloon |
| AUDI 80 B3 Saloon (893, 894, 8A2) Construction Year from 198908 Construction Year to 199107 Transmission Type Manual Transmission Fitting Position Front Axle | 1986-09 - 1991-08 | 55 | 75 | 1595 | Saloon |
| AUDI 80 B3 Saloon (893, 894, 8A2) Transmission Type Manual Transmission Fitting Position Front Axle | 1990-08 - 1991-10 | 75 | 102 | 1595 | Saloon |
| AUDI 80 B3 Saloon (893, 894, 8A2) Transmission Type Manual Transmission Fitting Position Front Axle | 1986-10 - 1990-01 | 55 | 75 | 1781 | Saloon |
| AUDI 80 B3 Saloon (893, 894, 8A2) Fitting Position Front Axle | 1986-09 - 1990-07 | 65 | 88 | 1781 | Saloon |
| AUDI 80 B3 Saloon (893, 894, 8A2) Construction Year to 199107 Transmission Type Manual Transmission Fitting Position Front Axle | 1986-09 - 1991-10 | 66 | 90 | 1781 | Saloon |
| AUDI 80 B3 Saloon (893, 894, 8A2) Fitting Position Front Axle | 1986-09 - 1991-09 | 66 | 90 | 1781 | Saloon |
| AUDI 80 B3 Saloon (893, 894, 8A2) Fitting Position Front Axle | 1987-02 - 1989-07 | 40 | 54 | 1588 | Saloon |
| AUDI 80 B3 Saloon (893, 894, 8A2) Construction Year from 198804 Construction Year to 198907 Special Purpose Vehicle not for taxis Fitting Position Front Axle | 1986-09 - 1991-08 | 59 | 80 | 1588 | Saloon |
| AUDI 80 B3 Saloon (893, 894, 8A2) Construction Year from 198908 Construction Year to 199107 Special Purpose Vehicle not for taxis Transmission Type Manual Transmission Fitting Position Front Axle | 1986-09 - 1991-08 | 59 | 80 | 1588 | Saloon |
| AUDI 80 B3 Saloon (893, 894, 8A2) Construction Year to 199107 Fitting Position Front Axle | 1989-08 - 1991-08 | 50 | 68 | 1896 | Saloon |
| AUDI 90 B3 (893, 894, 8A2) Construction Year from 198804 Construction Year to 199107 Fitting Position Front Axle | 1987-04 - 1991-09 | 59 | 80 | 1588 | Saloon |
| AUDI 100 C2 Saloon (431, 433, 434) Construction Year from 197908 Construction Year to 198107 Fitting Position Front Axle | 1976-08 - 1982-07 | 63 | 85 | 1588 | Saloon |
| AUDI 100 C2 Saloon (431, 433, 434) Construction Year from 198108 Fitting Position Front Axle | 1976-08 - 1982-07 | 63 | 85 | 1588 | Saloon |
| AUDI 100 C2 Saloon (431, 433, 434) Construction Year to 197907 Fitting Position Front Axle | 1976-08 - 1982-07 | 63 | 85 | 1588 | Saloon |
| AUDI 100 C2 Saloon (431, 433, 434) Fitting Position Front Axle | 1980-08 - 1984-08 | 74 | 100 | 1921 | Saloon |
| AUDI 100 C2 Saloon (431, 433, 434) Construction Year to 197807 Fitting Position Front Axle | 1976-06 - 1978-08 | 85 | 115 | 1984 | Saloon |
| AUDI 100 C2 Saloon (431, 433, 434) Construction Year from 197804 Construction Year to 197907 Fitting Position Front Axle | 1977-10 - 1982-07 | 85 | 115 | 2144 | Saloon |
| AUDI 100 C2 Saloon (431, 433, 434) Construction Year from 198108 Fitting Position Front Axle | 1977-10 - 1982-07 | 85 | 115 | 2144 | Saloon |
| AUDI 100 C2 Saloon (431, 433, 434) Construction Year to 197907 Fitting Position Front Axle Country Specific Design Sweden | 1977-10 - 1982-07 | 85 | 115 | 2144 | Saloon |
| AUDI 100 C2 Saloon (431, 433, 434) Construction Year from 197908 Construction Year to 198107 Fitting Position Front Axle | 1977-10 - 1982-07 | 85 | 115 | 2144 | Saloon |
| AUDI 100 C2 Saloon (431, 433, 434) Construction Year from 198108 Fitting Position Front Axle | 1977-03 - 1982-07 | 100 | 136 | 2144 | Saloon |
| AUDI 100 C2 Saloon (431, 433, 434) Construction Year from 197804 Construction Year to 197907 Fitting Position Front Axle | 1977-03 - 1982-07 | 100 | 136 | 2144 | Saloon |
| AUDI 100 C2 Saloon (431, 433, 434) Construction Year from 197810 Construction Year to 197907 Fitting Position Front Axle | 1978-08 - 1982-07 | 51 | 70 | 1986 | Saloon |
| AUDI 100 C2 Saloon (431, 433, 434) Construction Year from 198108 Fitting Position Front Axle | 1978-08 - 1982-07 | 51 | 70 | 1986 | Saloon |
| AUDI 100 C2 Saloon (431, 433, 434) Construction Year from 197908 Construction Year to 198107 Fitting Position Front Axle | 1978-08 - 1982-07 | 51 | 70 | 1986 | Saloon |
| AUDI 100 C2 Avant (435, 436) Construction Year from 197908 Construction Year to 198107 Fitting Position Front Axle | 1977-07 - 1983-02 | 63 | 85 | 1588 | Estate |
| AUDI 100 C2 Avant (435, 436) Construction Year to 197907 Fitting Position Front Axle | 1977-07 - 1983-02 | 63 | 85 | 1588 | Estate |
| AUDI 100 C2 Avant (435, 436) Construction Year from 198108 Construction Year to 198207 Fitting Position Front Axle | 1977-07 - 1983-02 | 63 | 85 | 1588 | Estate |
| AUDI 100 C2 Avant (435, 436) Construction Year from 198108 Fitting Position Front Axle | 1980-08 - 1982-07 | 74 | 100 | 1921 | Estate |
| AUDI 100 C2 Avant (435, 436) Construction Year to 198107 Fitting Position Front Axle | 1980-08 - 1982-07 | 74 | 100 | 1921 | Estate |
| AUDI 100 C2 Avant (435, 436) Construction Year to 197807 Fitting Position Front Axle | 1977-08 - 1980-07 | 85 | 115 | 1984 | Estate |
| AUDI 100 C2 Avant (435, 436) Construction Year from 197804 Construction Year to 197907 Fitting Position Front Axle | 1977-07 - 1983-02 | 85 | 115 | 2144 | Estate |
| AUDI 100 C2 Avant (435, 436) Construction Year from 198108 Construction Year to 198207 Fitting Position Front Axle | 1977-07 - 1983-02 | 85 | 115 | 2144 | Estate |
| AUDI 100 C2 Avant (435, 436) Construction Year to 197907 Fitting Position Front Axle Country Specific Design Sweden | 1977-07 - 1983-02 | 85 | 115 | 2144 | Estate |
| AUDI 100 C2 Avant (435, 436) Construction Year from 197908 Construction Year to 198107 Fitting Position Front Axle | 1977-07 - 1983-02 | 85 | 115 | 2144 | Estate |
| AUDI 100 C2 Avant (435, 436) Construction Year from 198108 Construction Year to 198207 Fitting Position Front Axle | 1977-07 - 1983-02 | 100 | 136 | 2144 | Estate |
| AUDI 100 C2 Avant (435, 436) Construction Year from 197804 Construction Year to 197907 Fitting Position Front Axle | 1977-07 - 1983-02 | 100 | 136 | 2144 | Estate |
| AUDI 100 C2 Avant (435, 436) Construction Year from 198108 Construction Year to 198207 Fitting Position Front Axle | 1978-08 - 1983-02 | 51 | 70 | 1986 | Estate |
| AUDI 100 C2 Avant (435, 436) Construction Year from 197908 Construction Year to 198107 Fitting Position Front Axle | 1978-08 - 1983-02 | 51 | 70 | 1986 | Estate |
| AUDI 100 C2 Avant (435, 436) Construction Year from 197810 Construction Year to 197907 Fitting Position Front Axle | 1978-08 - 1983-02 | 51 | 70 | 1986 | Estate |
| AUDI 100 C3 Saloon (443, 444) Fitting Position Front Axle | 1982-08 - 1987-12 | 55 | 75 | 1781 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Fitting Position Front Axle | 1986-02 - 1988-07 | 65 | 88 | 1781 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Fitting Position Front Axle | 1983-08 - 1989-07 | 66 | 90 | 1781 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Fitting Position Front Axle | 1985-03 - 1990-11 | 66 | 90 | 1781 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Fitting Position Front Axle | 1982-08 - 1984-07 | 74 | 100 | 1921 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Construction Year to 198407 Fitting Position Front Axle | 1982-08 - 1988-07 | 51 | 70 | 1986 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Construction Year to 198407 Fitting Position Front Axle | 1982-08 - 1988-07 | 64 | 87 | 1986 | Saloon |
24.0113-0160.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Audi
- Handelsnummer
- 413160
- Herkunftsland
- Tschechien
- Höhe
- 46,5

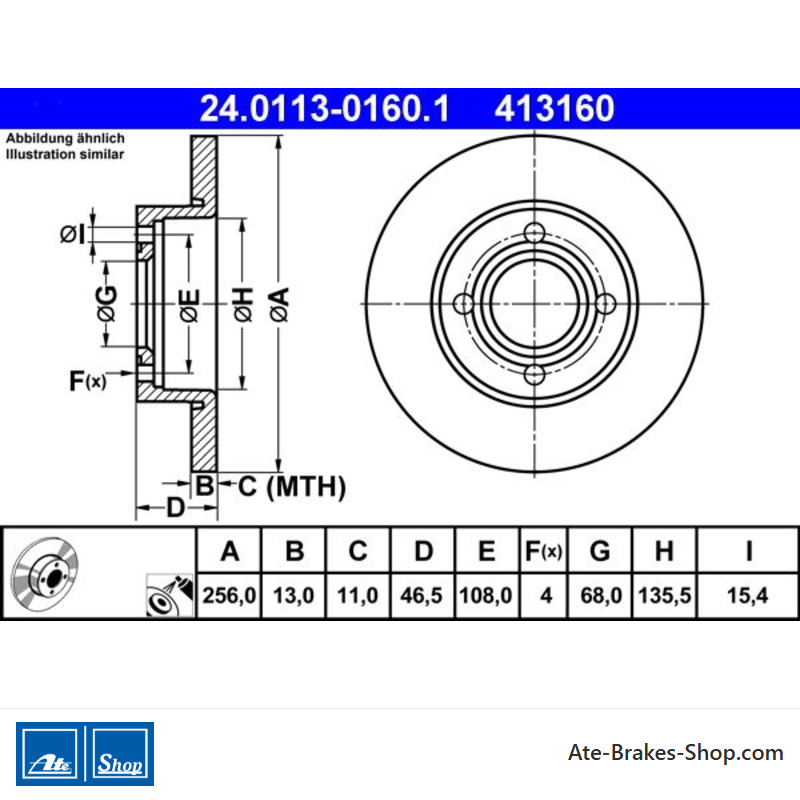

- Außendurchmesser [mm]
- 256,0
- Bremsscheibendicke [mm]
- 13,0
- Bremsscheibentyp
- Solide
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 108,0
- Zentrierungsdurchmesser [mm]
- 68,0
- Innendurchmesser [mm]
- 135,5
- Bohrdurchmesser [mm]
- 15,4
- Mindestdicke [mm]
- 11,0
Spezifische Referenzen
- ean13
- 4006633056519
- Hersteller-Teilenummer (MPN)
- 2401130160102
ATE 24.0113-0160.1
(240113-01601)
- Außendurchmesser [mm]: 256,0
- Innendurchmesser [mm]: 135,5
- Bremsscheibendicke [mm]: 13,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 413160
