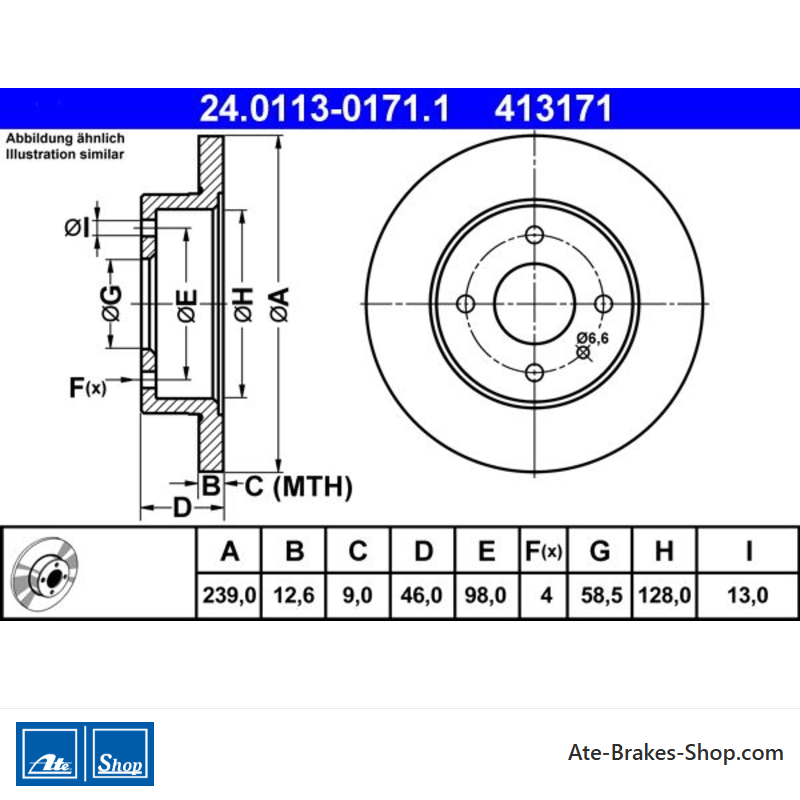

ATE Original 2 Teile Bremsscheibe (24011301711) für Alfa Romeo
Teilenummer:
ATE 24.0113-0171.1
(240113-01711)
- Außendurchmesser [mm]: 239,0
- Innendurchmesser [mm]: 128,0
- Bremsscheibendicke [mm]: 12,6
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 413171
Logistische Informationen:
- Ean-Code: 4006633080590
- Gewicht: 7.84kg
Specification of ATE 24.0113-0171.1 / 240113-01711 / 24011301711:
| OE Number | Reference info |
| FIAT 60501453 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 130474 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| ALFA ROMEO 33 (905_) Construction Year from 198509 Construction Year to 198908 Fitting Position Front Axle | 1983-06 - 1989-12 | 50 | 68 | 1186 | Hatchback |
| ALFA ROMEO 33 (905_) Construction Year from 198509 Construction Year to 198908 Fitting Position Front Axle | 1983-06 - 1989-12 | 55 | 75 | 1351 | Hatchback |
| ALFA ROMEO 33 (905_) Construction Year from 198509 Construction Year to 198908 Fitting Position Front Axle | 1984-10 - 1989-12 | 63 | 86 | 1351 | Hatchback |
| ALFA ROMEO 33 (905_) Construction Year from 198509 Fitting Position Front Axle | 1983-05 - 1987-12 | 62 | 84 | 1490 | Hatchback |
| ALFA ROMEO 33 (905_) Construction Year from 198509 Fitting Position Front Axle | 1983-06 - 1986-12 | 66 | 90 | 1490 | Hatchback |
| ALFA ROMEO 33 (905_) Construction Year from 198509 Construction Year to 198908 Fitting Position Front Axle | 1983-05 - 1993-12 | 70 | 95 | 1490 | Hatchback |
| ALFA ROMEO 33 (905_) Construction Year to 198908 Fitting Position Front Axle | 1986-07 - 1989-12 | 75 | 102 | 1490 | Hatchback |
| ALFA ROMEO 33 (905_) Construction Year from 198509 Construction Year to 198908 Fitting Position Front Axle | 1984-06 - 1989-12 | 77 | 105 | 1490 | Hatchback |
| ALFA ROMEO 33 (905_) Construction Year to 198908 Fitting Position Front Axle | 1988-09 - 1989-12 | 77 | 105 | 1712 | Hatchback |
| ALFA ROMEO 33 (905_) Construction Year from 198909 Fitting Position Front Axle Country Specific Design Italy | 1986-01 - 1990-06 | 54 | 73 | 1779 | Hatchback |
| ALFA ROMEO 33 (905_) Construction Year from 198610 Construction Year to 198908 Fitting Position Front Axle Country Specific Design Italy | 1986-01 - 1990-06 | 54 | 73 | 1779 | Hatchback |
| ALFA ROMEO 33 Sportwagon (905_) Construction Year from 198509 Fitting Position Front Axle | 1984-09 - 1986-12 | 66 | 90 | 1490 | Estate |
| ALFA ROMEO 33 Sportwagon (905_) Construction Year to 198908 Fitting Position Front Axle | 1986-12 - 1989-12 | 75 | 102 | 1490 | Estate |
| ALFA ROMEO 33 Sportwagon (905_) Construction Year to 198908 Fitting Position Front Axle | 1986-12 - 1989-12 | 77 | 105 | 1490 | Estate |
| ALFA ROMEO 33 Sportwagon (905_) Construction Year to 198908 Fitting Position Front Axle | 1988-09 - 1989-12 | 77 | 105 | 1712 | Estate |
| ALFA ROMEO 33 Sportwagon (905_) Construction Year to 198908 Fitting Position Front Axle | 1988-09 - 1989-12 | 77 | 105 | 1712 | Estate |
| ALFA ROMEO 33 (907_) Construction Year to 199408 Fitting Position Front Axle | 1991-06 - 1994-09 | 65 | 88 | 1351 | Hatchback |
| ALFA ROMEO 33 (907_) Construction Year to 199408 Fitting Position Front Axle | 1991-06 - 1994-09 | 66 | 90 | 1351 | Hatchback |
| ALFA ROMEO 33 (907_) Fitting Position Front Axle | 1990-07 - 1991-08 | 74 | 101 | 1490 | Hatchback |
| ALFA ROMEO 33 (907_) Fitting Position Front Axle | 1990-01 - 1993-04 | 77 | 105 | 1490 | Hatchback |
| ALFA ROMEO 33 (907_) Construction Year to 199408 Fitting Position Front Axle Country Specific Design Italy | 1990-07 - 1994-09 | 62 | 84 | 1779 | Hatchback |
| ALFA ROMEO 33 Sportwagon (907_) Construction Year to 199408 Fitting Position Front Axle | 1991-06 - 1994-09 | 65 | 88 | 1351 | Estate |
| ALFA ROMEO 33 Sportwagon (907_) Construction Year to 199408 Fitting Position Front Axle | 1991-06 - 1994-09 | 66 | 90 | 1351 | Estate |
| ALFA ROMEO 33 Sportwagon (907_) Construction Year to 199408 Fitting Position Front Axle | 1990-01 - 1994-09 | 71 | 97 | 1490 | Estate |
| ALFA ROMEO ALFASUD Sprint (902_) Construction Year from 198709 Fitting Position Front Axle | 1979-07 - 1989-12 | 63 | 85 | 1351 | Coupe |
| ALFA ROMEO ALFASUD Sprint (902_) Construction Year from 198709 Construction Year to 198712 Fitting Position Front Axle | 1980-01 - 1989-12 | 75 | 102 | 1490 | Coupe |
| ALFA ROMEO ALFASUD Sprint (902_) Construction Year from 198709 Construction Year to 198712 Fitting Position Front Axle | 1982-03 - 1988-12 | 77 | 105 | 1490 | Coupe |
| ALFA ROMEO ARNA (920_) Construction Year from 198509 Fitting Position Front Axle | 1985-01 - 1986-12 | 44 | 60 | 1186 | Hatchback |
| ALFA ROMEO ARNA (920_) Construction Year from 198509 Fitting Position Front Axle | 1983-03 - 1986-12 | 46 | 63 | 1186 | Hatchback |
| ALFA ROMEO ARNA (920_) Construction Year from 198509 Fitting Position Front Axle | 1985-01 - 1986-12 | 50 | 68 | 1186 | Hatchback |
| ALFA ROMEO ARNA (920_) Construction Year from 198509 Fitting Position Front Axle | 1983-03 - 1986-12 | 63 | 86 | 1351 | Hatchback |
24.0113-0171.1
Datenblatt
- Artikelstatus
- Eingestellt
- Automarke
- Alfa Romeo
- Handelsnummer
- 413171
- Herkunftsland
- Italien
- Höhe
- 46,0
- Außendurchmesser [mm]
- 239,0
- Bremsscheibendicke [mm]
- 12,6
- Bremsscheibentyp
- Solide
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 98,0
- Zentrierungsdurchmesser [mm]
- 58,5
- Innendurchmesser [mm]
- 128,0
- Bohrdurchmesser [mm]
- 13,0
- Mindestdicke [mm]
- 9,0
Spezifische Referenzen
- ean13
- 4006633080590
- Hersteller-Teilenummer (MPN)
- 2401130171101
ATE 24.0113-0171.1
(240113-01711)
- Außendurchmesser [mm]: 239,0
- Innendurchmesser [mm]: 128,0
- Bremsscheibendicke [mm]: 12,6
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 413171
