ATE Originale zweiteilige Bremsscheibe (24011401161) für Citroën, Fiat, Peugeot, Toyota
94,38 €
(inkl. MwSt.)
78,00 € Steuerexzl.
Teilenummer:
ATE 24.0114-0116.1
(240114-01161)
- Außendurchmesser [mm]: 290,0
- Innendurchmesser [mm]: 143,7
- Bremsscheibendicke [mm]: 14,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 414116
Logistische Informationen:
- Ean-Code: 4006633319966
- Gewicht: 11.72kg
Specification of ATE 24.0114-0116.1 / 240114-01161 / 24011401161:
| OE Number | Reference info |
| CITROËN 4249 23 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 424923 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4249 91 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 424991 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 16 118 410 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 1611841080 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 9467548487 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 9404249918 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4249 22 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 424922 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4249 91 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 424991 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA SU001-A1062 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CITROËN JUMPY II Platform/Chassis Wheelbase for extended wheelbase Fitting Position Rear Axle | 2006-11 - 2016-03 | 103 | 140 | 1997 | Platform/Chassis |
| CITROËN JUMPY II Platform/Chassis Fitting Position Rear Axle | 2007-06 - 2016-03 | 66 | 90 | 1560 | Platform/Chassis |
| CITROËN JUMPY II Platform/Chassis Fitting Position Rear Axle | 2007-06 - 2016-03 | 66 | 90 | 1560 | Platform/Chassis |
| CITROËN JUMPY II Platform/Chassis Fitting Position Rear Axle | 2011-07 - 2016-03 | 72 | 98 | 1997 | Platform/Chassis |
| CITROËN JUMPY II Platform/Chassis Fitting Position Rear Axle | 2009-01 - 2016-03 | 88 | 120 | 1997 | Platform/Chassis |
| CITROËN JUMPY II Platform/Chassis Fitting Position Rear Axle | 2011-07 - | 94 | 128 | 1997 | Platform/Chassis |
| CITROËN JUMPY II Platform/Chassis Fitting Position Rear Axle | 2010-07 - 2016-03 | 120 | 163 | 1997 | Platform/Chassis |
| CITROËN JUMPY II Van Wheelbase for extended wheelbase Fitting Position Rear Axle | 2007-01 - 2016-03 | 103 | 140 | 1997 | Van |
| CITROËN JUMPY II Van Fitting Position Rear Axle | 2007-01 - 2016-03 | 66 | 90 | 1560 | Van |
| CITROËN JUMPY II Van Fitting Position Rear Axle | 2007-01 - 2016-03 | 66 | 90 | 1560 | Van |
| CITROËN JUMPY II Van Fitting Position Rear Axle | 2011-07 - 2016-03 | 72 | 98 | 1997 | Van |
| CITROËN JUMPY II Van Fitting Position Rear Axle | 2007-01 - 2016-03 | 88 | 120 | 1997 | Van |
| CITROËN JUMPY II Van Fitting Position Rear Axle | 2010-01 - 2016-03 | 88 | 120 | 1997 | Van |
| CITROËN JUMPY II Van Fitting Position Rear Axle | 2011-07 - 2016-03 | 94 | 128 | 1997 | Van |
| CITROËN JUMPY II Van Fitting Position Rear Axle | 2011-07 - 2016-03 | 94 | 128 | 1997 | Van |
| CITROËN JUMPY II Van Fitting Position Rear Axle | 2007-01 - 2016-03 | 100 | 136 | 1997 | Van |
| CITROËN JUMPY II Van Fitting Position Rear Axle | 2010-07 - 2016-03 | 120 | 163 | 1997 | Van |
| CITROËN JUMPY II (VF7) Wheelbase for extended wheelbase Fitting Position Rear Axle | 2007-01 - 2016-03 | 103 | 140 | 1997 | Bus |
| CITROËN JUMPY II (VF7) Fitting Position Rear Axle | 2007-01 - 2016-03 | 66 | 90 | 1560 | Bus |
| CITROËN JUMPY II (VF7) Fitting Position Rear Axle | 2007-01 - 2016-03 | 66 | 90 | 1560 | Bus |
| CITROËN JUMPY II (VF7) Fitting Position Rear Axle | 2011-07 - 2016-03 | 72 | 98 | 1997 | Bus |
| CITROËN JUMPY II (VF7) Fitting Position Rear Axle | 2007-01 - 2016-03 | 88 | 120 | 1997 | Bus |
| CITROËN JUMPY II (VF7) Fitting Position Rear Axle | 2011-07 - 2016-03 | 94 | 128 | 1997 | Bus |
| CITROËN JUMPY II (VF7) Fitting Position Rear Axle | 2007-01 - 2016-03 | 100 | 136 | 1997 | Bus |
| CITROËN JUMPY II (VF7) Fitting Position Rear Axle | 2010-07 - 2016-03 | 120 | 163 | 1997 | Bus |
| FIAT SCUDO Van (270_, 272_) Fitting Position Rear Axle | 2011-02 - 2016-03 | 66 | 90 | 1560 | Van |
| FIAT SCUDO Van (270_, 272_) Fitting Position Rear Axle | 2007-01 - 2016-03 | 66 | 90 | 1560 | Van |
| FIAT SCUDO Van (270_, 272_) Fitting Position Rear Axle | 2007-01 - 2016-03 | 88 | 120 | 1997 | Van |
| FIAT SCUDO Van (270_, 272_) Construction Year from 201104 Fitting Position Rear Axle | 2007-01 - 2016-03 | 88 | 120 | 1997 | Van |
| FIAT SCUDO Van (270_, 272_) Fitting Position Rear Axle | 2011-05 - 2016-03 | 94 | 128 | 1997 | Van |
| FIAT SCUDO Van (270_, 272_) Fitting Position Rear Axle | 2011-05 - 2016-03 | 94 | 128 | 1997 | Van |
| FIAT SCUDO Van (270_, 272_) Fitting Position Rear Axle | 2007-01 - 2016-03 | 100 | 136 | 1997 | Van |
| FIAT SCUDO Van (270_, 272_) Construction Year from 201104 Fitting Position Rear Axle | 2007-01 - 2016-03 | 100 | 136 | 1997 | Van |
| FIAT SCUDO Van (270_, 272_) Fitting Position Rear Axle | 2010-07 - 2016-03 | 120 | 163 | 1997 | Van |
| FIAT SCUDO Platform/Chassis (270_, 272_) Fitting Position Rear Axle | 2007-01 - 2016-03 | 66 | 90 | 1560 | Platform/Chassis |
| FIAT SCUDO Platform/Chassis (270_, 272_) Fitting Position Rear Axle | 2007-01 - 2016-03 | 88 | 120 | 1997 | Platform/Chassis |
| FIAT SCUDO Platform/Chassis (270_, 272_) Fitting Position Rear Axle | 2011-05 - 2016-03 | 94 | 128 | 1997 | Platform/Chassis |
| FIAT SCUDO Platform/Chassis (270_, 272_) Fitting Position Rear Axle | 2007-01 - 2016-03 | 100 | 136 | 1997 | Platform/Chassis |
| FIAT SCUDO Platform/Chassis (270_, 272_) Fitting Position Rear Axle | 2010-07 - 2016-03 | 120 | 163 | 1997 | Platform/Chassis |
| FIAT SCUDO Bus (270_, 272_) Fitting Position Rear Axle | 2011-02 - 2016-03 | 66 | 90 | 1560 | Bus |
| FIAT SCUDO Bus (270_, 272_) Fitting Position Rear Axle | 2007-01 - 2016-03 | 66 | 90 | 1560 | Bus |
| FIAT SCUDO Bus (270_, 272_) Fitting Position Rear Axle | 2007-01 - 2016-03 | 88 | 120 | 1997 | Bus |
| FIAT SCUDO Bus (270_, 272_) Construction Year from 201104 Fitting Position Rear Axle | 2007-01 - 2016-03 | 88 | 120 | 1997 | Bus |
| FIAT SCUDO Bus (270_, 272_) Fitting Position Rear Axle | 2011-04 - 2016-03 | 94 | 128 | 1997 | Bus |
| FIAT SCUDO Bus (270_, 272_) Fitting Position Rear Axle | 2011-04 - 2016-03 | 94 | 128 | 1997 | Bus |
| FIAT SCUDO Bus (270_, 272_) Fitting Position Rear Axle | 2007-01 - 2016-03 | 100 | 136 | 1997 | Bus |
| FIAT SCUDO Bus (270_, 272_) Fitting Position Rear Axle | 2010-07 - 2016-03 | 120 | 163 | 1997 | Bus |
| PEUGEOT EXPERT Van (VF3A_, VF3U_, VF3X_) Wheelbase for extended wheelbase Fitting Position Rear Axle | 2007-01 - | 103 | 140 | 1997 | Van |
| PEUGEOT EXPERT Van (VF3A_, VF3U_, VF3X_) Fitting Position Rear Axle | 2007-01 - | 66 | 90 | 1560 | Van |
| PEUGEOT EXPERT Van (VF3A_, VF3U_, VF3X_) Fitting Position Rear Axle | 2007-01 - | 66 | 90 | 1560 | Van |
| PEUGEOT EXPERT Van (VF3A_, VF3U_, VF3X_) Fitting Position Rear Axle | 2011-03 - | 72 | 98 | 1997 | Van |
| PEUGEOT EXPERT Van (VF3A_, VF3U_, VF3X_) Fitting Position Rear Axle | 2007-01 - | 88 | 120 | 1997 | Van |
| PEUGEOT EXPERT Van (VF3A_, VF3U_, VF3X_) Fitting Position Rear Axle | 2010-01 - | 88 | 120 | 1997 | Van |
| PEUGEOT EXPERT Van (VF3A_, VF3U_, VF3X_) Fitting Position Rear Axle | 2011-03 - | 94 | 128 | 1997 | Van |
| PEUGEOT EXPERT Van (VF3A_, VF3U_, VF3X_) Fitting Position Rear Axle | 2012-01 - 2016-03 | 94 | 128 | 1997 | Van |
| PEUGEOT EXPERT Van (VF3A_, VF3U_, VF3X_) Fitting Position Rear Axle | 2007-01 - | 100 | 136 | 1997 | Van |
| PEUGEOT EXPERT Van (VF3A_, VF3U_, VF3X_) Fitting Position Rear Axle | 2009-09 - | 120 | 163 | 1997 | Van |
| PEUGEOT EXPERT Platform/Chassis Wheelbase for extended wheelbase Fitting Position Rear Axle | 2007-01 - 2016-03 | 103 | 140 | 1997 | Platform/Chassis |
| PEUGEOT EXPERT Platform/Chassis Fitting Position Rear Axle | 2007-01 - | 66 | 90 | 1560 | Platform/Chassis |
| PEUGEOT EXPERT Platform/Chassis Fitting Position Rear Axle | 2007-01 - | 66 | 90 | 1560 | Platform/Chassis |
| PEUGEOT EXPERT Platform/Chassis Fitting Position Rear Axle | 2007-01 - | 88 | 120 | 1997 | Platform/Chassis |
| PEUGEOT EXPERT Platform/Chassis Fitting Position Rear Axle | 2011-03 - | 94 | 128 | 1997 | Platform/Chassis |
| PEUGEOT EXPERT Platform/Chassis Fitting Position Rear Axle | 2007-01 - | 100 | 136 | 1997 | Platform/Chassis |
| PEUGEOT EXPERT Platform/Chassis Fitting Position Rear Axle | 2009-09 - | 120 | 163 | 1997 | Platform/Chassis |
| PEUGEOT EXPERT TEPEE (VF3X_) Wheelbase for extended wheelbase Fitting Position Rear Axle | 2007-01 - 2016-03 | 103 | 140 | 1997 | Bus |
| PEUGEOT EXPERT TEPEE (VF3X_) Fitting Position Rear Axle | 2007-01 - 2016-03 | 66 | 90 | 1560 | Bus |
| PEUGEOT EXPERT TEPEE (VF3X_) Fitting Position Rear Axle | 2007-01 - 2016-03 | 66 | 90 | 1560 | Bus |
| PEUGEOT EXPERT TEPEE (VF3X_) Fitting Position Rear Axle | 2011-03 - 2016-03 | 72 | 98 | 1997 | Bus |
| PEUGEOT EXPERT TEPEE (VF3X_) Fitting Position Rear Axle | 2007-01 - 2016-03 | 88 | 120 | 1997 | Bus |
| PEUGEOT EXPERT TEPEE (VF3X_) Fitting Position Rear Axle | 2007-01 - 2016-03 | 88 | 120 | 1997 | Bus |
| PEUGEOT EXPERT TEPEE (VF3X_) Fitting Position Rear Axle | 2011-03 - | 94 | 128 | 1997 | Bus |
| PEUGEOT EXPERT TEPEE (VF3X_) Fitting Position Rear Axle | 2011-03 - 2016-03 | 94 | 128 | 1997 | Bus |
| PEUGEOT EXPERT TEPEE (VF3X_) Fitting Position Rear Axle | 2007-01 - | 100 | 136 | 1997 | Bus |
| PEUGEOT EXPERT TEPEE (VF3X_) Fitting Position Rear Axle | 2009-09 - | 120 | 163 | 1997 | Bus |
| TOYOTA PROACE Van (MDX_) Fitting Position Rear Axle | 2013-06 - 2016-03 | 66 | 90 | 1560 | Van |
| TOYOTA PROACE Van (MDX_) Fitting Position Rear Axle | 2013-06 - 2016-03 | 94 | 128 | 1997 | Van |
| TOYOTA PROACE Van (MDX_) Fitting Position Rear Axle | 2013-06 - 2016-03 | 120 | 163 | 1997 | Van |

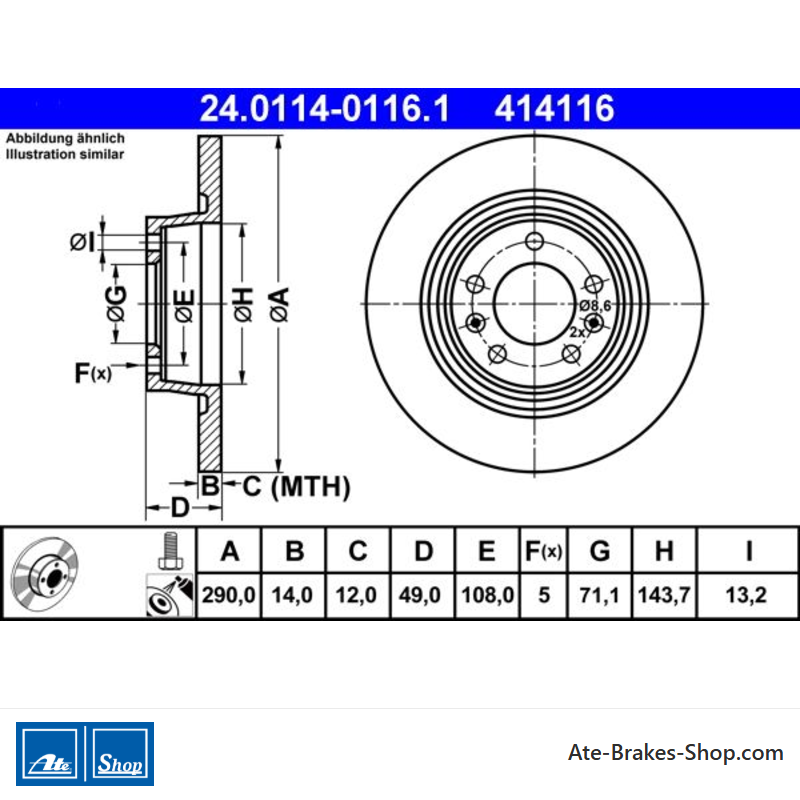

24.0114-0116.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Citroën
Fiat
Peugeot
Toyota - Handelsnummer
- 414116
- Herkunftsland
- Tschechien
- Zusätzliche Informationen
- mit Schrauben/Schrauben
- Höhe
- 49,0
- Außendurchmesser [mm]
- 290,0
- Bremsscheibendicke [mm]
- 14,0
- Bremsscheibentyp
- Solide
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 108,0
- Zentrierungsdurchmesser [mm]
- 71,1
- Innendurchmesser [mm]
- 143,7
- Bohrdurchmesser [mm]
- 13,2
- Mindestdicke [mm]
- 12,0
Spezifische Referenzen
- ean13
- 4006633319966
- Hersteller-Teilenummer (MPN)
- 2401140116102
ATE 24.0114-0116.1
(240114-01161)
- Außendurchmesser [mm]: 290,0
- Innendurchmesser [mm]: 143,7
- Bremsscheibendicke [mm]: 14,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 414116
