ATE Originale zweiteilige Bremsscheibe (24011701031) für Subaru, Suzuki
72,60 €
(inkl. MwSt.)
60,00 € Steuerexzl.
Teilenummer:
ATE 24.0117-0103.1
(240117-01031)
- Außendurchmesser [mm]: 231,2
- Innendurchmesser [mm]: 137,5
- Bremsscheibendicke [mm]: 17,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 417103
Logistische Informationen:
- Ean-Code: 4006633025867
- Gewicht: 7.19kg
Specification of ATE 24.0117-0103.1 / 240117-01031 / 24011701031:
| OE Number | Reference info |
| SUBARU 5531180F01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUBARU 5531180F02 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUBARU 5531180F03 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55311-60B30 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55311-60B20 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55311-80F01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55311-80F02 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55311-80F00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55311-72F00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55311-80F03 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55311-M72F00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUBARU JUSTY II (JMA, MS) Construction Year to 200009 Fitting Position Front Axle | 1995-10 - 2003-11 | 50 | 68 | 1298 | Hatchback |
| SUBARU JUSTY II (JMA, MS) Fitting Position Front Axle | 2001-04 - 2003-11 | 63 | 86 | 1298 | Hatchback |
| SUZUKI ALTO IV (EF, SH410_) Fitting Position Front Axle | 1994-09 - 2002-06 | 39 | 53 | 993 | Hatchback |
| SUZUKI ALTO V (HA12_, HA23_, HA22_) Fitting Position Front Axle | 2000-01 - 2002-06 | 43 | 58 | 993 | Hatchback |
| SUZUKI CAPPUCCINO (EE) Fitting Position Front Axle | 1992-02 - 1995-08 | 47 | 64 | 657 | Convertible |
| SUZUKI SWIFT I (AA) Construction Year from 198903 Fitting Position Front Axle | 1983-10 - 1989-03 | 37 | 50 | 993 | Hatchback |
| SUZUKI SWIFT I (AA) Construction Year from 198903 Fitting Position Front Axle | 1984-10 - 1989-03 | 50 | 68 | 1324 | Hatchback |
| SUZUKI SWIFT I (AA) Construction Year from 198903 Fitting Position Front Axle | 1984-10 - 1989-03 | 54 | 73 | 1324 | Hatchback |
| SUZUKI SWIFT II Saloon (AH, AJ) Fitting Position Front Axle | 1989-09 - 1994-12 | 52 | 71 | 1298 | Saloon |
| SUZUKI SWIFT II Hatchback (EA, MA) Construction Year from 199108 Construction Year to 199610 Fitting Position Front Axle | 1989-03 - 2001-05 | 37 | 50 | 993 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Construction Year to 199610 Fitting Position Front Axle | 1995-01 - 2005-12 | 39 | 53 | 993 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Construction Year from 199611 Construction Year to 200412 Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 1995-01 - 2005-12 | 39 | 53 | 993 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Construction Year from 199108 Fitting Position Front Axle | 1989-03 - 1991-12 | 40 | 54 | 993 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Fitting Position Front Axle | 1989-03 - 1997-12 | 52 | 71 | 1298 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Construction Year from 199611 Fitting Position Front Axle | 1989-03 - 2001-05 | 50 | 68 | 1324 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Fitting Position Front Axle | 1989-10 - 1991-12 | 52 | 71 | 1324 | Hatchback |

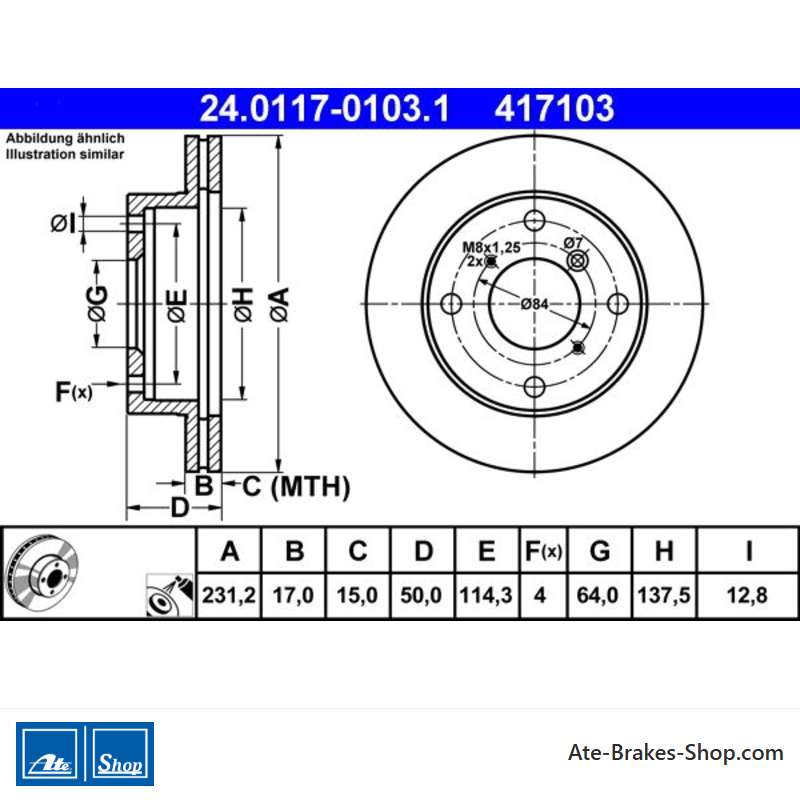

24.0117-0103.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Subaru
Suzuki - Handelsnummer
- 417103
- Herkunftsland
- Deutschland
- Höhe
- 50,0
- Außendurchmesser [mm]
- 231,2
- Bremsscheibendicke [mm]
- 17,0
- Bremsscheibentyp
- Entlüftet
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 114,3
- Zentrierungsdurchmesser [mm]
- 64,0
- Innendurchmesser [mm]
- 137,5
- Bohrdurchmesser [mm]
- 12,8
- Mindestdicke [mm]
- 15,0
Spezifische Referenzen
- ean13
- 4006633025867
- Hersteller-Teilenummer (MPN)
- 2401170103102
ATE 24.0117-0103.1
(240117-01031)
- Außendurchmesser [mm]: 231,2
- Innendurchmesser [mm]: 137,5
- Bremsscheibendicke [mm]: 17,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 417103
