ATE Originale zweiteilige Bremsscheibe (24011801011) für Mazda
68,97 €
(inkl. MwSt.)
57,00 € Steuerexzl.
Teilenummer:
ATE 24.0118-0101.1
(240118-01011)
- Außendurchmesser [mm]: 238,0
- Innendurchmesser [mm]: 143,5
- Bremsscheibendicke [mm]: 18,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 418101
Logistische Informationen:
- Ean-Code: 4006633110822
- Gewicht: 7.10kg
Specification of ATE 24.0118-0101.1 / 240118-01011 / 24011801011:
| OE Number | Reference info |
| MAZDA BF68-33-251A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA B107-33-251 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MAZDA 323 III Saloon (BF) Construction Year to 198708 Fitting Position Front Axle | 1985-08 - 1990-04 | 40 | 55 | 1071 | Saloon |
| MAZDA 323 III Saloon (BF) Fitting Position Front Axle | 1985-08 - 1989-05 | 44 | 60 | 1296 | Saloon |
| MAZDA 323 III Saloon (BF) Construction Year to 198908 Fitting Position Front Axle | 1987-09 - 1989-10 | 54 | 73 | 1498 | Saloon |
| MAZDA 323 III Saloon (BF) Fitting Position Front Axle | 1985-08 - 1989-05 | 55 | 75 | 1490 | Saloon |
| MAZDA 323 III Saloon (BF) Fitting Position Front Axle | 1985-08 - 1989-05 | 70 | 95 | 1490 | Saloon |
| MAZDA 323 III Saloon (BF) Construction Year to 198908 Fitting Position Front Axle | 1986-11 - 1989-10 | 63 | 85 | 1597 | Saloon |
| MAZDA 323 III Saloon (BF) Fitting Position Front Axle | 1986-01 - 1988-12 | 77 | 105 | 1597 | Saloon |
| MAZDA 323 III Saloon (BF) Fitting Position Front Axle | 1986-09 - 1989-05 | 40 | 54 | 1720 | Saloon |
| MAZDA 323 III Saloon (BF) Fitting Position Front Axle | 1987-01 - 1989-05 | 42 | 57 | 1720 | Saloon |
| MAZDA 323 III Hatchback (BF) Construction Year to 198708 Fitting Position Front Axle | 1985-09 - 1989-10 | 40 | 54 | 1071 | Hatchback |
| MAZDA 323 III Hatchback (BF) Fitting Position Front Axle | 1985-09 - 1987-12 | 44 | 60 | 1296 | Hatchback |
| MAZDA 323 III Hatchback (BF) Fitting Position Front Axle | 1985-08 - 1989-05 | 55 | 75 | 1490 | Hatchback |
| MAZDA 323 III Hatchback (BF) Fitting Position Front Axle | 1985-08 - 1989-05 | 70 | 95 | 1490 | Hatchback |
| MAZDA 323 III Hatchback (BF) Construction Year to 198908 Fitting Position Front Axle | 1987-09 - 1989-10 | 54 | 73 | 1498 | Hatchback |
| MAZDA 323 III Hatchback (BF) Construction Year to 198908 Fitting Position Front Axle | 1987-09 - 1989-10 | 63 | 86 | 1597 | Hatchback |
| MAZDA 323 III Hatchback (BF) Construction Year to 198908 Fitting Position Front Axle | 1985-08 - 1993-08 | 77 | 105 | 1597 | Hatchback |
| MAZDA 323 III Hatchback (BF) Fitting Position Front Axle | 1986-04 - 1989-05 | 40 | 54 | 1720 | Hatchback |
| MAZDA 323 III Hatchback (BF) Fitting Position Front Axle | 1987-01 - 1989-05 | 42 | 57 | 1720 | Hatchback |
| MAZDA 323 III Station Wagon (BW) Fitting Position Front Axle | 1986-05 - 1989-05 | 55 | 75 | 1490 | Estate |
| MAZDA 323 III Station Wagon (BW) Fitting Position Front Axle | 1987-01 - 1989-05 | 54 | 73 | 1498 | Estate |
| MAZDA 323 III Station Wagon (BW) Construction Year to 199412 Fitting Position Front Axle | 1986-09 - 1995-10 | 63 | 86 | 1597 | Estate |
| MAZDA 323 III Station Wagon (BW) Fitting Position Front Axle | 1990-05 - 1993-03 | 63 | 86 | 1597 | Estate |
| MAZDA 323 III Station Wagon (BW) Fitting Position Front Axle | 1986-11 - 1987-08 | 40 | 54 | 1720 | Estate |
| MAZDA 323 III Station Wagon (BW) Fitting Position Front Axle | 1989-10 - 1993-03 | 41 | 56 | 1720 | Estate |
| MAZDA 323 III Station Wagon (BW) Fitting Position Front Axle | 1986-11 - 1989-10 | 42 | 57 | 1720 | Estate |

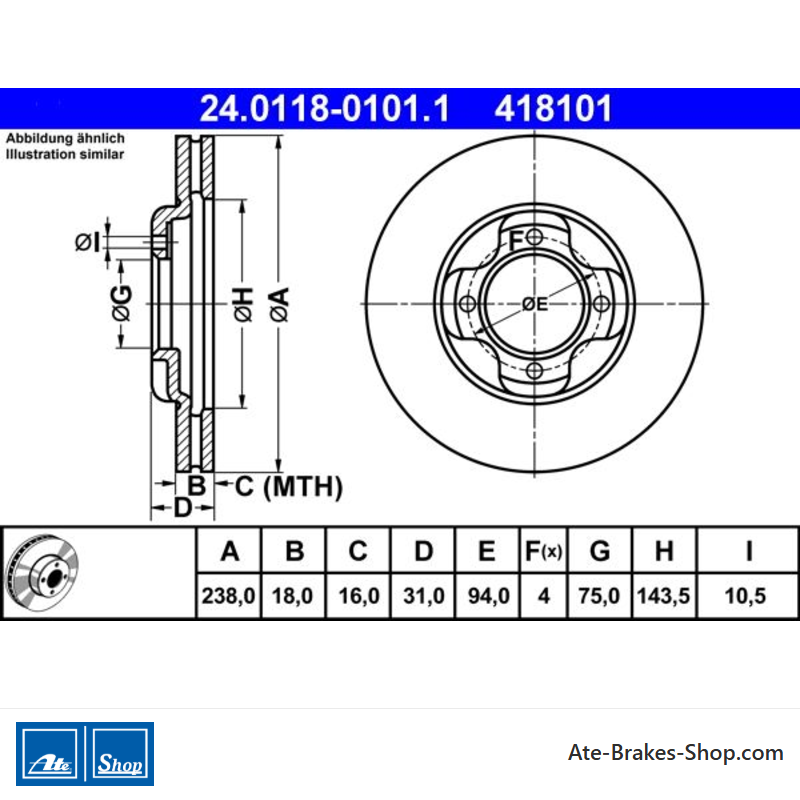

24.0118-0101.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Mazda
- Handelsnummer
- 418101
- Herkunftsland
- EU
- Höhe
- 31,0
- Außendurchmesser [mm]
- 238,0
- Bremsscheibendicke [mm]
- 18,0
- Bremsscheibentyp
- Entlüftet
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 94,0
- Zentrierungsdurchmesser [mm]
- 75,0
- Innendurchmesser [mm]
- 143,5
- Bohrdurchmesser [mm]
- 10,5
- Mindestdicke [mm]
- 16,0
Spezifische Referenzen
- ean13
- 4006633110822
- Hersteller-Teilenummer (MPN)
- 2401180101101
ATE 24.0118-0101.1
(240118-01011)
- Außendurchmesser [mm]: 238,0
- Innendurchmesser [mm]: 143,5
- Bremsscheibendicke [mm]: 18,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 418101
