ATE Originale zweiteilige Bremsscheibe (24011801361) für Nissan
145,20 €
(inkl. MwSt.)
120,00 € Steuerexzl.
Teilenummer:
ATE 24.0118-0136.1
(240118-01361)
- Außendurchmesser [mm]: 316,0
- Innendurchmesser [mm]: 189,0
- Bremsscheibendicke [mm]: 18,0
- Anzahl der Bolzenlöcher: 6
- 2 Teile Bremsscheiben
- Handelsnummer: 418136
Logistische Informationen:
- Ean-Code: 4006633092098
- Gewicht: 16.01kg
Specification of ATE 24.0118-0136.1 / 240118-01361 / 24011801361:
| OE Number | Reference info |
| NISSAN 43206-05J03 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| NISSAN 43206-05J04 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| NISSAN 43206-VB000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| NISSAN PATROL GR IV (Y60, GR) Construction Year from 199110 Construction Year to 199706 Fitting Position Rear Axle | 1988-11 - 1998-02 | 121 | 165 | 4169 | Closed Off-Road Vehicle |
| NISSAN PATROL GR IV (Y60, GR) Construction Year from 199110 Fitting Position Rear Axle | 1988-09 - 1997-06 | 85 | 116 | 2826 | Closed Off-Road Vehicle |
| NISSAN PATROL GR V Wagon (Y61) Construction Year to 200004 Fitting Position Rear Axle | 1997-06 - 2000-05 | 95 | 129 | 2826 | Closed Off-Road Vehicle |
| NISSAN PATROL GR V Wagon (Y61) Construction Year to 200408 Fitting Position Rear Axle | 2000-05 - | 116 | 158 | 2953 | Closed Off-Road Vehicle |
| NISSAN PATROL GR V Wagon (Y61) Construction Year to 201003 Fitting Position Rear Axle | 2000-05 - | 118 | 160 | 2953 | Closed Off-Road Vehicle |

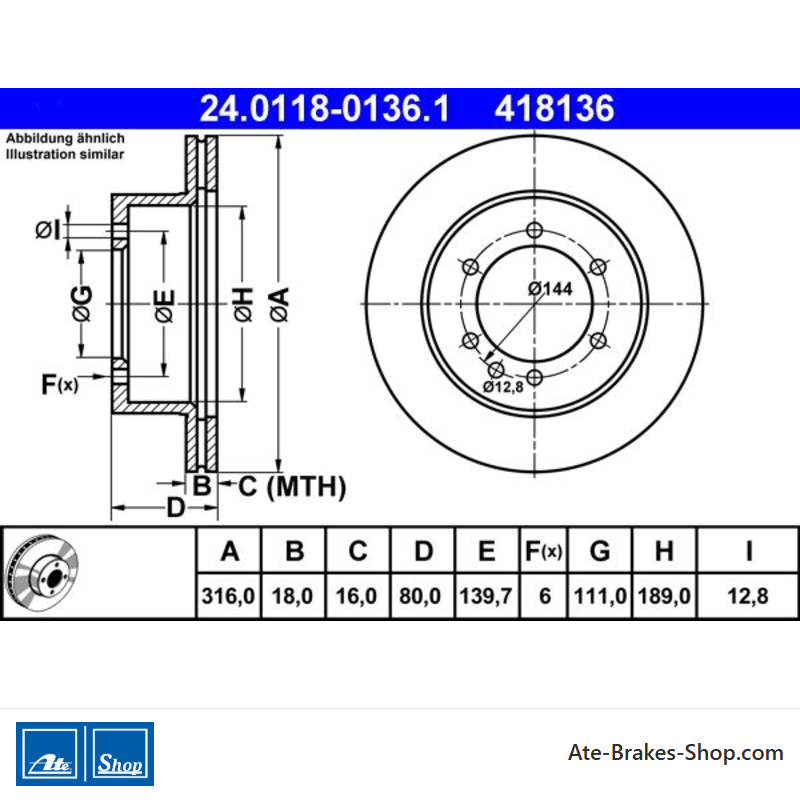

24.0118-0136.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Nissan
- Handelsnummer
- 418136
- Herkunftsland
- Italien
- Höhe
- 80,0
- Außendurchmesser [mm]
- 316,0
- Bremsscheibendicke [mm]
- 18,0
- Bremsscheibentyp
- Entlüftet
- Anzahl der Schraublöcher
- 6
- Bolzenlochdurchmesser [mm]
- 139,7
- Zentrierungsdurchmesser [mm]
- 111,0
- Innendurchmesser [mm]
- 189,0
- Bohrdurchmesser [mm]
- 12,8
- Mindestdicke [mm]
- 16,0
Spezifische Referenzen
- ean13
- 4006633092098
- Hersteller-Teilenummer (MPN)
- 2401180136102
