ATE Originale zweiteilige Bremsscheibe (24011901061) für Honda
68,97 €
(inkl. MwSt.)
57,00 € Steuerexzl.
Teilenummer:
ATE 24.0119-0106.1
(240119-01061)
- Außendurchmesser [mm]: 242,0
- Innendurchmesser [mm]: 122,0
- Bremsscheibendicke [mm]: 19,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 419106
Logistische Informationen:
- Ean-Code: 4006633116114
- Gewicht: 8.66kg
Specification of ATE 24.0119-0106.1 / 240119-01061 / 24011901061:
| OE Number | Reference info |
| HONDA 45251-SB2-990 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 45251-SB2-780 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 45251-SB2-782 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 45251-SB2-781 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HONDA CIVIC IV Saloon (ED, EF) Construction Year from 198909 Construction Year to 199108 Fitting Position Front Axle | 1987-10 - 1991-09 | 66 | 90 | 1493 | Saloon |
| HONDA CIVIC IV Saloon (ED, EF) Construction Year from 198909 Construction Year to 199108 Fitting Position Front Axle | 1987-10 - 1991-09 | 69 | 94 | 1493 | Saloon |
| HONDA CIVIC IV Saloon (ED, EF) Construction Year to 199108 Fitting Position Front Axle | 1987-11 - 1991-09 | 79 | 107 | 1590 | Saloon |
| HONDA CIVIC IV Saloon (ED, EF) Construction Year to 199108 Fitting Position Front Axle | 1987-11 - 1991-09 | 80 | 109 | 1590 | Saloon |
| HONDA CIVIC IV Saloon (ED, EF) Construction Year to 199108 Fitting Position Front Axle | 1989-10 - 1991-09 | 80 | 109 | 1590 | Saloon |
| HONDA CIVIC IV Saloon (ED, EF) Construction Year to 199108 Fitting Position Front Axle | 1987-10 - 1991-09 | 81 | 110 | 1590 | Saloon |
| HONDA CIVIC IV Saloon (ED, EF) Construction Year to 199108 Fitting Position Front Axle | 1987-09 - 1991-09 | 96 | 130 | 1590 | Saloon |
| HONDA CIVIC IV Hatchback (EC, ED, EE, EF) Construction Year from 198909 Construction Year to 199108 Fitting Position Front Axle | 1988-10 - 1991-09 | 66 | 90 | 1493 | Hatchback |
| HONDA CIVIC IV Hatchback (EC, ED, EE, EF) Construction Year from 198909 Construction Year to 199108 Fitting Position Front Axle | 1988-10 - 1991-09 | 69 | 94 | 1493 | Hatchback |
| HONDA CIVIC IV Hatchback (EC, ED, EE, EF) Construction Year to 199108 Fitting Position Front Axle Number of Doors 3 | 1987-10 - 1991-09 | 80 | 109 | 1590 | Hatchback |
| HONDA CIVIC IV Hatchback (EC, ED, EE, EF) Construction Year to 199108 Fitting Position Front Axle Number of Doors 3 | 1987-10 - 1991-09 | 81 | 110 | 1590 | Hatchback |
| HONDA CIVIC IV Shuttle (EE, EF) Construction Year to 198912 Fitting Position Front Axle | 1988-01 - 1992-12 | 66 | 90 | 1396 | Estate |
| HONDA CIVIC IV Shuttle (EE, EF) Construction Year to 198912 Fitting Position Front Axle | 1988-01 - 1991-11 | 69 | 94 | 1493 | Estate |
| HONDA CIVIC IV Shuttle (EE, EF) Fitting Position Front Axle | 1988-01 - 1989-12 | 80 | 109 | 1590 | Estate |
| HONDA CIVIC IV Shuttle (EE, EF) Construction Year to 199108 Fitting Position Front Axle | 1988-01 - 1995-02 | 81 | 110 | 1590 | Estate |
| HONDA CRX I (AF, AS) Construction Year from 198612 Construction Year to 198708 Fitting Position Front Axle | 1986-03 - 1987-10 | 92 | 125 | 1590 | Coupe |
| HONDA CRX II (ED, EE) Construction Year to 199108 Fitting Position Front Axle | 1987-10 - 1991-12 | 79 | 107 | 1590 | Coupe |
| HONDA CRX II (ED, EE) Construction Year to 199108 Fitting Position Front Axle | 1987-10 - 1992-02 | 91 | 124 | 1590 | Coupe |
| HONDA CRX II (ED, EE) Fitting Position Front Axle | 1987-10 - 1989-12 | 96 | 131 | 1590 | Coupe |
| HONDA INTEGRA Hatchback (DA) Construction Year from 198605 Fitting Position Front Axle Country Specific Design Europe Country Specific Design USA | 1985-10 - 1989-08 | 63 | 86 | 1488 | Hatchback |
| HONDA INTEGRA Hatchback (DA) Construction Year from 198605 Fitting Position Front Axle Country Specific Design Europe Country Specific Design USA | 1986-03 - 1989-08 | 88 | 120 | 1590 | Hatchback |

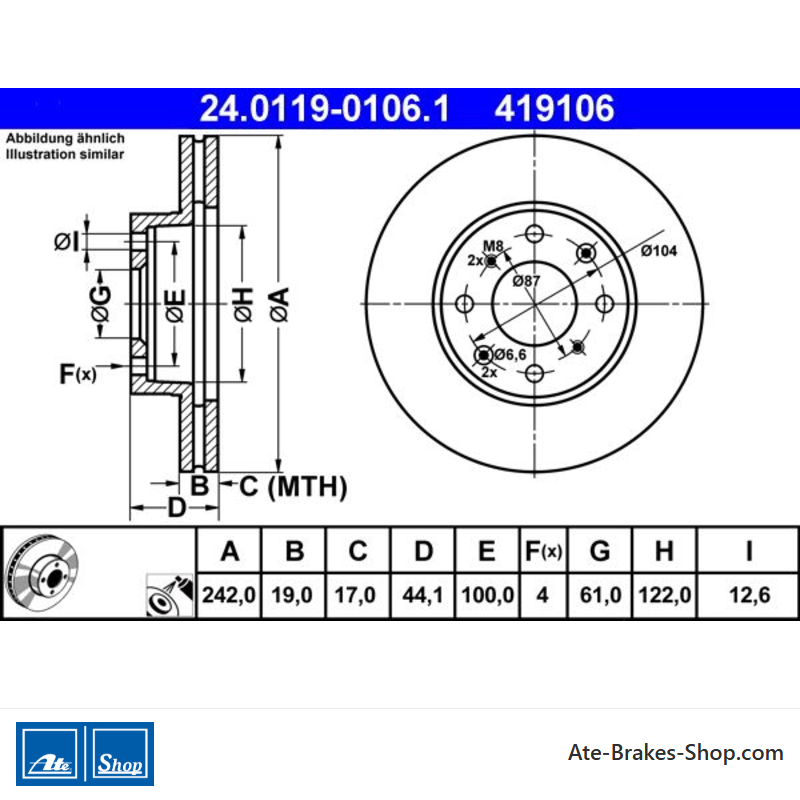

24.0119-0106.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Honda
- Handelsnummer
- 419106
- Herkunftsland
- Deutschland
- Höhe
- 44,1
- Außendurchmesser [mm]
- 242,0
- Bremsscheibendicke [mm]
- 19,0
- Bremsscheibentyp
- Entlüftet
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 100,0
- Zentrierungsdurchmesser [mm]
- 61,0
- Innendurchmesser [mm]
- 122,0
- Bohrdurchmesser [mm]
- 12,6
- Mindestdicke [mm]
- 17,0
Spezifische Referenzen
- ean13
- 4006633116114
- Hersteller-Teilenummer (MPN)
- 2401190106101
ATE 24.0119-0106.1
(240119-01061)
- Außendurchmesser [mm]: 242,0
- Innendurchmesser [mm]: 122,0
- Bremsscheibendicke [mm]: 19,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 419106
