ATE Originale zweiteilige Bremsscheibe (24012002271) für Chevrolet
101,64 €
(inkl. MwSt.)
84,00 € Steuerexzl.
Teilenummer:
ATE 24.0120-0227.1
(240120-02271)
- Außendurchmesser [mm]: 236,0
- Innendurchmesser [mm]: 123,0
- Bremsscheibendicke [mm]: 20,0
- Anzahl der Bolzenlöcher: 6
- 2 Teile Bremsscheiben
- Handelsnummer: 420227
Logistische Informationen:
- Ean-Code: 4006633372428
- Gewicht: 8.02kg
Specification of ATE 24.0120-0227.1 / 240120-02271 / 24012002271:
| OE Number | Reference info |
| CHEVROLET 96471274 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHEVROLET 96574633 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DAEWOO 96471274 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DAEWOO 96574633 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CHEVROLET AVEO / KALOS Saloon (T200) Construction Year from 200603 Wheel Hub Diameter [mm] 59 mm Fitting Position Front Axle | 2003-05 - 2008-05 | 69 | 94 | 1399 | Saloon |
| CHEVROLET AVEO / KALOS Saloon (T200) Wheel Hub Diameter [mm] 59 mm Fitting Position Front Axle | 2004-10 - 2006-05 | 63 | 86 | 1498 | Saloon |
| CHEVROLET AVEO / KALOS Hatchback (T200) Wheel Hub Diameter [mm] 59 mm Fitting Position Front Axle | 2004-01 - 2008-05 | 53 | 72 | 1150 | Hatchback |
| CHEVROLET AVEO / KALOS Hatchback (T200) Wheel Hub Diameter [mm] 59 mm Fitting Position Front Axle | 2005-03 - 2008-05 | 61 | 83 | 1399 | Hatchback |
| CHEVROLET AVEO / KALOS Hatchback (T200) Wheel Hub Diameter [mm] 59 mm Fitting Position Front Axle | 2003-05 - 2008-05 | 69 | 94 | 1399 | Hatchback |
| CHEVROLET AVEO / KALOS Saloon (T250, T255) Wheel Hub Diameter [mm] 59 mm Fitting Position Front Axle | 2005-03 - 2007-12 | 53 | 72 | 1150 | Saloon |
| CHEVROLET AVEO / KALOS Saloon (T250, T255) Construction Year to 201107 Wheel Hub Diameter [mm] 59 mm Fitting Position Front Axle | 2008-01 - | 55 | 75 | 1206 | Saloon |
| CHEVROLET AVEO / KALOS Saloon (T250, T255) Construction Year to 201107 Wheel Hub Diameter [mm] 59 mm Fitting Position Front Axle | 2008-01 - | 62 | 84 | 1206 | Saloon |
| CHEVROLET AVEO / KALOS Saloon (T250, T255) Construction Year to 201107 Wheel Hub Diameter [mm] 59 mm Fitting Position Front Axle | 2009-01 - | 62 | 84 | 1206 | Saloon |
| CHEVROLET AVEO / KALOS Saloon (T250, T255) Construction Year to 200805 Wheel Hub Diameter [mm] 59 mm Fitting Position Front Axle | 2005-03 - | 61 | 83 | 1399 | Saloon |
| CHEVROLET AVEO / KALOS Saloon (T250, T255) Wheel Hub Diameter [mm] 59 mm Fitting Position Front Axle | 2005-03 - 2013-05 | 69 | 94 | 1399 | Saloon |
| CHEVROLET AVEO / KALOS Saloon (T250, T255) Construction Year to 201107 Wheel Hub Diameter [mm] 59 mm Fitting Position Front Axle | 2008-09 - | 74 | 101 | 1399 | Saloon |
| CHEVROLET AVEO / KALOS Hatchback (T250, T255) Construction Year to 201107 Wheel Hub Diameter [mm] 59 mm Fitting Position Front Axle | 2006-06 - | 53 | 72 | 1150 | Hatchback |
| CHEVROLET AVEO / KALOS Hatchback (T250, T255) Construction Year to 201107 Wheel Hub Diameter [mm] 59 mm Fitting Position Front Axle | 2008-04 - | 55 | 75 | 1206 | Hatchback |
| CHEVROLET AVEO / KALOS Hatchback (T250, T255) Construction Year to 201107 Wheel Hub Diameter [mm] 59 mm Fitting Position Front Axle | 2008-04 - | 62 | 84 | 1206 | Hatchback |
| CHEVROLET AVEO / KALOS Hatchback (T250, T255) Construction Year to 201107 Wheel Hub Diameter [mm] 59 mm Fitting Position Front Axle | 2008-06 - 2012-11 | 60 | 81 | 1206 | Hatchback |
| CHEVROLET AVEO / KALOS Hatchback (T250, T255) Construction Year to 201107 Wheel Hub Diameter [mm] 59 mm Fitting Position Front Axle | 2008-04 - 2011-12 | 62 | 84 | 1206 | Hatchback |
| CHEVROLET AVEO / KALOS Hatchback (T250, T255) Fitting Position Front Axle | 2006-06 - 2008-05 | 69 | 94 | 1399 | Hatchback |
| CHEVROLET AVEO / KALOS Hatchback (T250, T255) Construction Year to 201107 Wheel Hub Diameter [mm] 59 mm Fitting Position Front Axle | 2008-04 - | 74 | 101 | 1399 | Hatchback |
| CHEVROLET SPARK (M300) Fitting Position Front Axle | 2010-07 - | 48 | 65 | 995 | Hatchback |
| CHEVROLET SPARK (M300) Fitting Position Front Axle | 2010-03 - | 50 | 68 | 995 | Hatchback |
| CHEVROLET SPARK (M300) Fitting Position Front Axle | 2010-03 - | 50 | 68 | 995 | Hatchback |
| CHEVROLET SPARK (M300) Fitting Position Front Axle | 2010-03 - | 60 | 82 | 1206 | Hatchback |
| CHEVROLET SPARK (M300) Fitting Position Front Axle | 2010-03 - | 60 | 82 | 1206 | Hatchback |

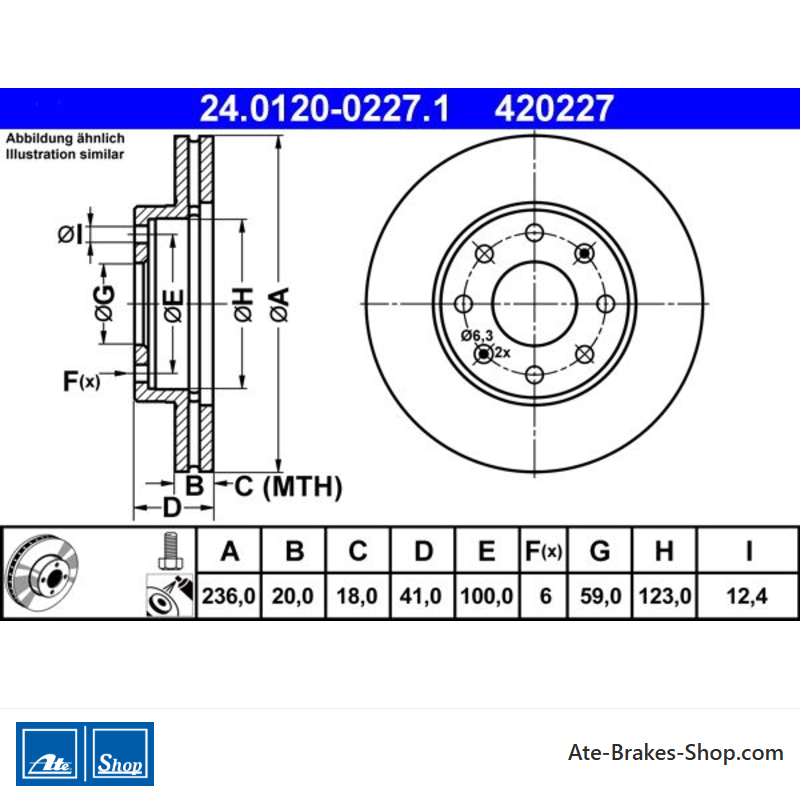

24.0120-0227.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Chevrolet
- Handelsnummer
- 420227
- Herkunftsland
- Tschechien
- Zusätzliche Informationen
- mit Schrauben/Schrauben
- Höhe
- 41,0
- Außendurchmesser [mm]
- 236,0
- Bremsscheibendicke [mm]
- 20,0
- Bremsscheibentyp
- Entlüftet
- Verarbeitung
- Kohlenstoffhoch
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 6
- Bolzenlochdurchmesser [mm]
- 100,0
- Zentrierungsdurchmesser [mm]
- 59,0
- Innendurchmesser [mm]
- 123,0
- Bohrdurchmesser [mm]
- 12,4
- Mindestdicke [mm]
- 18,0
Spezifische Referenzen
- ean13
- 4006633372428
- Hersteller-Teilenummer (MPN)
- 2401200227102
ATE 24.0120-0227.1
(240120-02271)
- Außendurchmesser [mm]: 236,0
- Innendurchmesser [mm]: 123,0
- Bremsscheibendicke [mm]: 20,0
- Anzahl der Bolzenlöcher: 6
- 2 Teile Bremsscheiben
- Handelsnummer: 420227
