ATE Originale zweiteilige Bremsscheibe (24012201461) für Nissan
83,49 €
(inkl. MwSt.)
69,00 € Steuerexzl.
Teilenummer:
ATE 24.0122-0146.1
(240122-01461)
- Außendurchmesser [mm]: 257,0
- Innendurchmesser [mm]: 144,0
- Bremsscheibendicke [mm]: 22,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 422146
Logistische Informationen:
- Ean-Code: 4006633282109
- Gewicht: 11.30kg
Specification of ATE 24.0122-0146.1 / 240122-01461 / 24012201461:
| OE Number | Reference info |
| NISSAN 40206-71E01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| NISSAN 40206-71E02 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| NISSAN 40206-71E05 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| NISSAN 40206-71E06 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| NISSAN 40206-93J00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| NISSAN 40206-93J01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| NISSAN 200SX (S13) Construction Year from 198809 Construction Year to 199109 Fitting Position Front Axle | 1988-07 - 1993-11 | 124 | 169 | 1809 | Coupe |
| NISSAN ALMERA II Hatchback (N16) Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 2002-10 - 2006-09 | 72 | 98 | 1497 | Hatchback |
| NISSAN ALMERA II Hatchback (N16) Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 2000-03 - 2006-11 | 66 | 90 | 1498 | Hatchback |
| NISSAN ALMERA II Hatchback (N16) Construction Year to 200103 Braking/Driving Dynamics for vehicles without ABS Vehicle Production Country Japan Fitting Position Front Axle | 2000-03 - 2006-11 | 66 | 90 | 1498 | Hatchback |
| NISSAN ALMERA II Hatchback (N16) Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 2003-01 - 2006-09 | 60 | 82 | 1461 | Hatchback |
| NISSAN ALMERA II (N16) Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 2002-10 - 2006-09 | 72 | 98 | 1497 | Saloon |
| NISSAN ALMERA II (N16) Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 2000-07 - 2006-11 | 66 | 90 | 1498 | Saloon |
| NISSAN ALMERA II (N16) Construction Year to 200103 Braking/Driving Dynamics for vehicles without ABS Vehicle Production Country Japan Fitting Position Front Axle | 2000-07 - 2006-11 | 66 | 90 | 1498 | Saloon |
| NISSAN ALMERA II (N16) Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 2003-01 - 2006-09 | 60 | 82 | 1461 | Saloon |
| NISSAN PRAIRIE PRO (M11) Construction Year to 199203 Fitting Position Front Axle | 1988-10 - 1992-04 | 72 | 98 | 1974 | MPV |
| NISSAN PRAIRIE PRO (M11) Construction Year to 199203 Fitting Position Front Axle | 1988-10 - 1992-12 | 72 | 98 | 1974 | MPV |
| NISSAN PRIMERA (P10) Construction Year from 199305 Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 1990-06 - 1996-01 | 66 | 90 | 1597 | Saloon |
| NISSAN PRIMERA (P10) Construction Year from 199305 Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 1990-06 - 1996-01 | 71 | 97 | 1597 | Saloon |
| NISSAN PRIMERA (P10) Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 1993-06 - 1996-01 | 75 | 102 | 1597 | Saloon |
| NISSAN PRIMERA (P10) Fitting Position Front Axle | 1990-06 - 1996-01 | 85 | 116 | 1998 | Saloon |
| NISSAN PRIMERA (P10) Fitting Position Front Axle | 1991-04 - 1996-06 | 85 | 116 | 1998 | Saloon |
| NISSAN PRIMERA (P10) Construction Year to 199601 Fitting Position Front Axle | 1995-01 - 1996-06 | 92 | 125 | 1998 | Saloon |
| NISSAN PRIMERA (P10) Fitting Position Front Axle | 1990-06 - 1996-01 | 110 | 150 | 1998 | Saloon |
| NISSAN PRIMERA (P10) Fitting Position Front Axle | 1991-03 - 1993-04 | 110 | 150 | 1998 | Saloon |
| NISSAN PRIMERA (P10) Construction Year from 199305 Fitting Position Front Axle | 1991-01 - 1996-01 | 55 | 75 | 1974 | Saloon |
| NISSAN PRIMERA Hatchback (P10) Construction Year from 199305 Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 1990-06 - 1996-01 | 66 | 90 | 1597 | Hatchback |
| NISSAN PRIMERA Hatchback (P10) Fitting Position Front Axle | 1990-06 - 1996-01 | 85 | 116 | 1998 | Hatchback |
| NISSAN PRIMERA Hatchback (P10) Fitting Position Front Axle | 1991-04 - 1996-06 | 85 | 116 | 1998 | Hatchback |
| NISSAN PRIMERA Hatchback (P10) Construction Year to 199601 Fitting Position Front Axle | 1995-01 - 1996-06 | 92 | 125 | 1998 | Hatchback |
| NISSAN PRIMERA Hatchback (P10) Construction Year from 199305 Fitting Position Front Axle | 1991-01 - 1996-01 | 55 | 75 | 1974 | Hatchback |
| NISSAN PRIMERA Traveller (W10) Fitting Position Front Axle | 1990-07 - 1998-03 | 66 | 90 | 1597 | Estate |
| NISSAN PRIMERA Traveller (W10) Fitting Position Front Axle | 1991-02 - 1998-03 | 75 | 102 | 1597 | Estate |
| NISSAN PRIMERA Traveller (W10) Construction Year to 199512 Fitting Position Front Axle | 1990-07 - 1998-03 | 85 | 116 | 1998 | Estate |
| NISSAN PRIMERA Traveller (W10) Fitting Position Front Axle | 1990-07 - 1995-12 | 55 | 75 | 1974 | Estate |
| NISSAN PRIMERA Hatchback (P11) Construction Year to 199905 Fitting Position Front Axle | 1996-09 - 2002-07 | 66 | 90 | 1597 | Hatchback |
| NISSAN PRIMERA Hatchback (P11) Construction Year to 199905 Fitting Position Front Axle | 1996-09 - 2002-07 | 73 | 99 | 1597 | Hatchback |
| NISSAN PRIMERA Hatchback (P11) Construction Year to 199905 Fitting Position Front Axle | 1996-09 - 2002-07 | 85 | 115 | 1998 | Hatchback |
| NISSAN PRIMERA Hatchback (P11) Construction Year to 199905 Fitting Position Front Axle | 1996-09 - 2002-07 | 96 | 131 | 1998 | Hatchback |
| NISSAN PRIMERA Hatchback (P11) Construction Year to 199905 Fitting Position Front Axle | 1996-09 - 2002-07 | 66 | 90 | 1974 | Hatchback |
| NISSAN PRIMERA (P11) Construction Year to 199905 Fitting Position Front Axle | 1996-09 - 2001-12 | 66 | 90 | 1597 | Saloon |
| NISSAN PRIMERA (P11) Construction Year to 199905 Fitting Position Front Axle | 1996-09 - 2000-10 | 73 | 99 | 1597 | Saloon |
| NISSAN PRIMERA (P11) Construction Year to 199905 Fitting Position Front Axle | 1996-06 - 2001-12 | 78 | 106 | 1597 | Saloon |
| NISSAN PRIMERA (P11) Construction Year to 199905 Fitting Position Front Axle | 1996-09 - 2001-12 | 85 | 115 | 1998 | Saloon |
| NISSAN PRIMERA (P11) Construction Year to 199905 Fitting Position Front Axle | 1996-09 - 2001-12 | 96 | 131 | 1998 | Saloon |
| NISSAN PRIMERA (P11) Construction Year to 199905 Fitting Position Front Axle | 1996-09 - 2001-12 | 66 | 90 | 1974 | Saloon |

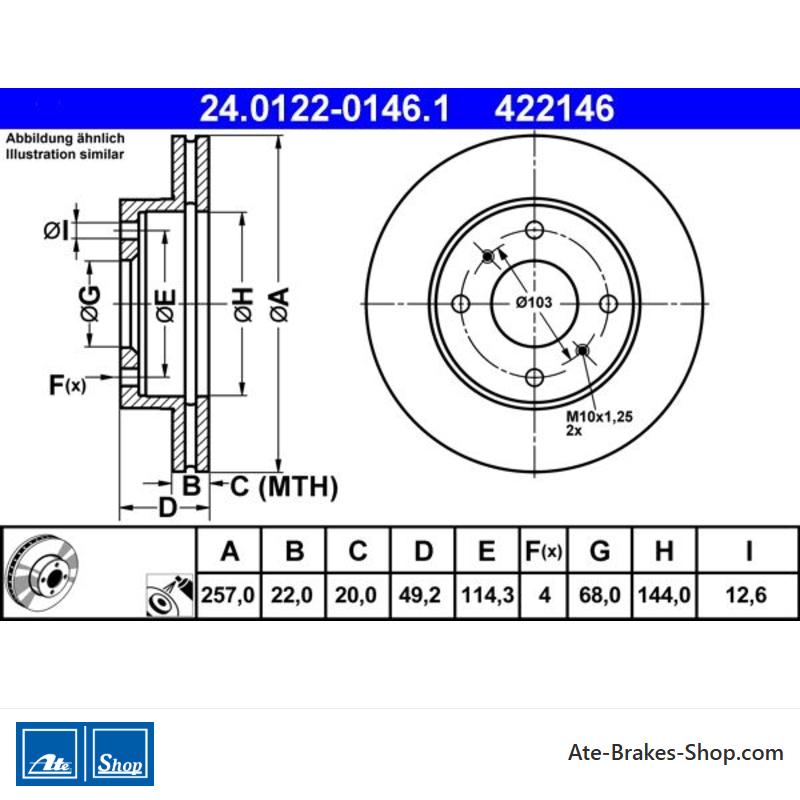

24.0122-0146.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Nissan
- Handelsnummer
- 422146
- Herkunftsland
- EU
- Höhe
- 49,2
- Außendurchmesser [mm]
- 257,0
- Bremsscheibendicke [mm]
- 22,0
- Bremsscheibentyp
- Entlüftet
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 114,3
- Zentrierungsdurchmesser [mm]
- 68,0
- Innendurchmesser [mm]
- 144,0
- Bohrdurchmesser [mm]
- 12,6
- Mindestdicke [mm]
- 20,0
Spezifische Referenzen
- ean13
- 4006633282109
- Hersteller-Teilenummer (MPN)
- 2401220146101
ATE 24.0122-0146.1
(240122-01461)
- Außendurchmesser [mm]: 257,0
- Innendurchmesser [mm]: 144,0
- Bremsscheibendicke [mm]: 22,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 422146
