ATE Originale zweiteilige Bremsscheibe (24012201541) für Toyota
98,01 €
(inkl. MwSt.)
81,00 € Steuerexzl.
Teilenummer:
ATE 24.0122-0154.1
(240122-01541)
- Außendurchmesser [mm]: 255,0
- Innendurchmesser [mm]: 131,0
- Bremsscheibendicke [mm]: 22,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 422154
Logistische Informationen:
- Ean-Code: 4006633301824
- Gewicht: 10.32kg
Specification of ATE 24.0122-0154.1 / 240122-01541 / 24012201541:
| OE Number | Reference info |
| TOYOTA 43512-32180 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 43512-32090 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA CAMRY (_V2_) Construction Year to 198712 Fitting Position Front Axle | 1986-10 - 1988-08 | 66 | 90 | 1832 | Saloon |
| TOYOTA CAMRY (_V2_) Construction Year to 198712 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1986-11 - 1993-02 | 89 | 121 | 1998 | Saloon |
| TOYOTA CAMRY (_V2_) Construction Year to 198712 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1986-11 - 1991-05 | 94 | 128 | 1998 | Saloon |
| TOYOTA CAMRY (_V2_) Construction Year to 198712 Fitting Position Front Axle | 1986-11 - 1991-05 | 62 | 84 | 1974 | Saloon |
| TOYOTA CAMRY (_V2_) Construction Year to 198712 Fitting Position Front Axle | 1986-10 - 1991-05 | 63 | 86 | 1974 | Saloon |
| TOYOTA CAMRY Estate (_V2_) Construction Year to 198712 Fitting Position Front Axle | 1986-11 - 1989-08 | 66 | 90 | 1832 | Estate |
| TOYOTA CAMRY Estate (_V2_) Construction Year to 198712 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1986-11 - 1993-02 | 89 | 121 | 1998 | Estate |
| TOYOTA CAMRY Estate (_V2_) Construction Year to 198712 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1986-11 - 1991-05 | 94 | 128 | 1998 | Estate |
| TOYOTA CAMRY Estate (_V2_) Construction Year to 198712 Fitting Position Front Axle | 1986-11 - 1991-05 | 62 | 84 | 1974 | Estate |
| TOYOTA CARINA V Saloon (_T17_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1987-12 - 1990-08 | 66 | 90 | 1587 | Saloon |
| TOYOTA CARINA V Saloon (_T17_) Construction Year to 199201 Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1987-12 - 1992-03 | 72 | 98 | 1587 | Saloon |
| TOYOTA CARINA V Saloon (_T17_) Construction Year to 199201 Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1987-12 - 1992-03 | 75 | 102 | 1587 | Saloon |
| TOYOTA CARINA V Saloon (_T17_) Construction Year to 199201 Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1987-12 - 1992-03 | 89 | 121 | 1998 | Saloon |
| TOYOTA CARINA V (_T17_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1987-12 - 1989-11 | 66 | 90 | 1587 | Hatchback |
| TOYOTA CARINA V (_T17_) Construction Year to 199201 Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1987-12 - 1992-03 | 72 | 98 | 1587 | Hatchback |
| TOYOTA CARINA V (_T17_) Construction Year to 199201 Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1987-12 - 1992-03 | 75 | 102 | 1587 | Hatchback |
| TOYOTA CARINA V (_T17_) Construction Year to 199201 Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1987-12 - 1992-03 | 89 | 121 | 1998 | Hatchback |
| TOYOTA CARINA V Estate (_T17_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1987-12 - 1989-12 | 66 | 90 | 1587 | Estate |
| TOYOTA CARINA V Estate (_T17_) Construction Year to 199201 Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1987-12 - 1992-03 | 72 | 98 | 1587 | Estate |
| TOYOTA CARINA V Estate (_T17_) Construction Year to 199201 Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1987-12 - 1992-03 | 75 | 102 | 1587 | Estate |
| TOYOTA CARINA V Estate (_T17_) Construction Year to 199201 Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1987-12 - 1992-04 | 89 | 121 | 1998 | Estate |
24.0122-0154.1

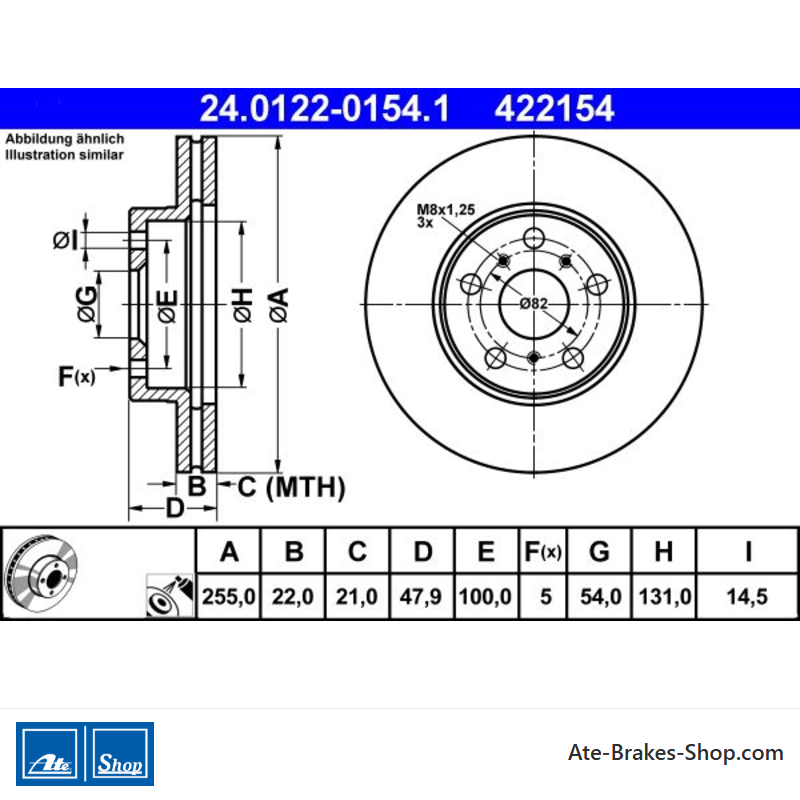

Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Toyota
- Handelsnummer
- 422154
- Herkunftsland
- Deutschland
- Höhe
- 47,9
- Außendurchmesser [mm]
- 255,0
- Bremsscheibendicke [mm]
- 22,0
- Bremsscheibentyp
- Entlüftet
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 100,0
- Zentrierungsdurchmesser [mm]
- 54,0
- Innendurchmesser [mm]
- 131,0
- Bohrdurchmesser [mm]
- 14,5
- Mindestdicke [mm]
- 21,0
Spezifische Referenzen
- ean13
- 4006633301824
- Hersteller-Teilenummer (MPN)
- 2401220154102
ATE 24.0122-0154.1
(240122-01541)
- Außendurchmesser [mm]: 255,0
- Innendurchmesser [mm]: 131,0
- Bremsscheibendicke [mm]: 22,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 422154
