ATE Original 2 Teile Bremsscheibe (24012202251) für Alfa Romeo
108,90 €
(inkl. MwSt.)
90,00 € Steuerexzl.
Teilenummer:
ATE 24.0122-0225.1
(240122-02251)
- Außendurchmesser [mm]: 284,0
- Innendurchmesser [mm]: 127,0
- Bremsscheibendicke [mm]: 22,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 422225
Logistische Informationen:
- Ean-Code: 4006633245685
- Gewicht: 12.37kg
Specification of ATE 24.0122-0225.1 / 240122-02251 / 24012202251:
| OE Number | Reference info |
| FIAT 46427948 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 60606170 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| ALFA ROMEO GTV (916_) Fitting Position Front Axle | 1998-05 - 2005-10 | 106 | 144 | 1747 | Coupe |
| ALFA ROMEO GTV (916_) Fitting Position Front Axle | 1995-06 - 2005-10 | 110 | 150 | 1970 | Coupe |
| ALFA ROMEO GTV (916_) Fitting Position Front Axle | 1997-09 - 2003-03 | 114 | 155 | 1970 | Coupe |
| ALFA ROMEO GTV (916_) Fitting Position Front Axle | 2003-04 - 2005-10 | 121 | 165 | 1970 | Coupe |
| ALFA ROMEO SPIDER (916_) Fitting Position Front Axle | 1998-05 - 2005-04 | 106 | 144 | 1747 | Convertible |
| ALFA ROMEO SPIDER (916_) Construction Year from 199511 Fitting Position Front Axle | 1995-06 - 2005-04 | 110 | 150 | 1970 | Convertible |
| ALFA ROMEO SPIDER (916_) Fitting Position Front Axle | 1998-05 - 2000-08 | 114 | 155 | 1970 | Convertible |
| ALFA ROMEO SPIDER (916_) Fitting Position Front Axle | 2003-04 - 2005-04 | 121 | 165 | 1970 | Convertible |

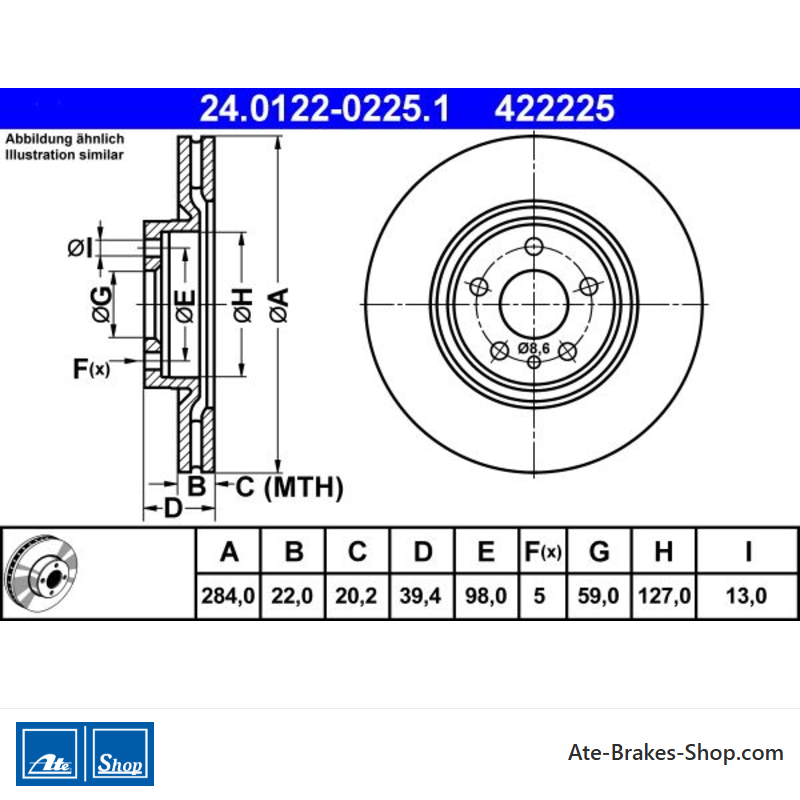

24.0122-0225.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Alfa Romeo
- Handelsnummer
- 422225
- Herkunftsland
- Italien
- Höhe
- 39,4
- Außendurchmesser [mm]
- 284,0
- Bremsscheibendicke [mm]
- 22,0
- Bremsscheibentyp
- Entlüftet
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 98,0
- Zentrierungsdurchmesser [mm]
- 59,0
- Innendurchmesser [mm]
- 127,0
- Bohrdurchmesser [mm]
- 13,0
- Mindestdicke [mm]
- 20,2
Spezifische Referenzen
- ean13
- 4006633245685
- Hersteller-Teilenummer (MPN)
- 2401220225102
